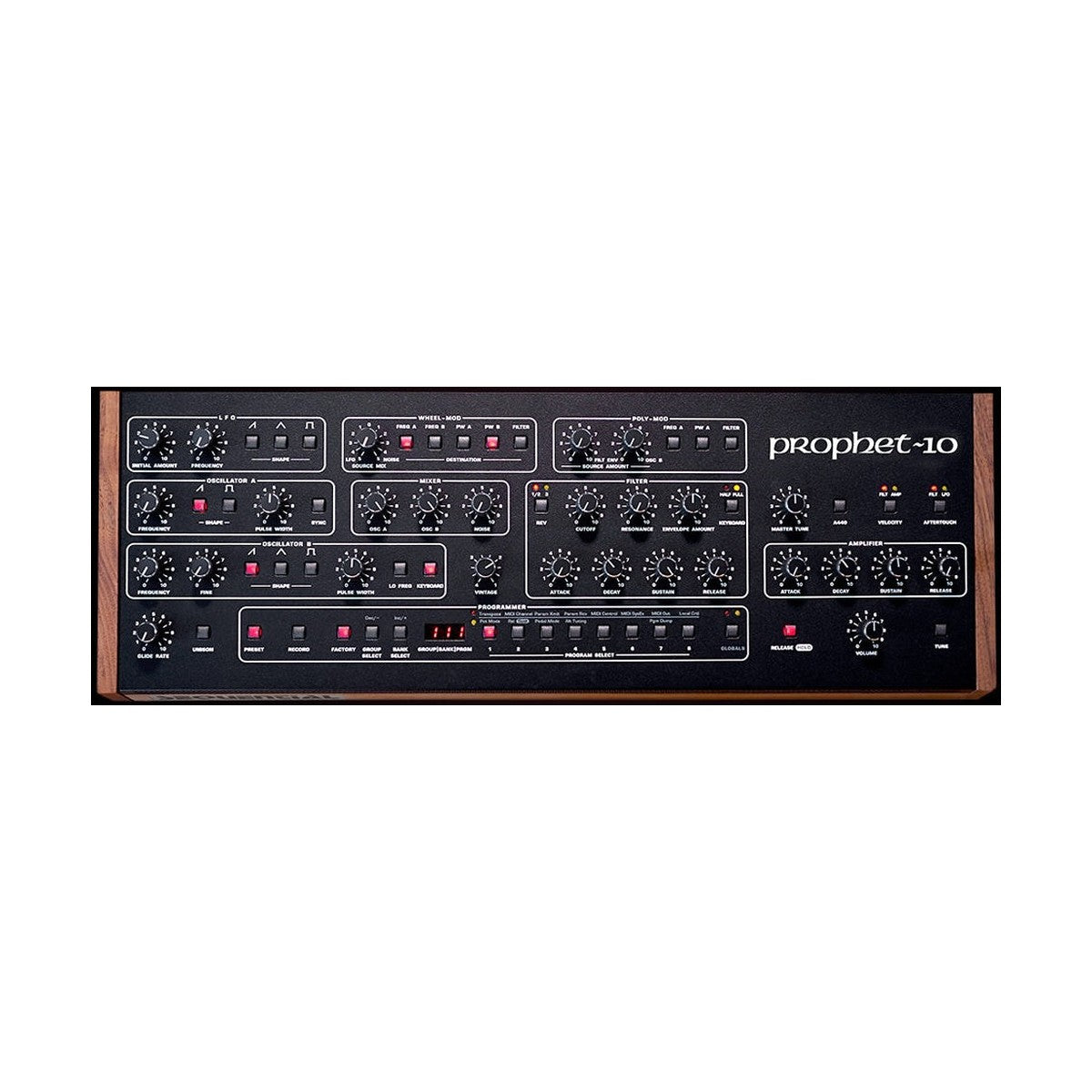

SEQUENTIAL Prophet-10 Desktop-Modul
Optionen wählen
Sequential Prophet-10 Desktop — 10-voice fully analog polyphonic synthesizer in a compact desktop format, featuring two CEM3340 oscillators, switchable SSM/SSI low-pass filters, Poly-Mod modulation, and 400 presets.
The Prophet-10 Desktop is a modern reissue of the classic Prophet-5, offering 10 voices of polyphony and a streamlined panel for direct access to essential parameters. It includes two CEM3340 analog oscillators per voice, with the ability to simultaneously activate multiple waveforms, oscillator sync, noise generator, and a signal mixer. Its standout feature is the switchable 24 dB low-pass filter — users can choose between the original SSM2040 and the updated SSI2140 designs, offering different tonal characteristics inspired by various Prophet-5 revisions.
It features two ADSR envelope generators, a single LFO with three waveform types (which can be enabled simultaneously), and a classic Poly-Mod section with Oscillator B and Filter Envelope as sources. The Prophet-10 also offers a Vintage knob that emulates the component tolerances of early units, including oscillator drift and envelope response. Additional functionality includes CV/Gate, MIDI, and USB connectivity, along with 400 preset slots, including 40 original Prophet-5 sounds.
KEY FEATURES
- 10-voice fully analog polyphony
- Desktop version without keyboard
- 2 CEM3340 VCOs per voice
- Simultaneous activation of multiple waveforms
- 24 dB low-pass filter with switchable SSM/SSI modes
- Poly-Mod modulation section with Oscillator B and Filter Envelope
- 2 ADSR envelope generators
- 1 LFO with three waveform types
- Unison mode
- 400 presets (200 Factory + 200 User)
- Vintage knob for tuning oscillator and filter behavior
- 440 Hz test tone generator
TECHNICAL SPECIFICATIONS
- Manufacturer: Sequential
- Construction: Desktop, no keyboard
- Aftertouch: Yes
- Velocity sensitivity: Yes
- Sound generation: Analog
- Polyphony: 10 voices
- Number of presets: 400
- Number of knobs: 28
- Display: Yes
- Connectivity: MIDI In/Out/Thru, USB MIDI, CV/Gate In/Out
- Line output: Yes (Mono)
- Headphone output: Yes
- Pedal inputs: Volume, Expression, Sustain, Filter, Release
- Power supply: Internal PSU (adapter included)
- Dimensions (W x H x D): 52.7 x 7.6 x 18.8 cm
