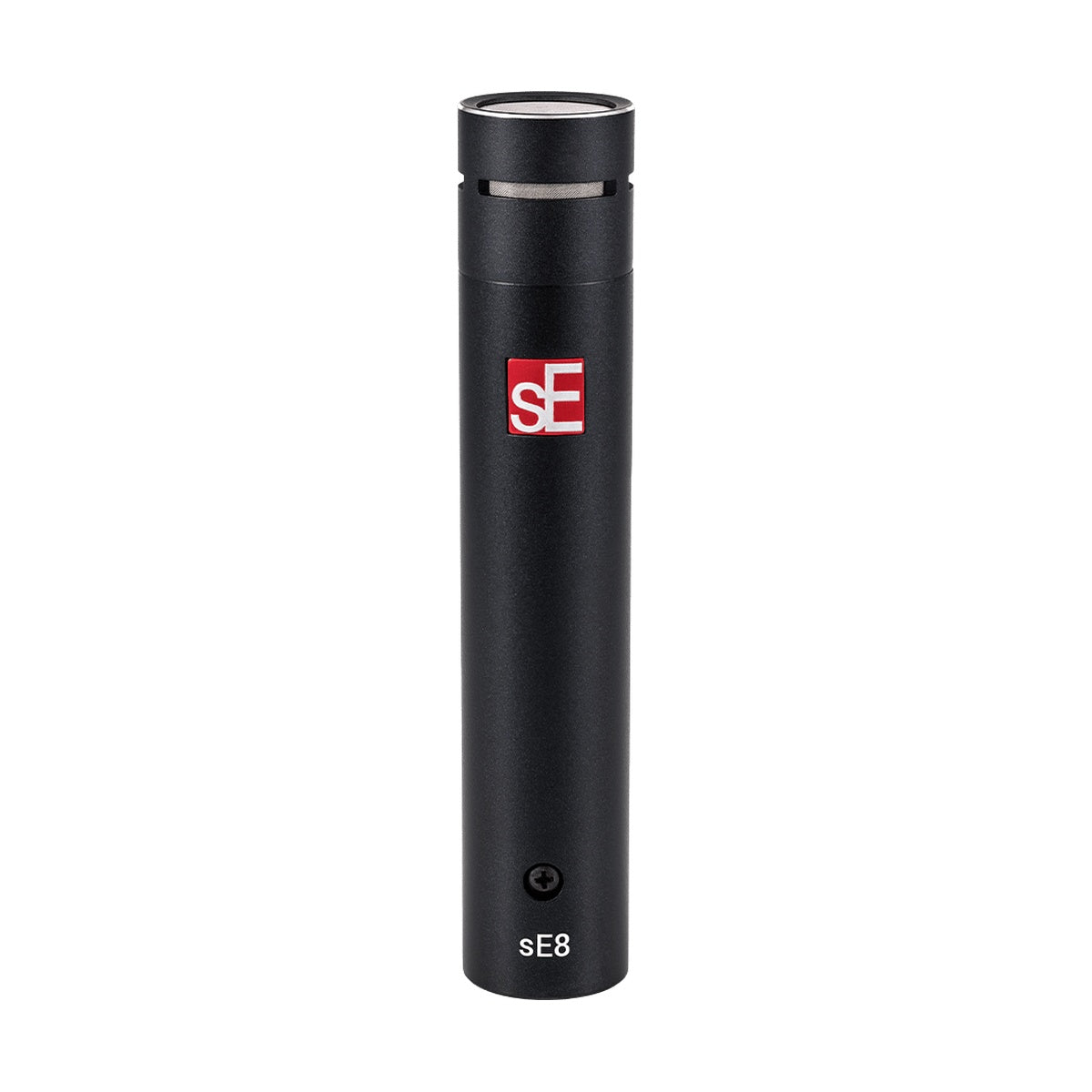

sE Electronics sE8 Supercardioid
This item is available on a custom order basis only
Please contact us for more details.
Kontaktiere unsOptionen wählen
This item is available on a custom order basis only
Please contact us for more details.
Kontaktiere unsThis item is available on a custom order basis only
Please contact us for more details.
Kontaktiere unssE Electronics sE8 Supercardioid is a small-diaphragm pencil condenser with a hand-crafted 1/2 inch capsule and a tight supercardioid pattern. It is the sE8 for jobs where isolation matters: a snare next to a hi-hat, an acoustic guitar on stage, several instruments in one room.
Less bleed, same sE8 sound
sE describes the sE8 Supercardioid as the same condenser performance as the sE8 with a tighter pickup pattern. The hand-crafted, individually tuned capsule with an ultra-thin gold-sputtered diaphragm gives fast transients and natural sound without hype. In practice you aim the pattern's null points at the bleed source, such as the hi-hat when miking a snare or a stage monitor, and leave more room for the instrument you actually want.
Headroom and filters on the body
Two switches on the microphone cover the usual trouble with a source close to the capsule: a 10 or 20 dB pad and an 80 or 160 Hz low-cut filter (6 dB/oct.). Max SPL reaches 139 dB with the pad off and 159 dB with the 20 dB pad (0.5% THD at 1 kHz), and equivalent noise is 13 dB. The sE8 body also accepts cardioid and omni capsules, so one microphone can change its pattern with the job. On acoustic guitar or piano the tight pattern helps you place the microphone close for detail without letting the rest of the room in.
KEY FEATURES
- Hand-crafted 1/2 inch true condenser capsule, individually tuned
- Ultra-thin gold-sputtered diaphragm (3 micron) and precision electrode
- Supercardioid pattern with strong side rejection
- 10/20 dB pad and 80/160 Hz low-cut filter
- Compatible with sE8 cardioid and omni capsules
- Suggested sources: acoustic guitar, choir, orchestra and strings, piano, woodwinds, drums, cymbals (overheads)
TECHNICAL SPECIFICATIONS
- Type: small-diaphragm condenser microphone, supercardioid pattern
- Capsule: 1/2 inch, hand-crafted
- Frequency range: 20 Hz - 20 kHz
- Max SPL: 139 / 149 / 159 dB (0 / 10 / 20 dB pad, 0.5% THD at 1 kHz)
- Equivalent noise level: 13 dB
- Electrical impedance: 110 Ohms, recommended load above 1 kOhm
- Low-cut filter: 80 / 160 Hz, 6 dB/oct.
- Powering: 48 V phantom (P48), 3-pin XLR connector
- Dimensions: diameter 23 mm (0.91 in), length 120 mm (4.72 in); weight 141 g (4.97 oz)
- In the box: microphone, mic clip with thread adapter, windscreen
