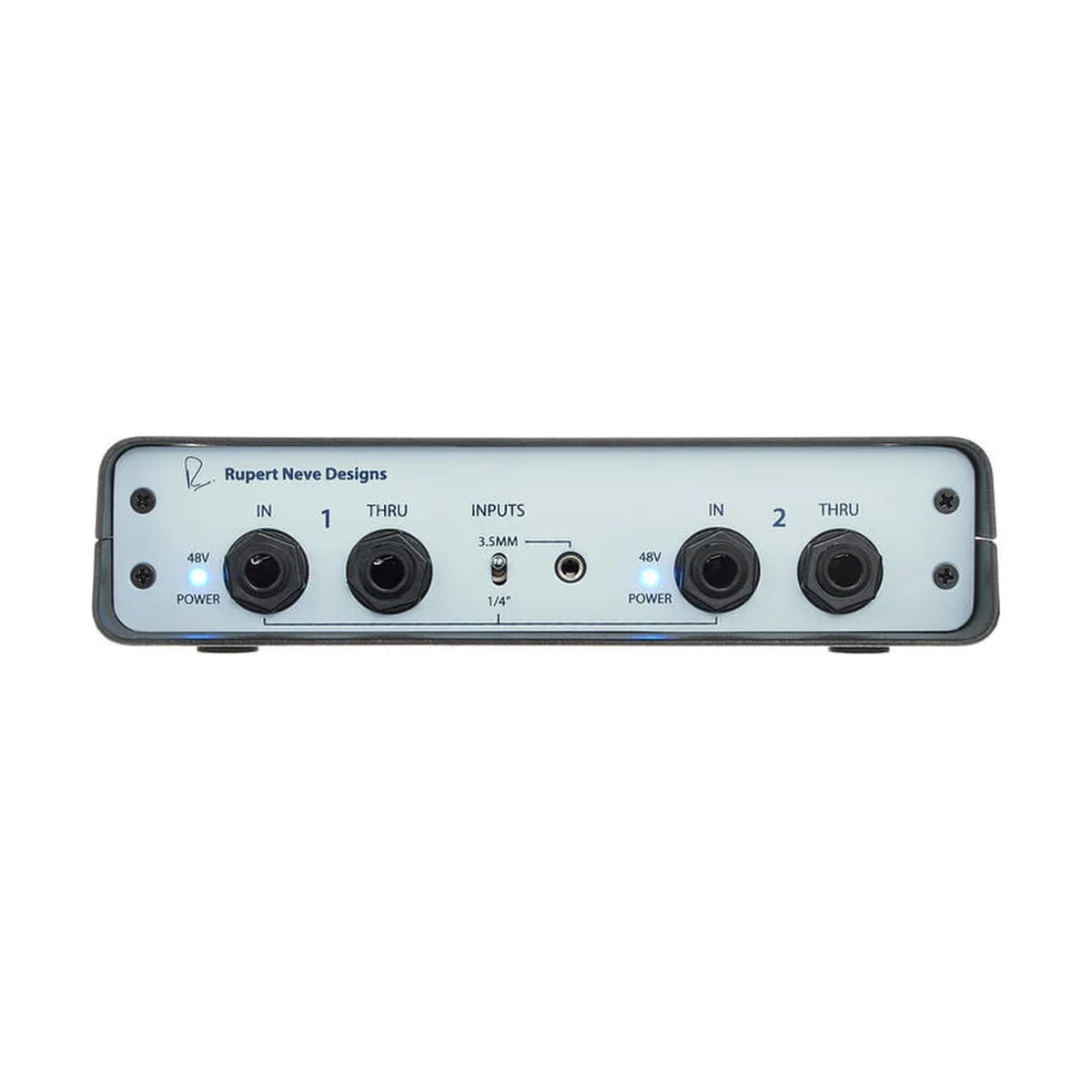

Rupert Neve Designs RNDI-S Stereo Active Transformer Direct Interface – stereo active transformer direct interface, expanded two-channel version of the popular RNDI, providing massive tone and headroom for instruments and stereo sources. Features custom Rupert Neve-designed output transformers and class-A discrete FET input stages, delivering a powerful and vibrant direct sound that captures the full harmonic depth of basses, guitars, acoustic instruments, pre-recorded material, and consumer devices via a 3.5mm stereo input jack. Ideal for studios and live performances.
RNDI-S offers unrivaled clarity from discrete FET amplifiers, drives long lines with minimal loss, provides excellent phase coherence at all frequencies. Powered by dual +48V phantom power, with rugged steel frame built for life on the road. XLR outputs with transformers for rich tone.
As a pro tool, RNDI-S blends analog character with precision, ready for professional recordings without compromise.
MAIN FEATURES
- Custom Rupert Neve Designs transformers for rich, powerful tone
- Exceptional performance with any instrument
- Unrivaled clarity from discrete FET amplifiers
- Drives long lines with minimal loss
- Rugged steel frame built for life on the road
- Powered by dual +48V phantom power
- Excellent phase coherence at all frequencies
TECHNICAL SPECIFICATIONS
- Noise (22 Hz - 22 kHz, Un-weighted): Better than -110 dBV
- Input Impedance: Instrument Input: 2.2 Megohm, 3.5mm Input: 95 Kilohm
- Output Impedance: Less than 40 Ohm
- Frequency Response: +/- 0.25 dB from 28 Hz – 60 kHz, +/- 1 dB from 14 Hz – 90 kHz, -3 dB below 5 Hz
- Maximum Input Level: Instrument Input: +20.5 dBu (8.2 Volts RMS) Typical
- Maximum Output Level: +11.5 dBu Typical
- Total Harmonic Distortion + Noise @ 1 kHz, +20 dBu input level: 0.25% Typical (2nd and 3rd Harmonic)
- Total Harmonic Distortion + Noise @ 1 kHz, -20 dBu input level: 0.015% Typical (2nd and 3rd Harmonic)
- Total Harmonic Distortion + Noise @ 20 Hz, -20 dBu input level: 0.75% Typical (2nd and 3rd Harmonic)
- Power Requirements: 4.5mA Per Channel @ +48VDC
- Mounting Options: 19” Rack Shelf Mounting Option, 4 hole pattern (bottom of unit) for 6-32 machine screws
- Product Dimensions (D x W x H): 7” (17.78 cm) x 5” (12.7 cm) x 1.75” (4.45 cm)
- Shipping Dimensions (L x W x H): 10” (25.4 cm) x 8” (20.32 cm) x 3” (7.62 cm)
- Shipping Weight: 3 lbs (1.36 kg)
- Included: RNDI-S, manual
- Product Code: RNDI-S
