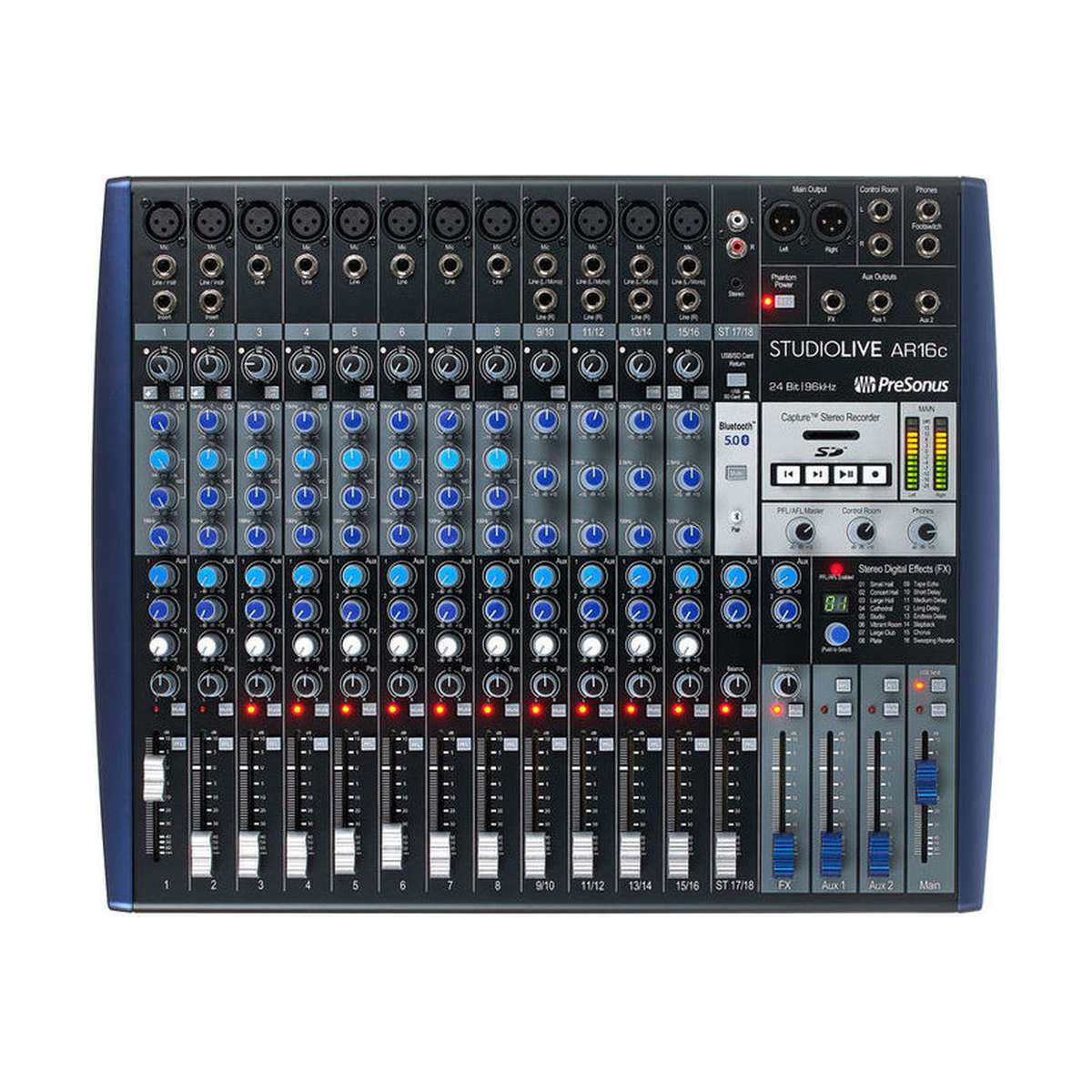

PreSonus StudioLive AR16c – 18-channel analog mixer with USB-C audio interface, 12 XMAX preamps, SD recorder, Bluetooth 5.0, and built-in effects. Perfect for recording, mixing, and production both on stage and in the studio.
The StudioLive AR16c combines a classic analog mixer with a modern 24-bit/96 kHz USB-C audio interface. Equipped with 12 XMAX preamps, the mixer allows recording of each channel along with the main mix simultaneously. It also features an onboard SD recorder, Bluetooth connectivity, Super Channel, a new effects processor with reverb and delay, and comes with a complete recording software package – Studio One Artist and Capture.
This unit excels as a recording hub in the studio, for band rehearsals, live performances, or podcasts. Its solid construction, extensive set of inputs and outputs, intuitive control, and latency-free effects make the AR16c a versatile and complete tool for creative producers.
KEY FEATURES
- 18-channel analog mixer with 24-bit/96 kHz USB-C audio interface
- 12 balanced microphone inputs with XMAX preamps
- 2×2 SD recorder for capturing main mix without a computer
- Super Channel with Bluetooth 5.0, RCA input, 1/8" stereo, and SD/USB playback
- Stereo effects processor with 16 presets and footswitch bypass input
- Mic/Line Boost on stereo channels for classic synths and consumer devices
- Compatibility with Studio One Artist DAW and Capture software
- Metal chassis and 60 mm faders
TECHNICAL SPECIFICATIONS
- Audio interface: 18×4, USB 2.0 via USB-C connector
- Supported sample rates: up to 96 kHz
- Mic inputs: 12 XLR with XMAX preamps
- Line inputs: 8 mono + 4 stereo pairs
- Instrument/line inputs: 2
- Insert: 2 jacks
- Super Channel: Bluetooth 5.0, RCA, stereo 1/8", SD/USB
- Monitor outputs: 2 TRS buses
- Control Room L/R outputs with level control
- Headphone output with volume control
- Effects processor: stereo, 16 presets
- High-pass filter: on every channel
- EQ: 3-band on mono and stereo channels
- Power supply: internal, 90–240 VAC, IEC connector
- Operating temperature: 0–40˚C
- Dimensions: 89 × 480 × 397 mm
- Weight: 6.4 kg
