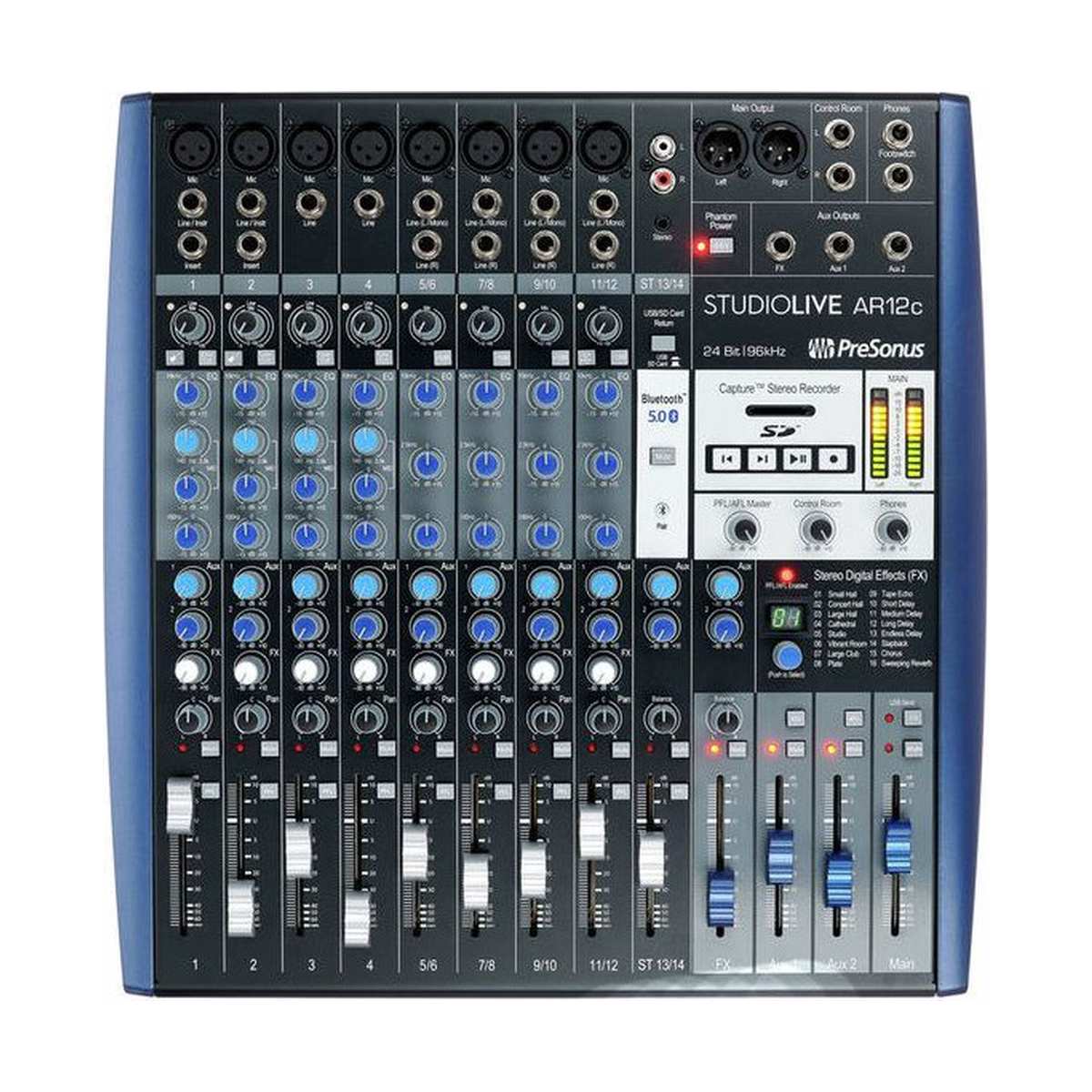

PreSonus StudioLive AR12c – 14-channel hybrid analog mixer with 24-bit/96 kHz USB-C audio interface, 8 XMAX preamps, Bluetooth 5.0, built-in SD recorder, and effects processor with 16 presets – ideal for recording, mixing, podcasts, and live performances.
The PreSonus StudioLive AR12c is a versatile next-generation mixer that combines classic analog control with digital flexibility. With its 14×4 USB 2.0 audio interface over USB-C, you can record each channel individually along with the main mix in high-resolution 24-bit/96 kHz. The built-in 2×2 SD recorder enables independent capture of the main mix without a computer, making it a perfect tool for bands, podcasters, and live sound engineers.
The mixer provides 8 balanced microphone inputs with renowned XMAX preamps, 2 instrument inputs, 4 mono channels, and 4 stereo pairs with 3-band EQ, HPF filters, and solo/mute functions. Super Channel 13/14 offers full flexibility: Bluetooth 5.0, RCA, mini-jack, and SD/USB playback. The built-in effects processor with 16 presets and footswitch option expands creative possibilities. Included Capture and Studio One software provide a complete music production package.
KEY FEATURES
- 14×4 USB 2.0 audio interface (USB-C), 24-bit / 96 kHz
- 14-channel analog mixer with 2×2 SD recorder
- 8 microphone preamps with XMAX, 2 instrument inputs
- Bluetooth 5.0, Super Channel with RCA, mini-jack, and SD/USB playback
- 3-band EQ on each channel, HPF filters, solo and mute functions
- Stereo effects processor with 16 presets and footswitch bypass
- 2 monitor buses with dedicated sends and TRS outputs
- Control Room outputs, headphone output with separate volume control
- Durable metal chassis with 60 mm faders
- Included software: Capture, Studio One Artist, Studio Magic
TECHNICAL SPECIFICATIONS
- Audio interface: 14×4, 24-bit / 96 kHz, USB 2.0 via USB-C
- Recorder: 2×2 SD, supports SD/SDHD cards up to 32 GB
- Mic inputs: 8 × XLR with XMAX preamps
- Line inputs: 12 (4 mono + 4 stereo)
- Instrument inputs: 2
- Super Channel: Bluetooth 5.0, RCA, 1/8″ jack, SD/USB
- Mono EQ: 3-band quasi-parametric with mid control
- Stereo EQ: 3-band semi-parametric
- Effects processor: 16 presets, send/return, footswitch bypass
- Monitor buses: 2 with TRS outputs and AFL solo
- Outputs: Control Room L/R, headphone with independent level
- Mic/Line Boost on stereo channels
- Software: Capture, Studio One Artist, Studio Magic FX
- Power supply: internal, IEC, 90–240 VAC
- Dimensions: 89 × 381 × 397 mm
- Weight: 5.4 kg
- Operating temperature: 0˚–40˚ C
