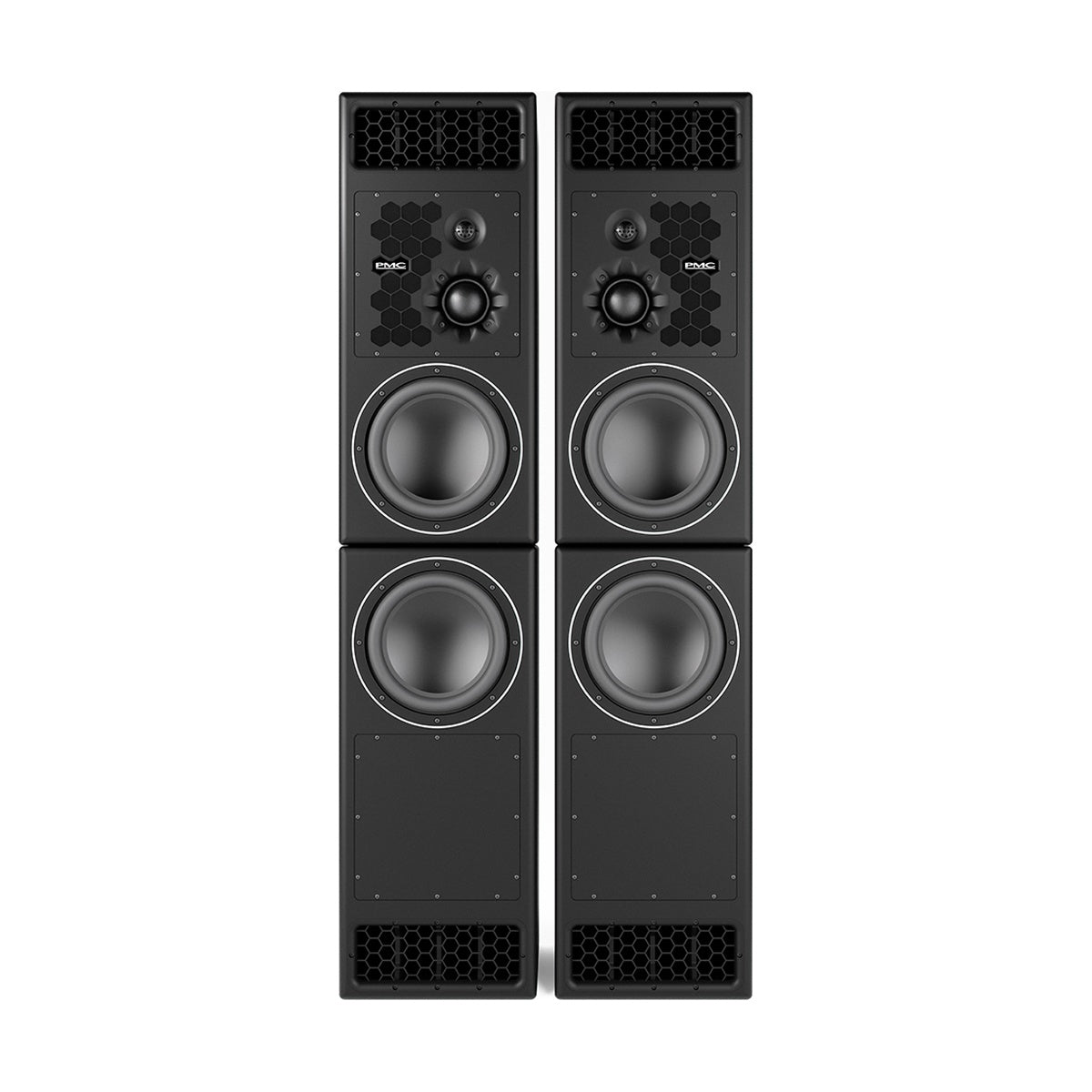

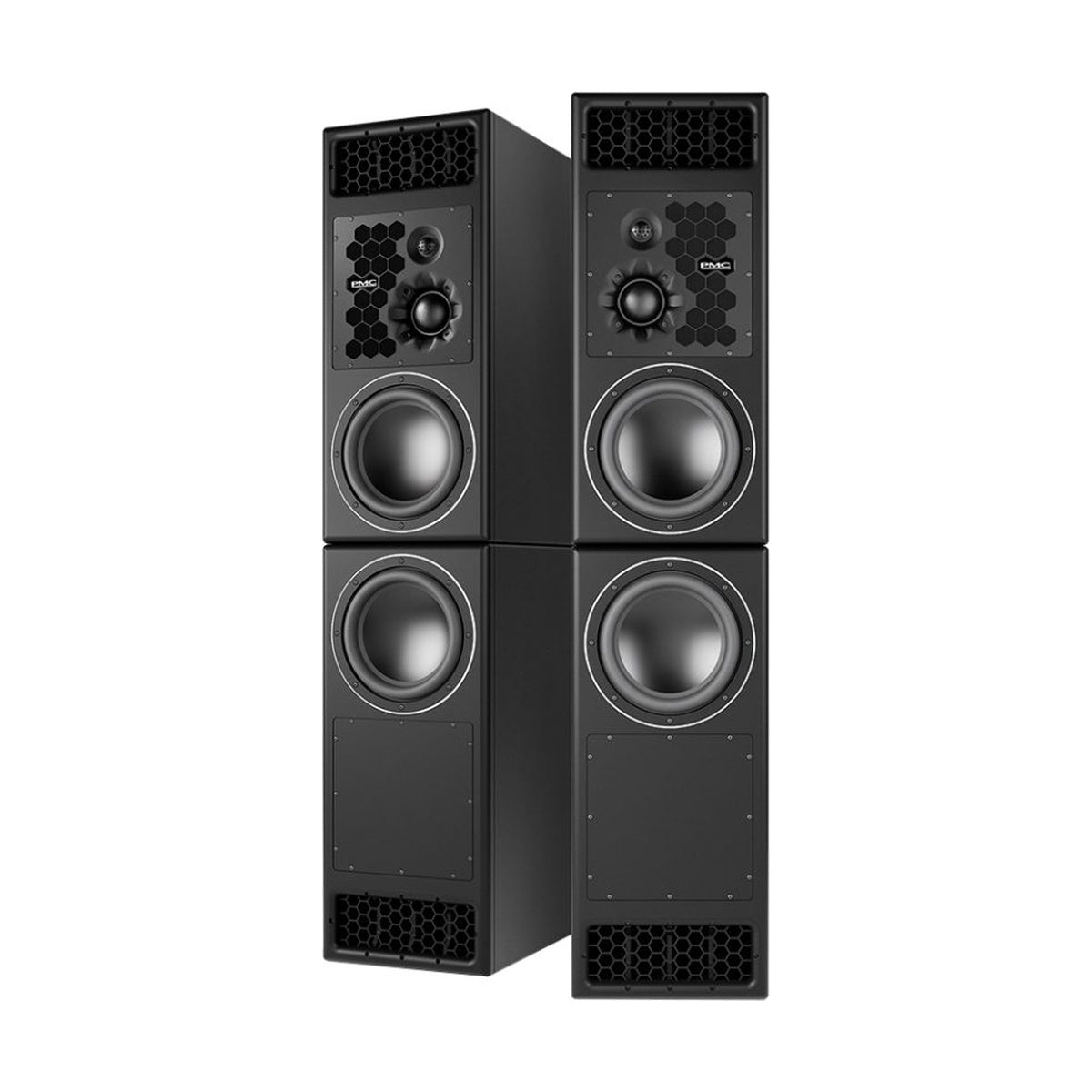

PMC 12 XBD is an advanced mid-to-far-field monitoring system, serving as the expanded XBD version of the PMC12 model. In this configuration, each channel is equipped with two powerful 12-inch (300mm) Radial™ drivers—one in the main monitor and one in the XBD cabinet. This architecture provides not only a 3 dB increase in dynamic headroom but also superior room coupling, delivering a smoother low-frequency response and impactful bass punch, perfect for demanding music genres and film post-production.
Both the main monitor and the XBD module utilize Advanced Transmission Line (ATL™) technology supported by aerodynamic LaminairX™ vents, eliminating air noise and ensuring fast, precise bass. The system is powered by advanced digital control: the master36 unit drives the main monitor, while the XBD module is powered by the dedicated power20 amplifier. The entire setup is managed via the SoundAlign2™ platform, ensuring perfect phase integration between cabinets and allowing for precise system calibration to the studio environment.
KEY FEATURES
- XBD configuration with two 12-inch (300mm) drivers per channel
- Increases maximum SPL and system headroom by 3 dB
- Designed for medium to large studio control rooms
- ATL™ and LaminairX™ technology in both cabinets for clean bass
- New 12" drivers with 36mm linear excursion
- Hybrid power system: master36 controller + power20 amplifier
- Full DSP control via SoundAlign2™ interface
- Modular design for easy installation (free-standing or soffit)
TECHNICAL SPECIFICATIONS
- Configuration: PMC12 Main Monitor + PMC 12 SUB XBD bass module
- LF Drivers: 2x 12” (300mm) Radial™ (total per side)
- Technology: Dual Advanced Transmission Line (ATL™)
- System Power: Combination of master36 (3600W) and power20 (2000W)
- Frequency Response: Extended LF (DSP dependent)
- Application: Main Monitoring, Mastering, Film Mixing
- Connectivity: Analog / AES3, Ethernet (control)
