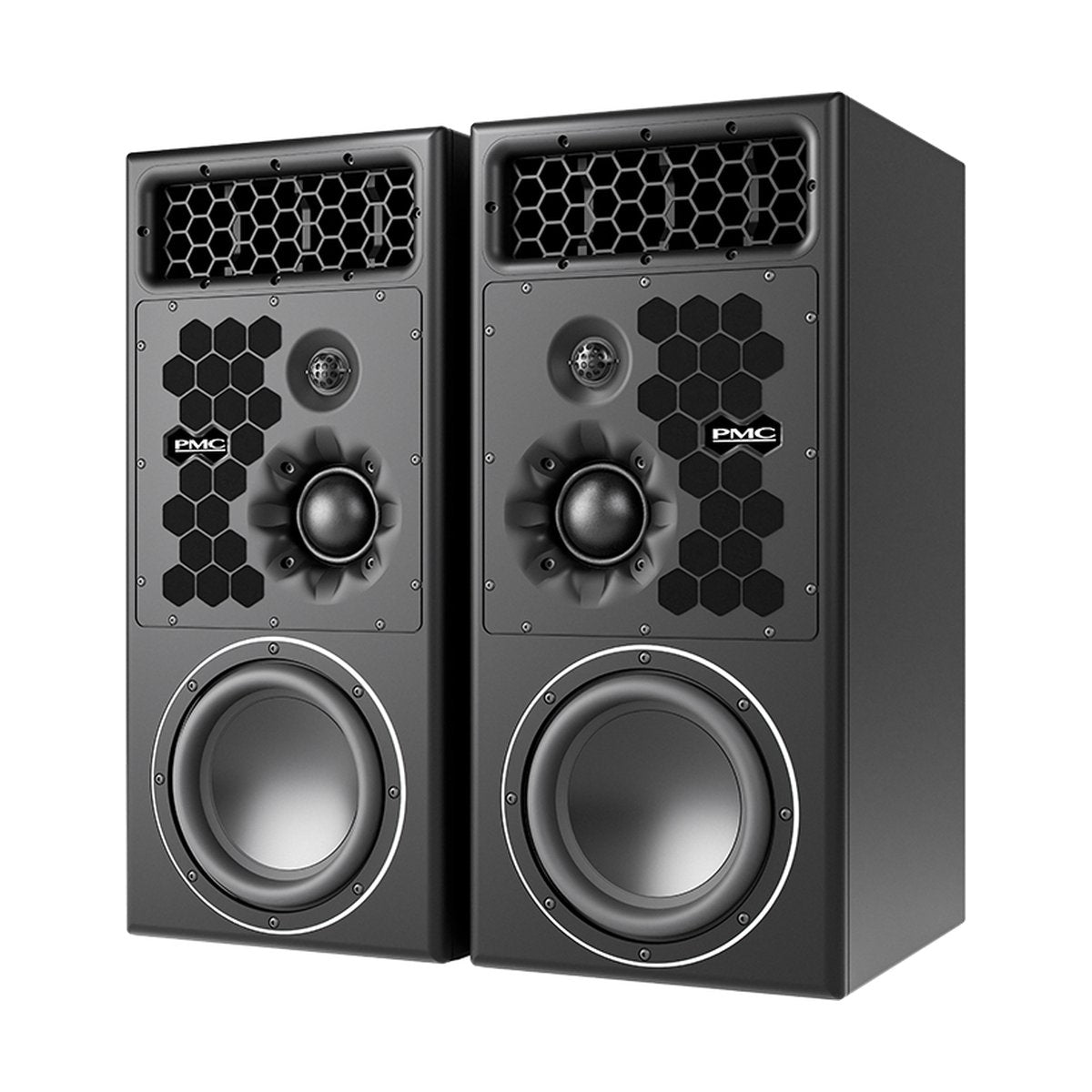

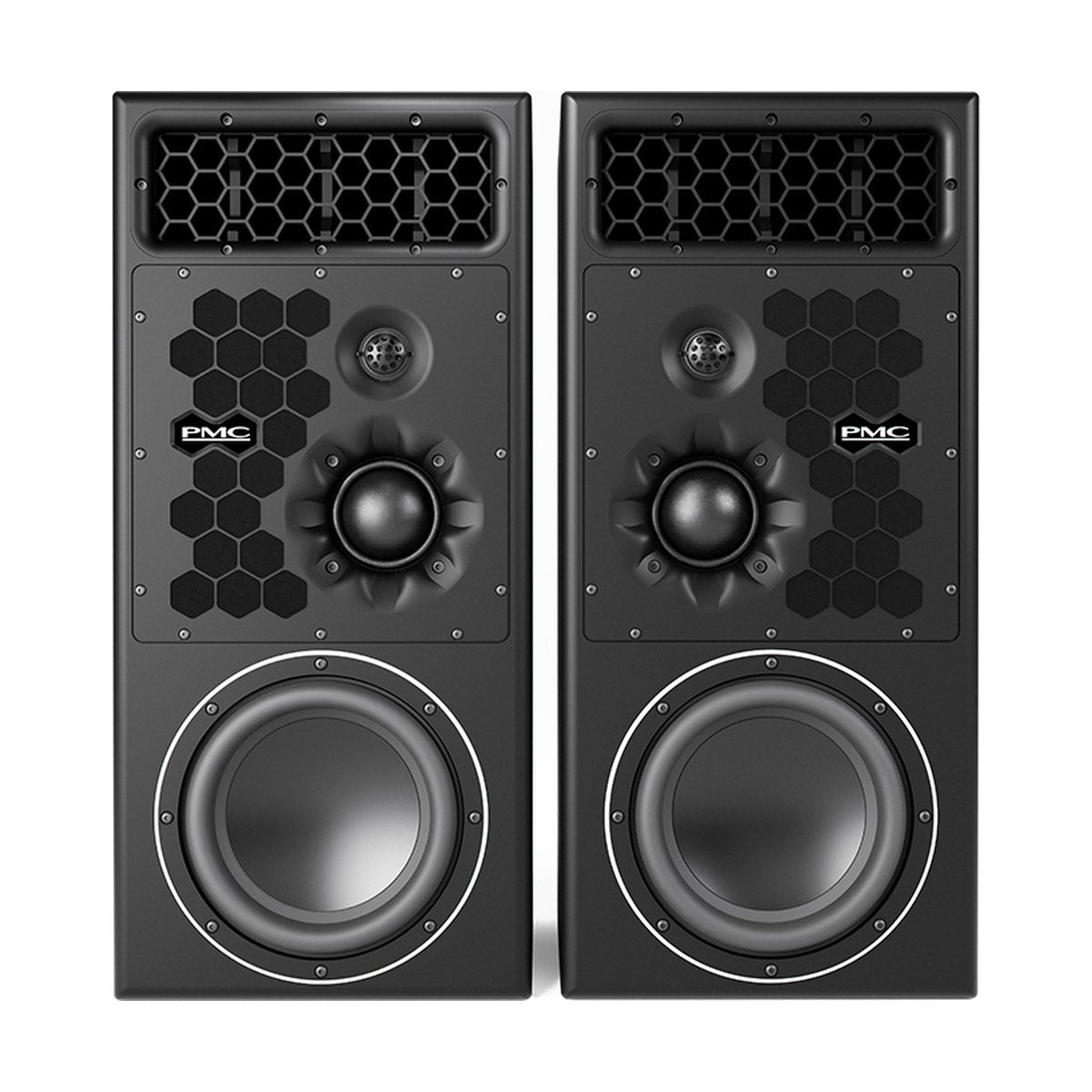

PMC 10 is the most compact yet uncompromising three-way monitor in the new Main Monitor Series, designed for smaller recording studios, post-production suites, and Outside Broadcast (OB) vans. Despite its compact footprint, it delivers full-scale reference main monitor performance. At its heart lies the new PMC 10-inch (250mm) Radial™ bass driver, which, combined with ATL™ (Advanced Transmission Line) technology and LaminairX™ vents, ensures deep, fast, and controlled bass that far exceeds the capabilities of conventional designs of this size.
The critical midrange is handled by a new version of the legendary 75mm PMC75v3 soft-dome driver, equipped with the n-compass™ waveguide for wider dispersion and precise imaging. High frequencies are reproduced by a 34mm soft-dome tweeter. The system is fully active and digitally controlled by the external master36 unit, delivering 2600W of power (1000W LF + 800W MF + 800W HF) and advanced SoundAlign2™ DSP. The PMC 10 is the perfect solution where space is limited, but premium audio quality and dynamics are required.
KEY FEATURES
- Compact 3-way near/mid-field reference monitor
- Next-generation 10-inch (250mm) Radial™ bass driver
- ATL™ and LaminairX™ technology for clean bass from a small cabinet
- Hand-built PMC75v3 midrange driver with n-compass™ waveguide
- Externally powered by master36 controller (2600W)
- Ideal for smaller control rooms, OB vans, and Atmos systems
- Full integration with SoundAlign2™ software
- Expandable with XBD module
TECHNICAL SPECIFICATIONS
- LF Driver: 10” (250mm) Radial™ Driver
- MF Driver: 75mm (3”) soft-dome PMC75v3
- HF Driver: 34mm soft-dome
- Frequency Response: 25Hz - 25kHz (system dependent)
- Amplifier Power: 2600W (via master36 controller)
- Crossover Frequencies: 380Hz, 3.8kHz (DSP)
- Application: Mid-sized Studio, Broadcast, Post-production
