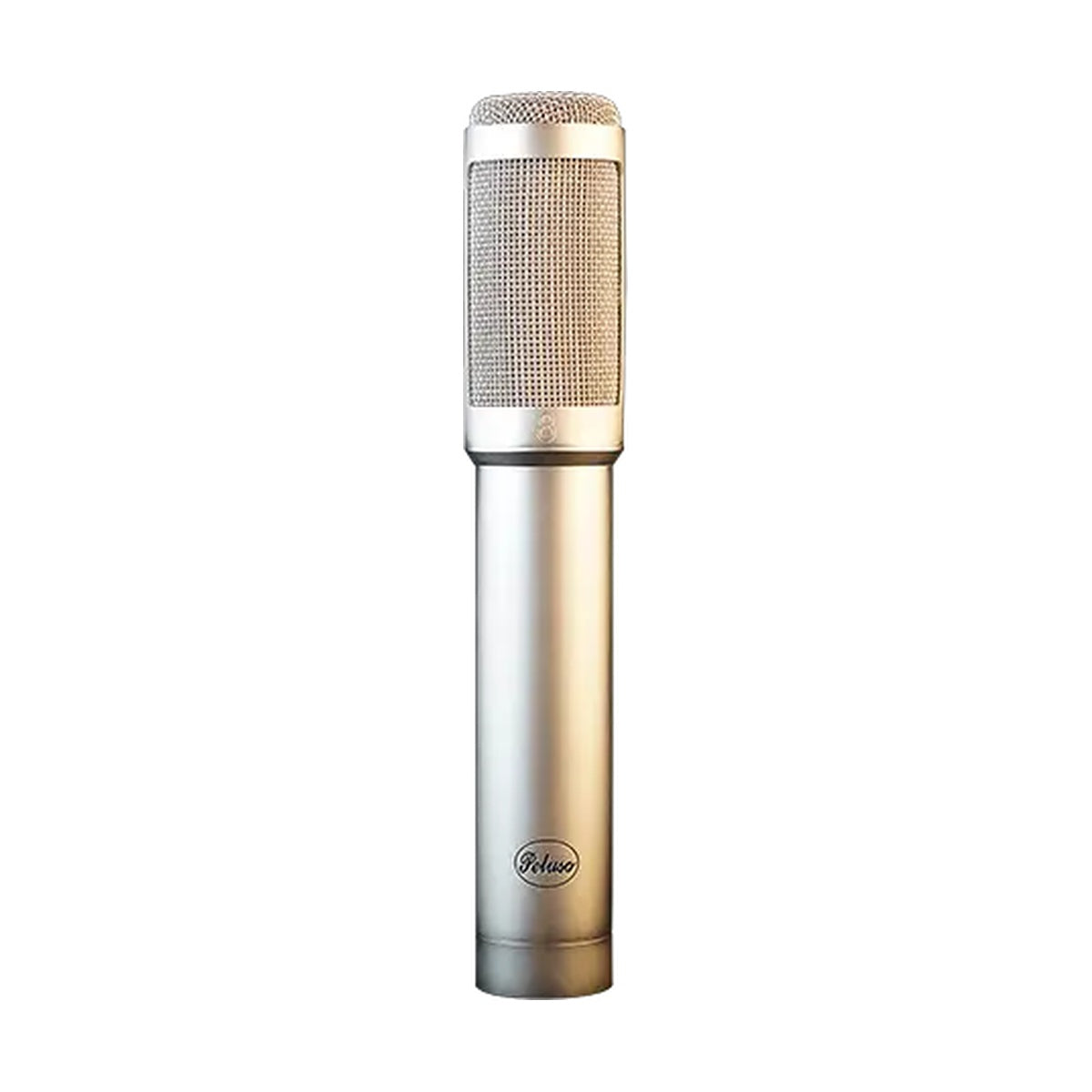

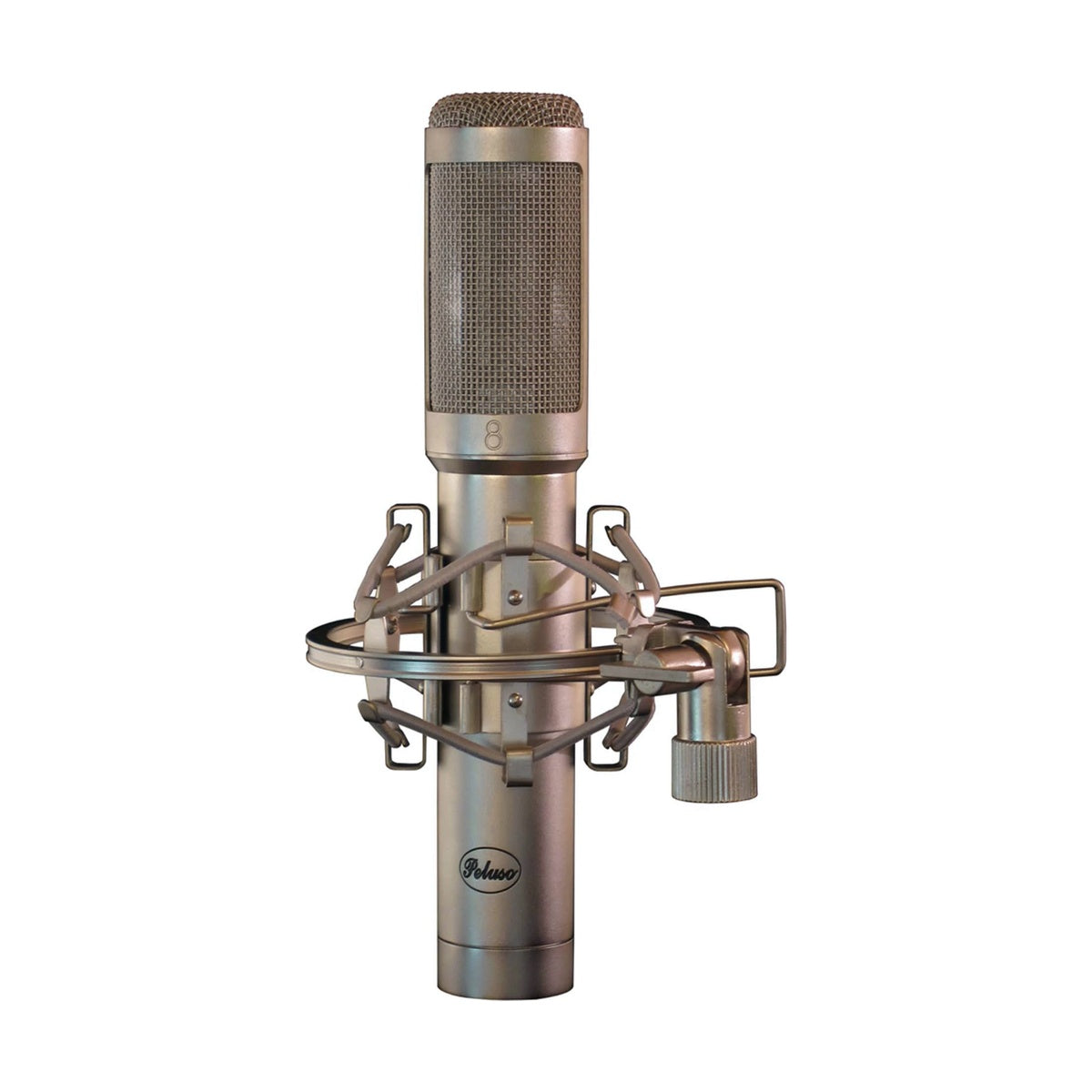

Peluso Microphone Lab TR 14

Peluso TR 14 is an active ribbon microphone with a tube amplifier stage — the same long-ribbon design as the passive R 14, but with an added CK5784/6J1P tube that introduces a harmonic complexity not available in the passive version.

A Tube Where There's Usually Just a Ribbon

Unlike typical active ribbon microphones built around transistors, the TR 14 uses a sub-miniature glass tube that adds an extra layer of tube harmonics to the ribbon's natural warmth — a result closer to vintage tube ribbon designs than modern active FET models.

A Dedicated Power Supply Instead of Phantom Power

The TR 14 does not use standard 48V phantom power — it requires a dedicated power supply (115V or 230V AC) to provide the voltages needed to run the tube, worth factoring into your studio's cabling plan.

The sub-miniature glass tube runs in a much smaller housing than the tubes typically used in Peluso's large-diaphragm microphones, preserving the slim, ribbon-style body geometry.

KEY FEATURES

• Active ribbon microphone with a CK5784/6J1P tube
• Long, corrugated aluminum ribbon
• Neodymium magnets
• Figure-8 (bidirectional) pattern
• Custom output transformer
• Dedicated power supply (115V/230V AC), 7-pin XLR connector

TECHNICAL SPECIFICATIONS

• Frequency response: 30Hz-16kHz
• Output impedance: 200 Ω
• Max SPL: 149 dB
• Sensitivity: -35 dBV (re 1V/Pa)
• Noise level: 15 dB(A)
• Dimensions: 36 x 210 mm
• Weight: 450 g
• Tube type: sub-miniature, glass
• Connector: 7-pin XLR to power supply
