Neumann KH 310 II Left is the left channel of a three-way nearfield reference monitor, built for engineers working on material with a heavy focus on vocals, guitars and midrange instruments, where precise separation in that range decides mix quality. A sealed enclosure and the MMD waveguide give fast impulse response without smearing the stereo image.
Three amplifiers instead of one, per channel
A tri-amplified Class AB architecture with separate paths for woofer (300W), midrange (160W) and tweeter (125W) delivers a combined 525W per monitor, so no single driver limits the dynamics of the rest of the range.DSP that corrects phase, not just level
32-bit digital processing with 64-bit precision includes linear phase correction across 60Hz-18kHz and digital crossovers at 700 and 1700Hz (24dB/octave), and compatibility with MA 1 automatic room calibration lets you tune the pair to the actual room.KEY FEATURES
- Three-way design, left channel
- Three Class AB amplifiers, 525W combined
- 32-bit/64-bit DSP with linear phase correction
- Compatible with MA 1 automatic room calibration
- Analogue XLR and digital AES3id input
TECHNICAL SPECIFICATIONS
- Configuration: 3-way, active, left channel
- Woofer: 210mm
- Midrange: 75mm soft-dome, magnetically shielded
- Tweeter: 25mm, protective metal grille
- Frequency response: 29Hz - 21kHz (±6dB)
- Max SPL: 121.4dB (1m, half space)

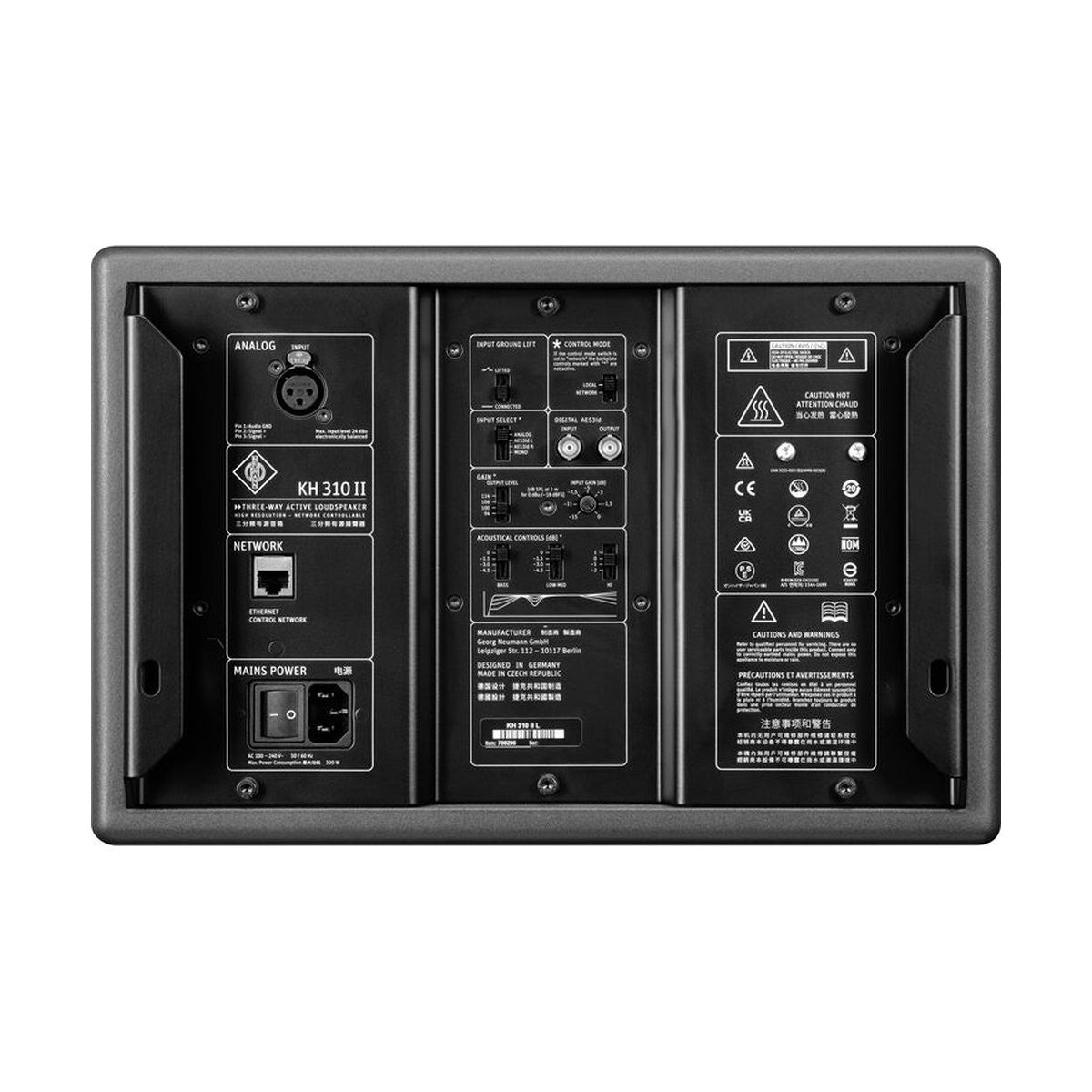

- Connections: analogue XLR, digital AES3id (BNC), Ethernet
- Dimensions: 253 x 383 x 292mm
- Weight: 13.0kg
