MOTU M4 – 4-in / 4-out USB-C audio interface with studio-grade ESS Sabre32 Ultra DAC converters, full-color LCD metering, combo inputs with Hi-Z and phantom power, TRS and RCA outputs, loopback function, MIDI I/O, and bundled software – perfect for home studios, streaming, and podcasting.
The MOTU M4 is a compact yet powerful interface designed for Mac, PC, and iOS devices. It features two combo XLR/TRS inputs with Hi-Z for direct guitar recording and 48V phantom power for condenser microphones. Two additional balanced line inputs provide extra flexibility when recording instruments or external gear. Thanks to premium ESS Sabre32 Ultra DAC technology, the M4 delivers crystal-clear sound with up to 120 dB dynamic range and impressively low noise floor (-129 dBu EIN).

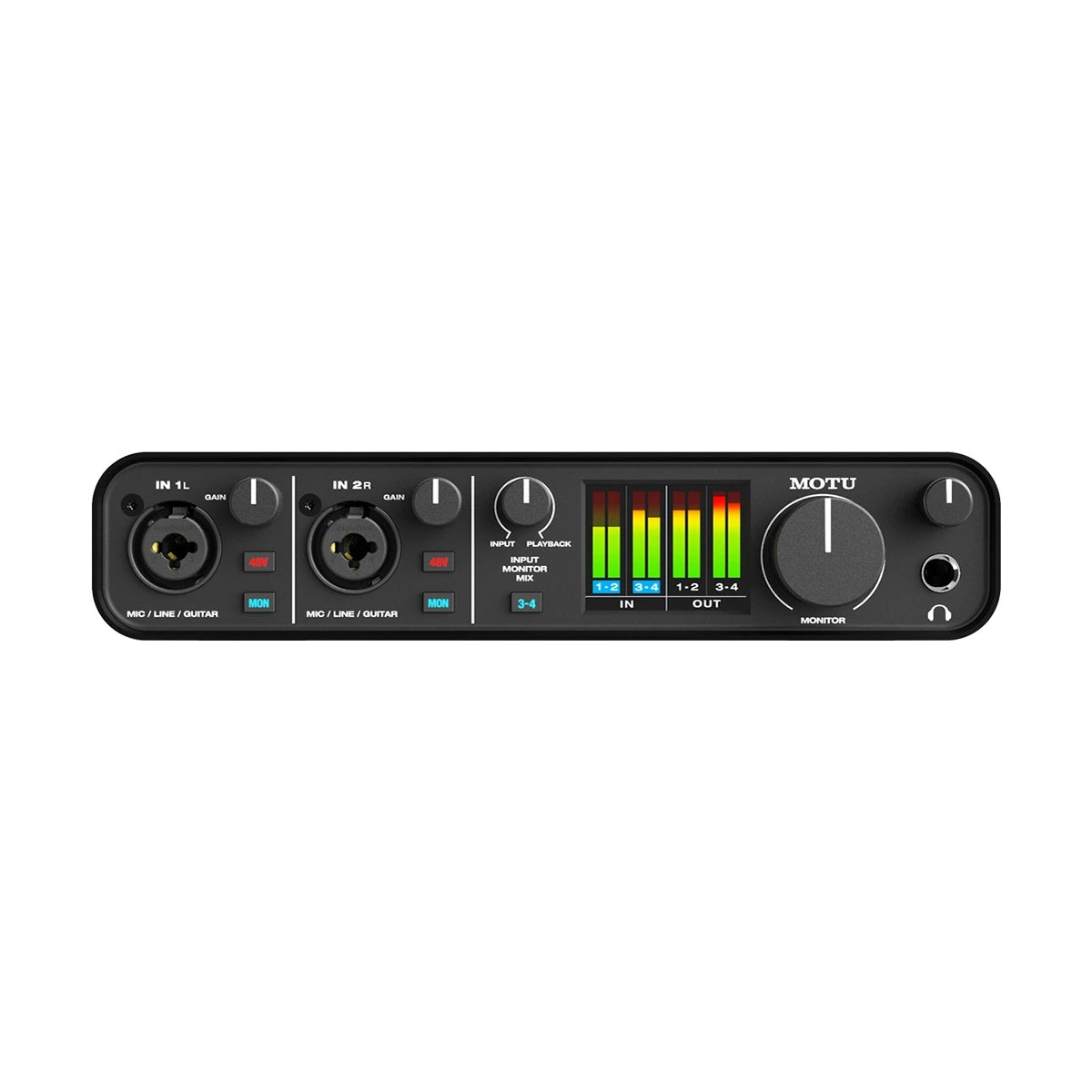

A full-color LCD display provides real-time input and output level monitoring. The built-in loopback function allows for routing audio back to your computer – ideal for livestreaming and podcasting. The M4 also features four TRS line outputs, four RCA outputs, and a dedicated headphone output with independent volume control. It’s powered via USB-C and built with a rugged metal chassis. Included software packages Performer Lite 10, Ableton Live Lite 10, and a 6 GB sound library make it ready for music production out of the box.
KEY FEATURES
- 4-in / 4-out USB-C audio interface
- 2 combo XLR/TRS inputs with Hi-Z and 48V phantom power
- 2 additional balanced TRS line inputs

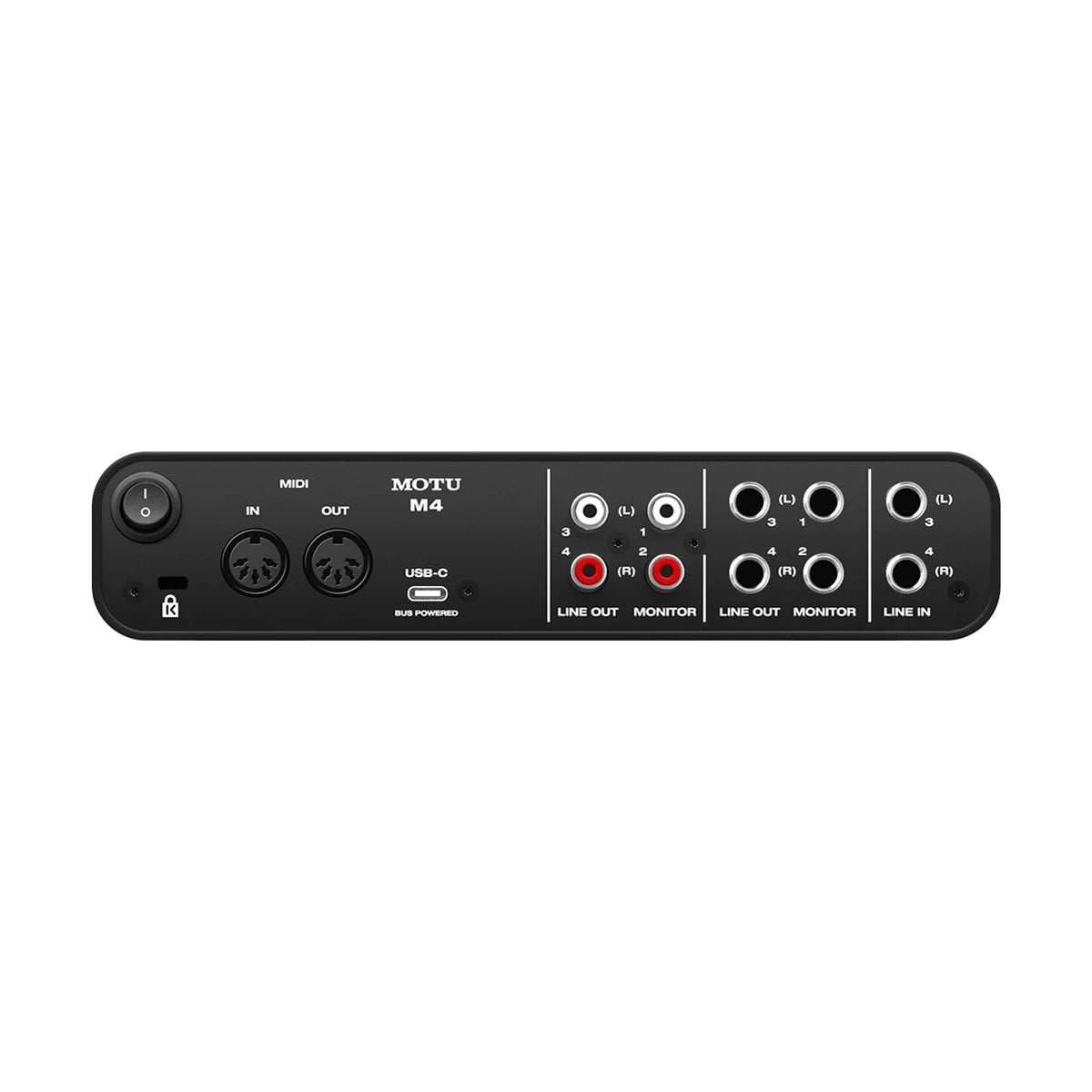

- 4 balanced TRS line outputs and 4 RCA outputs
- Independent headphone output with volume control
- ESS Sabre32 Ultra DAC converters for high-resolution audio
- Full-color LCD for real-time metering
- Loopback functionality for streaming and podcasting
- MIDI In/Out ports
- 24-bit / 192 kHz audio resolution
- USB-C powered (compatible with USB-A)
- Durable metal chassis
- Bundled with Performer Lite 10, Ableton Live Lite 10, and 6 GB of loops/samples
- Kensington Lock slot
TECHNICAL SPECIFICATIONS
- Number of channels: 4 inputs / 4 outputs
- Mic inputs: 2 x XLR/TRS combo with Hi-Z
- Line inputs: 4
- Line outputs: 4 x TRS, 4 x RCA
- Headphone output: 1 x TRS with independent control
- Phantom power: 48V per channel
- Loopback support: Yes
- MIDI I/O: Yes
- Dynamic range (outputs): 120 dB
- Input noise (EIN): -129 dBu
- Sample rates: 44.1 – 192 kHz
- Bit depth: 24-bit
- Power: USB-C (bus powered)
- USB version: USB 2.0 (via USB-C)
- Dimensions: 210 x 108 x 45 mm
- Weight: 0.92 kg
- Compatibility: macOS / Windows / iOS
- Included: USB cable, Performer Lite 10, Ableton Live Lite 10, 6 GB of loops and samples
