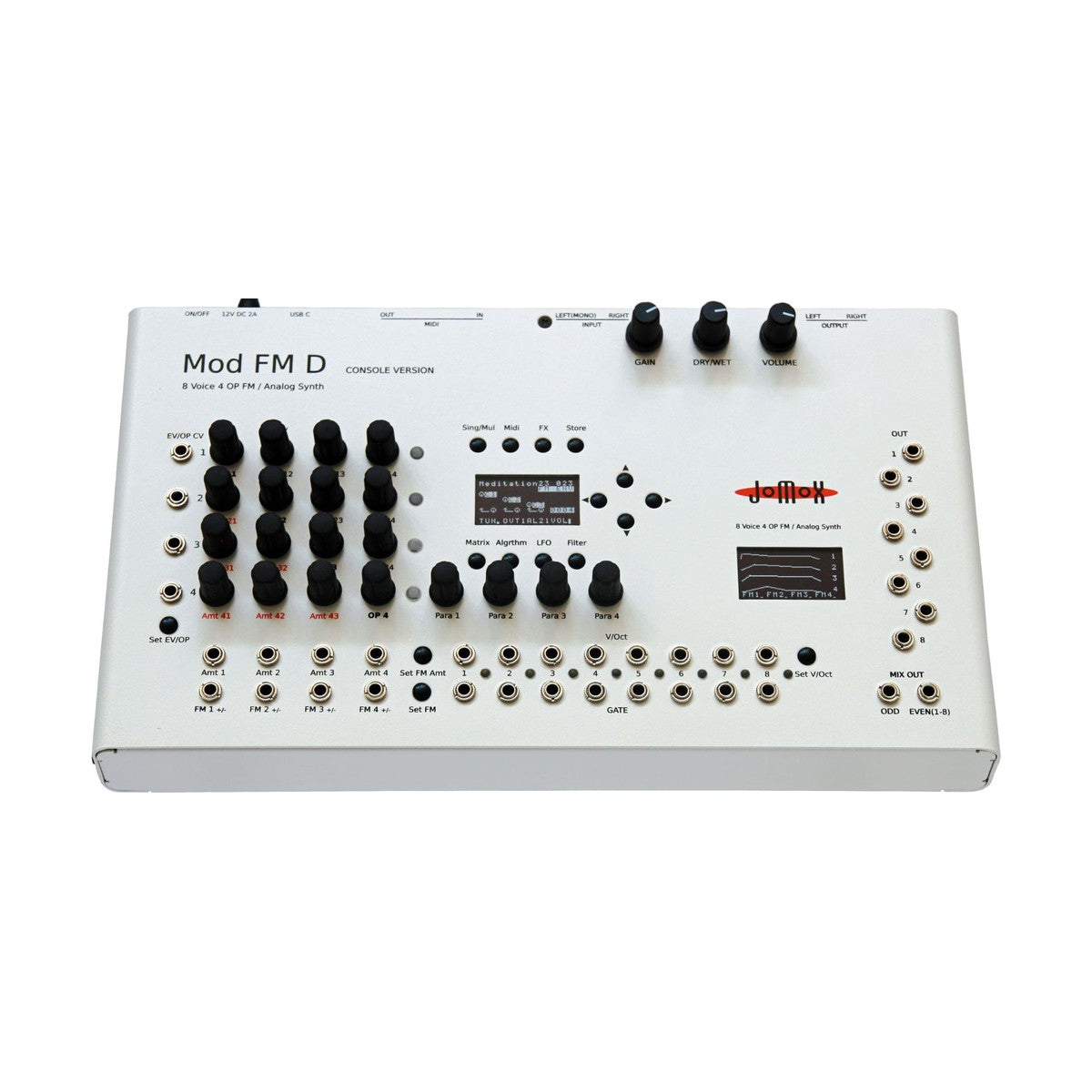

Jomox ModFM D – 8-voice polyphonic desktop FM synthesizer with 4 operators per voice, 2 LFOs/VCOs per voice, analog filters and VCAs per voice. It offers advanced modulation matrix, flexible MIDI/CV control, and high-resolution sound generation. On board, there is a rich effects section with reverb and delay, multi-timbral modes, overtone scaling, and extensive performance functions.
Jomox ModFM D is an environment for sound creation designed for exploration. Each voice can operate with 4 sine operators interconnected via modulation matrix, from simple FM tones to complex hybrid sounds with analog warmth. Flexible routing with individual voice outputs, stereo mix, and external CV inputs allows applying a wide range of effects – including new ones for the Jomox ecosystem.
Modulation is deeply integrated: full matrix with 26 preset algorithms, 2 LFOs switchable to VCO mode with 64 waveforms, envelope generators for pitch and volume. Control via MIDI CC, USB, or CV/Gate inputs for external modulation. The synthesizer offers multi-mode with up to 8 single presets, individual voice allocation, and advanced triggering conditions.
KEY FEATURES
- 8 voices, fully multi-timbral
- 4 operators per voice (sine oscillators) with modulation matrix and 26 algorithms
- Overtone mode (0-6) for harmonic scaling
- 2 LFOs/VCOs per voice with 64 waveforms, octave range 0-6
- ADSR envelopes for volume and pitch per operator
- Analog lowpass filters (24 dB/oct) and VCAs per voice
- Effects: Reverb (level, size, lowpass, highpass), 2 Delays (level, time with MIDI sync, feedback, speed ranges)
- Multi-mode with split options and voice allocation
- External CV modulation for operators, envelopes, and amounts
- MIDI In/Out/Thru, USB-C MIDI, CV/Gate per voice
- OLED display for navigation
- Individual balanced outputs for all 8 voices
TECHNICAL SPECIFICATIONS
- Display: OLED 256 × 64 px
- Outputs: 8 × balanced individual, stereo mix balanced
- Inputs: CV/Gate for pitch/trigger, CV for FM1-4, envelope, amounts
- Connectivity: MIDI In/Out/Thru (TRS/USB-C), CV/Gate (Eurorack standard)
- Signal Level: 10 Vpp (Eurorack)
- Power: +12V: 370 mA max, -12V: 170 mA max, total 6.5W
- Construction: Stable metal case
- Dimensions: 284 × 129 × 40 mm
- Weight: Approx. 3 kg
- Controls: Encoders, buttons for workflow
- Audio Resolution: 16-bit/48 kHz internal
