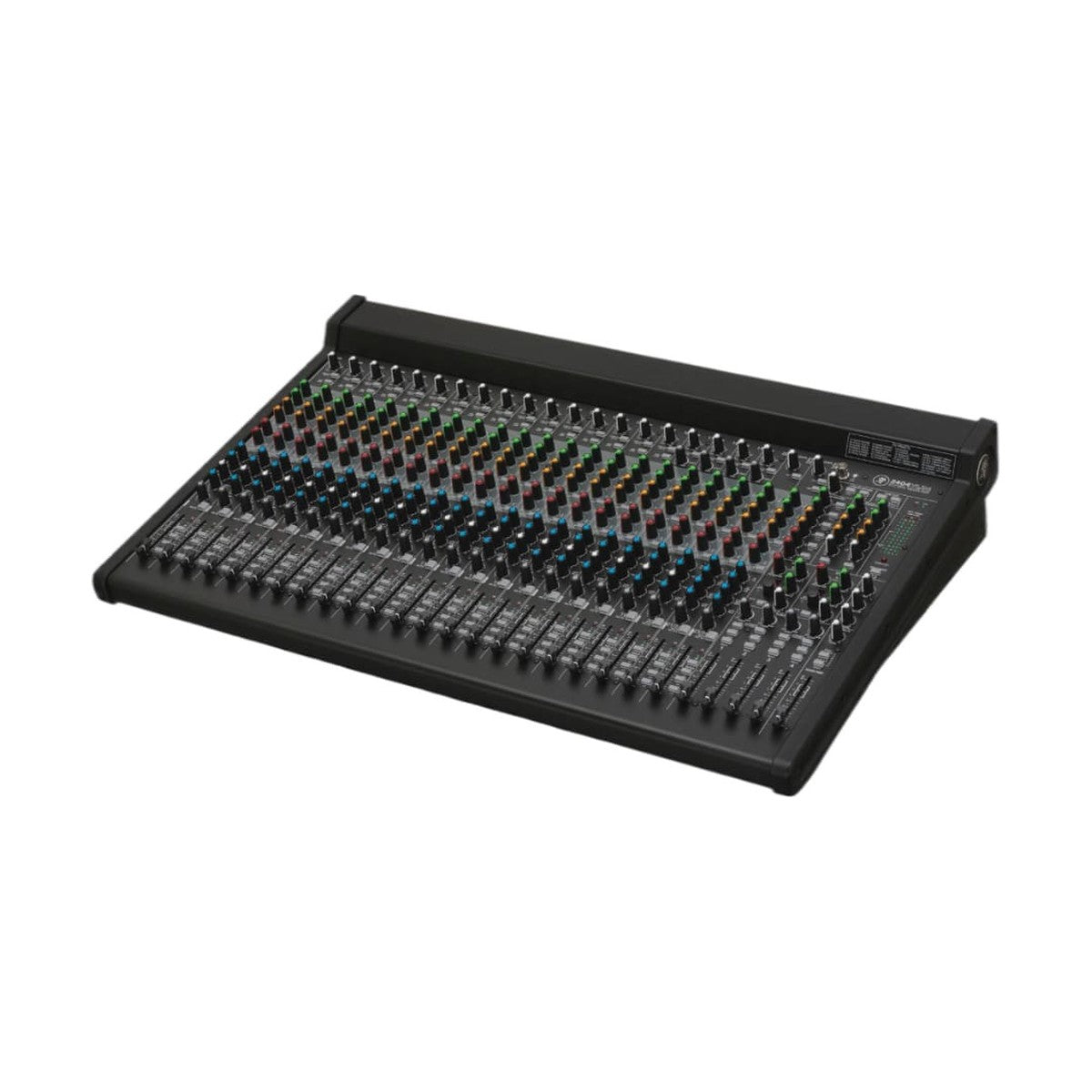

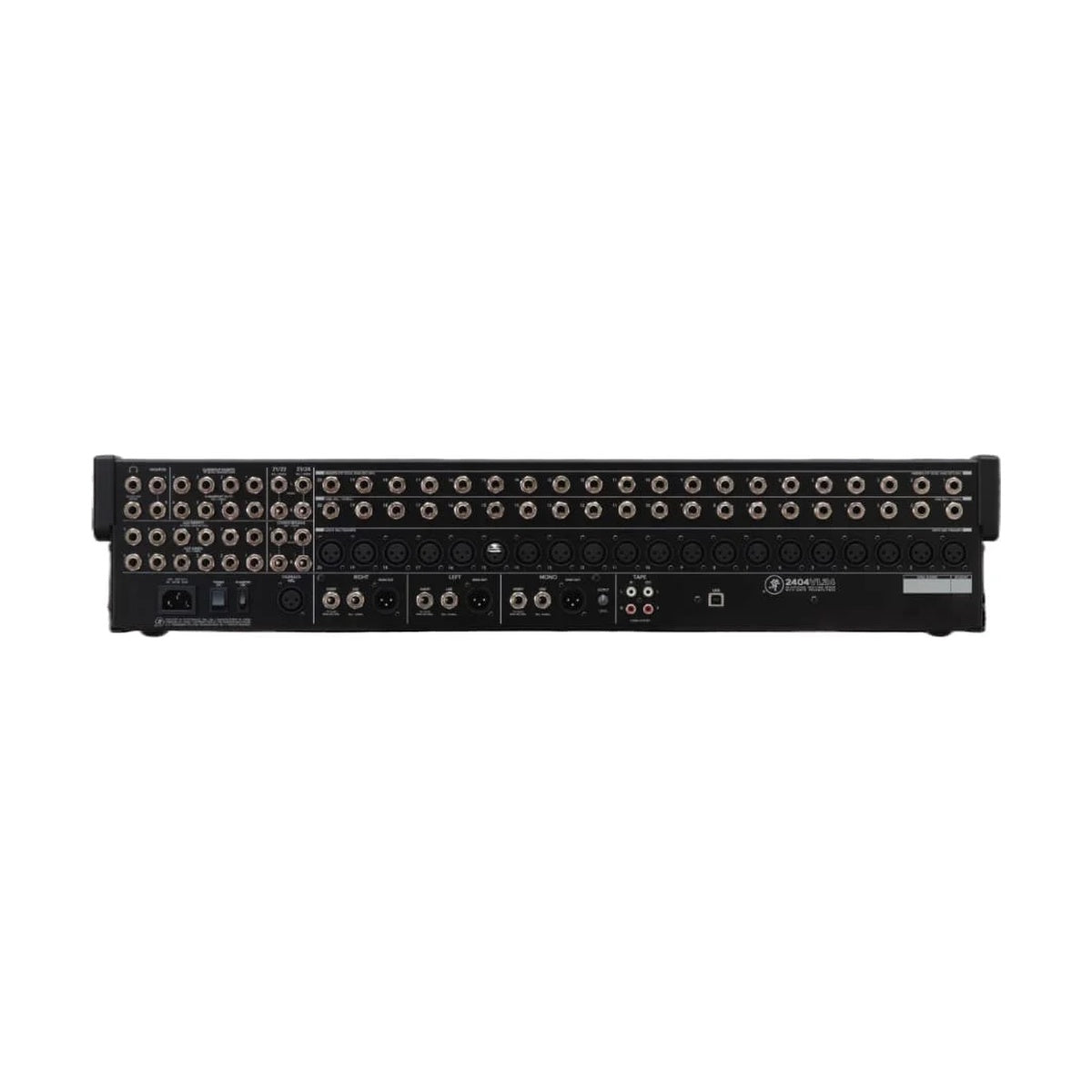

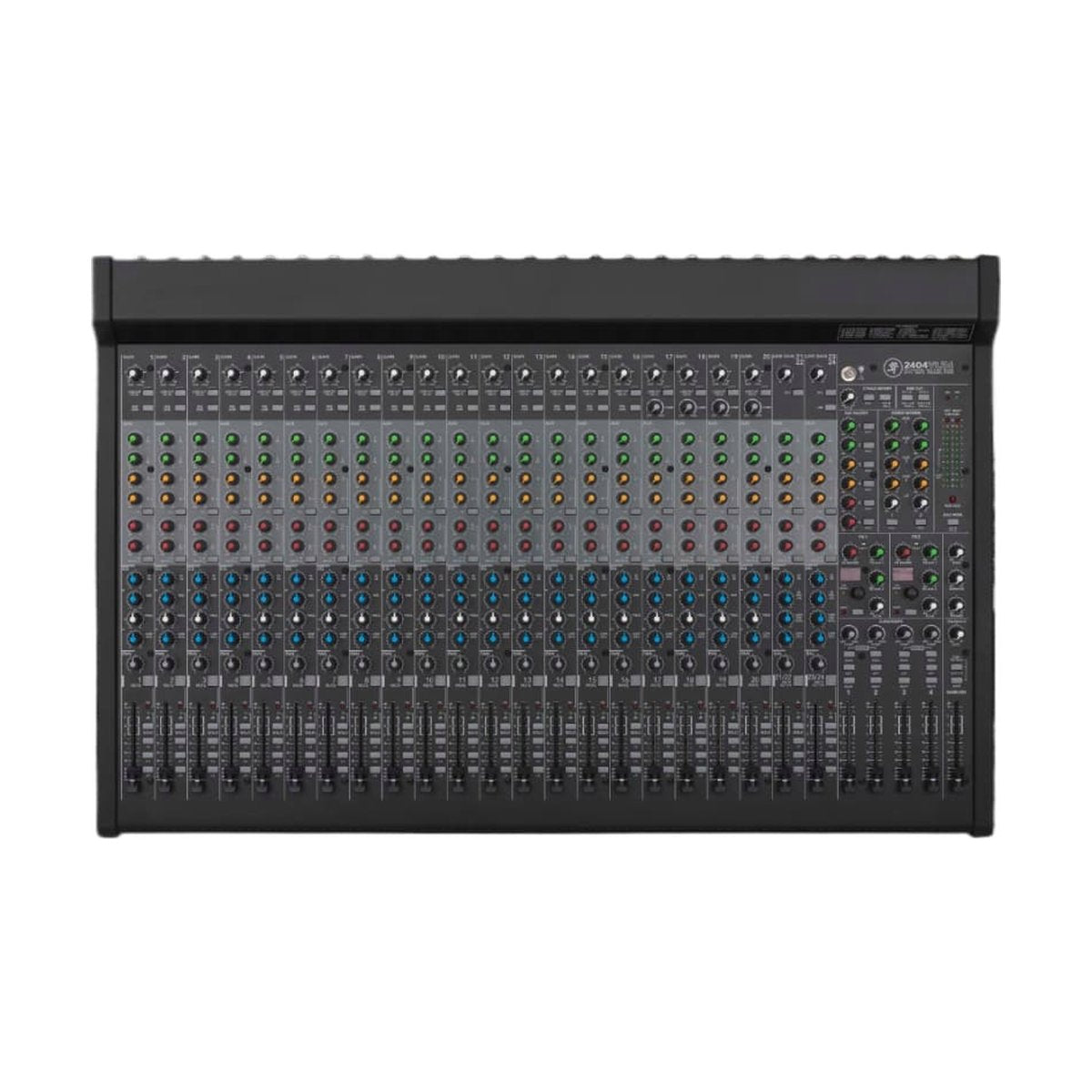

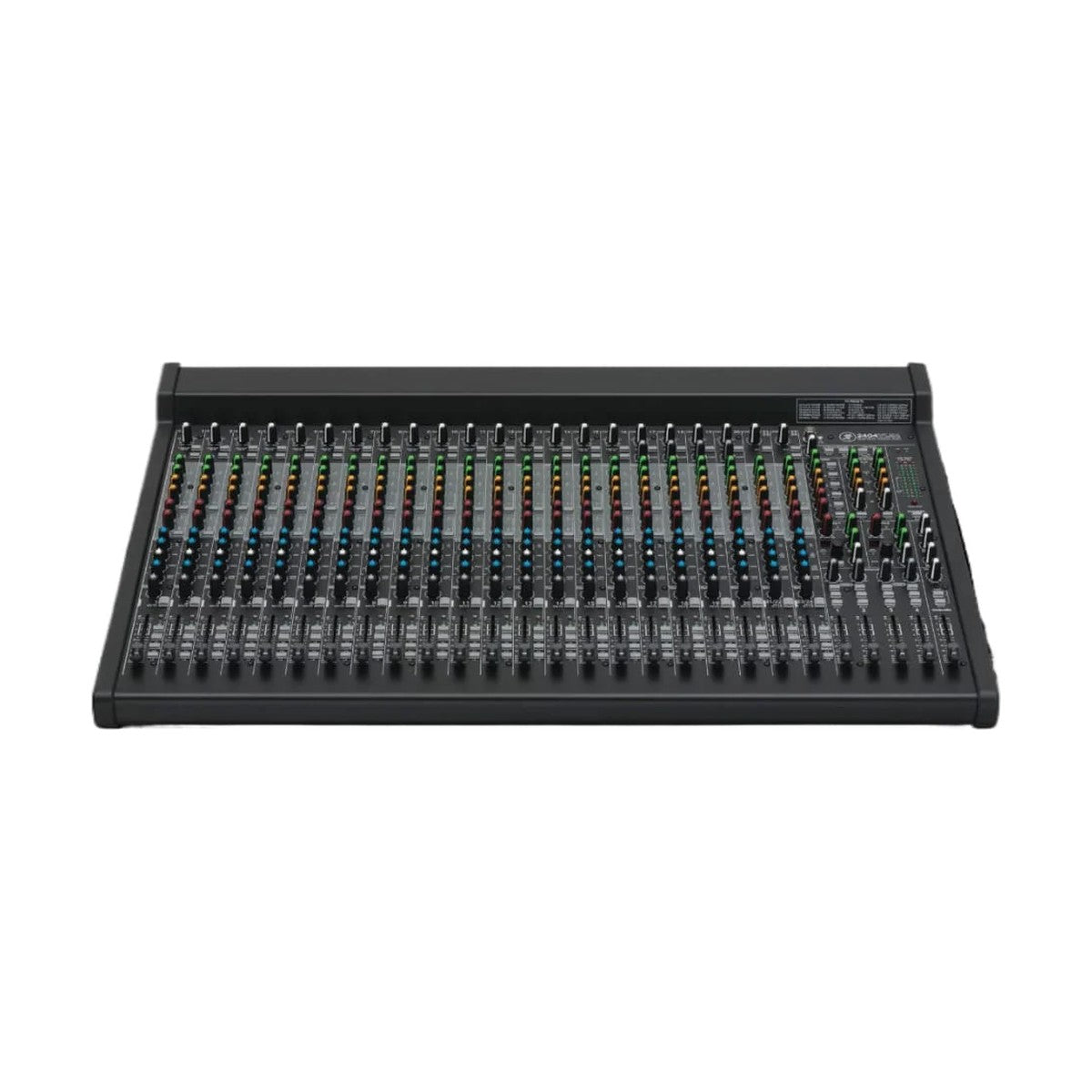

Mackie 2404 VLZ4 – professional analog mixer with 24 channels and 4-bus architecture, designed for live sound and fixed installations. Equipped with 20 Onyx mic preamps, it delivers high headroom, low noise and consistent performance across complex setups.
Advanced routing for live and studio workflows
The console provides 4 subgroups, 6 AUX sends (pre/post), inserts and a flexible monitoring section. Each mono channel features a 3-band EQ with sweepable midrange and a 100 Hz low-cut filter, allowing precise tone shaping and feedback control in demanding environments.
Built-in FX and USB recording
Dual 32-bit RMFX+ processors offer 24 effects including reverbs, delays and modulation, reducing the need for external processors. The integrated 4x2 USB interface enables direct recording of main mix or subgroups into a DAW. Inline compressors on channels 17–20 provide quick dynamic control on key sources.
KEY FEATURES
- 24-channel analog mixer with 4-bus architecture
- 20 Onyx microphone preamps (up to 60 dB gain)
- 3-band EQ with sweepable midrange (mono channels)
- 100 Hz low-cut filter (18 dB/oct)
- 6 AUX sends for monitoring and FX routing
- 4 subgroups with flexible routing
- Inline compressors on channels 17–20
- Dual RMFX+ processors (24 effects)
- 4x2 USB audio interface (24-bit)
- 60 mm faders and high-resolution metering
TECHNICAL SPECIFICATIONS
- Channels: 24
- Mic preamps: 20x Onyx
- Inputs: 20x XLR, 20x line (TRS), stereo RCA
- EQ: 3-band with sweepable mid (mono channels)
- Filter: 100 Hz low cut
- AUX sends: 6 (pre/post)
- Subgroups: 4
- Inserts: available on channels/groups
- Effects: 2x RMFX+ 32-bit (24 presets)
- USB: 4x2, 24-bit
- Compressors: channels 17–20
- Phantom power: 48 V
- Faders: 60 mm
- Construction: solid steel chassis
