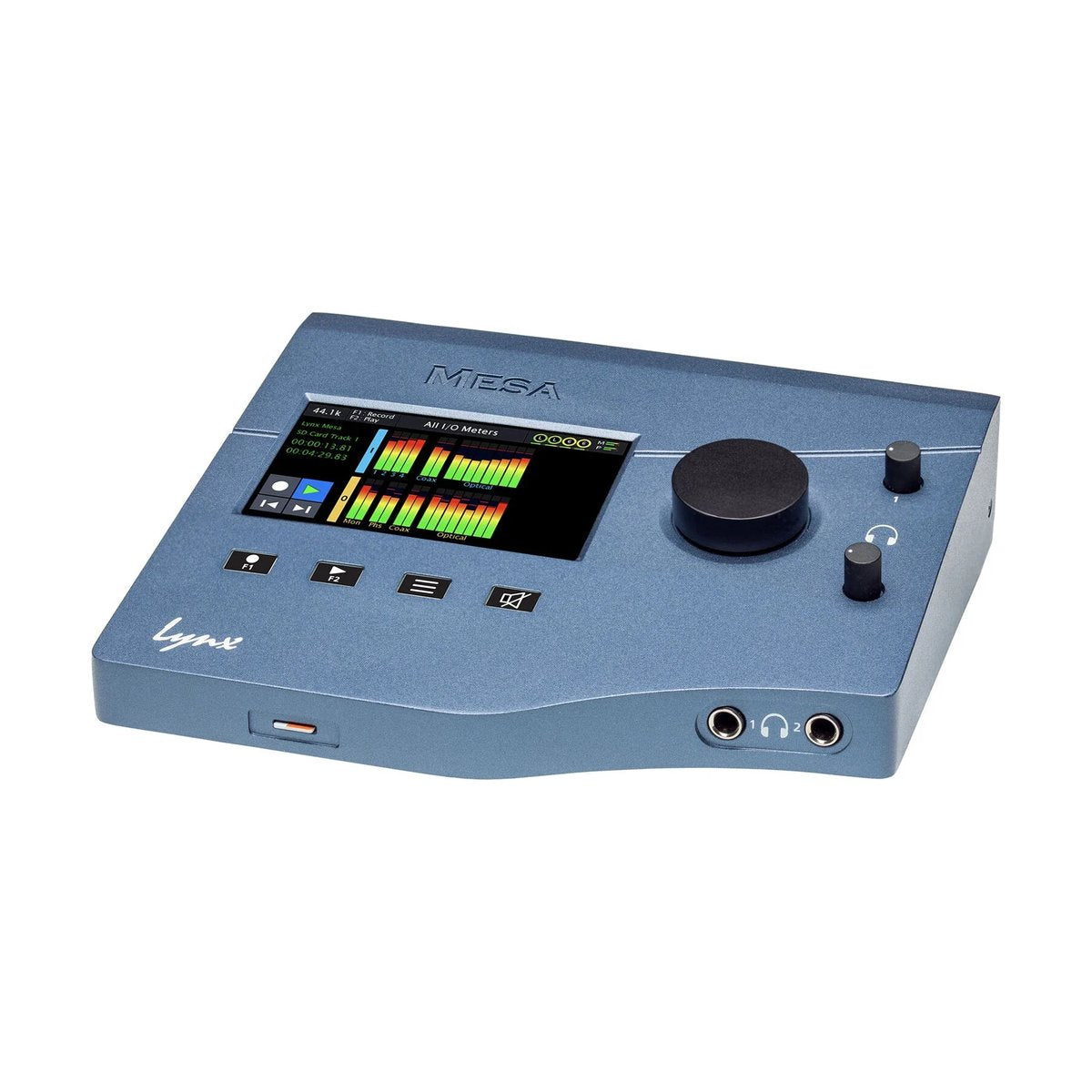

Lynx Studio Mesa

Lynx Studio Technology Mesa is a state-of-the-art Thunderbolt 3 audio interface and high-quality analog-to-digital and digital-to-analog converter, designed for musicians, sound engineers, and professionals working both in the studio and in live recording environments. With a compact desktop form factor and advanced features, the Mesa delivers exceptional sound quality and versatility for various audio applications.

KEY FEATURES

• Four Low-Noise Mic/Line/Hi-Z Inputs: Allows direct connection of microphones, high-impedance instruments (e.g., electric guitars), and line-level signals, providing maximum flexibility.
• 14 Inputs and Outputs with 2 Loopback Channels: Offers extensive routing capabilities, ideal for complex studio setups and live recordings.
• Dual Headphone Outputs with Dedicated D/A Converters and Independent Volume Control: Provides high-quality monitoring for two users simultaneously, essential for recording sessions and mixing.
• Compact and Portable Design: Perfect for both studio and live applications, offering easy transport and quick setup anywhere.
• Aurora(n)-Level Sound Quality: Mesa inherits the renowned audio performance of the Aurora(n) series, ensuring pristine clarity and precision.
• Thunderbolt 3 Interface: Ensures ultra-fast, stable connectivity with Mac and Windows systems, delivering low latency and high bandwidth.
• High-Resolution Capacitive Touch Interface: The user-friendly touchscreen, derived from the Hilo 2 model, provides intuitive control and parameter monitoring.
• Flexible Routing and Monitor Control: Customizable signal paths allow for optimized studio workflows.
• Optical I/O for S/PDIF or ADAT: Expands connectivity with additional digital input/output options.
• S/PDIF Coaxial I/O: Enables direct connection of digital audio devices via standard coaxial connectors.
• Word Clock Input and Output: Provides synchronization with other studio devices for consistent and precise timing.
• SynchroLock 2™ Technology: An ultra-low-jitter clocking system that minimizes distortion for superior audio quality.
• MicroSD Slot: Allows direct recording and playback from a MicroSD card, ideal for live recording and backup purposes.

TECHNICAL SPECIFICATIONS

• Line Inputs:
  • THD+N: ‐113dB @1kHz, ‐1dBFS, 20kHz filter
  • Maximum Input Level: +20dBu
  • Dynamic Range: 119dB, A-weighted, -60dBFS signal method
  • Frequency Response: ±0.010dB, 20–20kHz
  • Crosstalk: ‐130dB max @ 1kHz, ‐1dBFS signal
  • Common-Mode Rejection: Above 80dB
  • Input Impedance: 200kΩ balanced, 100kΩ unbalanced
• Mic/Hi-Z Inputs:
  • Connector Type: Combo XLR/TRS
  • Input Impedance: 1MΩ for Hi-Z
  • Phantom Power: +48V, switchable
• Line Outputs:
  • Connector Type: 1/4" TRS balanced
  • Maximum Output Level: +20dBu
  • Output Impedance: 100Ω
• Headphone Outputs:
  • Connector Type: 1/4" TRS stereo
  • Maximum Output Level: 500mW per channel @ 32Ω
  • Output Impedance: 0.1Ω
• Digital I/O:
  • Optical: ADAT (8 channels) or S/PDIF (2 channels)
  • Coaxial: S/PDIF I/O
  • Word Clock: In/Out
• Connection Interface: Thunderbolt 3
