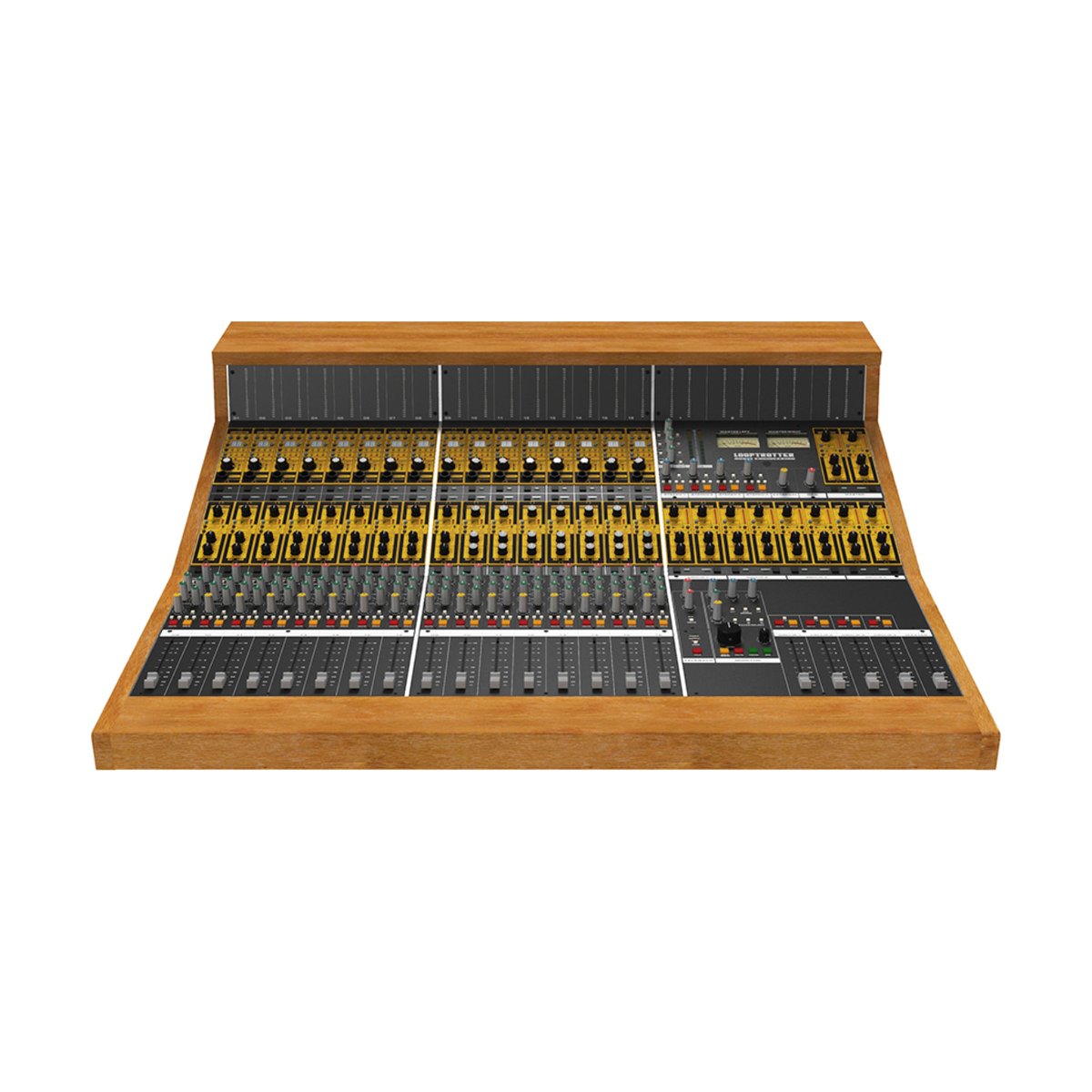

Looptrotter Modular Console

Looptrotter

Looptrotter Modular Console

Preis auf Anfrage
Noch keine Bewertungen
Noch keine Bewertungen
SKU: 61020

Nach Ihrer Konfiguration gebaut

Jede Konsole wird auf Bestellung gebaut. Unsere Spezialisten helfen bei Kanalzahl, Automation und Optionen – und erstellen ein Angebot für Ihr Studio.

Bauzeit This item is available on a custom order basis only

Kontakt

Looptrotter Modular Console is a fully configurable analog console that runs as an empty frame even with no 500-series modules installed, and turns into a complete tracking and mixing hub once they go in, carrying its own tonal character.

Two 500 slots per channel, five summing buses

Each of the eight channels has two true-bypass 500-series slots and two work modes: Record (MIC) for tracking and Mix (DAW) for working on session material. Signal can route to five different summing buses, four stereo groups and the Master, or both at once. The master section carries its own five assignable stereo summing groups, each with two 500 slots (eight total), plus two more slots on the Master L+R bus, real routing flexibility rather than one fixed signal path.

Monitoring and auxes built for studio work

The monitor section offers A/B/C speaker selection with independent trim for each set, External/DAW/L+R source switching, and independent headphone, solo, and dim levels with dedicated mute and dim switches. Every channel carries four auxes with switchable pre/post fader, and the master section mirrors that layout for bus sends. Mic/line, DAW, tape, and insert I/O run through DB25 connectors, with monitoring and talkback on XLR.

KEY FEATURES

  • Configurable analog console frame that also runs empty
  • Two true-bypass 500-series slots on each of eight channels
  • Record (MIC) and Mix (DAW) work modes
  • Routing to five summing buses
  • Five assignable stereo summing groups in the master section
  • A/B/C monitoring with independent trim and source select
  • Four auxes per channel, pre/post fader
  • DB25 I/O, XLR monitoring and talkback

TECHNICAL SPECIFICATIONS

  • Channels: 8
  • 500-series slots per channel: 2, true bypass
  • Summing buses: 5 (4 stereo groups + Master, or both)
  • 500-series slots in master section: 8 (groups) + 2 (Master L+R)
  • Auxes: 4 per channel and 4 on master, pre/post fader
  • Monitoring: A/B/C, External/DAW/L+R sources
  • I/O connectors: DB25 (mic/line, DAW, tape, insert), XLR (monitor, talkback)
