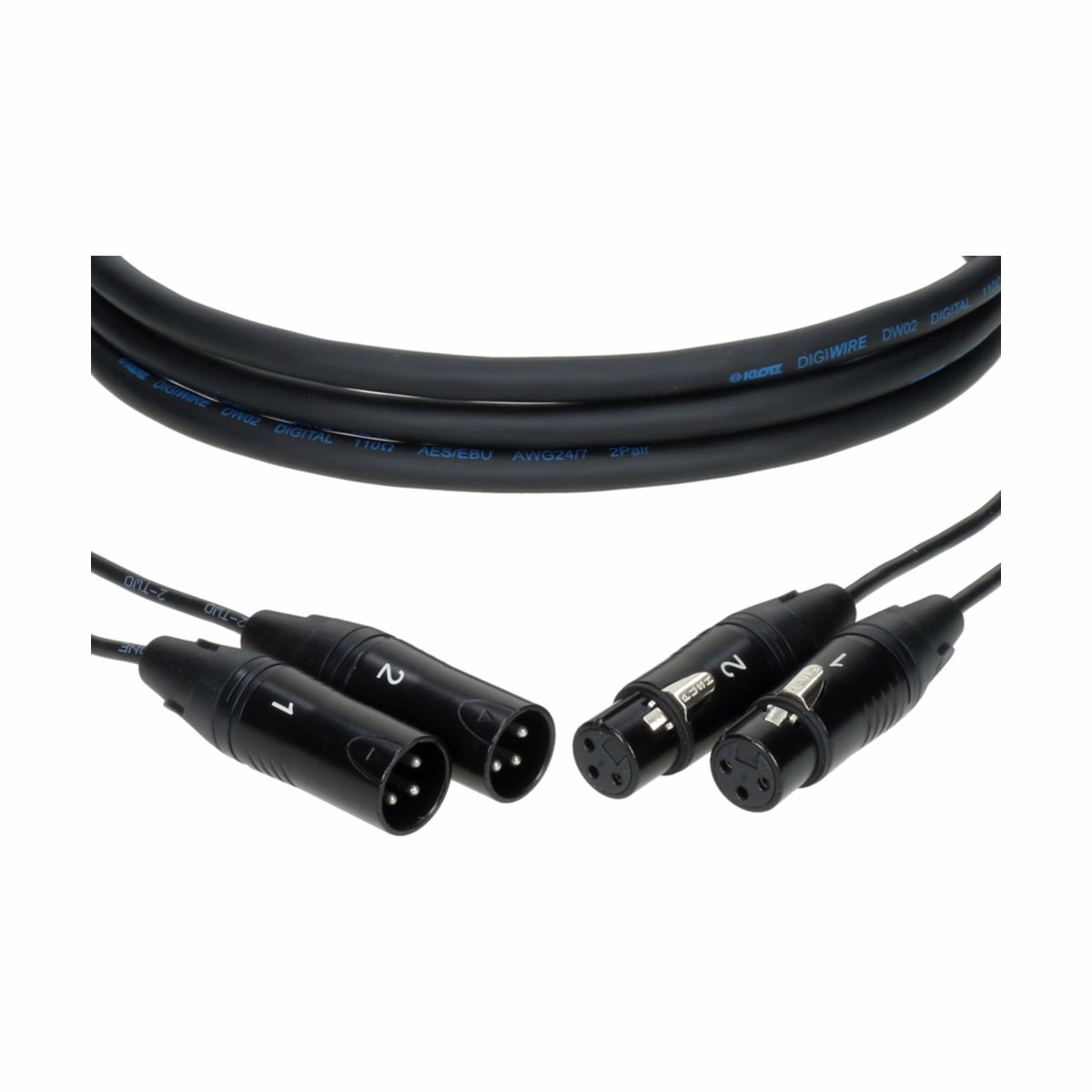

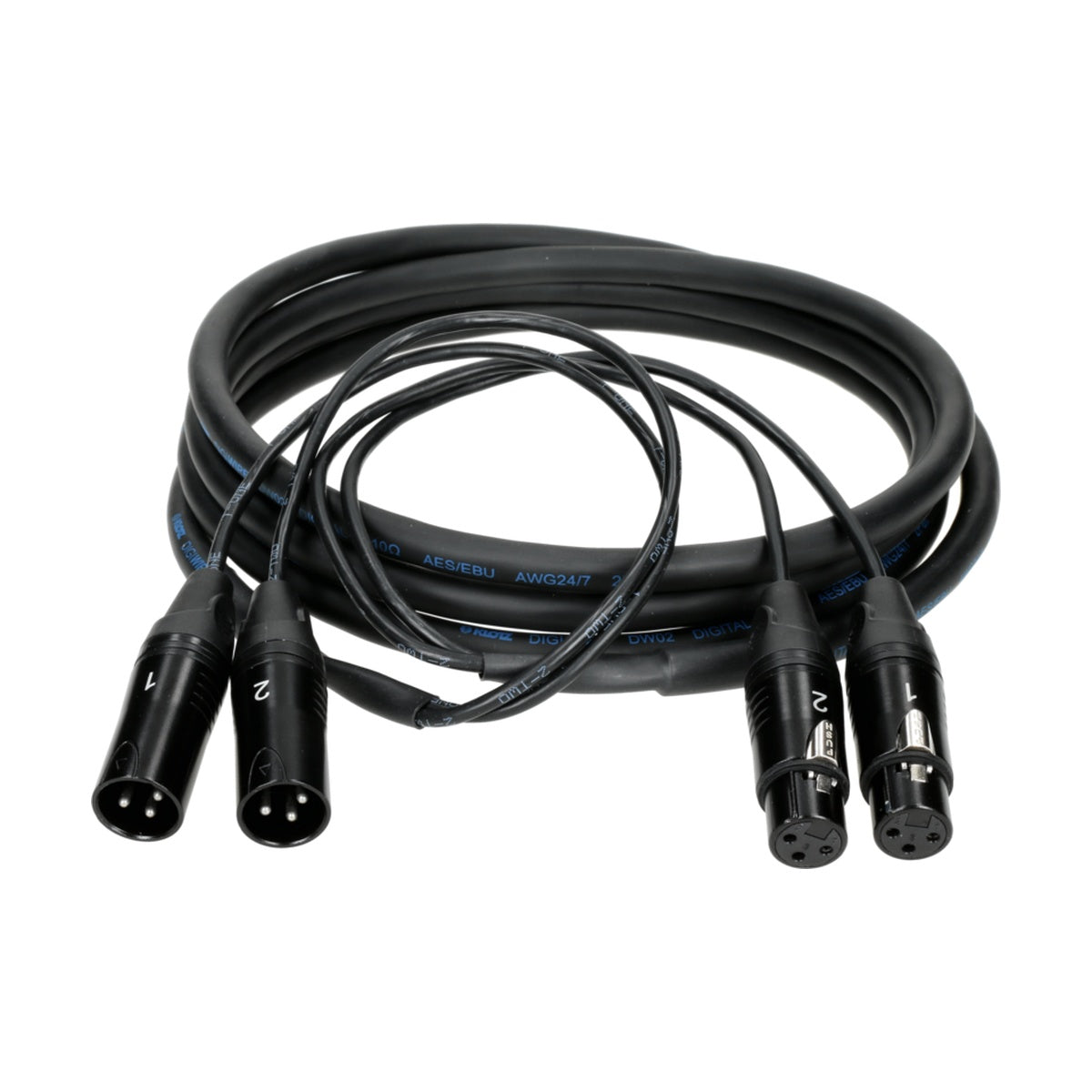

Klotz SUC02-X3L-0030 is a 2-channel AES/EBU loom, 3 m in length, built on KLOTZ DigiWIRE multicore cable with individually foil-shielded pairs (PiMF) and KLOTZ XLR 3-pin connectors fitted with silver-plated contacts. The 0.22 mm² (AWG 24) conductor cross-section and pair-in-metal-foil shielding architecture make it a single wiring solution for both AES/EBU digital and balanced analog signal paths — reducing the need for separate cable inventories on complex rigs.
Clean digital signal path without compromise
AES/EBU transmission is sensitive to impedance discontinuities and EMI — especially when running alongside power cables or near wireless systems. The PiMF shielding on each pair keeps crosstalk between the two channels minimal and rejects external interference that single overall-shielded cables let through. The 3 m length covers the common rack-to-console or converter-to-patchbay distances without unnecessary cable slack cluttering the workspace. The same cable handles DMX lighting control where required, eliminating any format-compatibility guesswork on mixed production setups.
Connector reliability and labeling under working conditions
KLOTZ's in-house XLR connectors feature metal shells with black plastic sleeves and laser-engraved channel labeling that remains legible regardless of wear or low-light conditions at front-of-house or in a dimly lit rack room. Silver-plated contacts maintain consistent low contact resistance across repeated mate-unmate cycles — a practical advantage in touring or rental contexts where connectors are stressed daily. The PVC outer jacket is robust enough to withstand road use yet stays flexible, allowing neat coiling and routing in tight rack spaces without kinking at the fanout points.
KEY FEATURES
- DigiWIRE multicore cable with PiMF shielding — effective pair-level EMI rejection
- Compatible with AES/EBU digital and balanced analog signals on the same loom
- Laser-engraved channel labeling on XLR connectors — permanent, abrasion-resistant identification
- Silver-plated contacts on both male and female XLR 3-pin connectors
- Metal-shell XLR connectors with black plastic sleeves, manufactured by KLOTZ
- Flexible black PVC outer jacket — road-durable, easy to coil
TECHNICAL SPECIFICATIONS
- Order code: SUC02-X3L-0030
- EAN: 4255646712985
- Number of channels: 2
- Length: 3 m
- Cable type: DigiWIRE, PiMF shielding (Al foil per pair)
- Conductor cross-section: 0.22 mm² (AWG 24)
- Outer jacket: PVC, black
- Connector 1: 2x XLR 3-pin female (F), metal shell
- Connector 2: 2x XLR 3-pin male (M), metal shell
- Contacts: silver-plated
- XLR connector manufacturer: KLOTZ
- Fanout length: 300 mm
- Applications: AES/EBU, DMX, balanced analog
