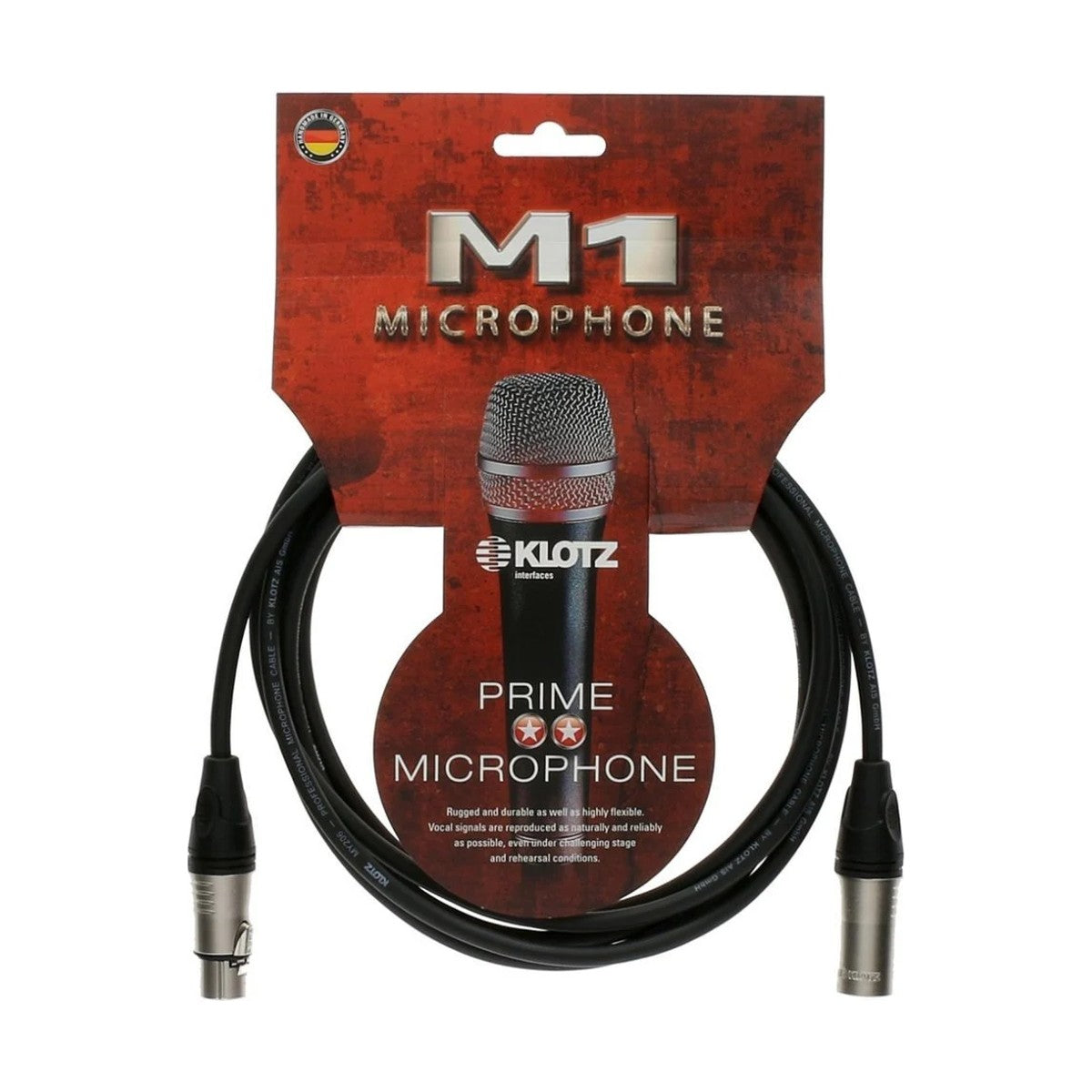

KLOTZ M1K1FM1000

Klotz M1K1FM1000 is a 10-metre microphone cable from the M1 series, terminated with KLOTZ XLR 3-pin female and male connectors featuring nickel-plated metal shells and silver-plated contacts. The MY206 cable core — 0.22 mm² (AWG 24) ETP oxygen-free copper with copper spiral shielding and a lead-free PVC jacket — holds capacitance to 60 pF/m. At 10 metres that totals 600 pF, a figure that sits comfortably within the range where neither dynamic nor condenser microphone output impedances will produce any audible bandwidth reduction in the signal path.

MY206 fat-twist construction — mechanical and electrical integrity under load

The MY206 cable type used in the M1 series uses a fat twisted-core geometry that provides high torsional resistance and retains cross-section symmetry even after repeated compression — a common occurrence when cables are stepped on or run under equipment on stage. This construction prevents the permanent deformation that causes gradual capacitance increase and tonal degradation in cables with thinner, looser cores. The copper spiral shield delivers effective EMI rejection without adding rigidity to the jacket, so the cable lays flat naturally and coils without memory after a show. The lead-free PVC outer jacket meets current environmental standards and withstands abrasion when the cable is dragged across rough stage surfaces.

10 metres and KLOTZ XLR connectors — stage to stagebox without compromise

Ten metres is the standard working distance between a vocalist's position and the first stagebox or splitter on a mid-size stage, and between a spot-mic and a rack-mounted preamp in a pulled-back recording configuration. KLOTZ-manufactured XLR connectors with nickel-plated metal shells and silver-plated contacts maintain consistent low contact resistance through the full service life of the cable, including repeated daily mate-unmate cycles in touring and rental contexts. The black plastic sleeve on both connectors allows quick end identification and precise insertion without needing to look closely in dark backstage environments.

KEY FEATURES

• MY206 ETP oxygen-free copper cable — high signal purity and mechanical durability
• Copper spiral shielding — effective EMI rejection without stiffening the jacket
• 60 pF/m capacitance — tonally neutral across the full 10 m length
• Fat twisted-core design — torsional resistance, symmetry retained after compression
• Lead-free PVC outer jacket — environmental compliance, abrasion-resistant
• KLOTZ XLR 3p connectors with nickel-plated shells and silver-plated contacts
• Black plastic sleeve on both connectors — fast end identification on dark stages

TECHNICAL SPECIFICATIONS

• Order code: M1K1FM1000
• EAN: 4250046861776
• Series: M1
• Category: professional microphone
• Length: 10 m
• Cable color: black
• Cable type: MY206, cross-section 0.22 mm² (AWG 24)
• Shielding: copper spiral shield
• Capacitance: 60 pF/m (18 pF/ft)
• Outer jacket: lead-free PVC
• Connector 1: XLR 3p female (F), nickel-plated metal shell, manufacturer KLOTZ
• Connector 2: XLR 3p male (M), nickel-plated metal shell, manufacturer KLOTZ
• Contacts: silver-plated
• Shell/sleeve: plastic, black
• Packaging: cable carrier
