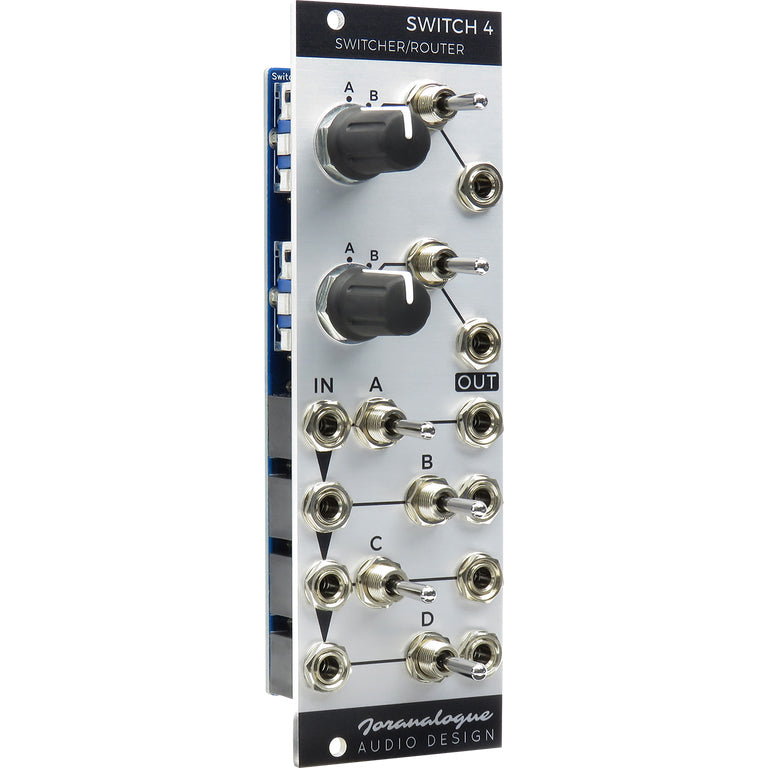

Joranalogue Switch 4 is a solution for signal routing and routing in Eurorack modular synthesizers.
It allows for quick muting of audio signals, triggering envelopes, and switching modulation sources on the fly during live performances. With an intuitive interface based on custom dual-mode toggles and a sturdy construction, Switch 4 proves to be useful both on stage and in the studio.

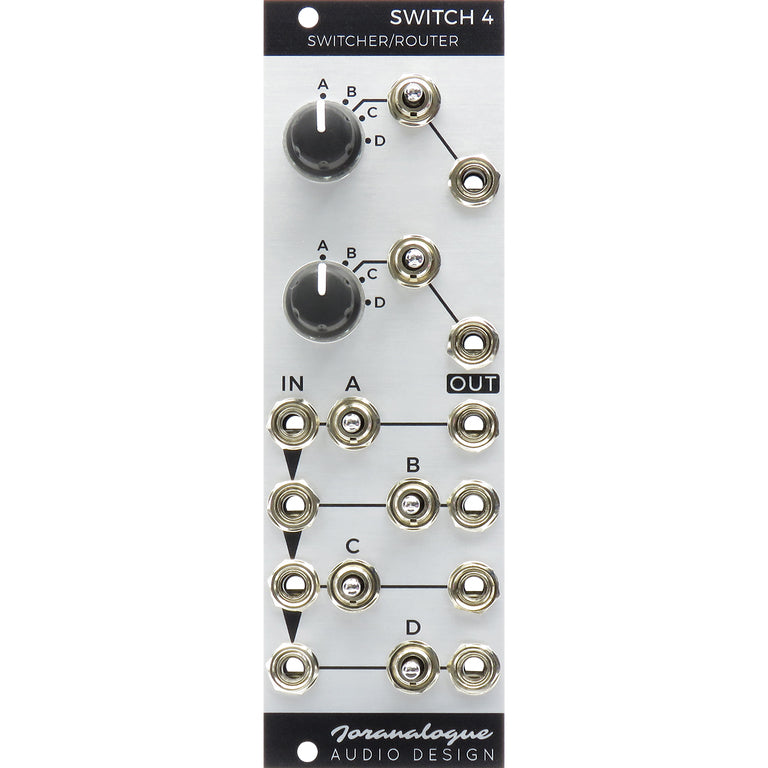

The lower switching section includes 4 lever toggles for breaking or closing signal paths between inputs and outputs. These switches have two modes: fixed when moved upwards and momentary when pressed downwards.
The four input signals are also fed into the upper routing section, where two rotary selectors allow you to route selected signals to corresponding outputs. Dual-mode toggles are also present here for added flexibility.
Finally, all signal paths are buffered, avoiding dropouts during switching or loading effects when connecting multiple inputs. The use of high-quality components ensures exceptionally low noise and nonlinear distortions, allowing Switch 4 to reliably handle audio, control voltages, and logic signals.
Key features:
- Lower section with 4 dual-mode switching toggles
- Upper section with 2 rotary and 2 dual-mode routing toggles
- Inputs normalized in series for use as a multimeter
- Buffered paths with very low noise and distortion
- Milled aluminum panel with non-erasable graphics
- Robust construction, reverse polarity protection

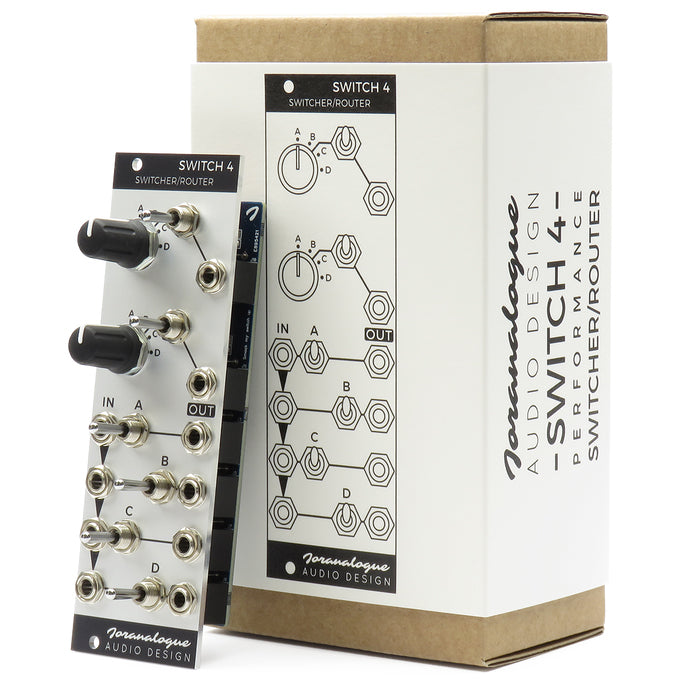

- Comes with power cable and hardware
- High-quality assembly, Belgium
