H2 Audio 0011 Stereo

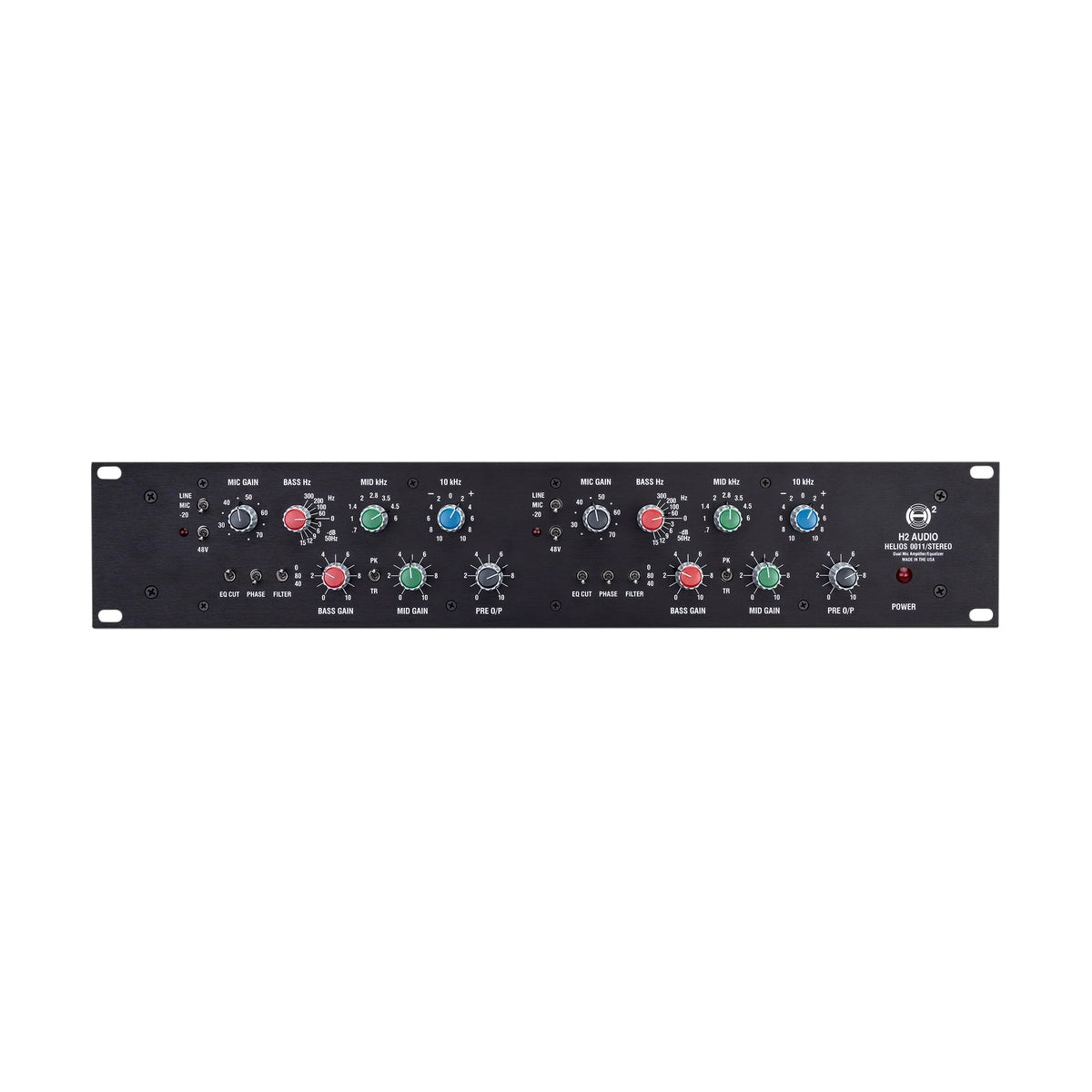

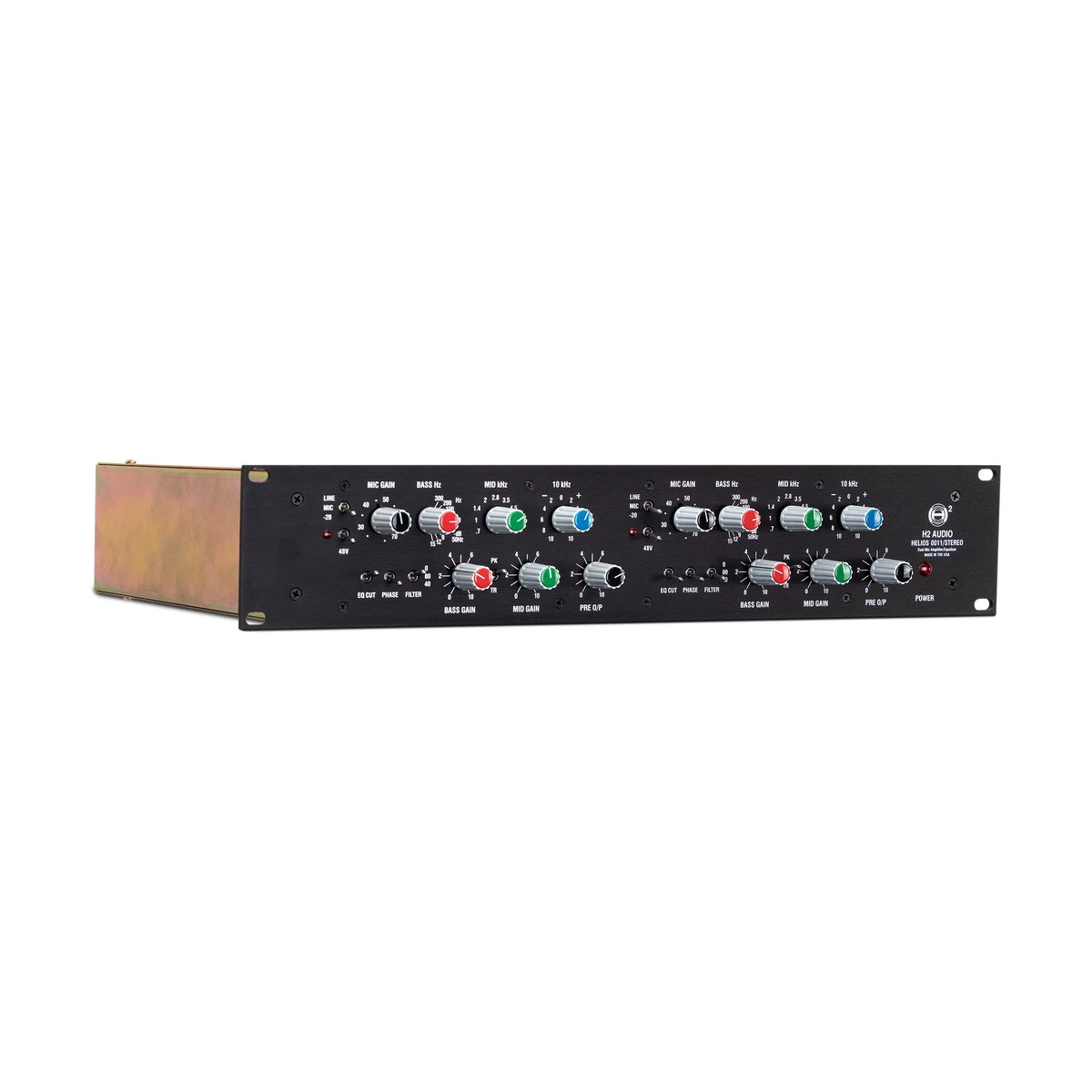

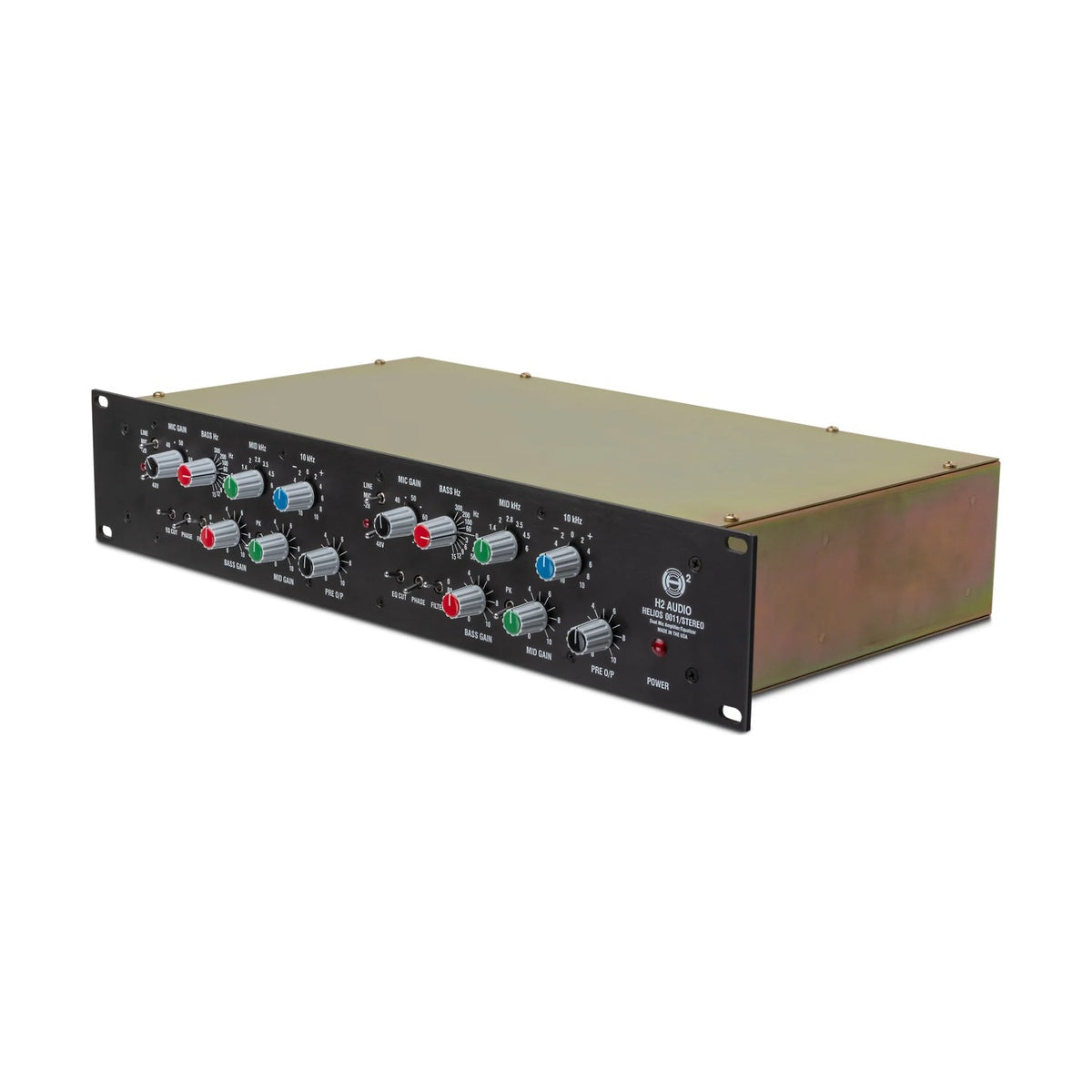

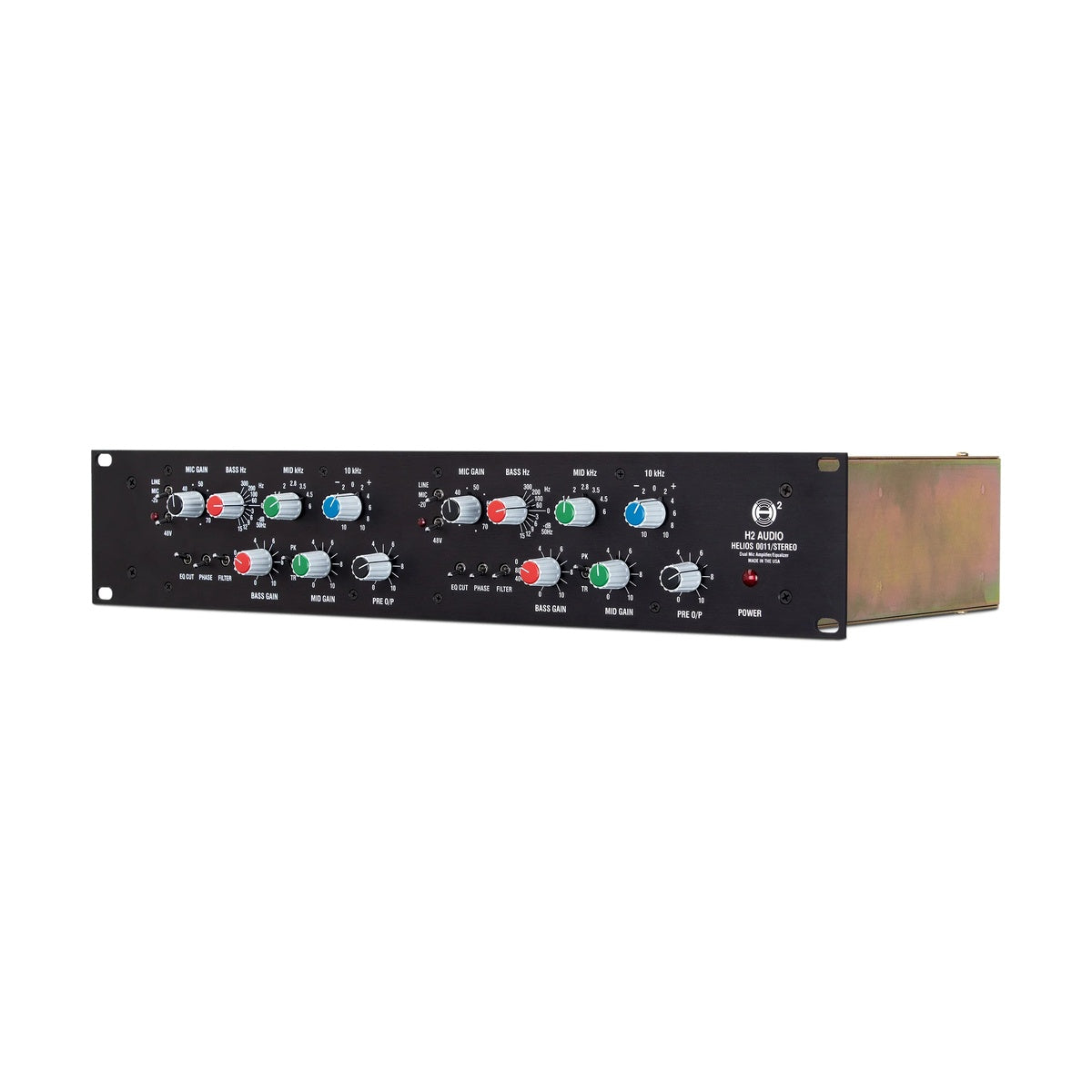

H2 Audio 0011 Stereo puts two Helios Type 69 channels into a 19 inch, 2U rackmount chassis. Each channel is complete: Lustraphone input transformer, microphone preamp and a three-band inductor equalizer with a fixed 10 kHz shelf.

A factory-matched pair for stereo tracking

Assembling a pair from two separate modules always leaves a level offset and a slight tonal drift between channels. Here both paths were built together, so overheads, piano or a room pair hold the centre of the image without correction at the fader. Gain runs from 25 to 75 dB in 5 dB steps, identically on both channels.

A finished rack unit instead of a modular system

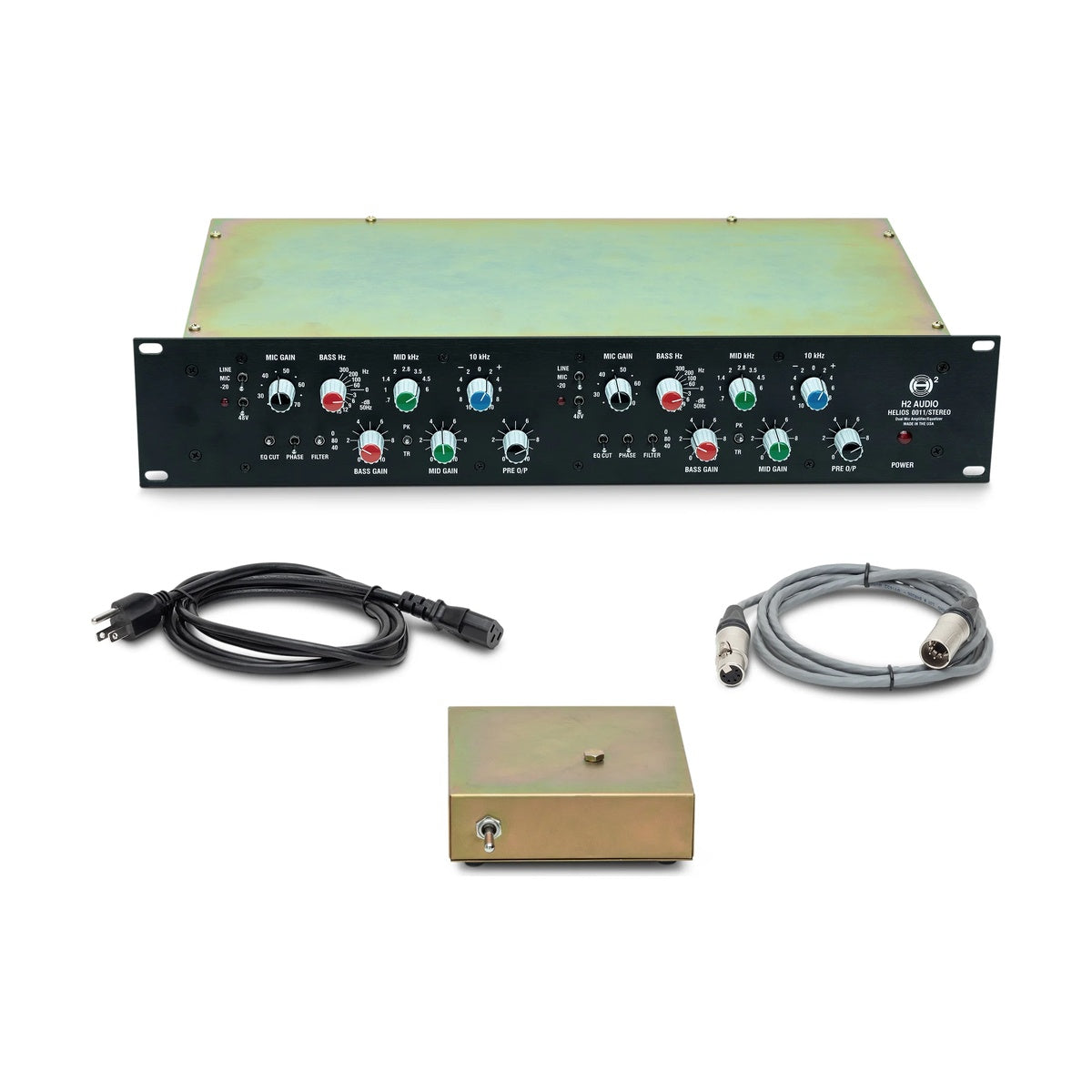

The 0011 Stereo needs no module rack and no separate system power supply: an external transformer handles 120 V or 230/240 V operation. Connectors are gold-plated Neutrik XLR on a heavy steel chassis, and 32 V rails give more headroom than the original seventies consoles had. The high-pass filter offers 0, 40 and 80 Hz positions and maximum output reaches +25 dBm.

KEY FEATURES

• Two independent Helios Type 69 channels in a 2U chassis
• Lustraphone input transformers on both channels
• Three-band inductor equalizer with a fixed 10 kHz shelf
• High-pass filter at 0, 40 or 80 Hz
• 32 V rails for more headroom than the vintage originals
• Gold-plated Neutrik XLR connectors and a heavy steel chassis
• Gold ELMA switches and sealed conductive plastic pots

TECHNICAL SPECIFICATIONS

• Format: 19 inch rackmount, 2U
• Channels: 2
• Microphone gain: 25-75 dB in 5 dB steps
• Input pad: -20 dB
• High-pass filter: 0 Hz, 40 Hz, 80 Hz
• Equalizer: three-band inductor design with selectable low and mid frequencies
• High band: fixed 10 kHz shelf
• Maximum output: +25 dBm
• Connectors: gold-plated Neutrik XLR, balanced
• Power rails: 32 V
• Dimensions: 19" x 3.5"
• Power: 120 V or 230/240 V via external transformer
