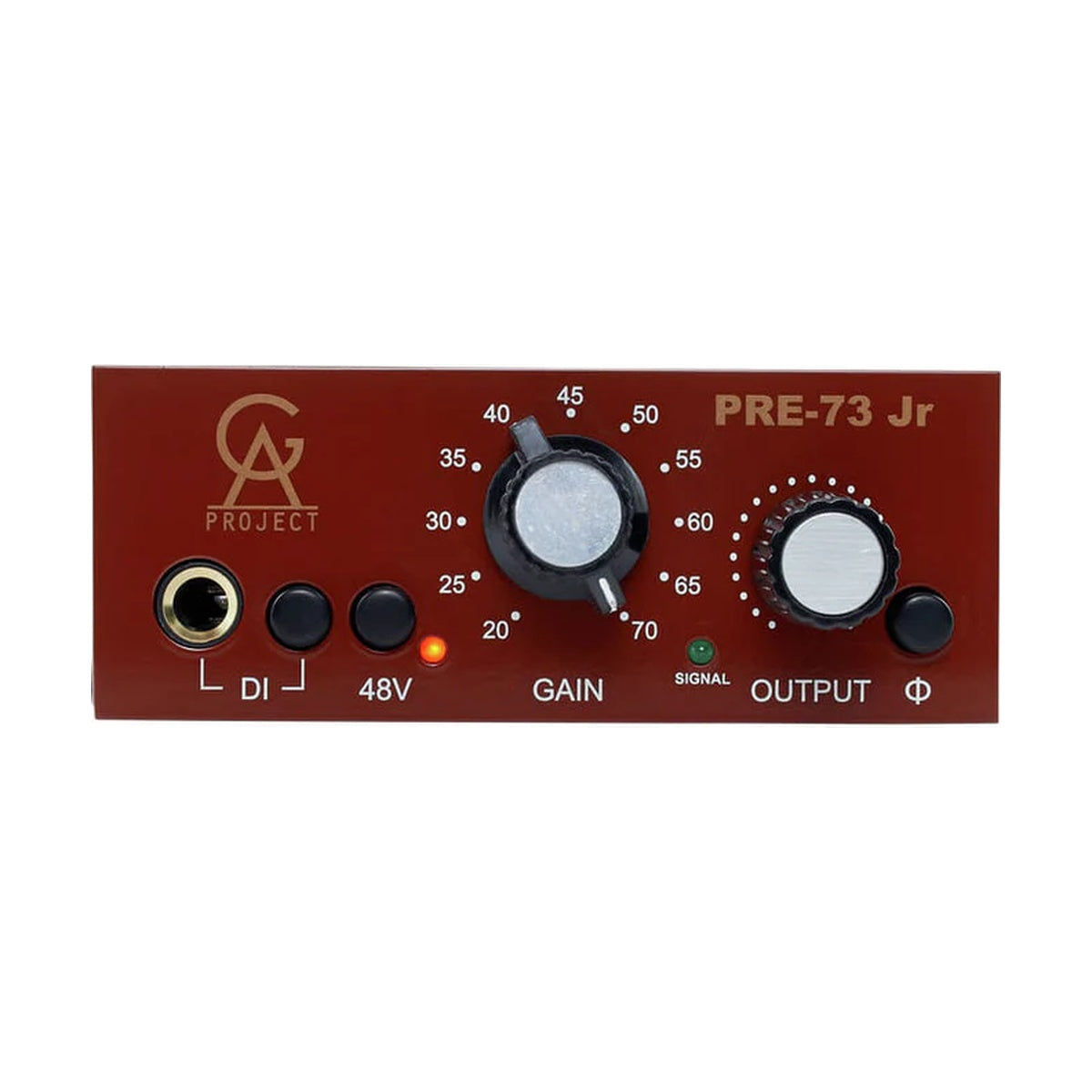

Golden Age Project PRE-73 Jr

Golden Age Project PRE-73 Jr – one-channel vintage-style mic/instrument preamp. Discrete components, transformer-balanced I/O with Carnhill transformers for warm, punchy 1073-inspired sound. 70dB gain, switchable impedance (1200/300 Ohm), +48V phantom, phase reverse, HPF (40/170Hz, 6dB/octave), AIR boost (3/6dB @30kHz), LED level indicator. Compact half-rack for studios/live.

Signal path: resistors, capacitors, transistors. Versatile for mics/instruments. External PSU, low noise.

MAIN FEATURES

• 70dB mic gain
• Switchable impedance: 1200/300 Ohm
• +48V phantom
• Phase reverse
• HPF: 40/170Hz
• AIR boost: 3/6dB @30kHz
• LED indicator
• Transformer-balanced I/O
• Discrete signal path
• Half-rack chassis

TECHNICAL SPECIFICATIONS

• Inputs: XLR mic/line, 1/4" instrument
• Outputs: XLR balanced
• Gain: 70dB max (mic)
• Phantom: +48V
• Frequency Response: 20Hz-20kHz
• THD + Noise: Low (discrete)
• Power Supply: External 24V DC
• Dimensions: Half-rack
• Weight: 350g
• Included: PRE-73 Jr MKII, PSU
• Product Code: PRE-73 Jr MKII
