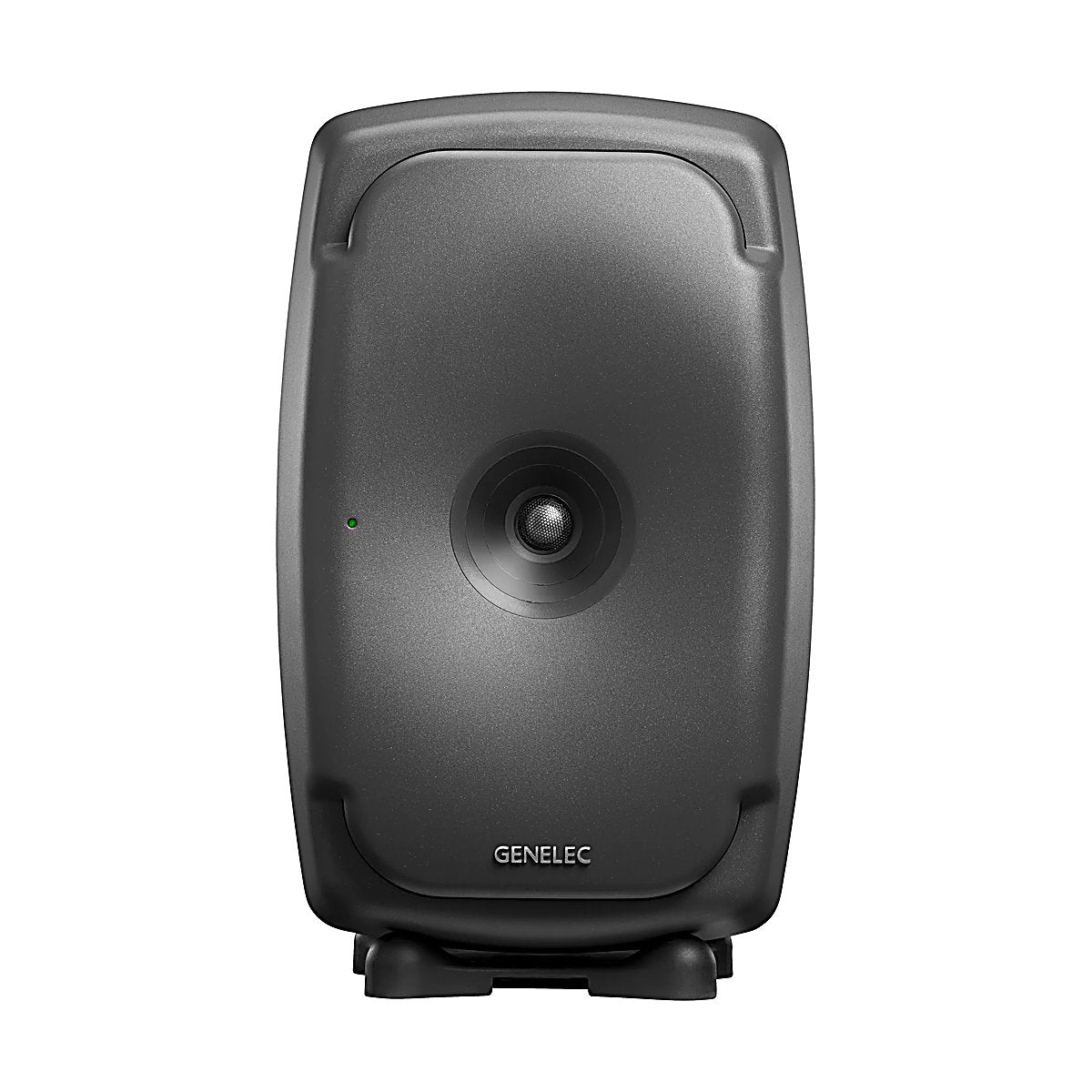

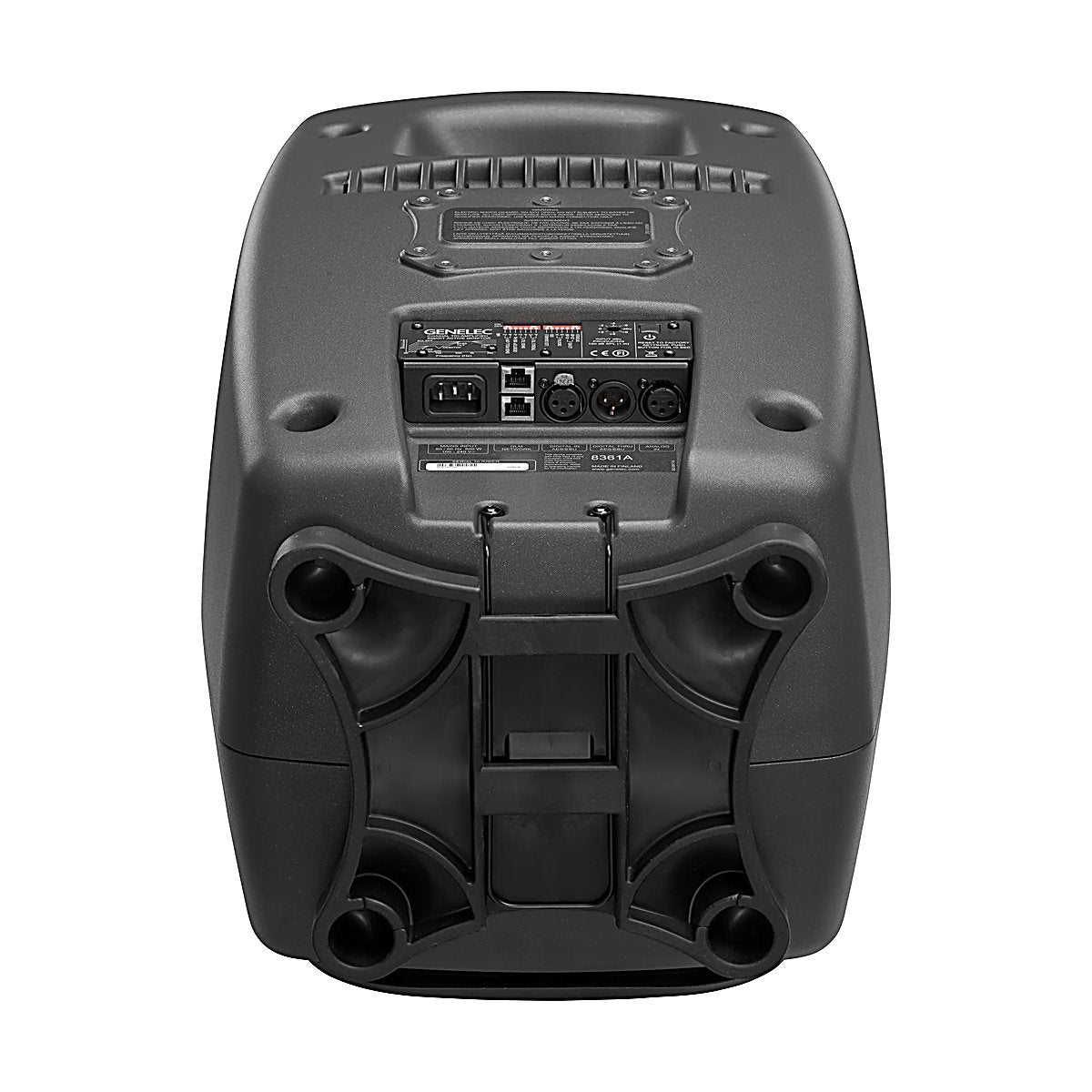

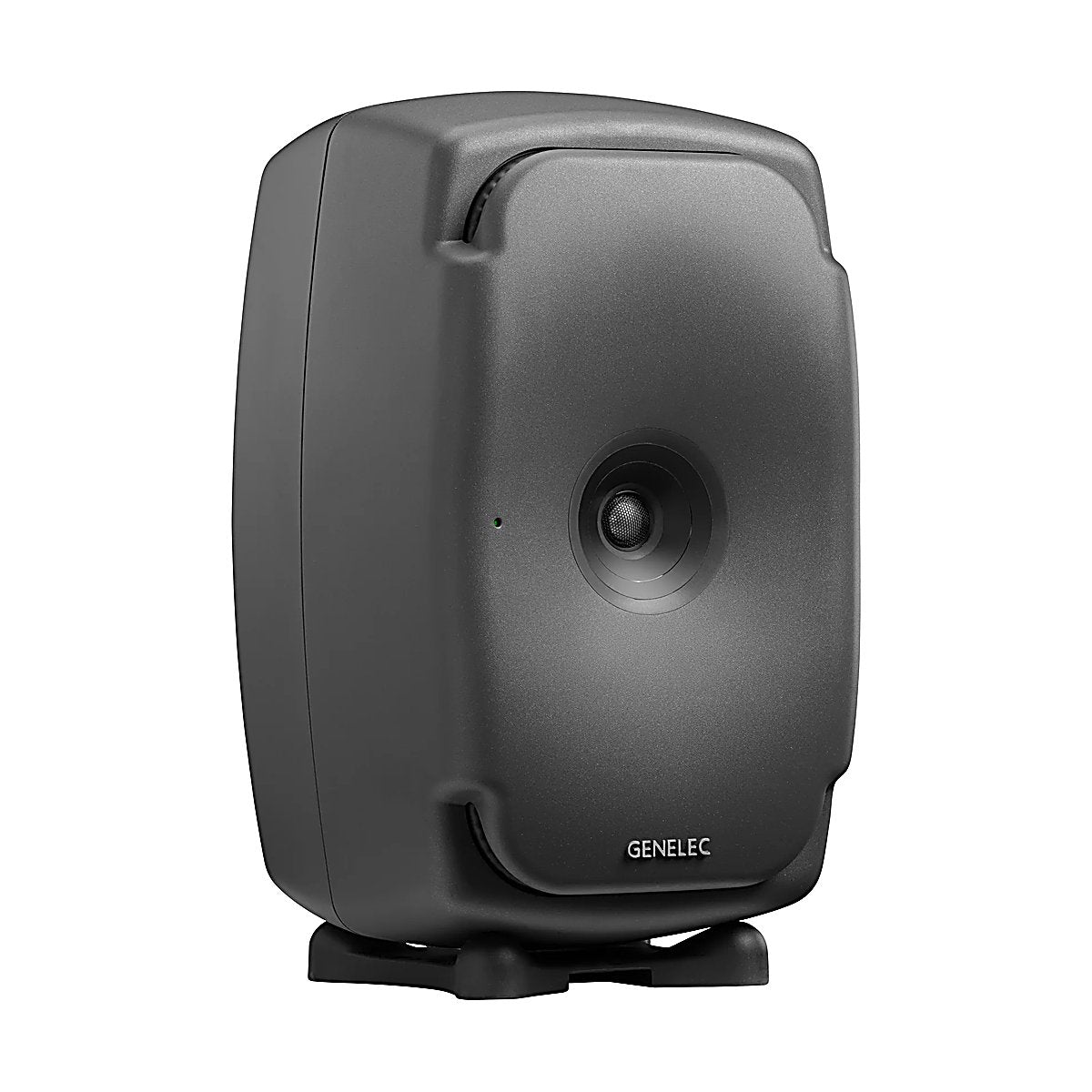

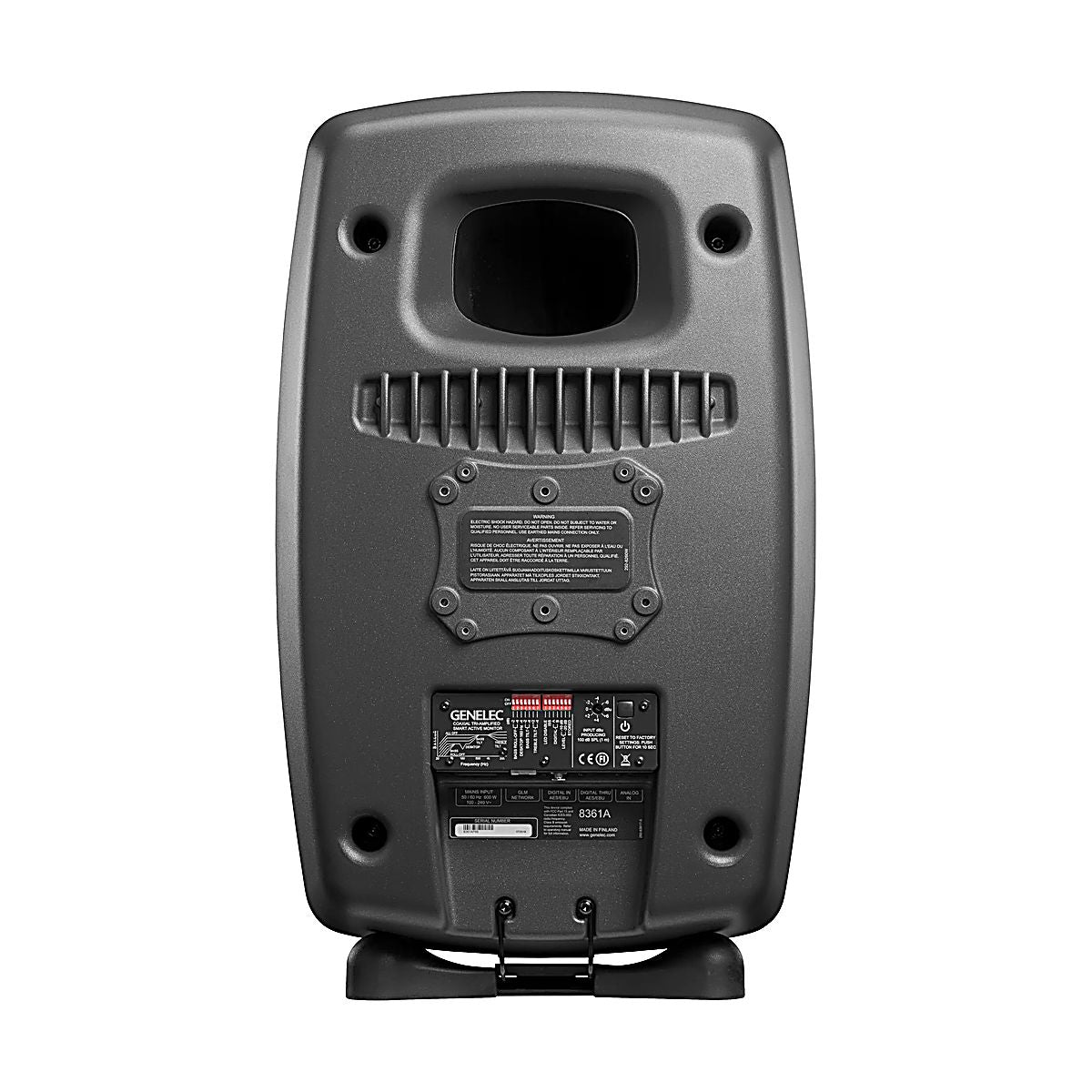

GENELEC 8361AP Monitor SAM 8361A dark grey
Optionen wählen
Genelec 8361AP is a professional active three-way monitor designed for critical recording, mixing, and mastering applications. It features two oval 10 3/8" x 5 3/8" woofers and a coaxial 5" midrange and 1" tweeter assembly. By integrating proprietary CAM, MDC, ACW, DCW, and MDE technologies, the monitor delivers ultra-low distortion, highly linear frequency response, and exceptional sound directivity.
The Class D three-way amplifier with a total output of 800 W enables maximum sound pressure levels of 118 dB at 1 meter and 124 dB at 0.5 meters. The frequency range from 30 Hz to 43 kHz ensures precise reproduction of both the lowest and highest frequencies.
For optimal room adaptation, the Genelec 8361AP supports automatic calibration via AutoCal software using the GLM system, and also offers manual adjustment through DIP switches. Connectivity includes a balanced analog XLR input, digital AES/EBU ports, and two RJ45 network ports for system control.
Genelec 8361AP Features
- Large coaxial point source for accurate sound imaging
- Integration of CAM, MDC, ACW, DCW, and MDE technologies
- High dynamic range and minimal distortion
- Supports automatic room calibration via GLM system
- Manual acoustic adjustment via DIP switches
- Balanced analog and digital XLR inputs for flexible integration
- Optimized for small and medium studio spaces
- Composite enclosure minimizing sound diffraction
Genelec 8361AP Specifications
- Type: Active Monitor
- Amplifier Power: 500 W (woofer) + 150 W (midrange) + 150 W (tweeter)
- Configuration: 3-way
- High-Frequency Driver: 1" coaxial
- Midrange Driver: 5" coaxial
- Low-Frequency Drivers: 2 x oval 10 3/8" x 5 3/8"
- Frequency Response: 30 Hz – 43 kHz (-6 dB)
- Max SPL: 118 dB (1 m) / 124 dB (0.5 m)
- Inputs: 1 x XLR analog, 1 x XLR AES/EBU digital (in/out)
- DSP: Yes (AutoCal via GLM)
- Enclosure Type: Sealed
- Bluetooth: No
