Flock Audio PATCH VT
This item is available on a custom order basis only. Please contact us for more details. Contact us
Flock Audio PATCH VT is a digital analog audio routing management system with 64 inputs and 64 outputs.
PATCH VT utilizes a small portion of processor power, directing computational resources primarily towards interface and DAW operation rather than analog audio equipment routing.

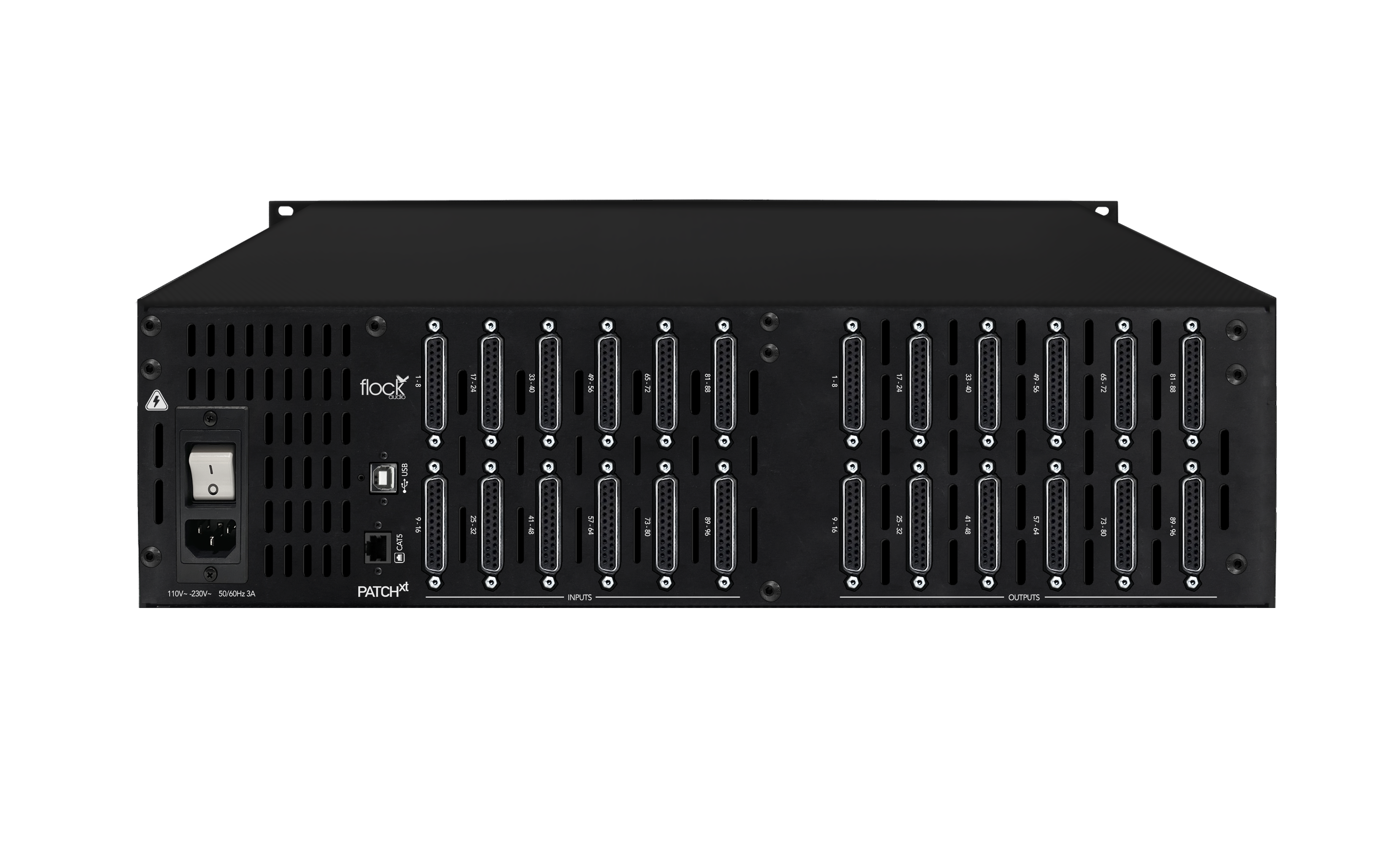

PATCH VT offers simple connectivity via DB-25/D-Sub connectors. The standard Tascam wiring scheme ensures compatibility with any DB-25/D-Sub cable.
The PATCH System series does not include built-in ADC or DAC, but users can connect multiple PATCH VT systems through onboard inputs/outputs in various configurations. Customize routing via the PATCH APP application menu.
Key features and specifications:
- 128 connection points (64 inputs and 64 outputs)
- DB-25/D-SUB connectors with standard Tascam wiring
- 32 independent 48V phantom power channels
- 2 combo TRS/XLR inputs and 2 XLR outputs on the front panel

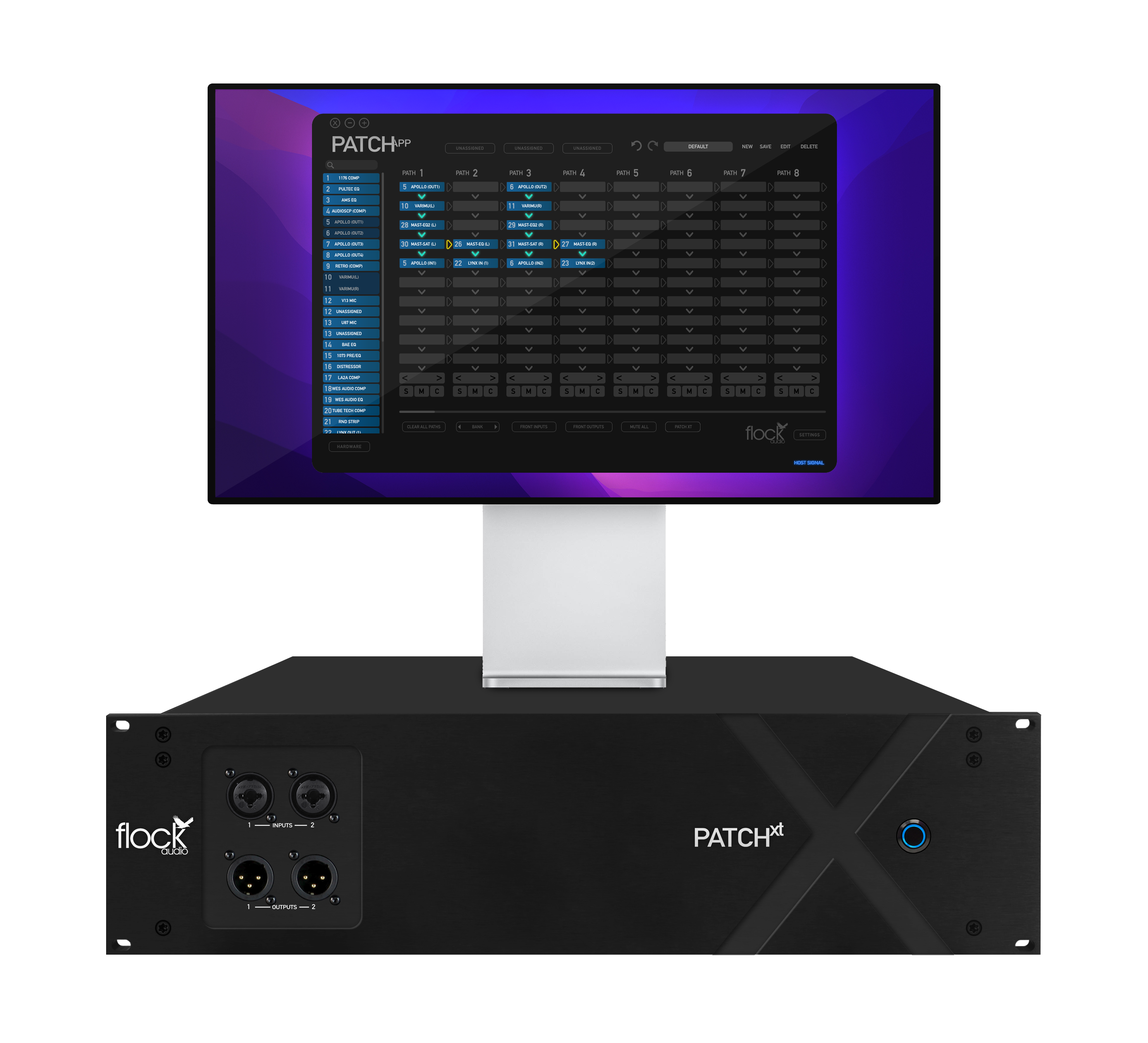

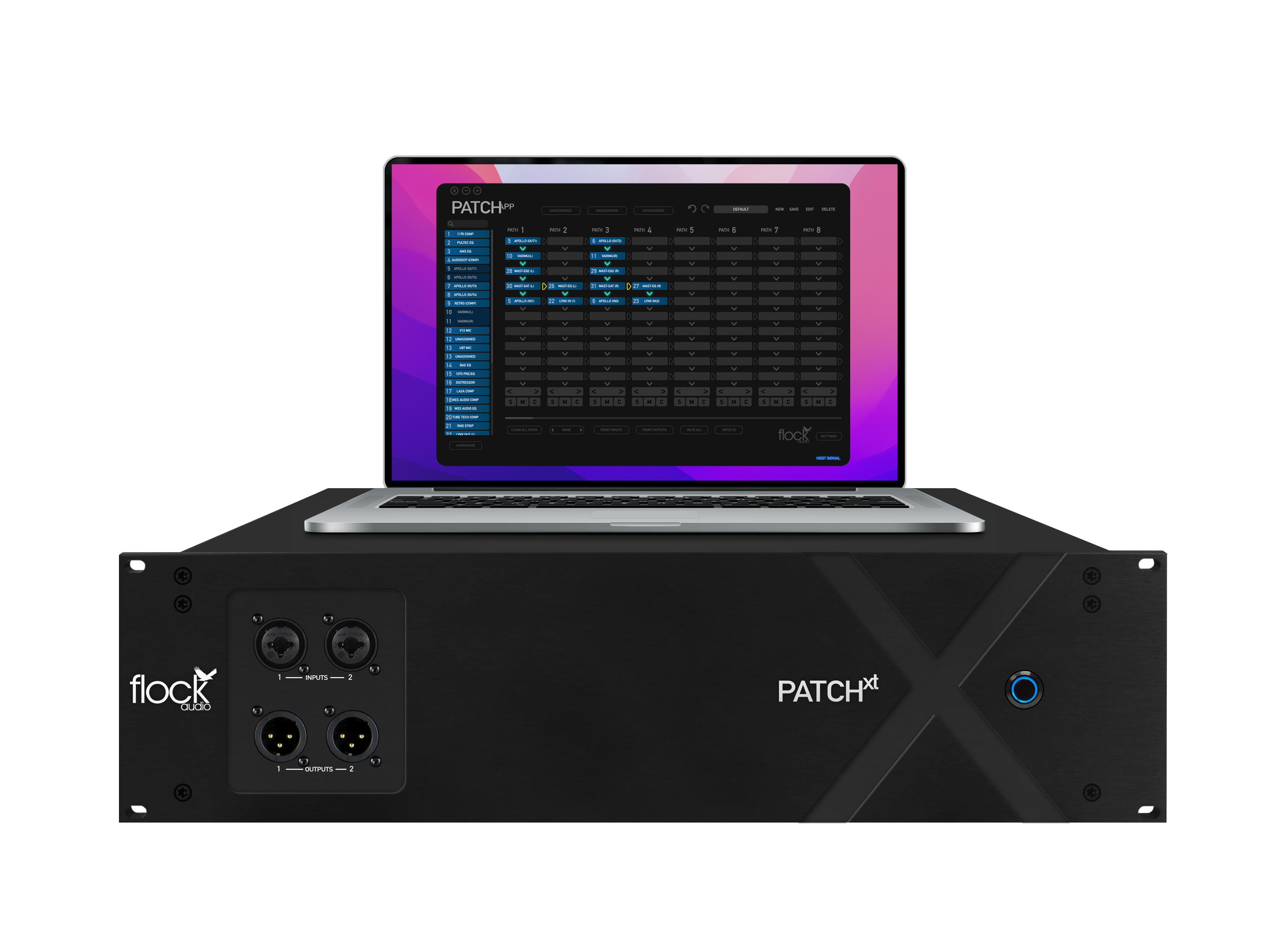

- PATCH APP routing software for OSX and Windows
- Create, save, and recall routes in seconds
- Complex signal overlay combinations without impedance issues
- 100% transparent analog signal path without ADC/DAC
- Patented Flock Audio audiometric technology
- Expansion through connection of multiple PATCH models (PATCH, LT, and XT)
- External 24V DC power supply with included IEC cable
- Height in rack 3U
- Weight 10.89 kg
