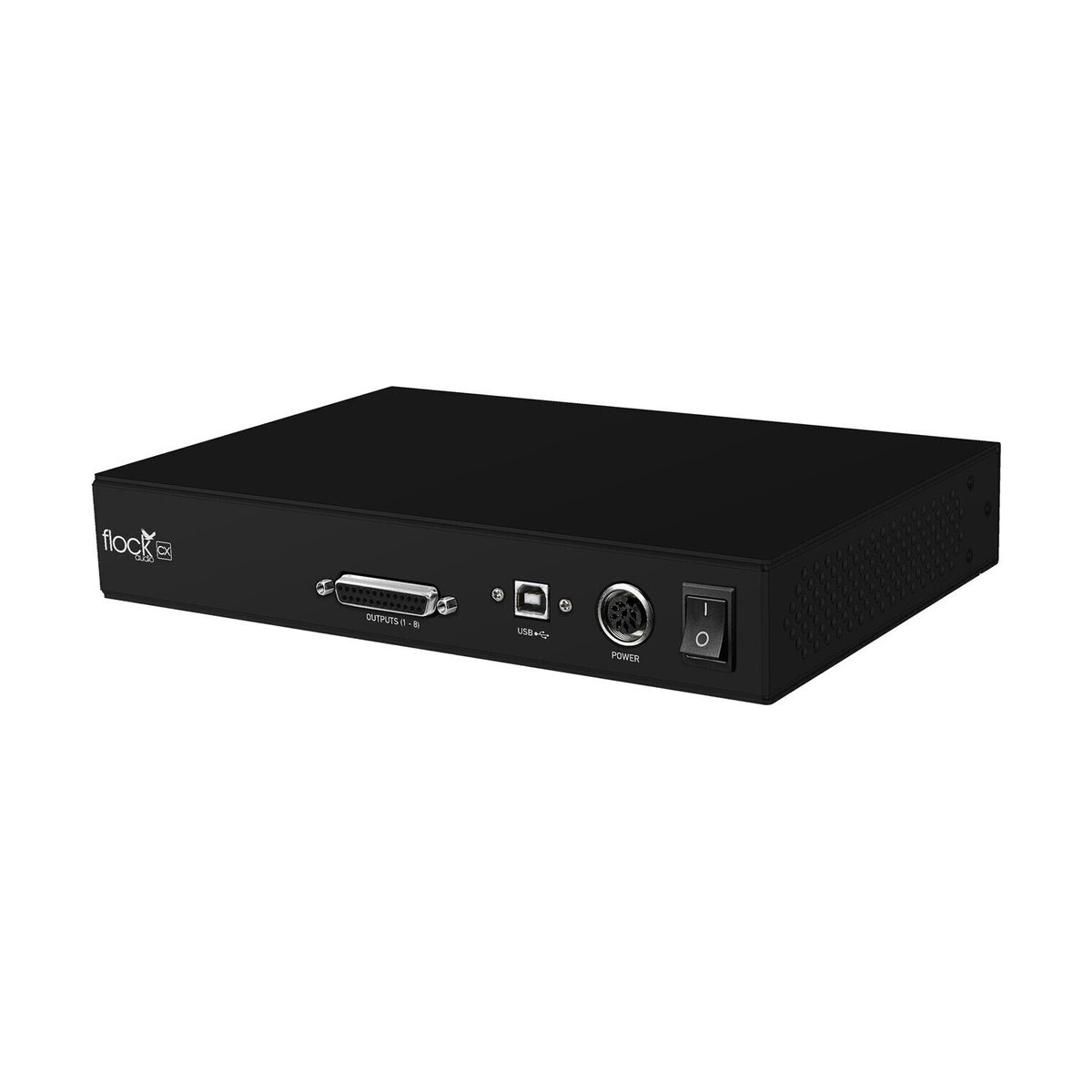

Flock Audio CX

Flock Audio CX – 8-channel mic/instrument level to line (+4 dBu) adjustment module, compatible with PATCH series. Routes analog signals through PATCH for clean, transparent sound. Ideal for studios/live. Compact enclosure (44 x 260 x 178 mm, 2.3 kg).

CX handles all analog signals, with standalone app for use outside PATCH. Controls: 0-60 dB gain, 48V phantom, -20 dB PAD. USB/Ethernet control, no AD/DA. Low latency for pro use.

As pro module, blends flexibility with precision, ready for routing without compromise.

MAIN FEATURES

• 8 channels mic/line to +4 dBu
• Compatible with PATCH LT/VT/XT
• 0-60 dB gain, 48V phantom per channel
• -20 dB PAD, phase reverse
• Standalone app (OSX/Windows)
• USB 2.0/Ethernet control
• 100% analog path
• Rack ears included

TECHNICAL SPECIFICATIONS

• Channels: 8 (mic/instrument/line)
• Gain: 0-60 dB
• Phantom: 48V per channel
• Inputs: 8x combo XLR/TRS
• Outputs: 8x DB-25 (+4 dBu balanced)
• Frequency Response: 20 Hz–20 kHz
• THD + N: < 0.01% @ 1 kHz
• Power Supply: 65W external, 100-240 V AC
• Dimensions (H × W × D): 44 x 260 x 178 mm
• Weight: 2.3 kg
• Included: CX, power supply, rack ears
• Product Code: FLO-CX
