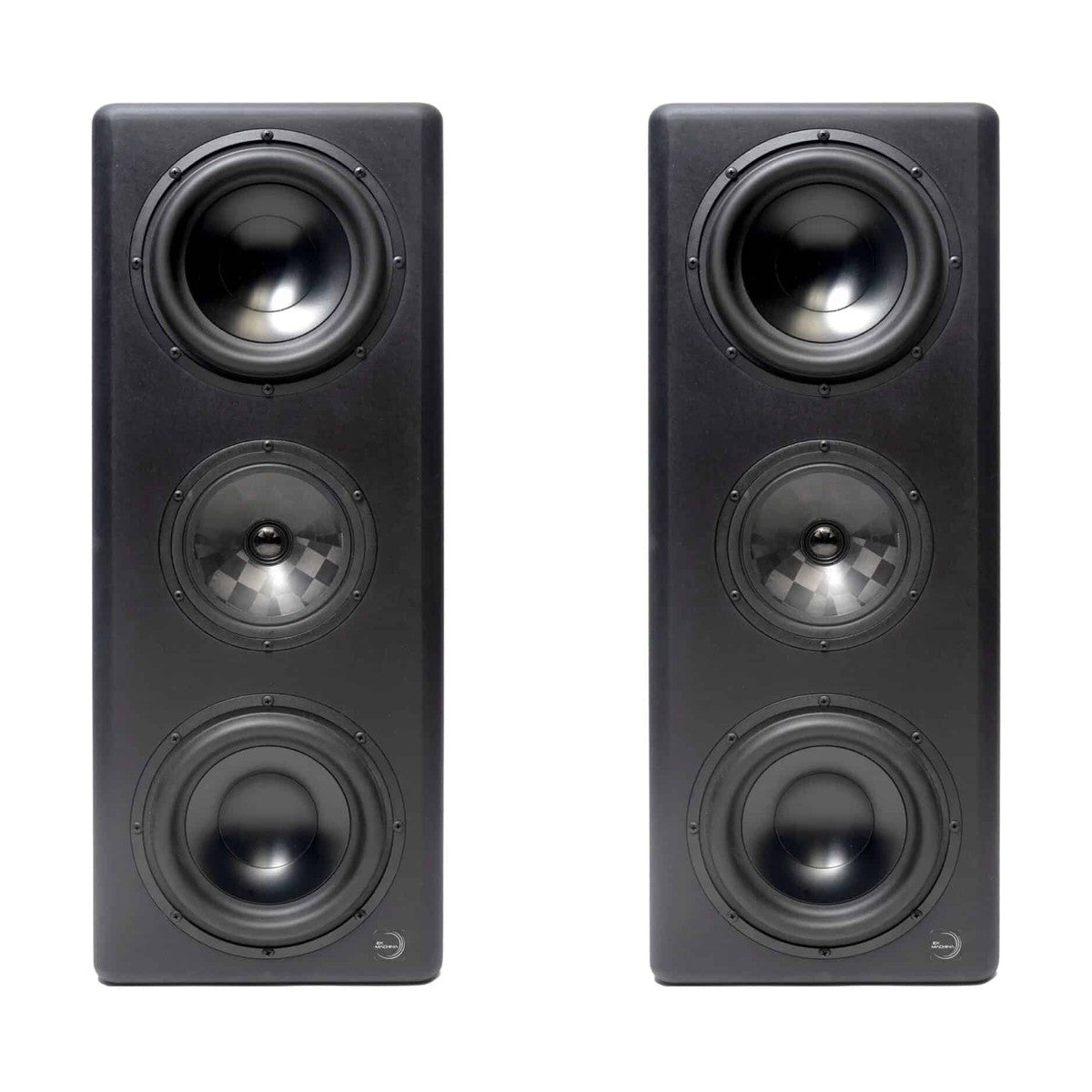

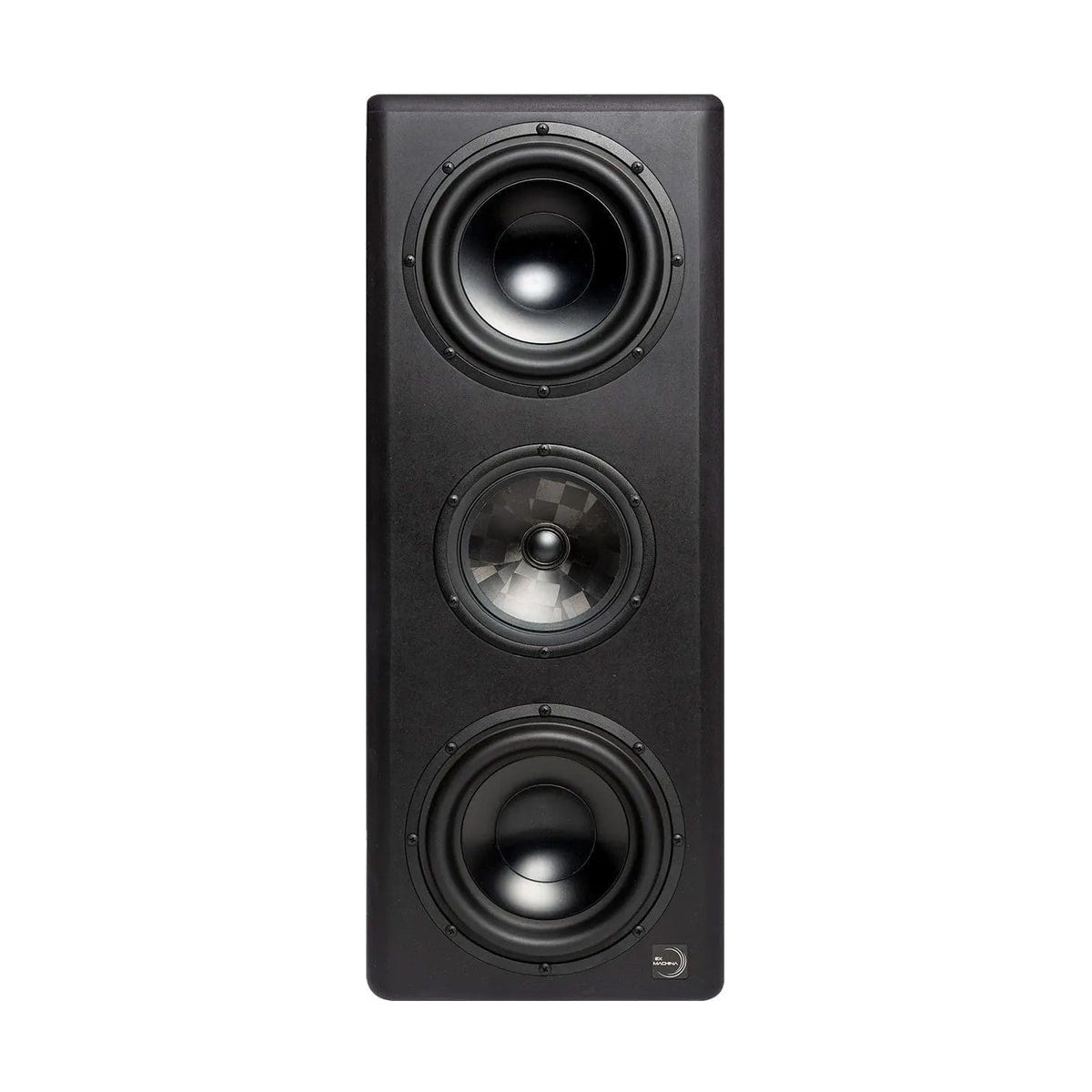

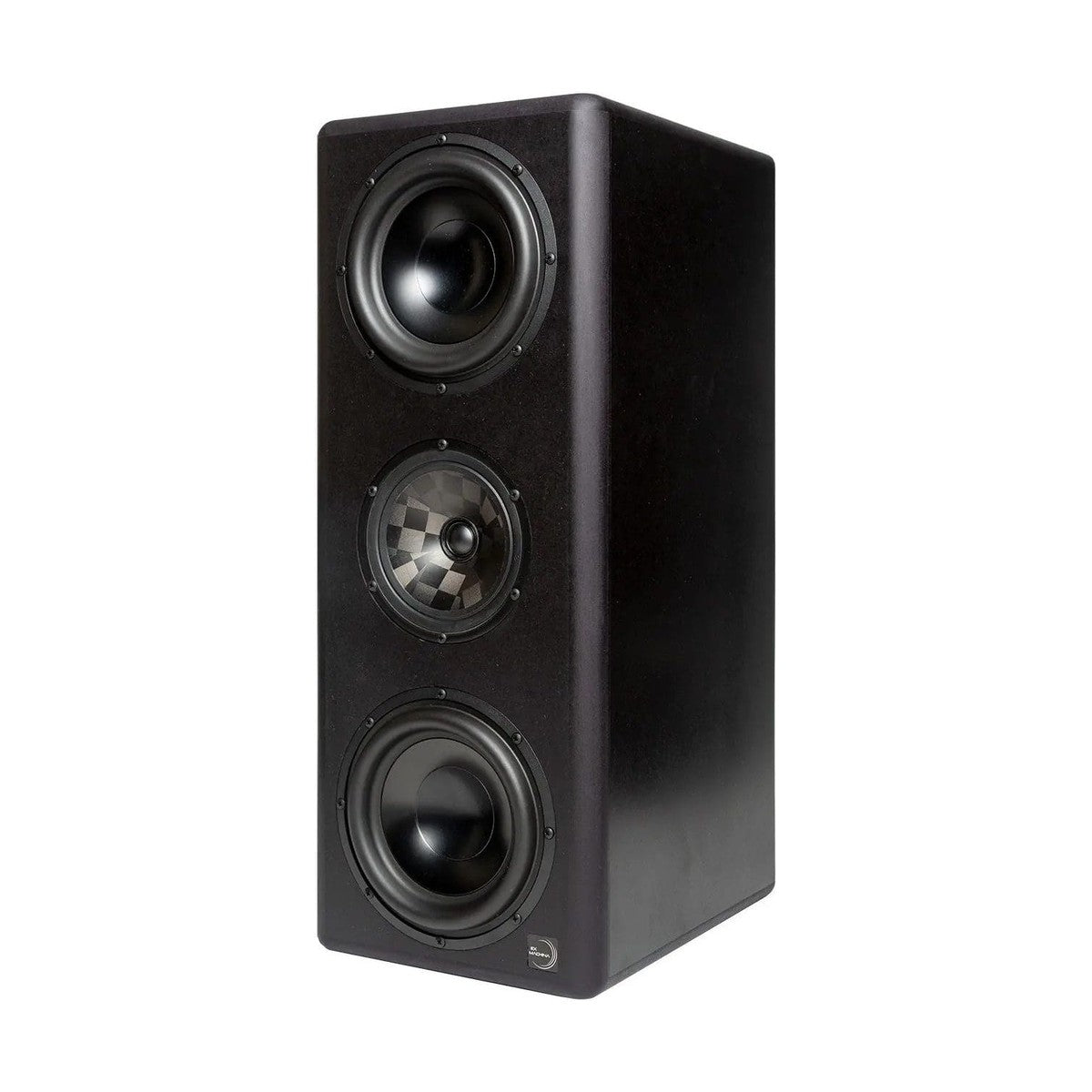

Ex Machina Quasar MkII is a flagship active three-way studio monitor engineered for uncompromising midfield and main monitoring applications in world-class control rooms. Merging cutting-edge materials science with immense digital processing power, the Quasar MkII delivers the massive headroom and low-frequency extension of a large-format main monitor, while retaining the transient speed and surgical phase coherence typically reserved for strictly nearfield designs.
Massive Headroom, Zero Port Turbulence
Modern sub-bass evaluation demands devastating power coupled with rapid transient recovery. To ensure absolute honesty in the low end, the Quasar MkII completely bypasses bass-reflex architecture. Instead, it utilizes dual 8-inch high-excursion SEAS woofers housed within a heavily damped, completely sealed Valchromat enclosure. Driven by discrete Hypex Ncore amplifiers, this acoustic suspension design eradicates port ringing, turbulence, and group delay, delivering tightly controlled, linear bass extension down to 32 Hz without sympathetic cabinet resonances.
Holographic Imaging via DSP Linearization
Traditional multi-way monitors frequently introduce severe phase shifts at crossover points, smearing transients and collapsing the stereo image. The Quasar MkII tackles this limitation with a custom coaxial mid/tweeter driver utilizing aerospace-grade Metamodal TX carbon diaphragms. This point-source transducer is governed by an onboard 5th-Generation SHARC+ DSP and flagship AKM Velvet Sound converters. By executing phase-corrected digital crossovers in real-time, the system maintains a strict ±15° phase tolerance across the entire spectrum, projecting a holographic soundstage with an expansive and stable sweet spot.
KEY FEATURES
- Active three-way midfield/main monitor with a perfectly sealed acoustic suspension enclosure.
- Dual 8-inch SEAS low-frequency drivers engineered for massive excursion and imperceptible THD.
- Proprietary coaxial mid/high transducer utilizing resonance-suppressing Metamodal TX carbon diaphragms.
- 5th-Generation SHARC+ DSP calculating zero-phase digital crossovers in real-time.
- Flagship AKM Velvet Sound AD/DA conversion coupled with ultra-clean Hypex Ncore amplification.
- Acoustically dead cabinet crafted from heavily damped Valchromat to eliminate sympathetic resonance.
TECHNICAL SPECIFICATIONS
- Design: Active 3-way, sealed enclosure midfield/main monitor.
- Drivers: 2 x 8" LF woofers, 1 x custom coaxial mid/high transducer (with 1" tweeter).
- Frequency Response: 32 Hz – 30 kHz (±1 dB).
- Phase Coherence: ±15° tolerance across the usable passband.
- Amplification: Tri-amplified via discrete Hypex Ncore modules.
- DSP & Conversion: Native 5th-Gen SHARC+ processor with AKM Velvet Sound AD/DA.
