Elysia
Elysia xfilter|Mastering Edition

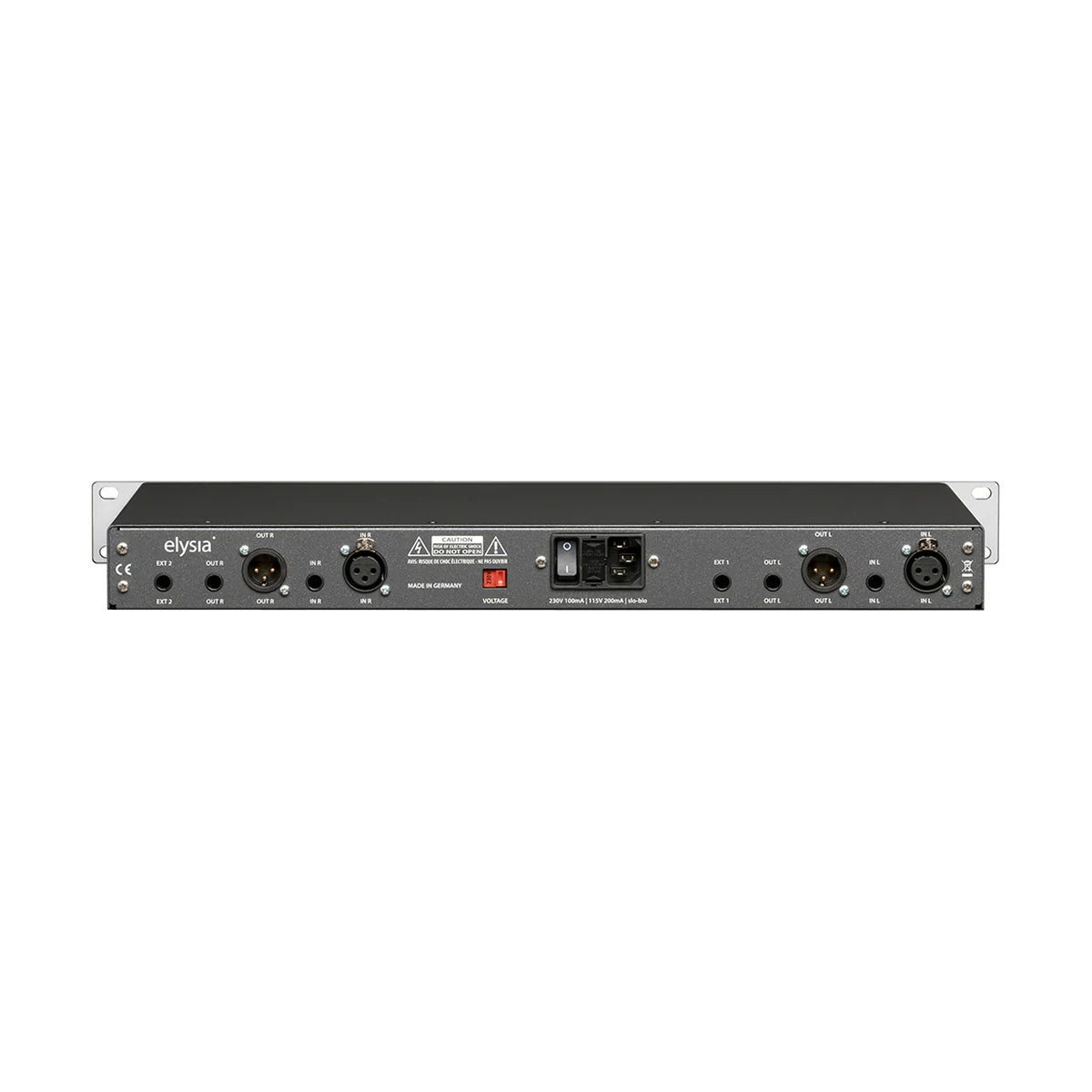

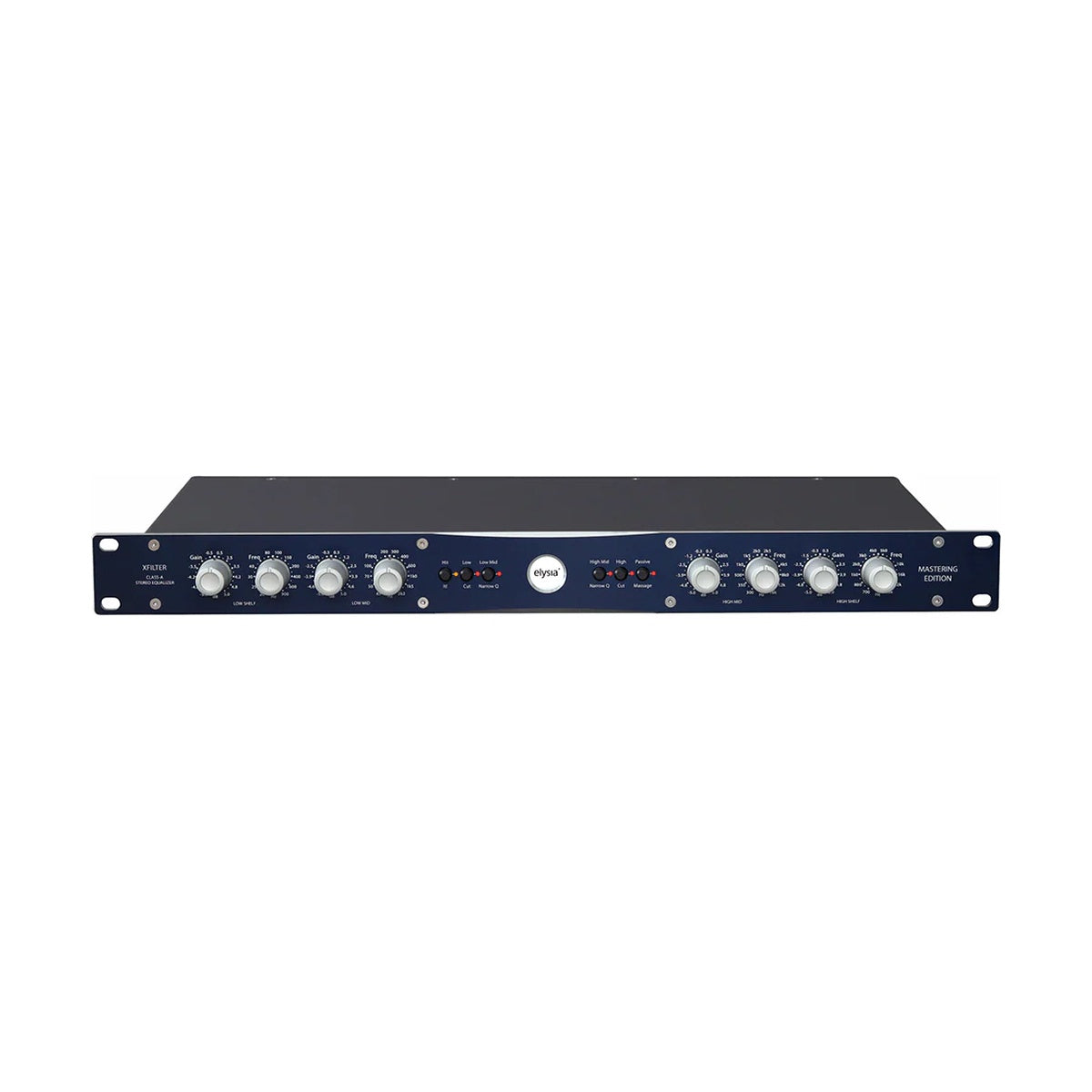

The Elysia xfilter|Mastering Edition is a sophisticated, handcrafted analog 4-band stereo equalizer, designed for precise sound processing in professional mastering studios. Using computer-selected components with very low tolerances, it provides an exceptionally accurate stereo image and high-end Class-A sound quality. The Elysia xfilter|Mastering Edition offers full control over four bands with a +/-5dB range, allowing for precise sound adjustments that meet the needs of mastering engineers.
Thanks to the flexibility of this equalizer, users gain additional sound-shaping possibilities: the high and low shelf bands can be switched to low- and high-pass filters with resonance control. Additionally, bell filters with adjustable Q-factor (narrow or wide) are provided for the mid frequencies, and additional passive LC filters in the high frequencies ensure smooth treble reproduction. With these features and its solid construction, the Elysia xfilter|Mastering Edition is an ideal tool for mastering applications, offering exceptional sound quality and precise tonal shaping.
Key Features
- 4-band analog stereo equalizer with true stereo link
- Control range for all four bands: +/-5dB
- Balanced output stage with up to +27dBu
- High-quality lightweight aluminum housing, made in Germany
- Class-A topology for exceptional sound quality
- Stepped potentiometers with computer-selected components
- High and low shelf bands with switchable low- and high-pass filters with resonance control
- Two parametric mid filters with adjustable Q-factor (narrow or wide)
- Additional passive high-pass filter in the Mastering Edition
- Excellent transient reproduction and open sound
Specifications
- Type: 4-band analog stereo equalizer
- Control range for each band: +/-5dB
- Output level: up to +27dBu
- Topology: Class-A
- Construction: Aluminum housing, made in Germany
- Potentiometers: Stepped, computer-selected
- Filters: Low and high shelf bands with switchable low- and high-pass filters, two parametric mid filters with adjustable Q-factor
- Additional passive LC filters: Yes, for high frequencies
