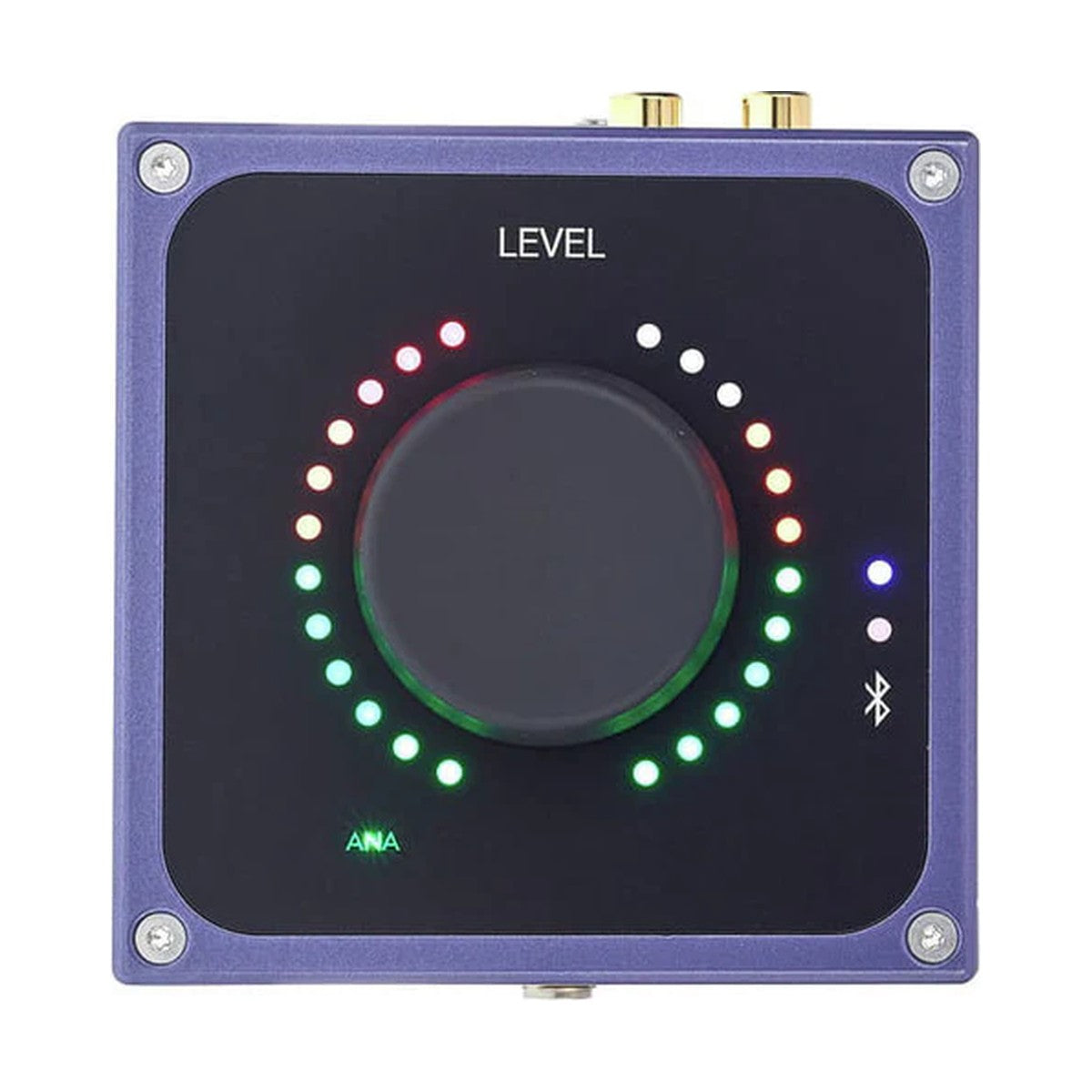

DiGiGrid X-DG-Q

DiGiGrid Q is a premium headphone amplifier and compact audio interface, designed for professional monitoring with flexible connectivity. It features both 6.35 mm and 3.5 mm headphone outputs, capable of driving headphones up to 600 Ohm. With four monitoring options—XLR, Ethernet, Analog, and Bluetooth—DiGiGrid Q adapts easily to both studio and mobile setups. Fully compatible with the Waves SoundGrid platform, it can operate as a standalone interface when connected via Ethernet and is powered via PoE or the included power adapter.

KEY FEATURES

• High-quality headphone amplifier with built-in audio interface

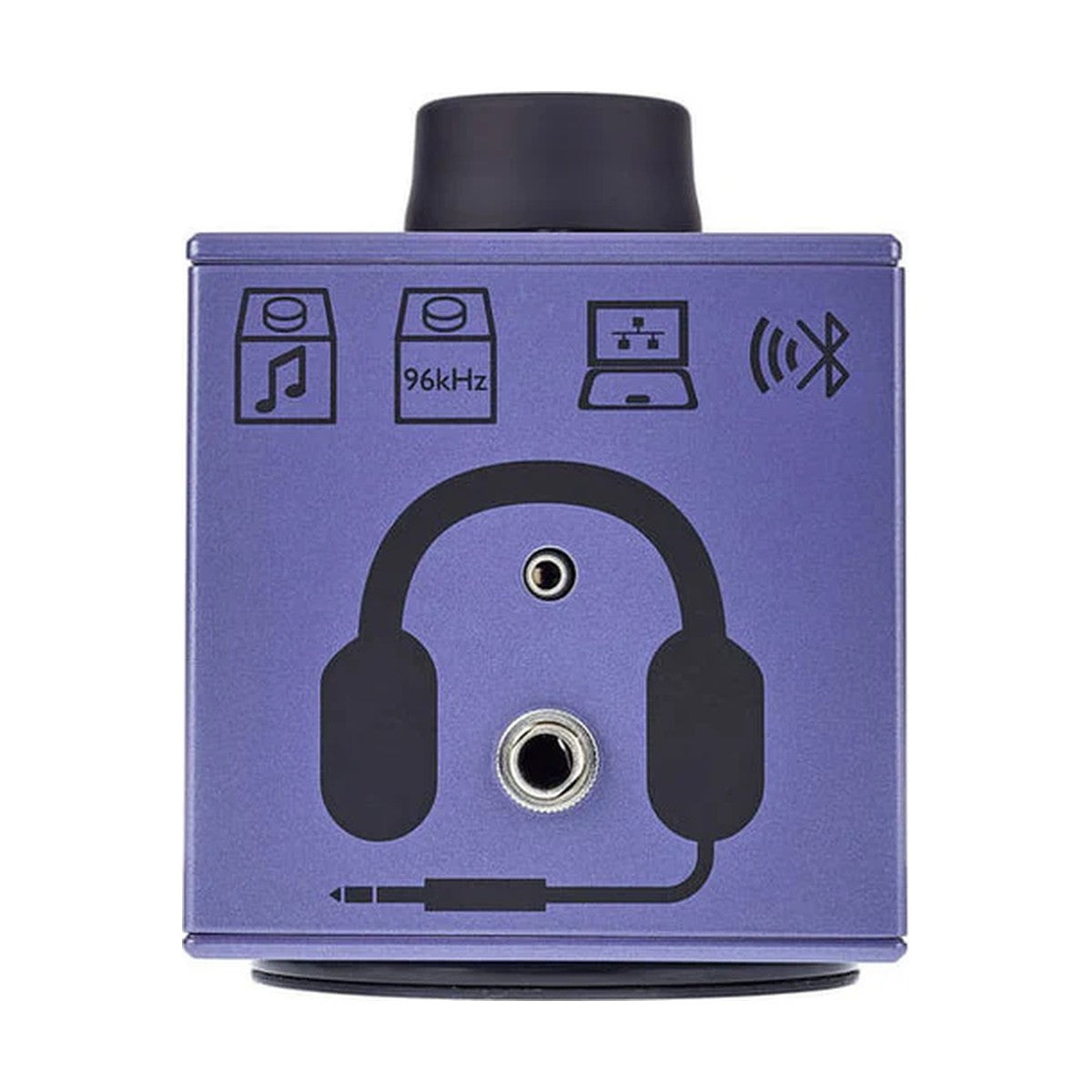

• Two headphone outputs: 6.35 mm and 3.5 mm
• Supports headphones up to 600 Ohm impedance
• Four monitoring options: XLR, Ethernet, Analog, Bluetooth
• Fully compatible with Waves SoundGrid systems
• Standalone interface functionality via Ethernet connection
• Works with PC and Mac using any popular DAW
• Powered via PoE or included power adapter

TECHNICAL SPECIFICATIONS

• Device type: Headphone amplifier / audio interface
• Operating system: Windows / macOS
• Headphone outputs: 1 x 6.35 mm jack + 1 x 3.5 mm mini jack

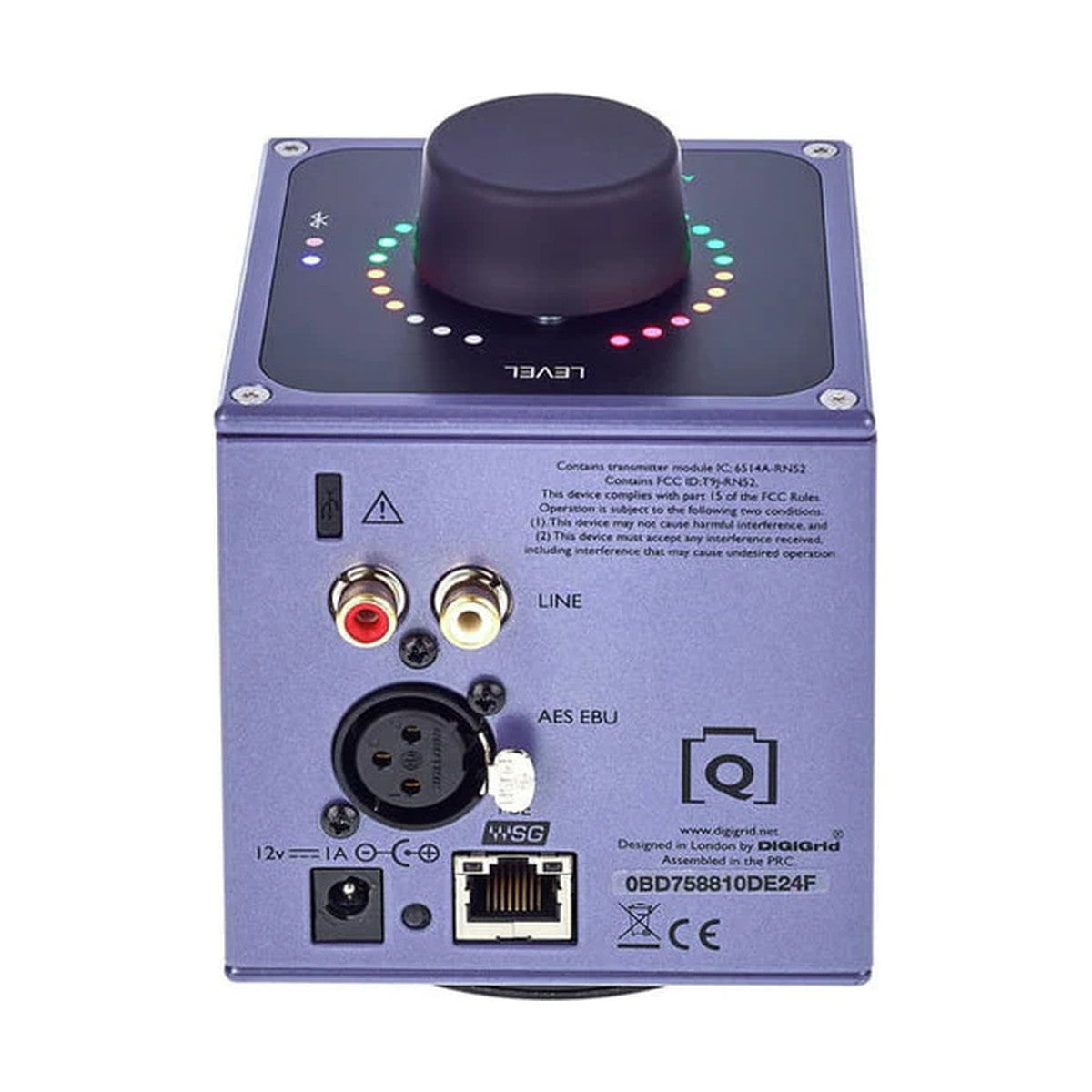

• Digital inputs: 1 x AES/EBU
• Monitoring modes: XLR, Ethernet, Analog, Bluetooth
• Maximum sample rate: 96 kHz
• Bit depth: 24-bit
• Power supply: PoE or included adapter
• Mac requirements: Intel i5 or newer, 6 GB RAM, macOS 10.8.5 or later
• PC requirements: Intel i5 or newer, 8 GB RAM, Windows 7 SP1 / 8.1 / 10
• Power adapter included: Yes
