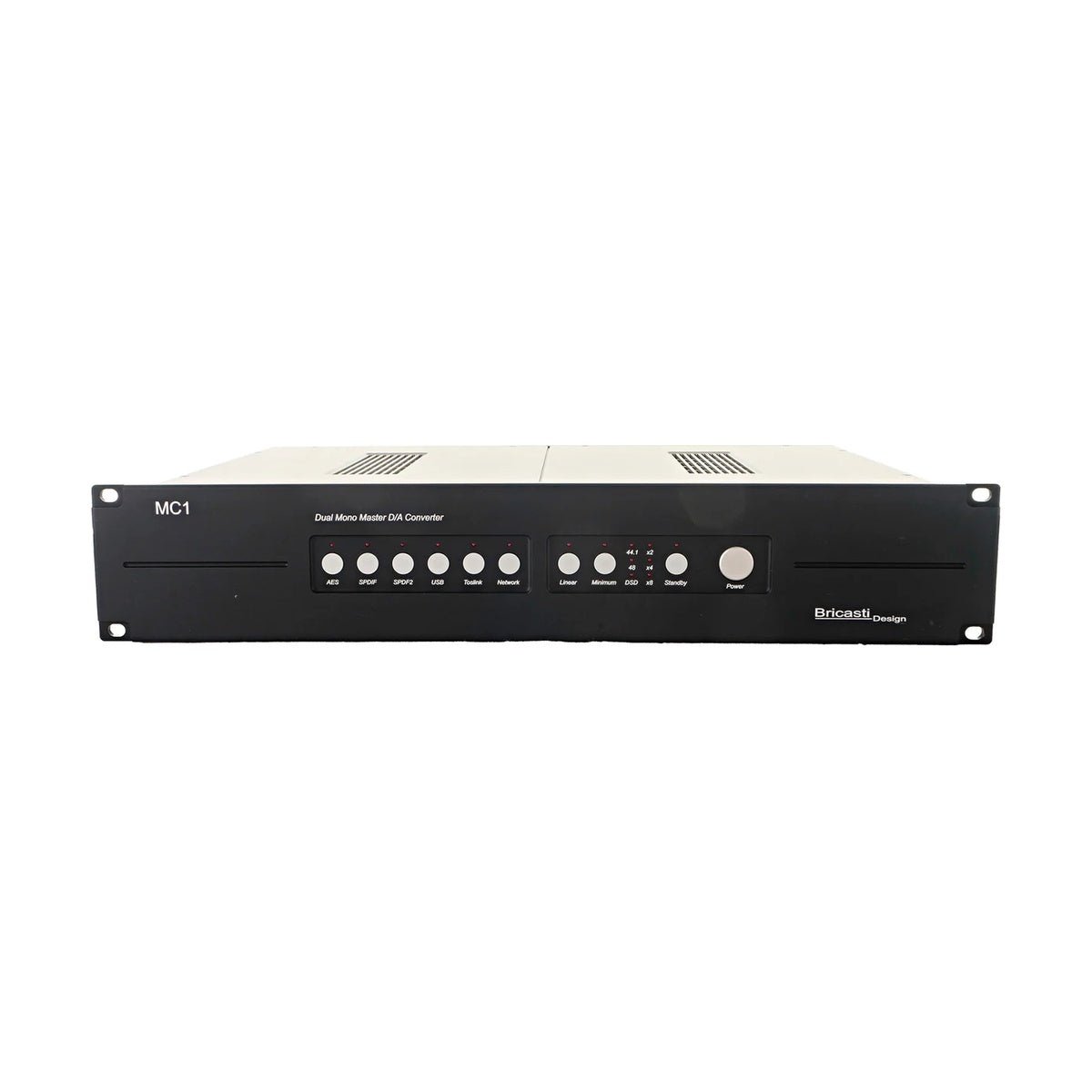

Bricasti Design MC1 Digital to Analog Converter

Bricasti Design MC1 is a fully differential stereo reference D/A converter with 2 x XLR inputs, 2 x AES In, 1 x SPDIF, 1 x Toslink, 1 x USB Type B, 1/8” TRS Trigger, 2 x Analog Outputs, and rackmount capabilities.

The MC1 is designed for critical audio applications to recreate audio waveforms with the highest precision, meticulously preserving the harmonic integrity of the signal. This ensures that the original character of instruments and vocals, as captured during recording, is maintained.

The MC1 features two completely isolated channels, each with its own dedicated linear power supply, D/A converter, DDS clocking, and analog circuitry. This design protects the signal from analog crosstalk. The dual-DAC design optimizes the dynamic range for each channel using the stereo ADI 1955 D/A converter in a mono configuration. The MC1 also incorporates Bricasti's proprietary filter technology to achieve optimal results in a modern reference D/A converter.

MC1 Digital to Analog Converter Features

• Reference-Grade Dual Mono Design
• Exceptional Transparency and Harmonic Integrity
• Optimized Dynamic Range
• Proprietary Filter Technology
• Extensive Connectivity
• High-Resolution Audio
• Ultra-Low Jitter
• High-Performance Analog Output
• Premium Construction
• Handcrafted in the USA

MC1 Digital to Analog Converter Specifications

Digital Inputs

• XLR: AES/EBU 24-bit Single Wire, 44.1 kHz - 192 kHz, DSD64fs as DoP
• RCA: SPDIF, 44.1 kHz - 192 kHz, DSD64fs as DoP
• Optical (Toslink): 44.1 kHz - 96 kHz, DSD64fs as DoP
• USB 2: 44.1 kHz - 384 kHz, DSD64fs, 128fs as DoP
• RJ45: Ethernet (Optional), 44.1 kHz - 384 kHz, DSD64fs, 128fs as DoP

Sample Rates

• AES, SPDIF: 44.1 kHz - 192 kHz, DSD64fs as DoP
• USB: 44.1 kHz - 384 kHz, DSD64fs, 128fs as DoP
• Ethernet: 44.1 kHz - 384 kHz, DSD64fs, 128fs as DoP
• Jitter: 8 ps @ 48 kHz / 6 ps @ 96 kHz

Balanced Analog Outputs (XLR)

• Connector: XLR balanced (pin 2 hot)
• Impedance: 40 ohms
• Max Output Level: +22 dBm
• Min Output Level: +8 dBm
• Frequency Response (@44.1 kHz): 10 Hz - 20 kHz +0 dB, -0.2 dB
• Dynamic Range (A-weighted): >120 dB
• THD+N (@1 kHz): 0.0006% @ 0 dBFS / 0.0004% @ -30 dBFS
• D/A Conversion: PCM 24-bit delta-sigma 8x oversampling

Unbalanced Analog Outputs (RCA)

• Connector: RCA
• Impedance: 40 ohms
• Output Level: +8 dBm (2V RMS)
• Frequency Response (@44.1 kHz): 10 Hz - 20 kHz -0.2 dB
• Dynamic Range (A-weighted): >120 dB
• THD+N (@1 kHz): 0.0006% @ 0 dBFS / 0.0004% @ -30 dBFS
• D/A Conversion: PCM 24-bit delta-sigma 8x oversampling

General Specifications

• Finish: Anodized Aluminum
• Dimensions: 431.8 mm x 304.8 mm x 114.3 mm
• Weight: 6.80 kg
• Shipping Weight: 8.16 kg
• Mains Voltage: 100, 120, 220, 240 VAC, 50 Hz – 60 Hz (factory set)
• Trigger In: TRS connector for 5V external trigger on ring
• Power Consumption: 20 Watts
