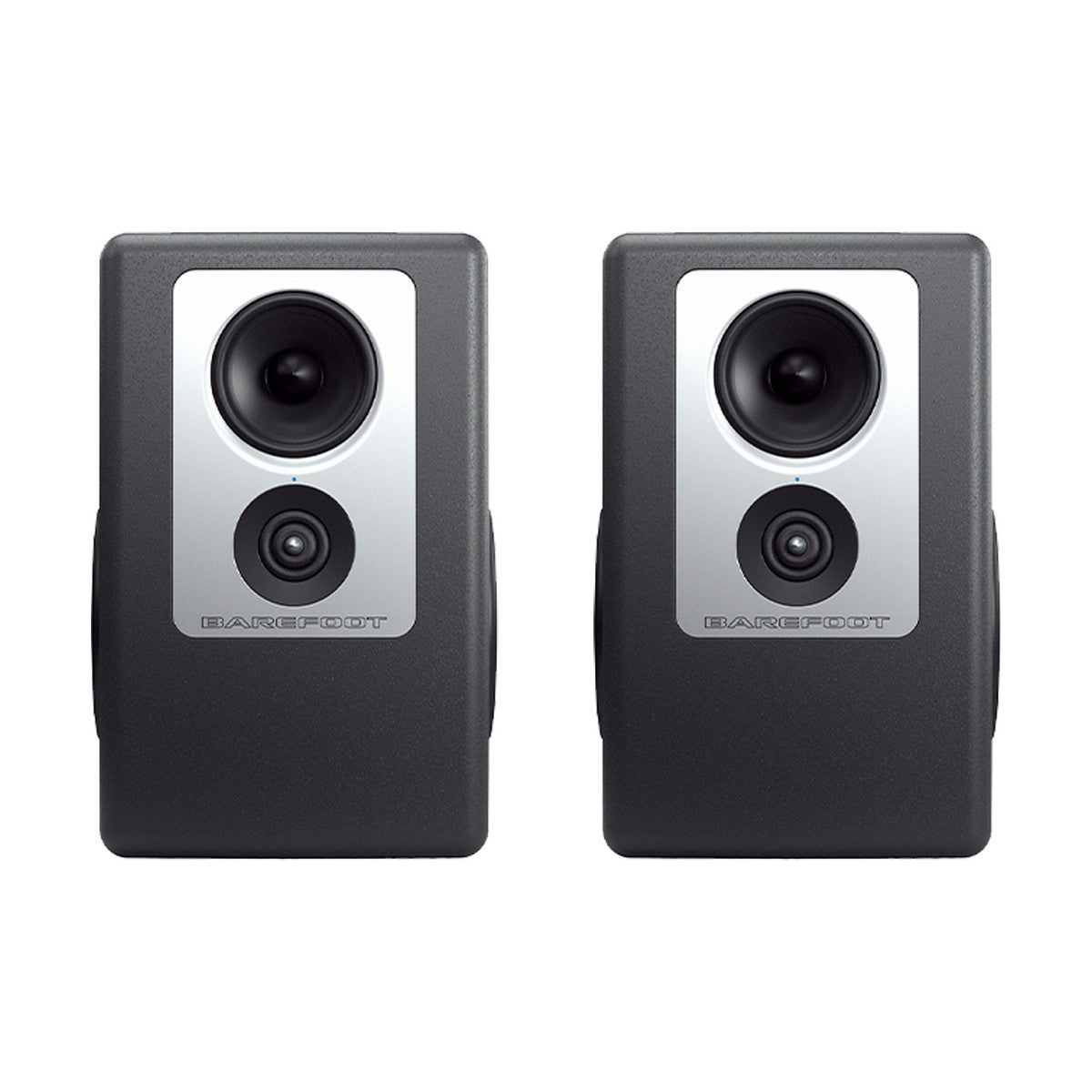

Barefoot Sound Footprint02 Gen2 - Pair

Barefoot Sound Footprint02 Gen2 (Pair) are uncompromised 3-way active studio monitors that deliver the high-performance DNA and stunning precision of Barefoot's flagship models in a more compact and accessible form factor. The second generation (Gen2) represents a complete reinvention, featuring reengineered drivers, an updated low-latency DSP engine, and refined acoustics within a rigid, sealed MDF cabinet. These advancements guarantee deeper bass extension, sharper midrange clarity, and improved transient response, making them the ultimate choice for mixing, mastering, and immersive setups in smaller to medium studio spaces.

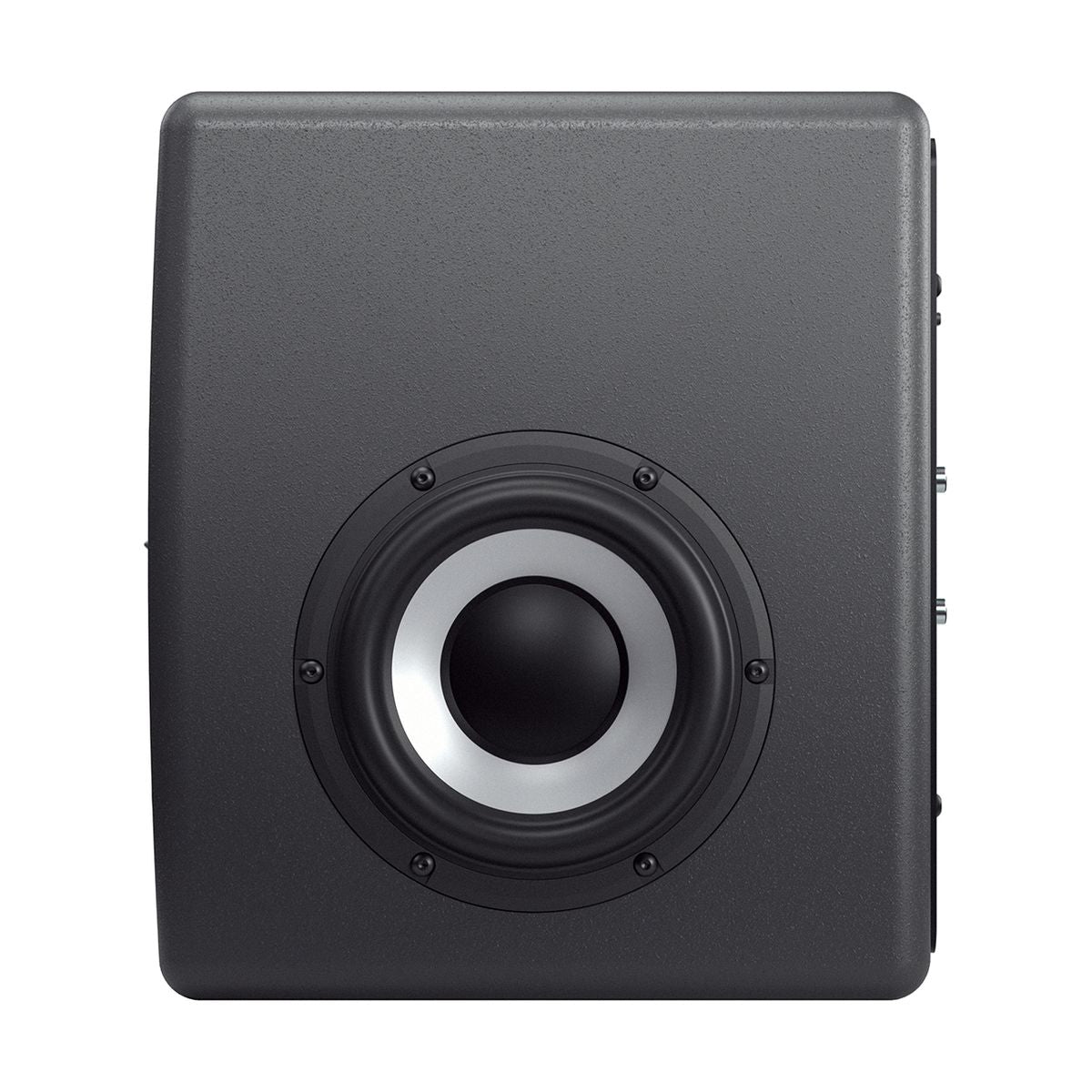

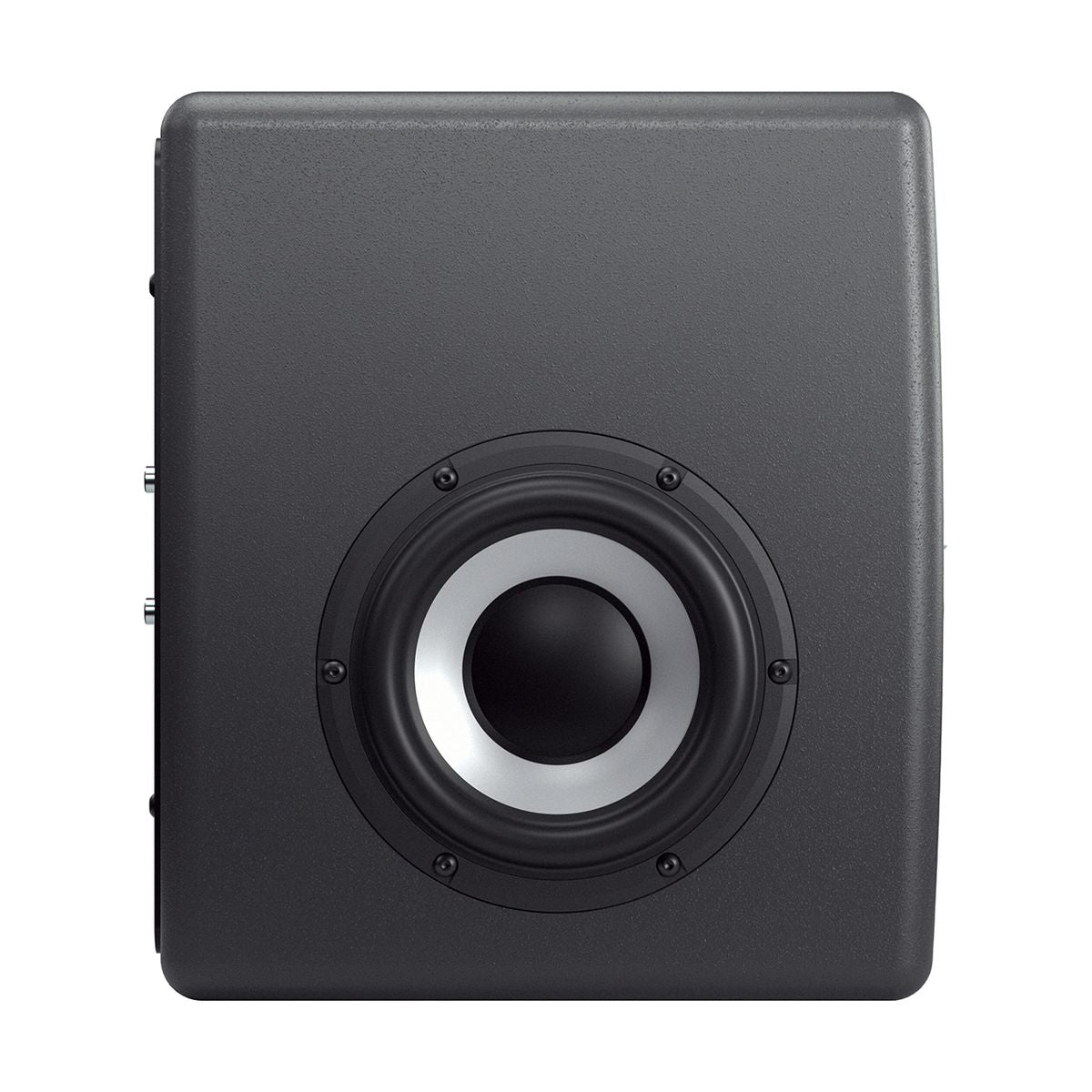

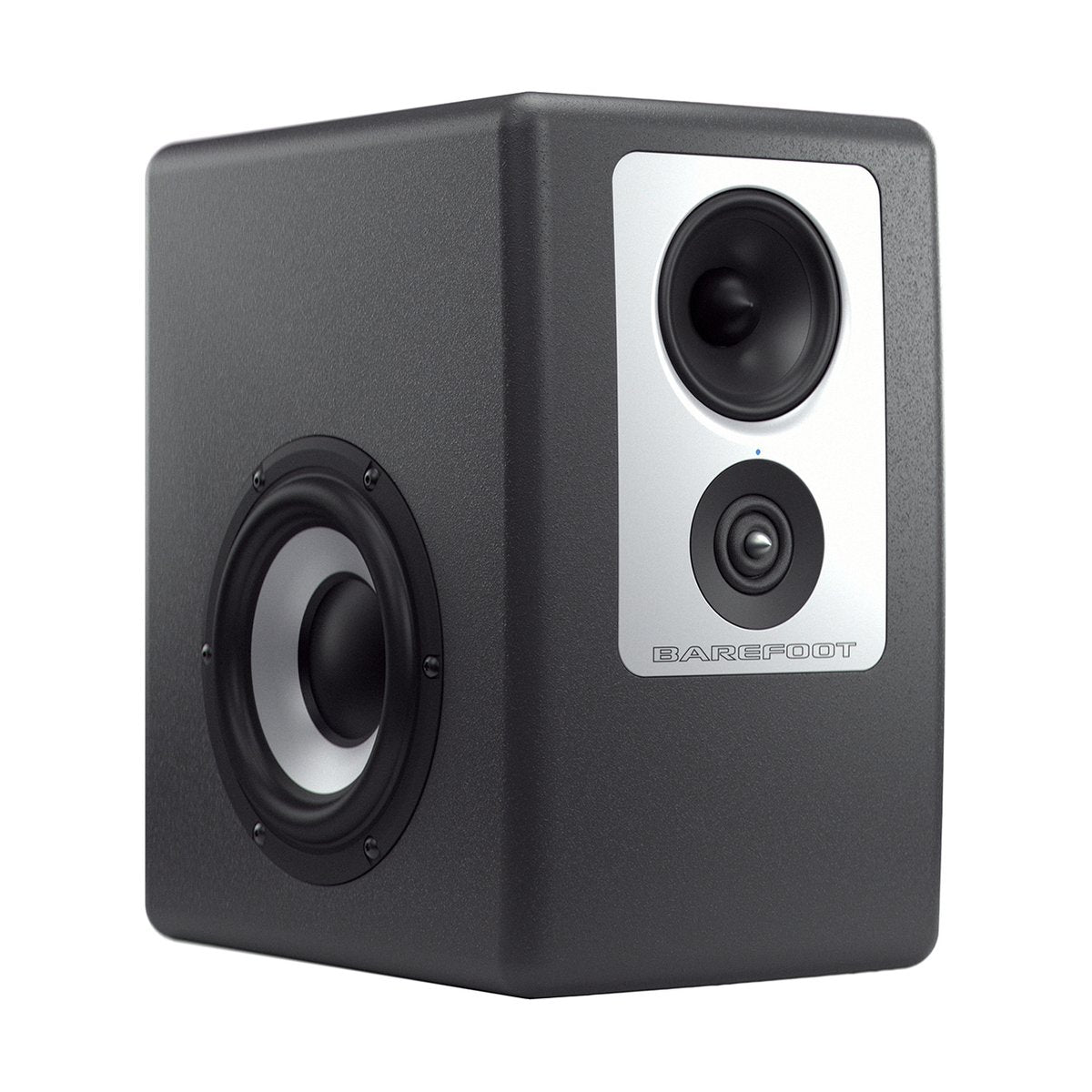

At the core of the Footprint02 Gen2's low end is Barefoot's patented Dual-Force™ technology, which utilizes dual opposing 6.5-inch aluminum woofers to cancel cabinet vibrations while effortlessly producing controlled bass down to 38 Hz. This is perfectly complemented by a precision-engineered 5-inch aluminum cone midrange driver and a new 1-inch dual-ring radiator tweeter equipped with a rear waveguide chamber for exceptionally wide and precise stereo imaging. The system is fully tri-amplified, featuring dedicated Class D amplification modules delivering a total of 410 watts per speaker for seamless crossover transitions and immense headroom without distortion.

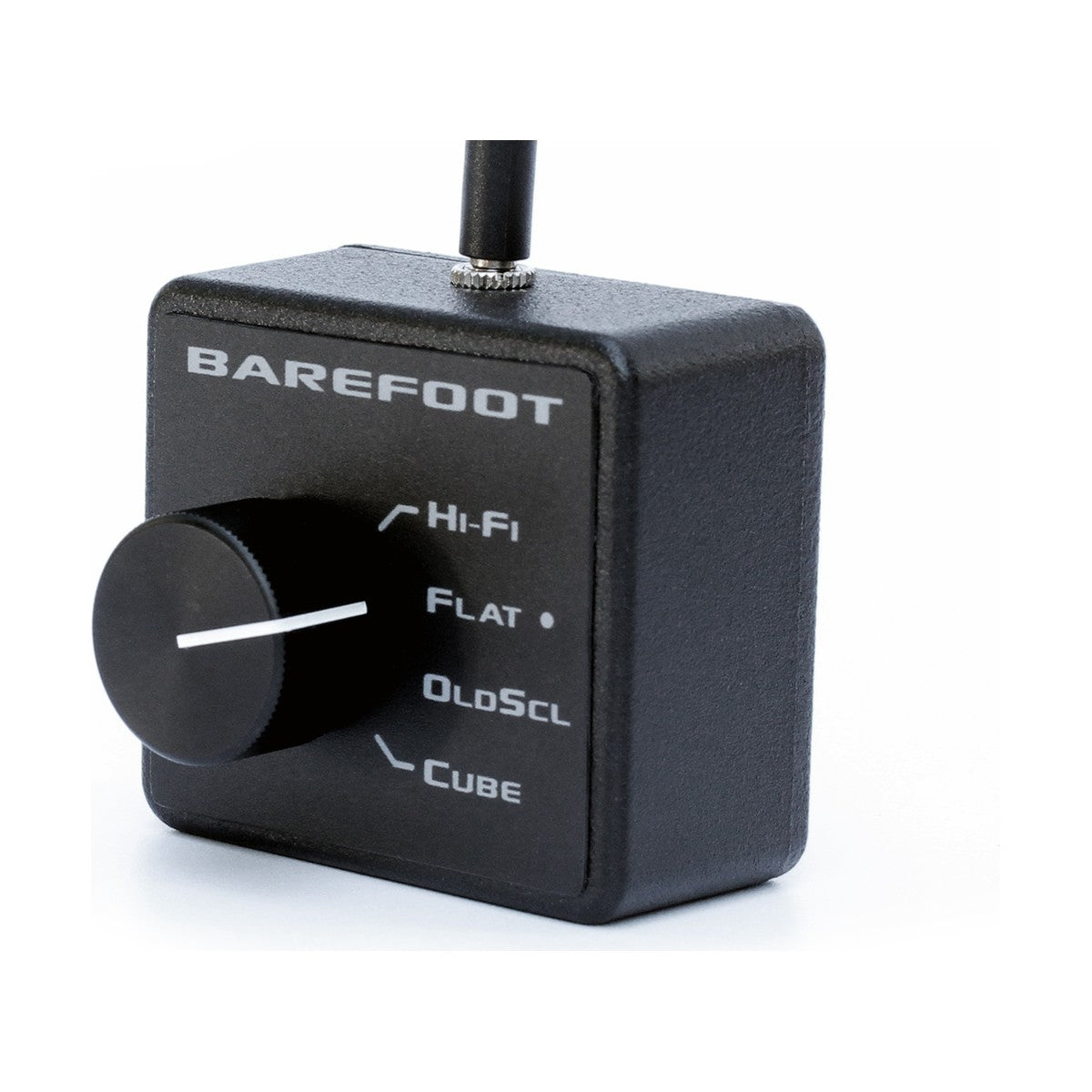

A standout innovation in the Gen2 series is the SPOC™ (SPectrally Optimized Conversion) technology, which applies analog filtering before the digital conversion stage to drastically improve the signal-to-noise ratio and high-frequency transparency. Furthermore, the included MEME™ (Multi-Emphasis Monitor Emulation) technology lets you seamlessly switch between four distinct voicing profiles (Flat, Hi-Fi, Old School, and Cube) via a wired remote. This allows audio engineers to reference their mixes on spot-on emulations of consumer speakers and classic mix cubes with the push of a button, ensuring perfect real-world translation without ever leaving the sweet spot.

KEY FEATURES

• Tri-amplified 3-way active monitor design in a compact, tightly sealed enclosure
• Dual-Force™ technology with opposing woofers to completely eliminate cabinet vibrations
• SPOC™ technology for vastly improved A/D conversion resolution and superior signal-to-noise ratio
• MEME™ voice emulation technology with included remote (4 modes: Flat, Hi-Fi, Old School, Mix Cube)
• New 1-inch dual-ring radiator tweeter for ultra-fast transient response and a wide sweet spot
• Advanced, low-latency DSP engine ensuring perfect phase coherence and time alignment
• Dedicated Class-D amplifiers for each driver yielding ultra-low distortion (THD < 0.005%)

TECHNICAL SPECIFICATIONS

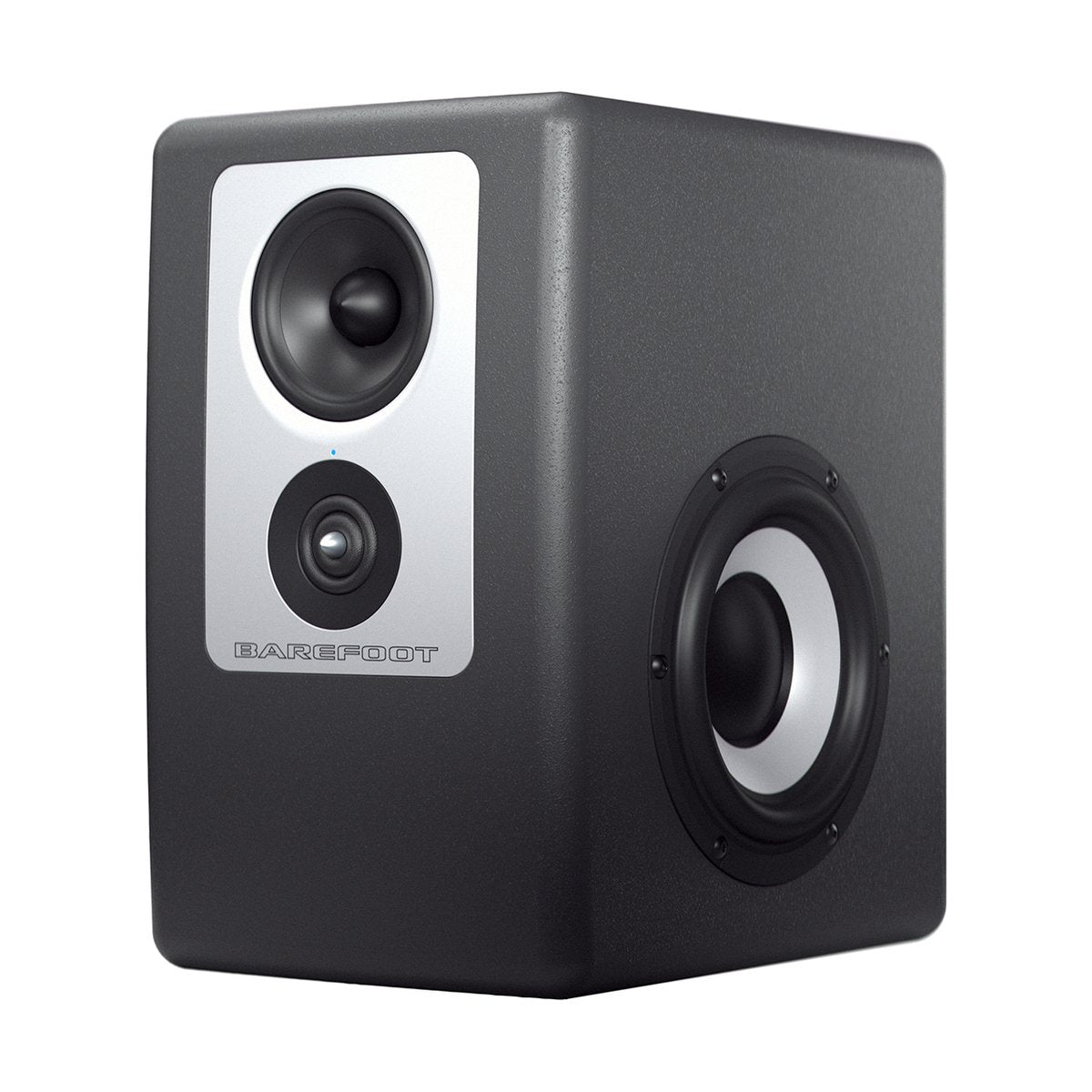

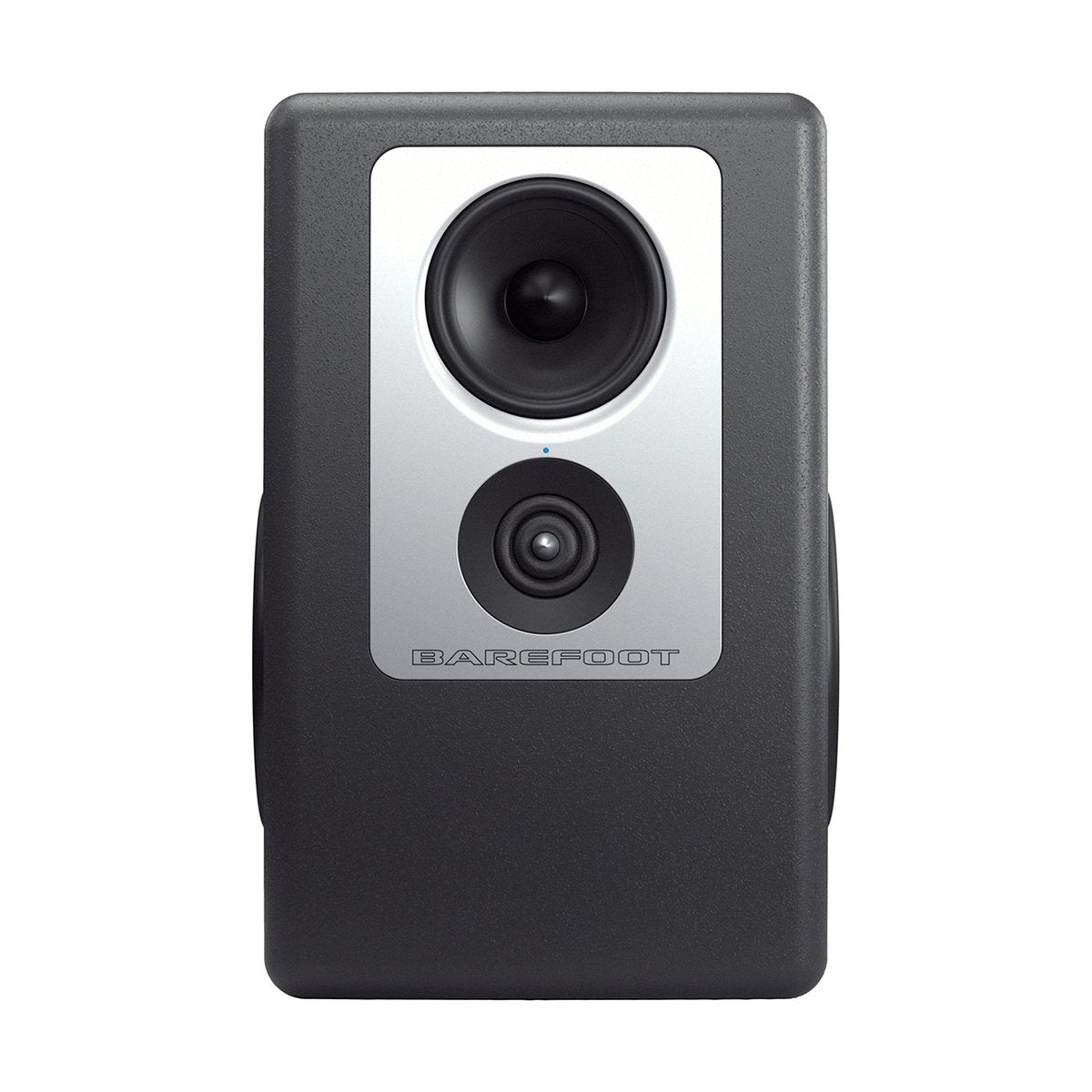

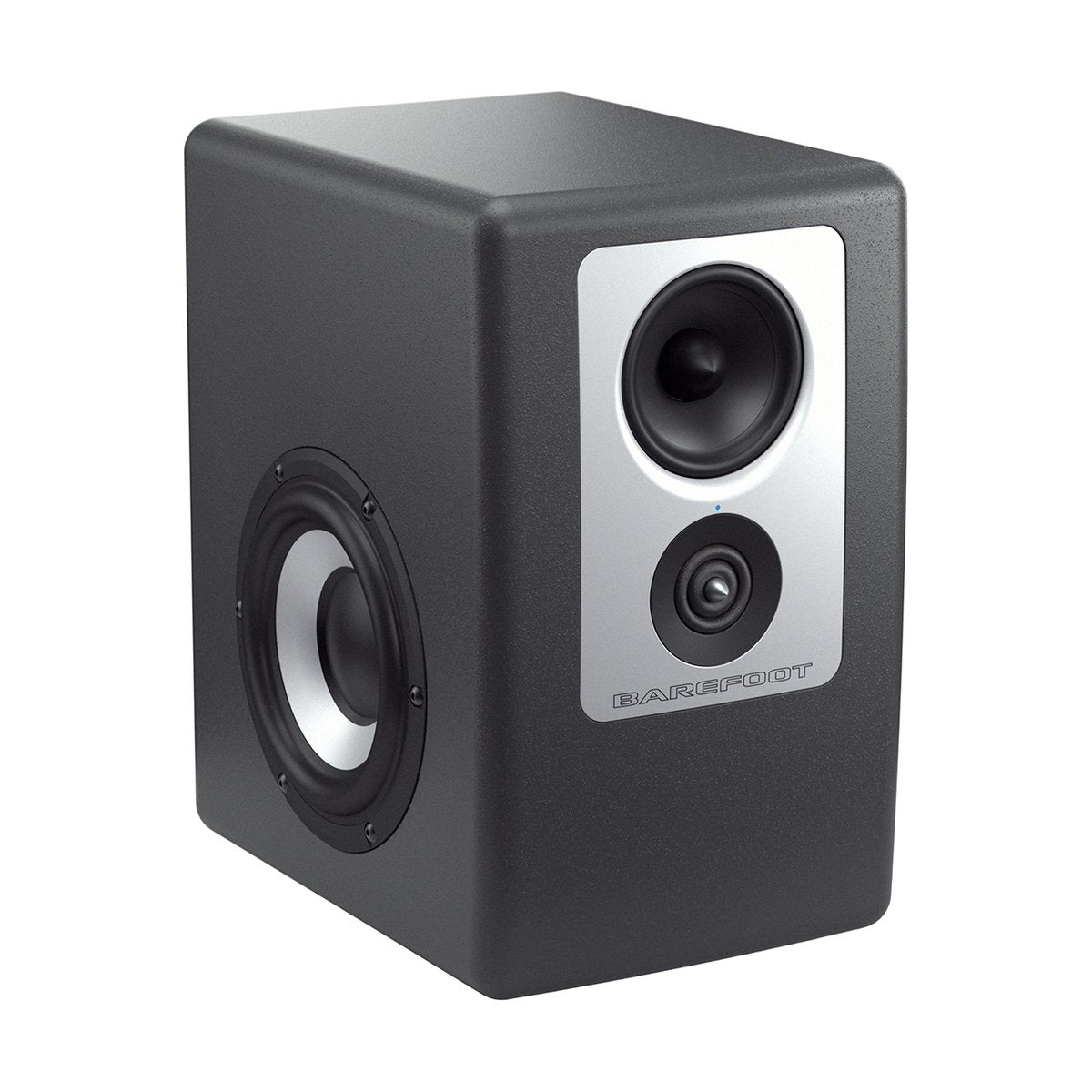

• Type: 3-way active studio monitor with a sealed MDF cabinet and machined aluminum baffle

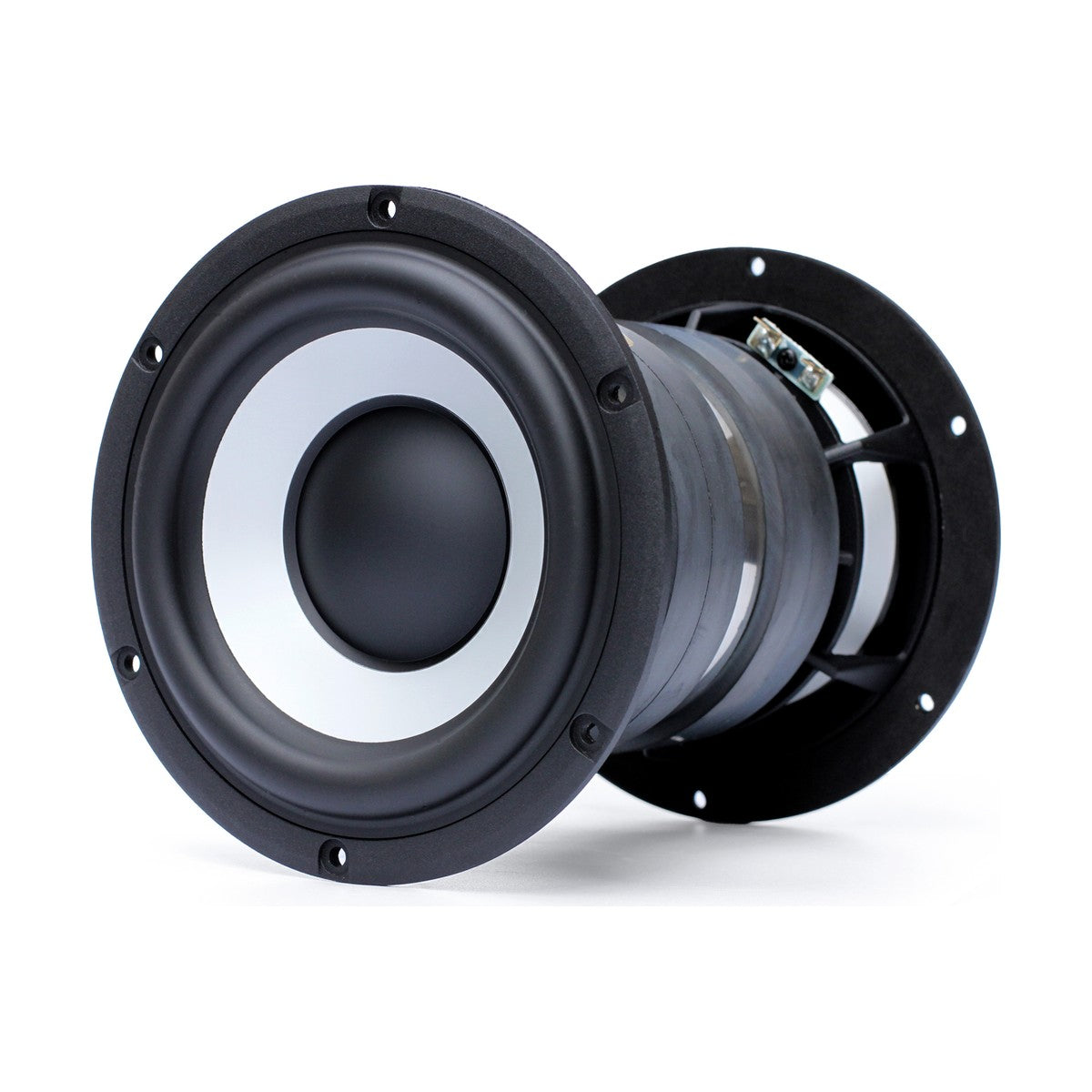

• LF Drivers: 2 × 6.5" aluminum cone woofers (Dual-Force™ configuration)
• MF Driver: 1 × 5" aluminum cone
• HF Driver: 1 × 1" dual-ring radiator
• Amplification (per monitor): 410W total Class D (200W LF, 150W MF, 60W HF)
• Frequency Response: 38 Hz – 40 kHz (±3 dB), 42 Hz – 30 kHz (±1 dB)
• Maximum SPL: ≥111 dB
• Crossover Frequencies: 180 Hz / 3700 Hz (DSP controlled)

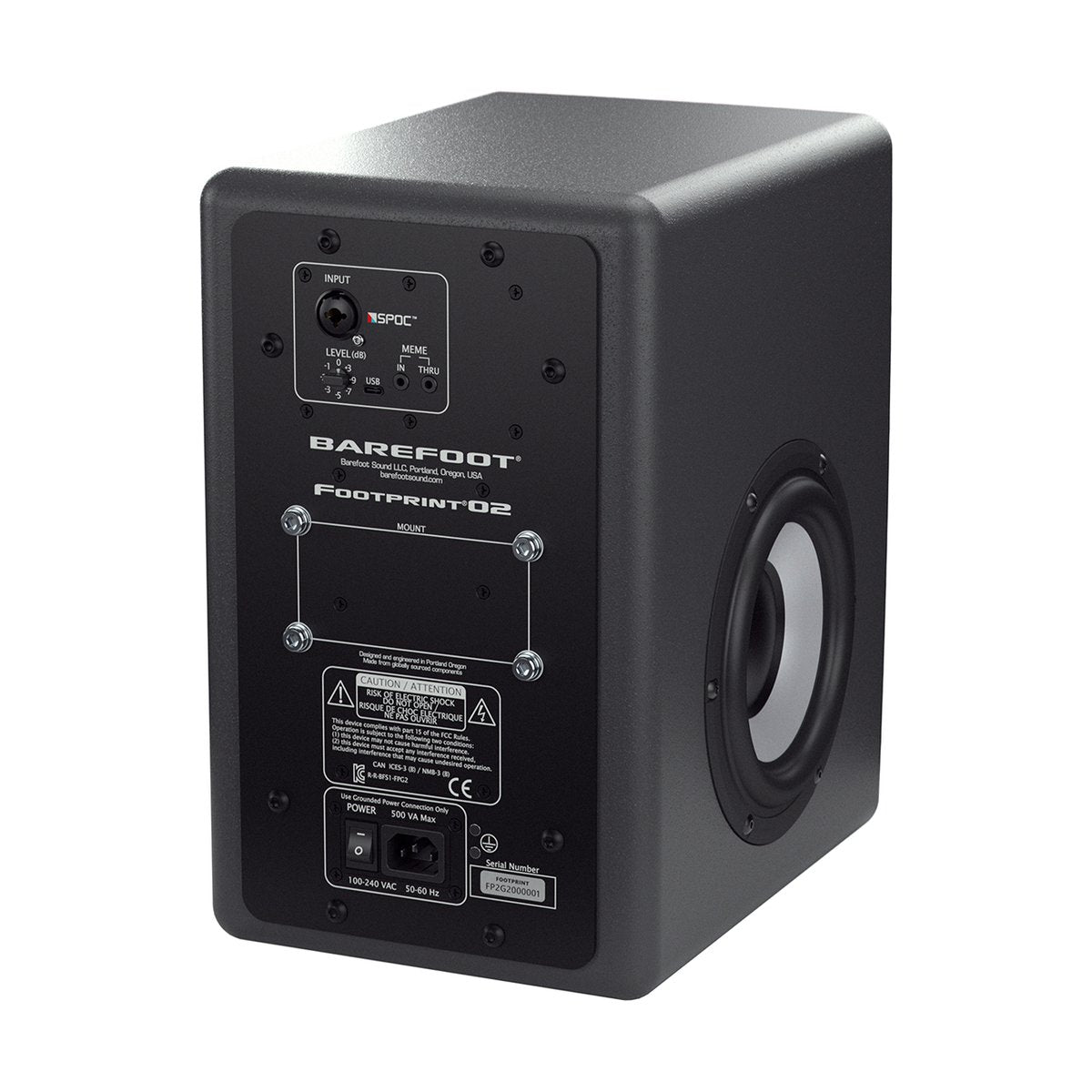

• Input: 1 × Balanced XLR
• Internal Volume: 9.4 Liters (polyurethane acoustic damping throughout)
• Dimensions: Approx. 381 × 222 × 305 mm (15" × 8.75" × 12")
• Weight: Approx. 15.5 kg (34 lbs) per unit
• Warranty: 3-year Wired Tunes warranty
