Barefoot Sound Footprint03C Center Channel – an active 3-way monitor specifically engineered as a center channel for seamless integration with the Barefoot Footprint FP-03. Designed for professional surround and immersive audio environments, the Footprint03C delivers unparalleled precision and tonal consistency, ensuring accurate mixing and playback. Built on the legacy of the tri-amplified Footprint FP-03, this monitor provides exceptional clarity and fidelity, making it ideal for multi-channel setups in compact studios or Dolby Atmos configurations.

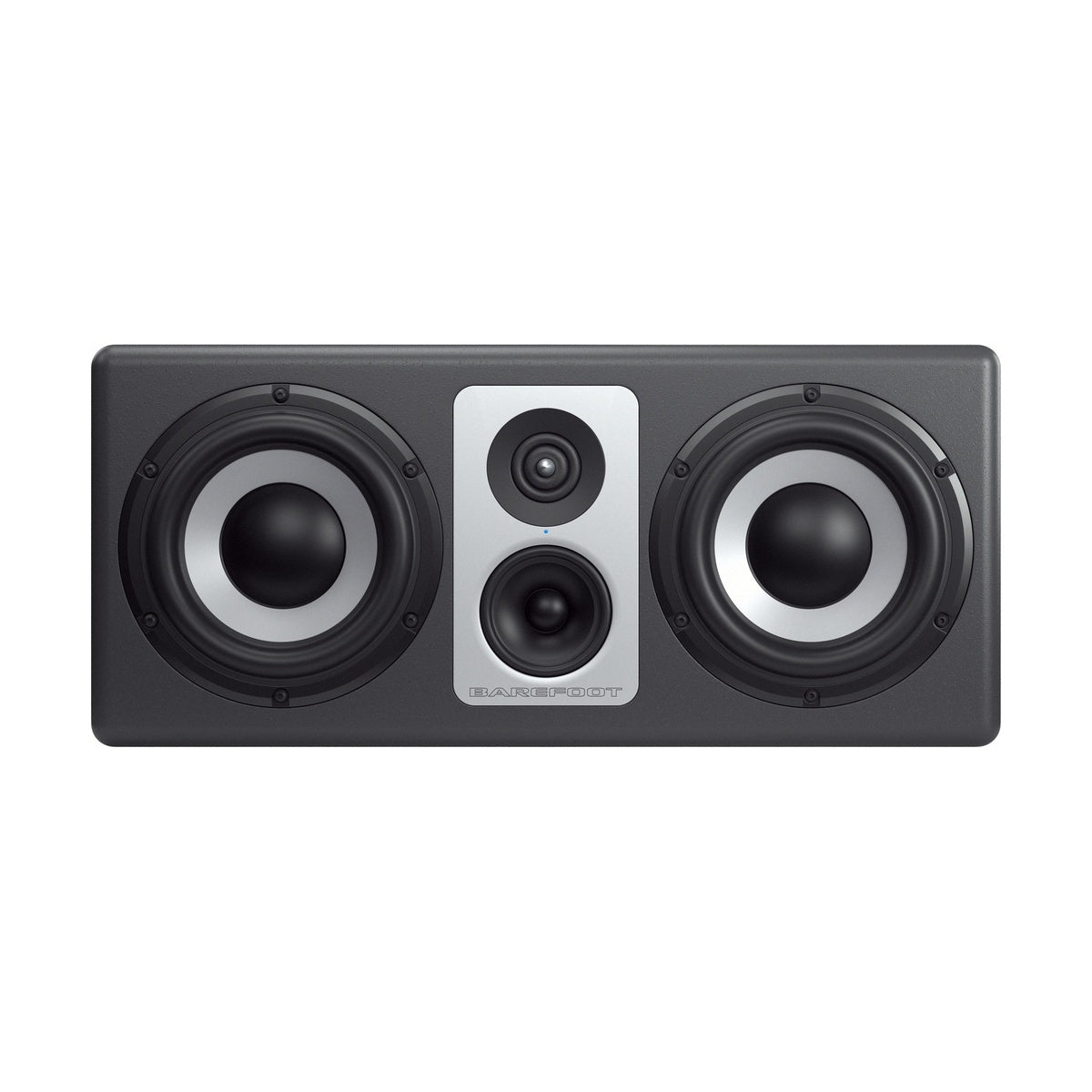

The Footprint03C features a 1″ ring radiator tweeter, a 3.5″ aluminum cone midrange driver, and dual 6.5″ aluminum cone woofers, all housed in a sealed MDF cabinet to minimize distortion and ensure reliable performance under demanding conditions. Its tri-amplified design, powered by 260 watts of Class D amplification, delivers a wide frequency response (42 Hz–40 kHz) and a maximum continuous SPL of 104.5 dB, providing robust dynamics for critical mixing tasks.
Equipped with Barefoot’s innovative Multi-Emphasis Monitor Emulation™ (MEME™) technology, the Footprint03C allows engineers to switch between emulations of classic mix cubes, consumer hi-fi speakers, and other renowned monitors, ensuring mix translation across various playback systems. The integrated DSP optimizes low-frequency response, delivering deep, controlled bass and precise sound reproduction. Barefoot’s SPOC™ (Single Point of Conversion) technology enhances phase coherence and imaging for a highly detailed soundstage.
Compact yet powerful, the Footprint03C (20″ L x 7.25″ W x 9″ D) is designed for easy integration into multi-channel setups, particularly for Dolby Atmos or surround sound applications. Paired with the Footprint FP-03, it offers a cost-effective, high-performance solution for professional studios, delivering exceptional clarity and versatility in a space-saving form factor.
KEY FEATURES
- Tri-amplified 3-way active center channel monitor
- 260 watts of Class D amplification per monitor
- Frequency response: 42 Hz–40 kHz (±3 dB)
- Maximum continuous SPL: 104.5 dB
- Sealed MDF cabinet for low distortion and resonance
- 1″ ring radiator tweeter for detailed high-frequency reproduction
- 3.5″ aluminum cone midrange driver for clear midrange performance
- Dual 6.5″ aluminum cone woofers for powerful low-end response
- Multi-Emphasis Monitor Emulation™ (MEME™) technology for reference speaker emulation
- SPOC™ technology for enhanced phase coherence and imaging
- Integrated DSP for optimized low-frequency performance
- Ideal for Dolby Atmos and multi-channel studio setups
TECHNICAL SPECIFICATIONS
- Amplification: Tri-amplified, 260 W (Class D)
- Frequency response: 42 Hz–40 kHz (±3 dB)
- Max SPL (continuous): 104.5 dB
- Drivers: 1″ ring radiator tweeter, 3.5″ aluminum cone midrange, 2 x 6.5″ aluminum cone woofers
- Cabinet: Sealed MDF design
- Technologies: Multi-Emphasis Monitor Emulation™ (MEME™), SPOC™ (Single Point of Conversion)
- DSP: Integrated for low-frequency optimization

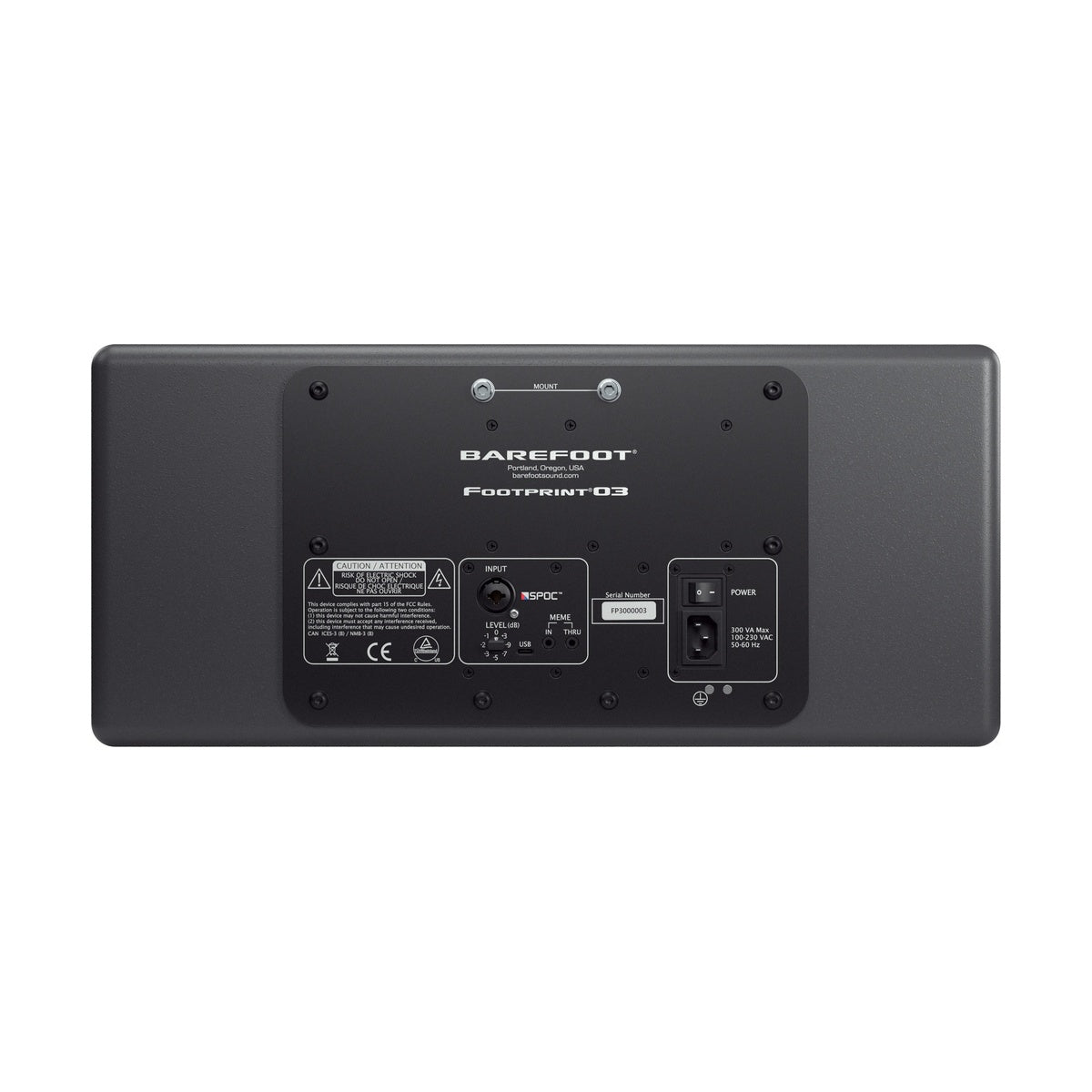

- Input: Analog XLR input
- Dimensions (H × W × D): 229 x 508 x 184 mm (9″ × 20″ × 7.25″)
- Weight: 8.2 kg (18 lbs)
- Included: Footprint03C Center Channel, power cable
- Product code: BFS-FP03C
