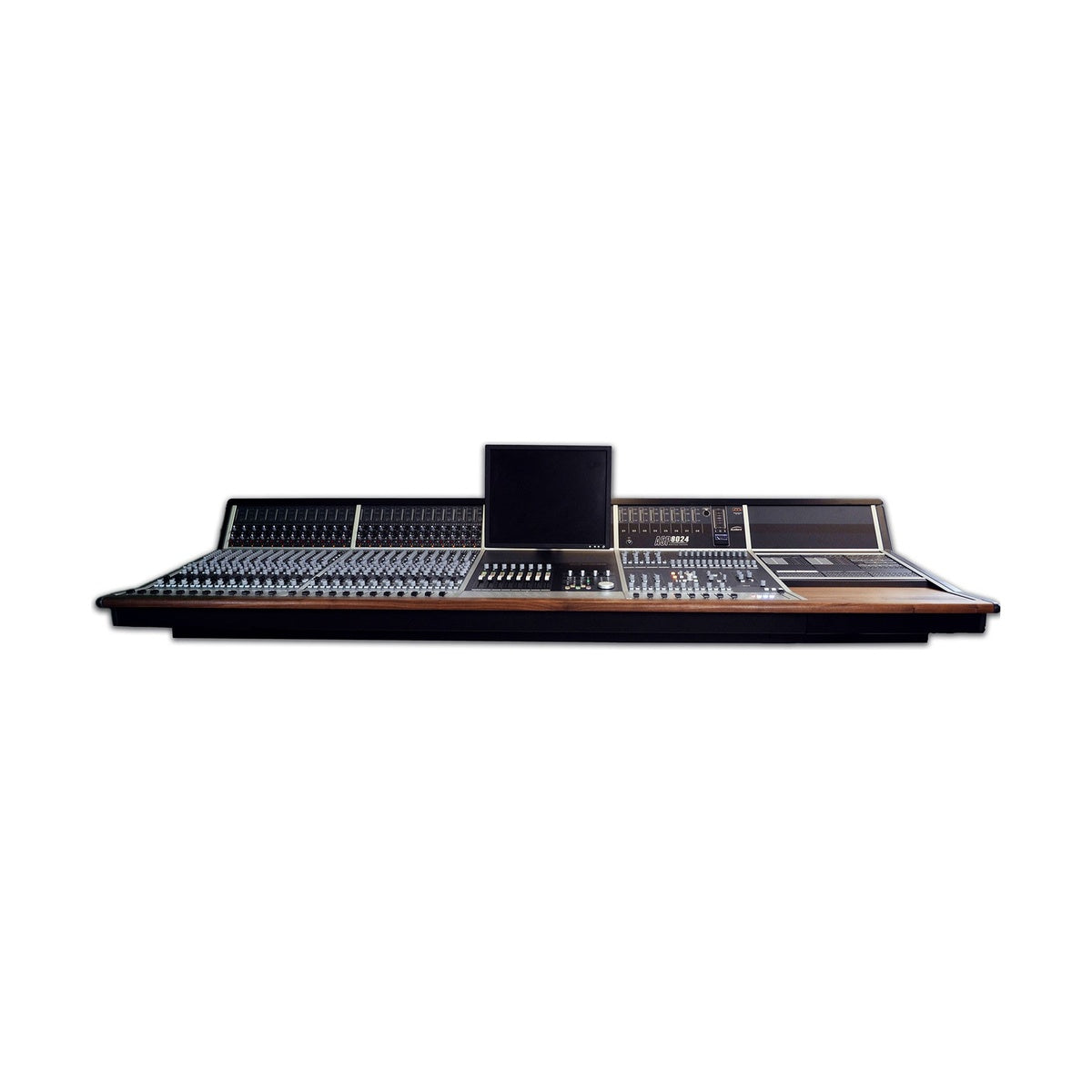

Audient ASP8024 Heritage Edition 48 Ch Console w/DLC/PB is a 48-channel fully analog in-line recording console with 24-bus routing, equipped with both the Dual Layer Control (DLC) module and the integrated patchbay (PB) — a six-bay configuration (four 12-channel bays, master section, DLC bay, and PB bay) measuring 331 cm wide and weighing 234 kg. This is the most complete 48-channel configuration of the ASP8024-HE platform, combining the analog signal path, VCA automation with motorised faders, and front-panel access to all studio connections within a single physical structure. The operator has simultaneous access to every signal point in the console, DAW control, and VCA fader automation without an external rack patchbay or a separate DAW controller. All signal path specifications, EQ topology, and Retro Iron circuit are identical to all other Heritage Edition configurations.
DLC and PB as an Integrated Control and Routing Ecosystem
The DLC module provides 8 motorised faders bankable across the entire session, 8 additional line inputs routable to the mix bus or subgroups, a high-resolution OLED display, a jog/shuttle wheel for project navigation, and DAW control via Ethernet using HUI/Mackie Control protocol. Eight channels of VCA automation allow console fader moves to be recorded and played back. Supported DAWs are Pro Tools, Logic, Cubase, and Nuendo. The PB module completes the setup with 768 Bantam TT patch points at the front panel — including 144 user-configurable points for outboard integration, credenza rack connections, and live room tie lines, all configurable as through-wired or half-normalled at order. The patchbay supports two simultaneous 24-track recording devices with playback normalled to tape inputs, front-panel access to all channel inserts on both mic/line and DAW/tape paths, and full master section access. In this configuration, no external patchbay or controller is needed: every signal routing decision and every DAW operation is handled from the console face.
In-Line at 48 Channels, Retro Iron, and Combined Input Count
The in-line architecture delivers 112 inputs from the 48 channel strips plus 8 additional line inputs from the DLC module — up to 120 signal sources summed from a single operating position. The four-band Dearden EQ with two fully parametric mid bands (40 Hz–20 kHz, ±15 dB, variable Q) and two shelving bands is splittable per channel independently. Retro Iron on the stereo bus output — Carnhill transformer and John Hardy 990C — delivers +28 dBu into 600 Ω at the mix insert send with Low Bump and High Lift EQ before the output faders. The VCA stereo bus compressor with adjustable threshold, ratio, auto-release, and GR metering operates post-insert, pre-fader. Fourteen aux sends (12 mono plus 2 cue), 8 subgroups, 48 record buses, and Penny & Giles 8000 series faders on all input channels. Supplied with a single ASP8120 Ultra power supply.
KEY FEATURES
- 48-channel in-line, 24-bus routing, 112 in-line inputs + 8 DLC line inputs = 120 total inputs
- DLC module: 8 motorised faders with session-wide banking, 8 channels of VCA automation, DAW control (Pro Tools, Logic, Cubase, Nuendo)
- DLC: OLED display, jog/shuttle wheel, transport, record arm, plug-in control, aux automation, Ethernet connection
- Integrated patchbay: 768 Bantam TT points — 144 user-configurable for outboard; through-wired or half-normalled
- PB: supports 2 x 24-track devices (REC A and REC B), front-panel access to all channel inserts and master section
- 48 discrete Class A mic preamps (Dearden design)
- 4-band splittable EQ per channel: 2 parametric bands (40 Hz–20 kHz, ±15 dB, variable Q) + 2 shelving
- Retro Iron: Carnhill transformer + John Hardy 990C output amplifier, Low Bump / High Lift EQ, +28 dBu into 600 Ω at mix insert send
- VCA stereo bus compressor — adjustable threshold, ratio, auto-release, GR meter
- 14 aux sends (12 mono + 2 cue), 8 subgroups, 4 stereo FX returns, 48 record buses
- 5 pairs of monitor outputs (Main + 3 Alt + Studio LS)
- Penny & Giles 8000 series faders on all input channels
- Semi-modular layout — four 12-channel bays + master + DLC + PB, each independently serviceable
- Single ASP8120 Ultra power supply (included)
TECHNICAL SPECIFICATIONS
- Channels: 48 (112 in-line inputs + 8 DLC line inputs)
- Buses: 24-bus, 8 subgroups, 14 aux (12 mono + 2 cue), 48 record buses
- DLC: 8 motorised faders, 8-channel VCA automation, Ethernet; supported DAWs: Pro Tools, Logic, Cubase, Nuendo
- Patchbay: 768 Bantam TT points, Neutrik TT connectors; 144 user-configurable
- Frequency response, mic in to mix out: +0 / -0.3 dB, 20 Hz–20 kHz (at 6–40 dB gain)
- Frequency response, line in to mix out: +0 / -0.3 dB, 20 Hz–20 kHz (at 0 dB gain)
- THD+noise at +20 dBu output (mic in): below 0.005% at 1 kHz
- THD+noise at +20 dBu output (line in): below 0.005% at 1 kHz
- THD+noise at +20 dBu output (tape in): below 0.003% at 1 kHz
- Mic EIN (20–20 kHz, 150 Ω source): below -127.5 dBu
- Bus noise (no inputs routed): below -93 dBu
- Bus noise (36 inputs routed): below -78 dBu
- Mic CMRR: 70 dB (min gain) / 75 dB (max gain)
- Crosstalk / mute attenuation (short fader, long fader, mix assign, bus assign): above 90 dB at 1 kHz
- Maximum output into 2 kΩ (mix, bus, aux): above +26 dBu
- Mix insert send headroom: +28 dBu into 600 Ω
- Dimensions: 331.0 x 106.5 x 99.9 cm (48 Ch + DLC + PB configuration)
- Weight: 234 kg (515 lbs)
- Power: 1x ASP8120 Ultra (included)
