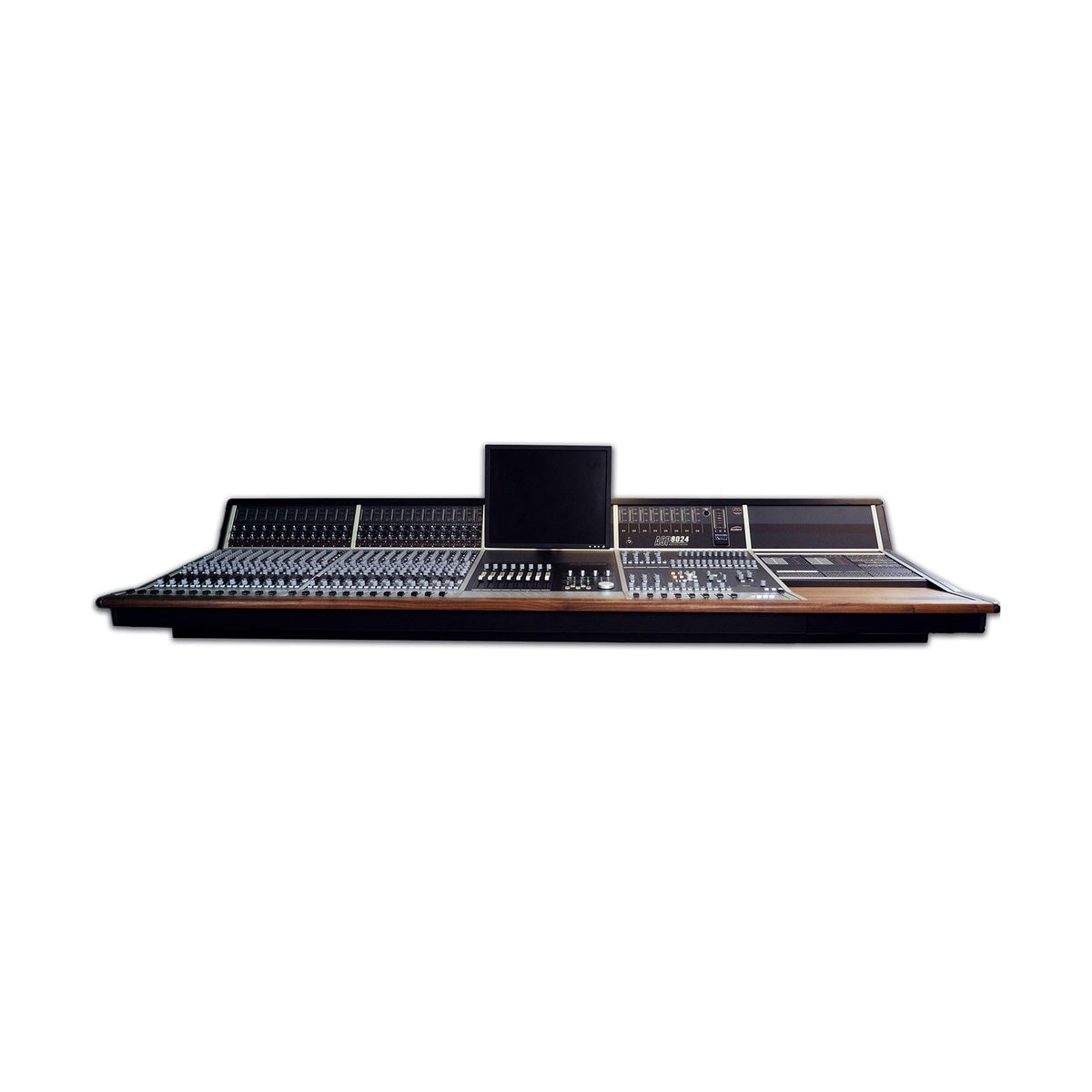

Audient ASP8024 Heritage Edition 36 Ch Console w/DLC/PB is a 36-channel fully analog in-line recording console with 24-bus routing, equipped with both the Dual Layer Control (DLC) module and the integrated patchbay (PB) — a five-bay configuration (three 12-channel bays, master section, DLC bay, and PB bay) measuring approximately 239 cm wide and weighing around 166 kg. This is the most complete 36-channel configuration of the ASP8024-HE platform, combining the full analog signal path, VCA automation with motorised faders, and front-panel access to all studio connections within a single physical frame — without a separate DAW controller or external rack patchbay.
DLC and PB — Integrated Control and Routing From a Single Operating Position
The DLC module provides 8 motorised faders bankable across the entire session, 8 additional line inputs routable to the mix bus or subgroups, a high-resolution OLED display, a jog/shuttle wheel, and DAW control via Ethernet using HUI/Mackie Control protocol. Eight channels of VCA automation allow console fader moves to be recorded and played back in the analog domain; the same eight physical faders handle the DAW layer simultaneously. Supported DAWs are Pro Tools, Logic, Cubase, and Nuendo. The PB module adds 576 Bantam TT patch points — including 144 user-configurable positions for outboard integration and live room tie lines, configurable as through-wired or half-normalled at order. The patchbay handles two 24-track recording devices (REC A and REC B) with playback normalled to tape inputs of channels 1–24 and 25–36, front-panel access to all channel inserts on both mic/line and DAW/tape paths, and full master section access. In this configuration the operator has simultaneous access to every signal point in the console, DAW control, and VCA fader automation from a single seat.
In-Line at 36 Channels, Retro Iron, and Combined Input Count
The in-line architecture delivers 80 inputs from the 36 channel strips plus 8 additional line inputs from the DLC module — up to 88 signal sources managed from one operating position. The four-band Dearden EQ with two fully parametric mid bands (40 Hz–20 kHz, ±15 dB, variable Q) and two shelving bands is splittable per channel independently. Retro Iron on the stereo bus output — Carnhill transformer and John Hardy 990C — delivers +28 dBu into 600 Ω at the mix insert send with Low Bump and High Lift EQ before the output faders. The VCA stereo bus compressor with adjustable threshold, ratio, auto-release, and GR metering operates post-insert, pre-fader. Fourteen aux sends (12 mono plus 2 cue), 8 subgroups, 36 record buses, and Penny & Giles 8000 series faders on all input channels. Supplied with a single ASP8120 Ultra power supply.
KEY FEATURES
- 36-channel in-line, 24-bus routing, 80 in-line inputs + 8 DLC line inputs = 88 total inputs
- DLC module: 8 motorised faders with session-wide banking, 8 channels of VCA automation, DAW control (Pro Tools, Logic, Cubase, Nuendo)
- DLC: OLED display, jog/shuttle wheel, transport, record arm, plug-in control, aux automation, Ethernet connection
- DLC: 8 additional line inputs routable to mix bus or subgroups
- Integrated patchbay: 576 Bantam TT points (36 Ch) — 144 user-configurable for outboard; through-wired or half-normalled
- PB: supports 2 x 24-track devices (REC A and REC B), front-panel access to all channel inserts and master section
- 36 discrete Class A mic preamps (Dearden design)
- 4-band splittable EQ per channel: 2 parametric bands (40 Hz–20 kHz, ±15 dB, variable Q) + 2 shelving
- Retro Iron: Carnhill transformer + John Hardy 990C output amplifier, Low Bump / High Lift EQ, +28 dBu into 600 Ω at mix insert send
- VCA stereo bus compressor — adjustable threshold, ratio, auto-release, GR meter
- 14 aux sends (12 mono + 2 cue), 8 subgroups, 4 stereo FX returns, 36 record buses
- 5 pairs of monitor outputs (Main + 3 Alt + Studio LS)
- Penny & Giles 8000 series faders on all input channels
- Semi-modular layout — three 12-channel bays + master + DLC + PB, each independently serviceable
- Single ASP8120 Ultra power supply (included)
TECHNICAL SPECIFICATIONS
- Channels: 36 (80 in-line inputs + 8 DLC line inputs)
- Buses: 24-bus, 8 subgroups, 14 aux (12 mono + 2 cue), 36 record buses
- DLC: 8 motorised faders, 8-channel VCA automation, Ethernet; supported DAWs: Pro Tools, Logic, Cubase, Nuendo
- Patchbay: 576 Bantam TT points (36 Ch), Neutrik TT connectors; 144 user-configurable
- Patchbay normalisation: through-wired or half-normalled (specified at order)
- Frequency response, mic in to mix out: +0 / -0.3 dB, 20 Hz–20 kHz (at 6–40 dB gain)
- Frequency response, line in to mix out: +0 / -0.3 dB, 20 Hz–20 kHz (at 0 dB gain)
- THD+noise at +20 dBu output (mic in): below 0.005% at 1 kHz
- THD+noise at +20 dBu output (line in): below 0.005% at 1 kHz
- THD+noise at +20 dBu output (tape in): below 0.003% at 1 kHz
- Mic EIN (20–20 kHz, 150 Ω source): below -127.5 dBu
- Bus noise (no inputs routed): below -93 dBu
- Bus noise (36 inputs routed): below -78 dBu
- Mic CMRR: 70 dB (min gain) / 75 dB (max gain)
- Crosstalk / mute attenuation (short fader, long fader, mix assign, bus assign): above 90 dB at 1 kHz
- Maximum output into 2 kΩ (mix, bus, aux): above +26 dBu
- Mix insert send headroom: +28 dBu into 600 Ω
- Dimensions: approx. 239.0 x 106.5 x 99.9 cm (36 Ch + DLC + PB configuration)
- Weight: approx. 166 kg (365 lbs)
- Power: 1x ASP8120 Ultra (included)
