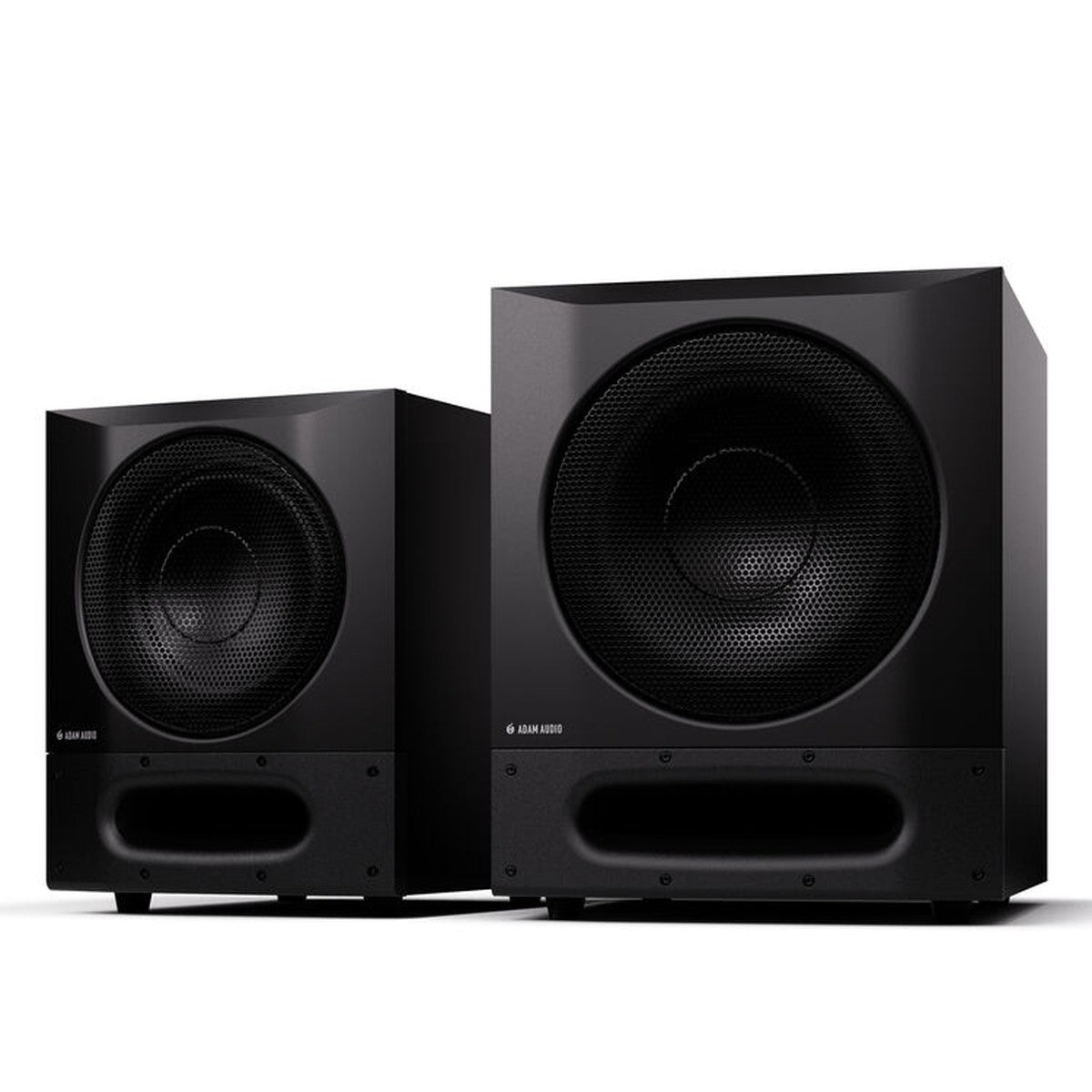

ADAM Sub8 Pro 8 inch Active Studio Subwoofer
This item is available on a custom order basis only
Please contact us for more details.
Kontaktiere unsOptionen wählen
This item is available on a custom order basis only
Please contact us for more details.
Kontaktiere unsThis item is available on a custom order basis only
Please contact us for more details.
Kontaktiere unsADAM Sub8 Pro is a compact active studio subwoofer with an 8 inch woofer, a 200 W RMS amplifier and the same network electronics as the larger Sub10 Pro. It reaches 26 Hz (-6 dB) and its 385 mm tall cabinet fits the kind of home studio where the bigger sub simply will not.
Low end that suits a small room
In a small room a subwoofer can do more harm than good: it booms, masks the mids and changes with every move of your chair. The Sub8 Pro gives you the tools to deal with that, with phase in eight steps, crossover at 70, 85, 100 or 115 Hz, 0-10 ms of delay and level from -18 to +6 dB. ADAM Control (Windows and macOS) over Ethernet adds a four-band parametric EQ and Sonarworks SoundID Reference profiles, so you set the room correction once and store it.
Digital input and three operating modes

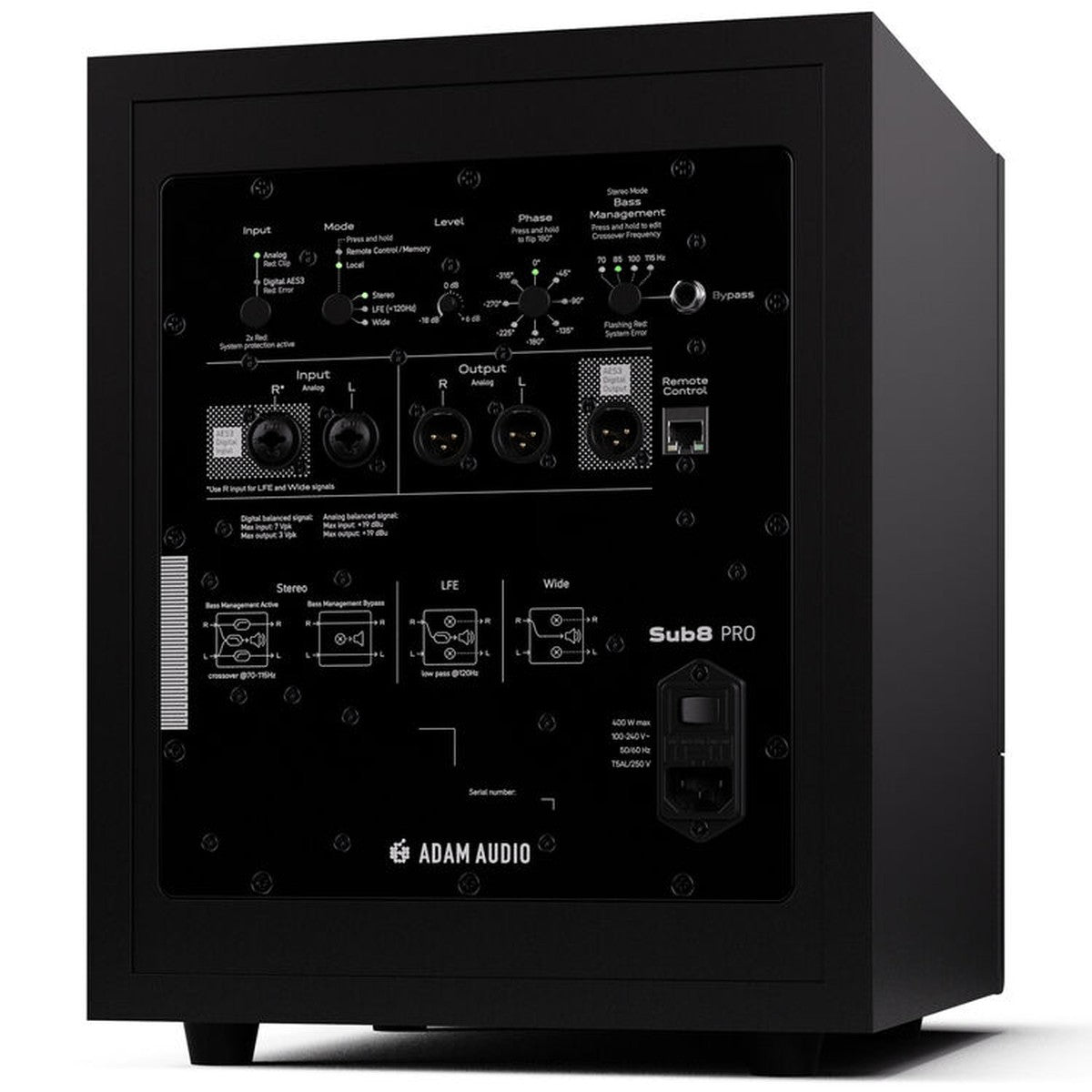

Alongside two analog XLR/TRS inputs you get an AES3 input (up to 24-bit/96 kHz) plus XLR and AES3 outputs, so the sub can sit in a digital chain without extra conversion. Stereo mode manages bass for a pair of monitors, LFE covers the low-frequency effects channel in multichannel setups (below 120 Hz), and Wide adds low end to monitors running full range. A TRS jack takes a footswitch for a quick bass management bypass (footswitch not included).
KEY FEATURES
- 8 inch woofer, fibre-reinforced paper cone, 35 mm voice coil
- PWM amplifier: 200 W RMS (1% THD, 3 Ohm), 325 W peak
- Frequency response 30-228 Hz (-3 dB) and 26-300 Hz (-6 dB)
- Inputs: 2 x XLR/TRS combo plus AES3 XLR; outputs: 2 x XLR plus AES3 XLR
- Ethernet (RJ45, AES70), ADAM Control, four-band parametric EQ
- Sonarworks SoundID Reference compatible
- Stereo, LFE and Wide modes, phase in eight steps, 0-10 ms delay
- Independent peak and thermal limiters plus over-current, over-temperature and under-voltage protection
- MDF cabinet with metal grille
TECHNICAL SPECIFICATIONS
- Design: active subwoofer, front-firing, front-ported bass reflex
- Driver: 8 inch, 35 mm voice coil, fibre-reinforced paper cone
- Power: 200 W RMS into 3 Ohm (1% THD), 325 W peak (10% THD)
- Max SPL at 1 m (IEC noise, full range): 112 dB SPL peak, 113 dB with 85 Hz bass management
- Crossover: 70, 85, 100, 115 Hz (variable in ADAM Control)
- A/D converter: 24-bit via XLR/TRS inputs, 96 kHz internal sample rate
- Input impedance: analog 25 kOhm, digital 110 Ohm; max input level +19 dBu
- Power: 100-240 V, 50/60 Hz; 400 W max, 2.5 W standby
- Dimensions (H x W x D): 385 x 300 x 365 mm (15 1/8 x 11 3/4 x 14 3/8 in)
- Weight: 15.3 kg (33 lb 12 oz)
- Warranty: 2 years, extendable to 5 years with product registration
- In the box: subwoofer, power cable, Quick Start Guide
