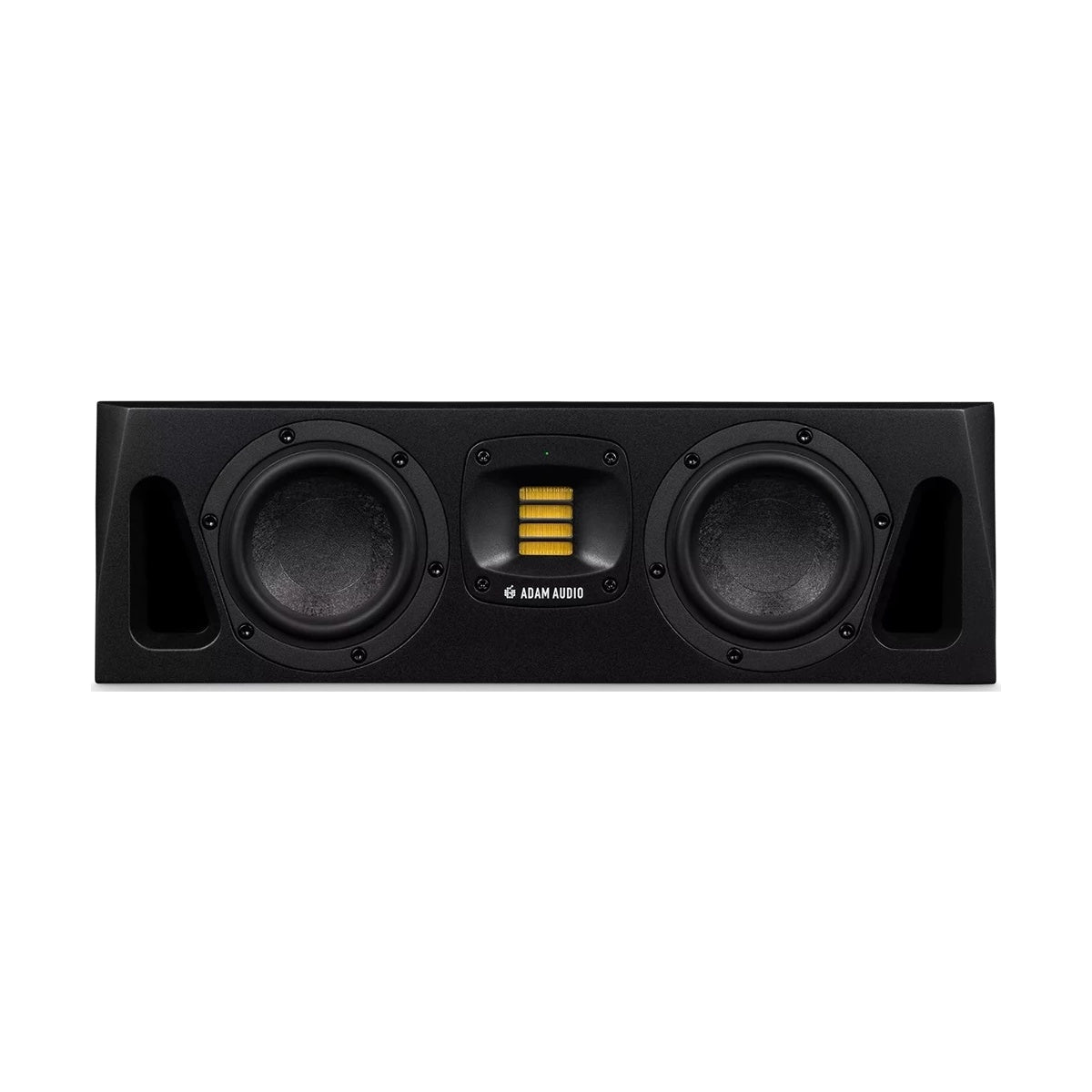

ADAM Audio A44H Horizontal Studio Monitor – Low-profile 2-way monitor with dual 4″ MLM woofers and a rotatable X-ART tweeter in an HPS waveguide. DSP-tunable with 110 W RMS (woofer) + 20 W RMS (tweeter) hybrid amplification and a bass-reflex ported enclosure.
At 19″ wide, the rack-mountable A44H doubles as a center-channel in immersive 3D setups. Its polymer-glass HPS waveguide ensures controlled dispersion horizontally and reduced reflections vertically. The extended front port optimizes airflow and minimizes port noise. Four M8 mounting points underneath allow flexible installation.
KEY FEATURES
- Horizontal 2-way active monitor (19″ rack width)
- Dual 4″ Multi-Layer Mineral (MLM) woofers, 25 mm voice coil
- Rotatable X-ART tweeter with HPS waveguide
- 110 W RMS woofer amp; 20 W RMS tweeter amp (300 W peak)
- DSP crossover at 2.4 kHz; 24-bit/96 kHz processing
- Bass-reflex port with extended airflow design
- Four M8 mounting points (127 × 70 mm pattern)
- Inputs: 1× XLR balanced, 1× RCA unbalanced
- Enclosure with deep chamfers and stiff bracing
- Dimensions: 135 × 432 × 350 mm; Net weight: 9.7 kg; Shipping: 12.1 kg
TECHNICAL SPECIFICATIONS
- System: Active 2-way horizontal monitor
- Woofers: 2 × 4″ MLM; Amp: 110 W RMS
- Tweeter: X-ART rotatable + HPS; Amp: 20 W RMS
- DSP: 24-bit, 96 kHz internal
- Crossover: 2.4 kHz
- Power rating: 300 W peak
- Frequency response: (not specified)
- Inputs: 1× XLR (balanced), 1× RCA (unbalanced)
- AC input: 100–240 VAC, 50–60 Hz
- Dimensions (H×W×D): 135 × 432 × 350 mm
- Net weight: 9.7 kg; Gross weight: 12.1 kg
