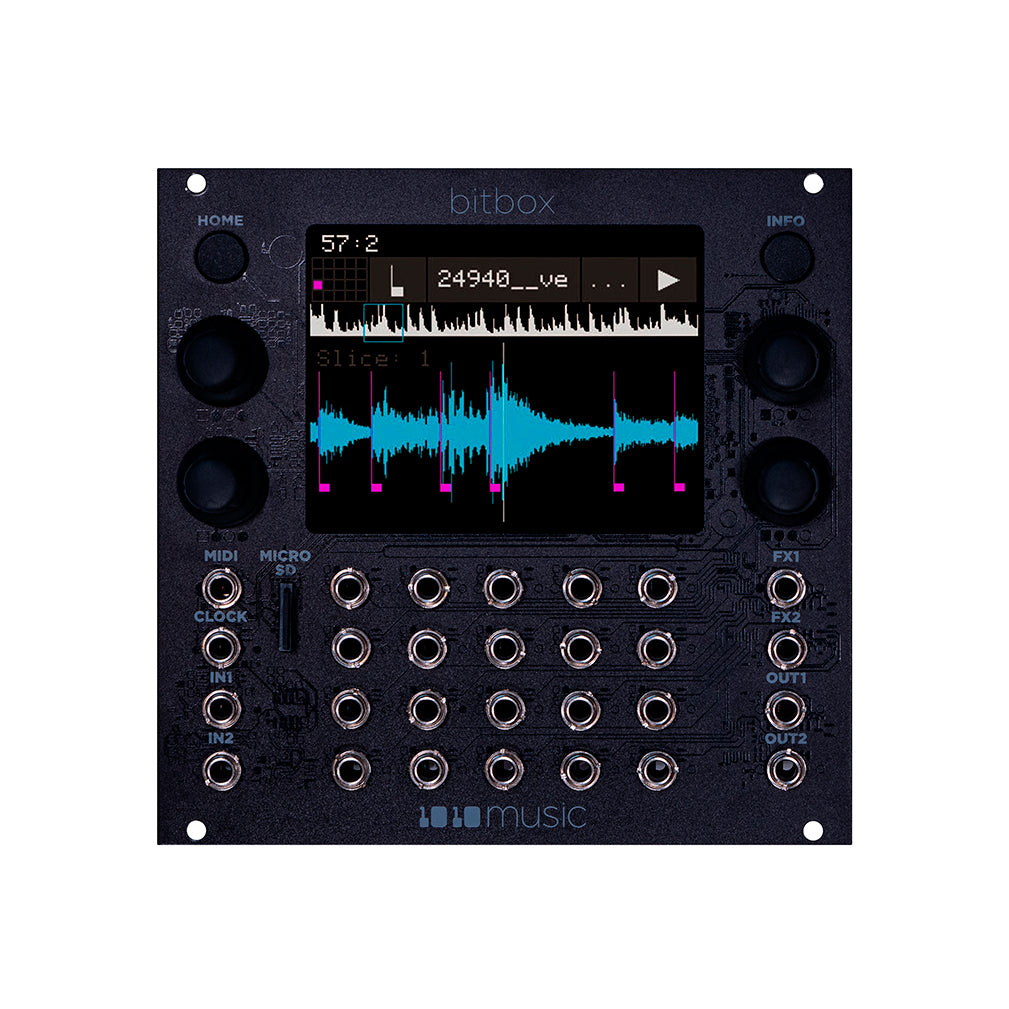

1010music Bitbox mk2 Black Edition

The 1010music Bitbox mk2 Black Edition is an advanced sampler module for Eurorack systems, now available in an elegant black version. With a 3.5-inch touchscreen, managing and editing samples becomes intuitive and fast. The module offers various operating modes: from sample playback and recording to granular processing, intelligent looping, and synchronization. Equipped with a new, more powerful processor, the 1010music Bitbox mk2 Black Edition delivers enhanced performance and capabilities, including support for samples up to 4 GB in size.

The device integrates seamlessly with MIDI and CV, allowing full compatibility with other modules. You can also switch firmware to fxbox or synthbox, making this module a versatile tool for sampling, effects processing, and wavetable synthesis. With the ability to save multiple configurations and presets, the 1010music Bitbox mk2 Black Edition is perfect for creative studios and live performances.

Key Features

• Versatile Sampling Capabilities: Supports 16 pads per preset with multiple modes, including granular, loop playback, and slicer modes.
• Powerful Processor: Double the processing power compared to the previous version, enabling effects like reverb and delay.
• Flexible MIDI and CV Control: Modulate parameters, synchronize, and control via MIDI and CV.
• Intuitive Operation: A 3.5-inch touchscreen simplifies feature navigation and sample editing.
• Computer Integration: Import and export WAV files via microSD card with support for various audio resolutions (16, 24, 32-bit).
• Modular Flexibility: Compatible with alternative firmware (fxbox, synthbox) that can be easily installed.

Specifications

Module Size: 26 HP (5.25″ x 5″ x 1.75″, depth behind panel: 1.25″)

Touchscreen: 3.5 inches

Inputs and Outputs:

• Dedicated stereo audio input and output
• 8 CV inputs for parameter modulation
• 16 gate inputs for triggering pads
• Stereo outputs or individual channel outputs
• MIDI TRS Type A and B (no adapter needed)
• Clock input (TRS Clock In)

Power Requirements: +12V: 400 mA; -12V: 0 mA; 5V: 0 mA

Audio Processing: 24-bit ADC/DAC

Supported Files: WAV, 16/24/32-bit, any sample rate (48 kHz recommended)

Maximum Sample Size: 4 GB

Included Accessories:

• microSD card with preloaded presets and samples
• Eurorack power cable
• Quick Start Guide
• MIDI Adapter
