SSL Fusion Analog Master Processor – versatile 2U analog processor for hybrid studios, with six coloration tools for rich analog sound. Adds warmth, weight, space to mixes/stems. Includes Vintage Drive, Violet EQ, HF Compressor, Stereo Image, Transformer. Ideal for mastering/mixing.
Fusion offers non-linear harmonic enhancement, minimum phase-shift EQ, high-frequency compression, M/S stereo imaging. Switches for insert/stereo mode, HPF with three frequencies. Balanced XLR I/O, trim +/-12 dB, peak-hold metering. Hand-soldered for quality.
As analog tribute, Fusion adds character without compromise.

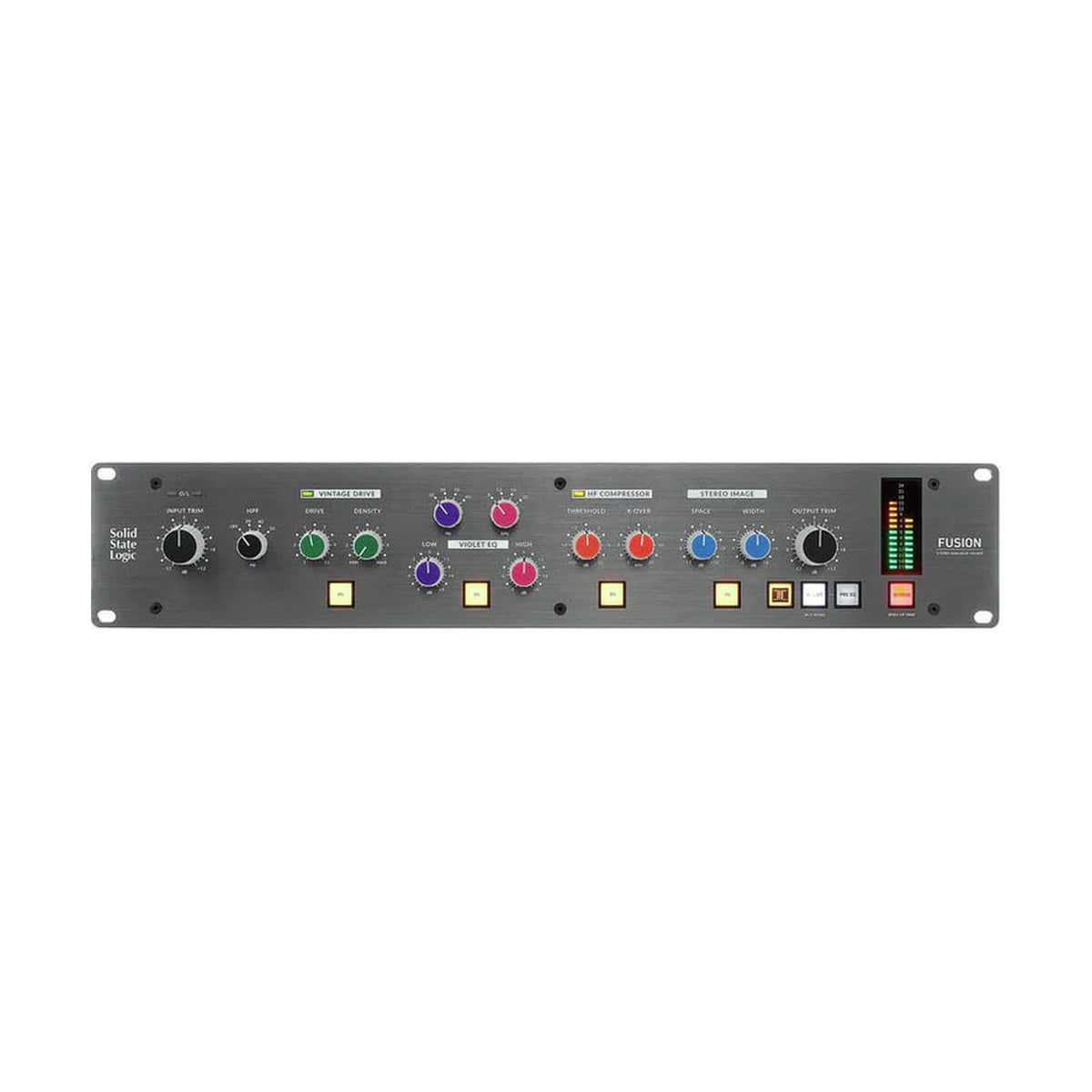

MAIN FEATURES
- Vintage Drive: harmonic saturation and soft compression
- Violet EQ: 2-band shelving with 4 frequencies (±9 dB)
- HF Compressor: harshness reduction with tape-like roll-off
- Listen Mic Compressor (LMC): hidden 6th processor
- Stereo Image: M/S circuit for stereo field widening
- Transformer: low-end saturation and high-end phase-shift
- XLR I/O, insert/MS mode, HPF (3 freq)
- Trim +/-12 dB, peak metering
TECHNICAL SPECIFICATIONS

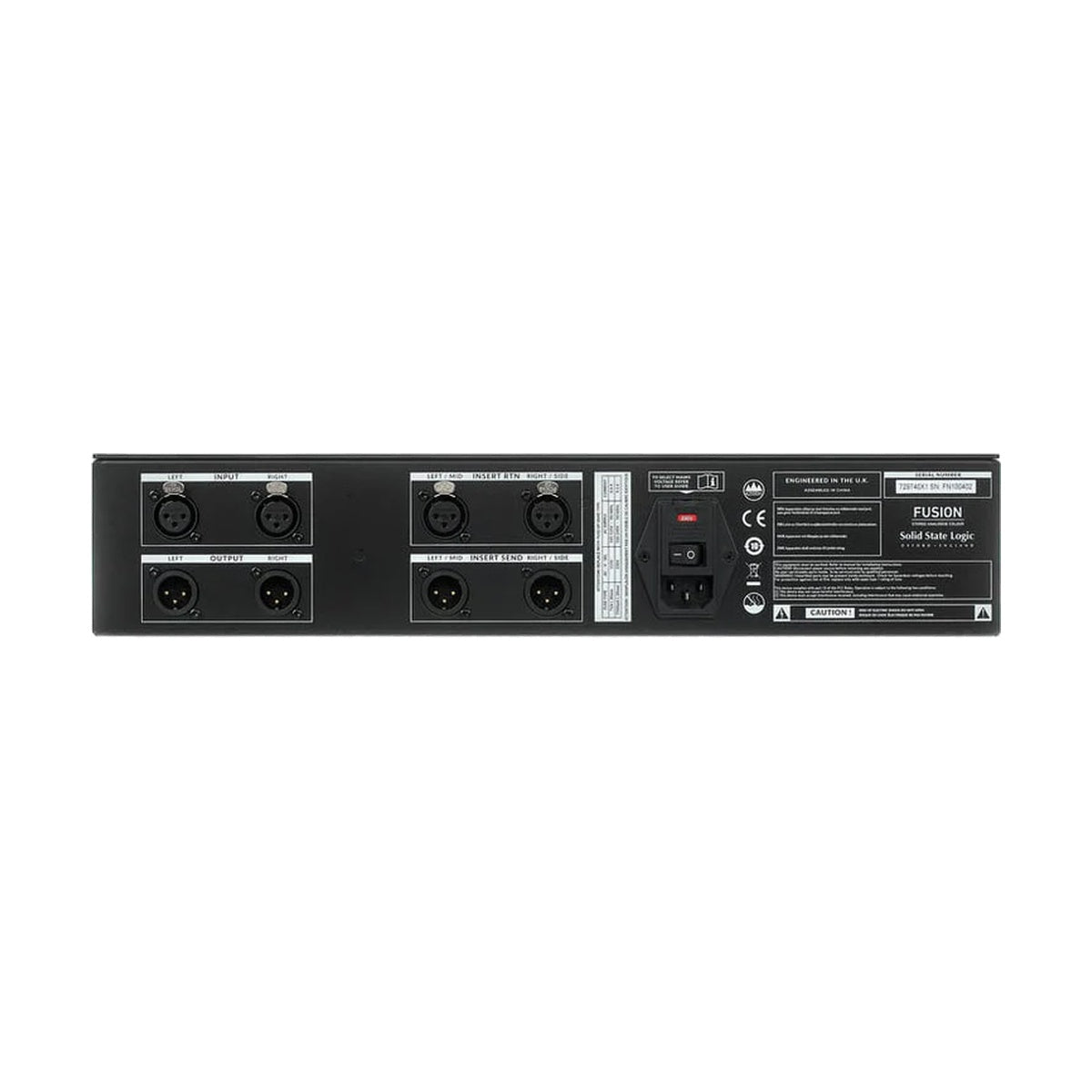

- Inputs/Outputs: Balanced XLR stereo
- Modes: Stereo Insert/MS, pre/post switch
- HPF: 3rd order, 3 selectable cut-off
- Frequency Response: 20 Hz–20 kHz
- THD + N: < 0.005% @ 1 kHz
- Noise: < -90 dBu
- Power Supply: 100-240 V AC
- Dimensions (W × H × D): 483 x 88 x 292 mm (2U)
- Weight: 5 kg
- Included: Fusion, manual
- Product Code: SSL-FUSION
