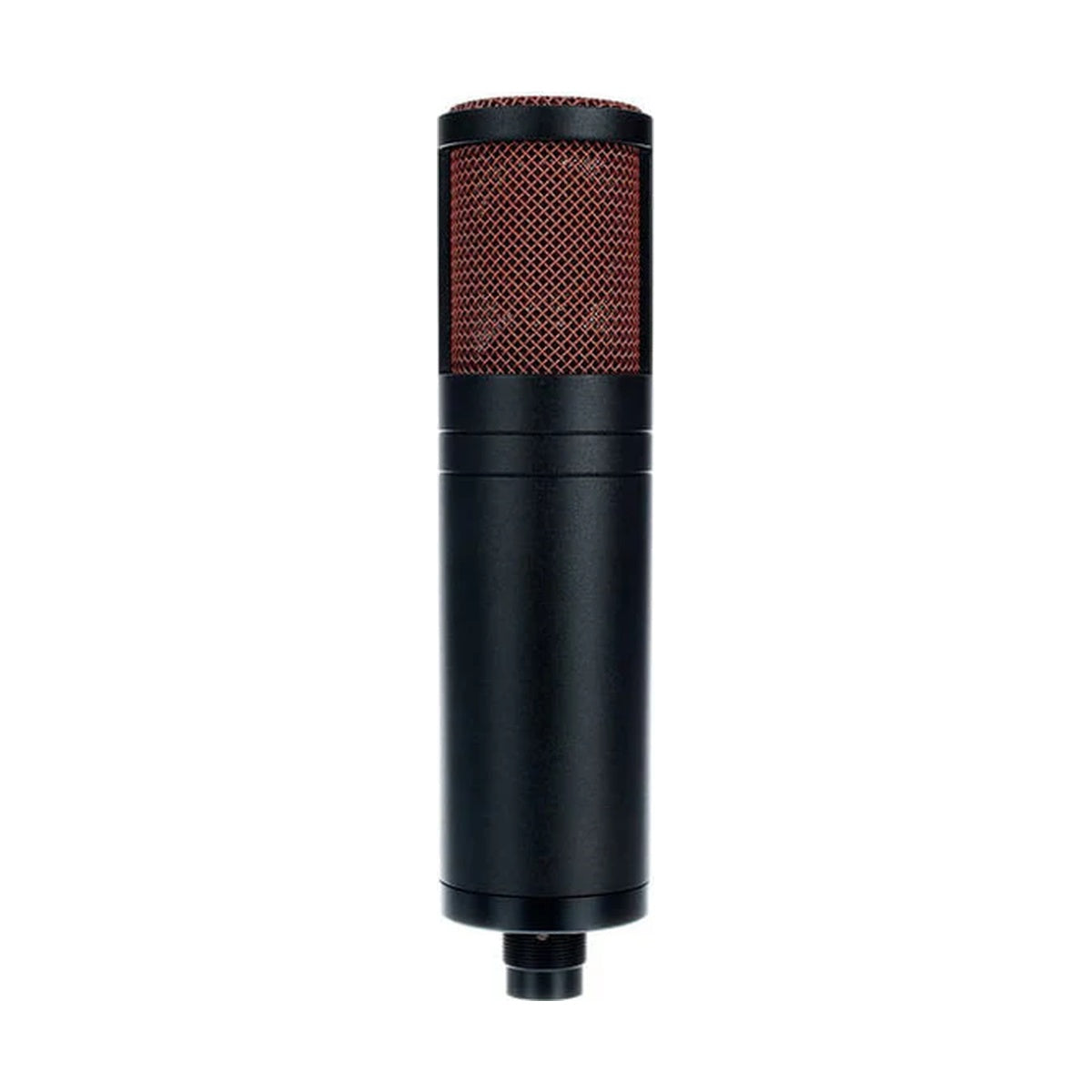

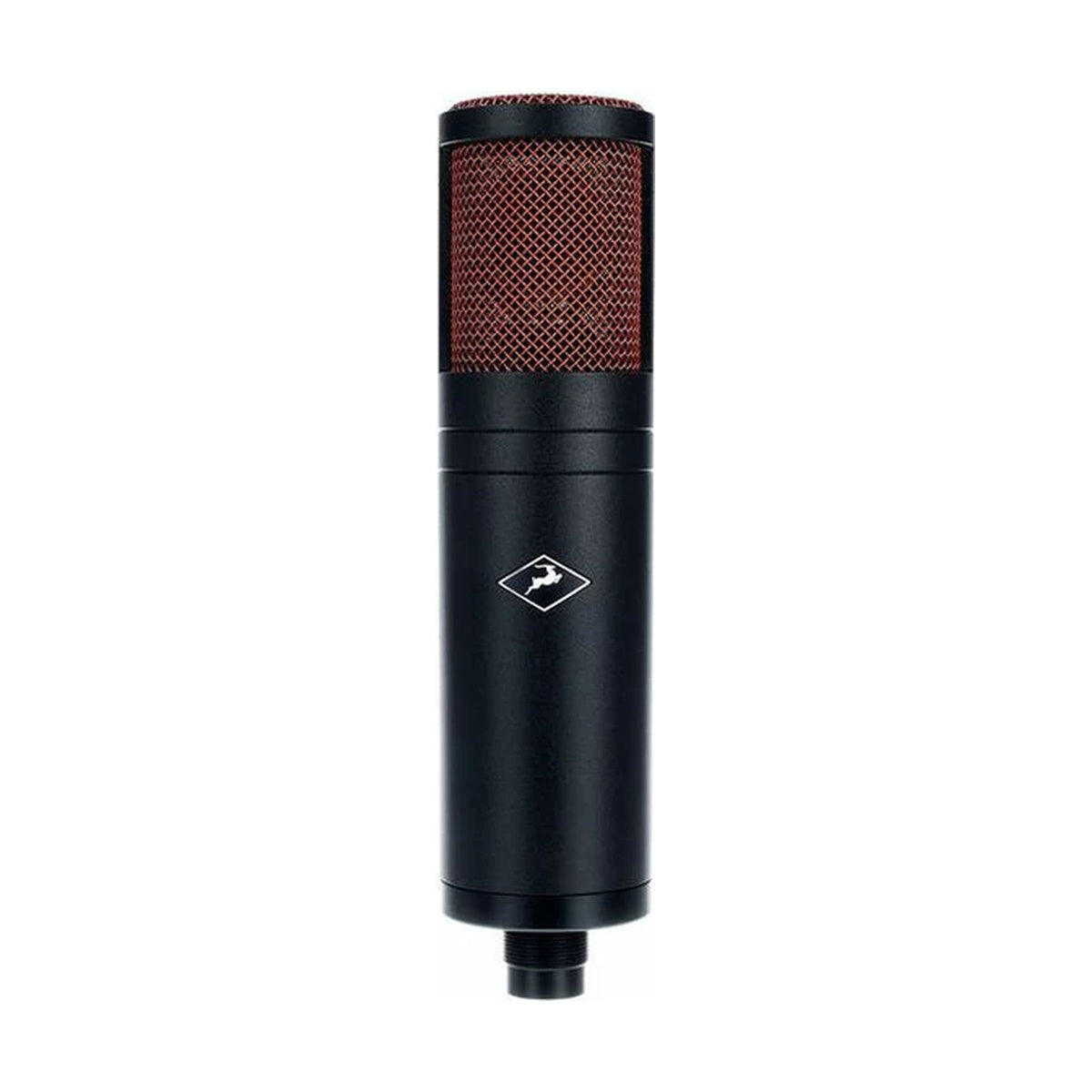

Antelope Audio Edge Duo is a high-end dual-membrane large-diaphragm modeling microphone designed to deliver the sound and character of the world’s most legendary studio microphones. Built with two precisely matched gold-sputtered diaphragms and Antelope’s real-time modeling engine, it provides incredible tonal flexibility, allowing users to emulate over a dozen classic microphones with uncompromising accuracy and detail.
The dual-membrane design allows Edge Duo to capture both sides of the capsule independently, enabling a wide range of polar patterns and dynamic mic modeling options. When used with Antelope Audio interfaces or the Edge modeling plug-in, it can recreate the sonic signature of vintage microphones such as the U47, C12, 251, 67, and 87 with astonishing realism. The system supports real-time processing through Antelope’s FPGA-based FX engine, providing zero-latency monitoring with authentic coloration and depth.
Edge Duo is constructed with a precision-machined metal body, ultra-low-noise electronics, and a carefully tuned acoustic chamber for phase accuracy and consistent frequency response. It’s an ideal choice for vocal, acoustic, and ensemble recording, combining the elegance of classic analog tone with modern digital control and recall.
KEY FEATURES
- Large-diaphragm condenser microphone with dual-membrane capsule
- Real-time microphone modeling with Antelope’s FPGA FX engine
- Emulations of over 15 legendary microphones (U47, C12, 251, 67, 87, etc.)
- Adjustable polar patterns via software control
- Independent front and rear diaphragm outputs for precise modeling
- Gold-sputtered diaphragms and transformerless output design
- Compatible with all Antelope Audio modeling interfaces and plug-ins

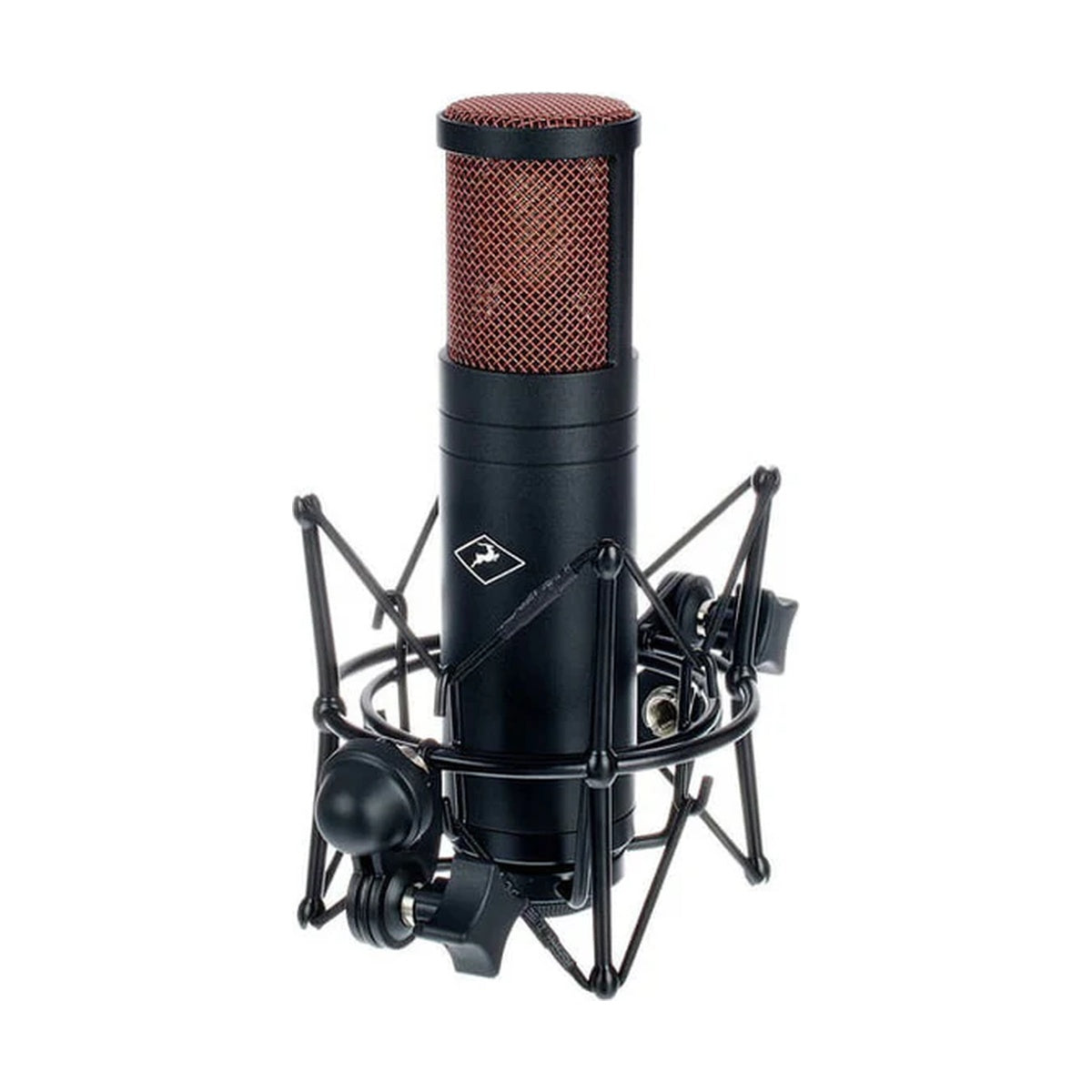

- Includes high-quality shockmount and wooden storage box
TECHNICAL SPECIFICATIONS
- Type: Dual-membrane large-diaphragm condenser microphone
- Capsule: 6 µm gold-sputtered dual-diaphragm capsule
- Polar patterns: Adjustable via modeling software (cardioid, omni, figure-eight, etc.)
- Frequency response: 20 Hz – 20 kHz
- Sensitivity: -35 dB (0 dB = 1 V/Pa @ 1 kHz)
- Equivalent noise level: 19 dB(A)
- Output impedance: 50 Ω
- Maximum SPL: 138 dB SPL
- Power supply: 48 V phantom power

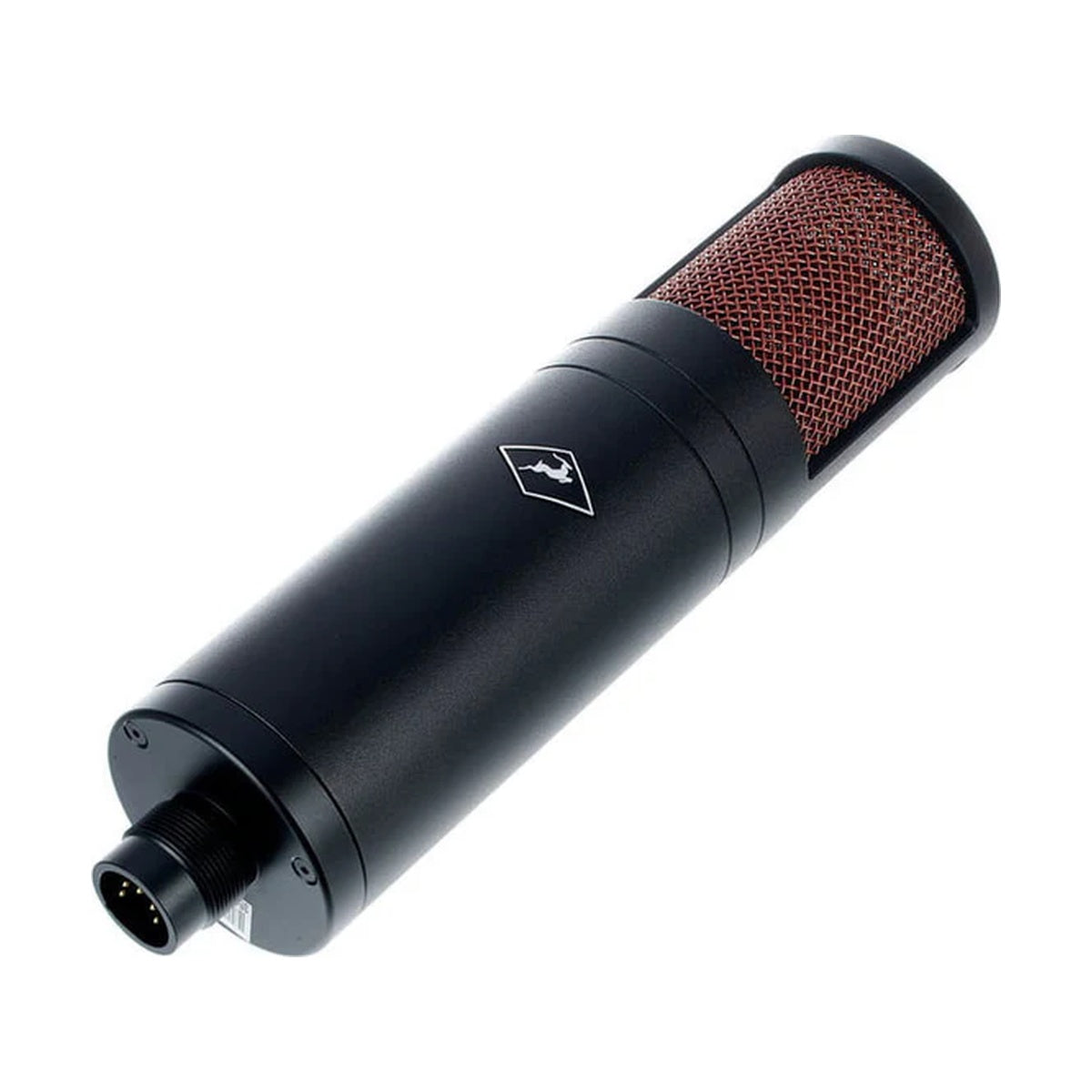

- Connector: 5-pin XLR (Y-cable included for dual output)

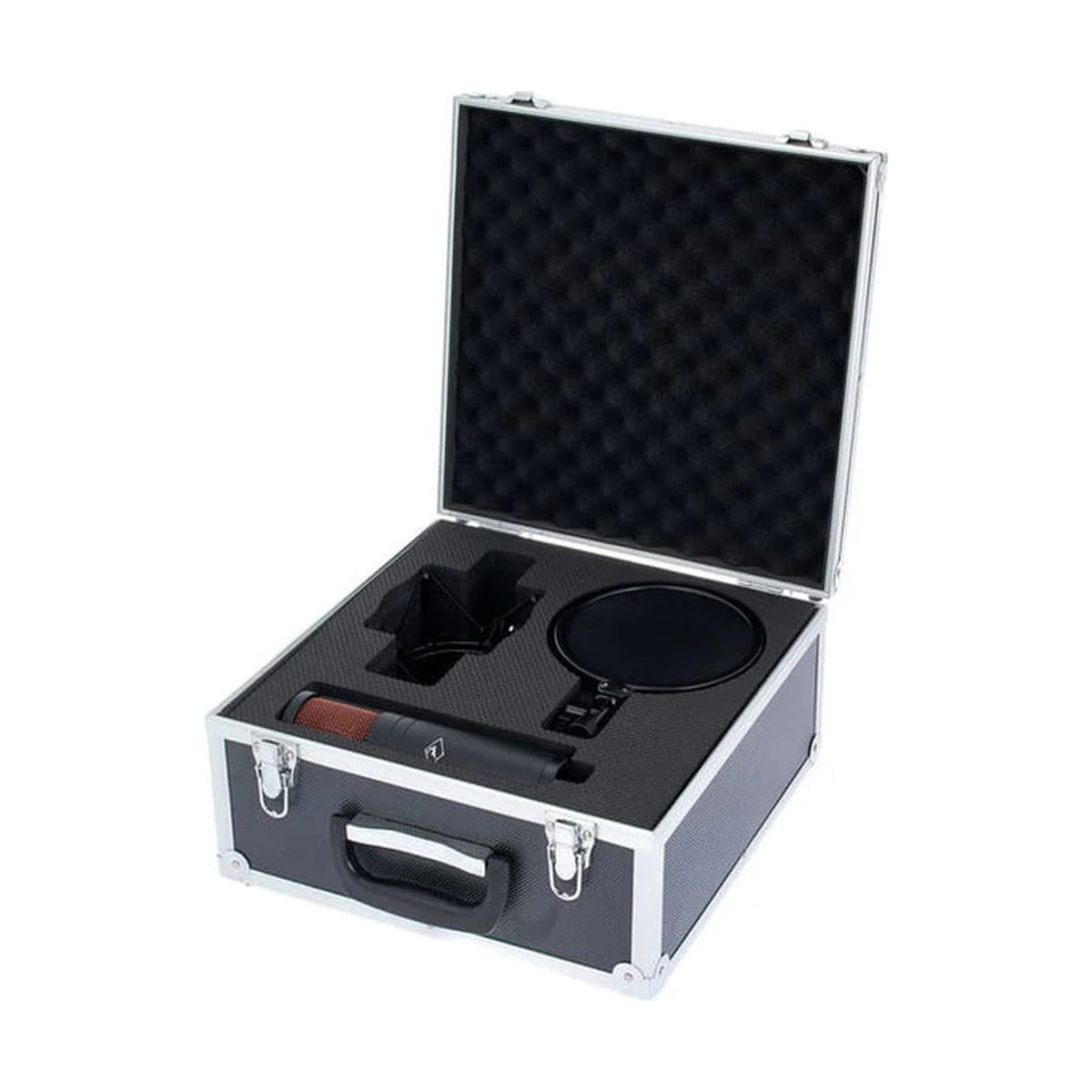

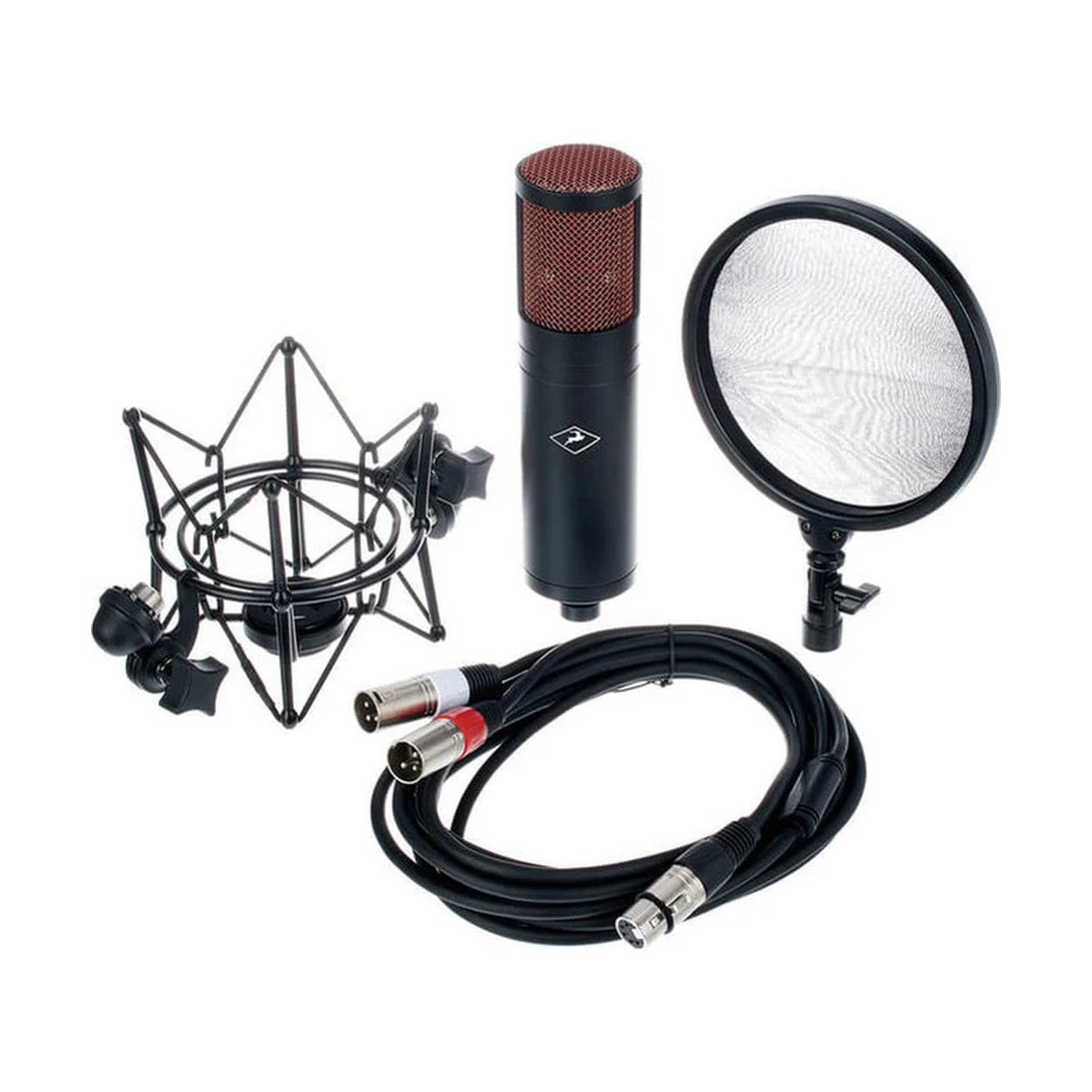

- Included accessories: Shockmount, dual XLR Y-cable, wooden case
- Dimensions: 82 × 275 mm
- Weight: approx. 870 g
