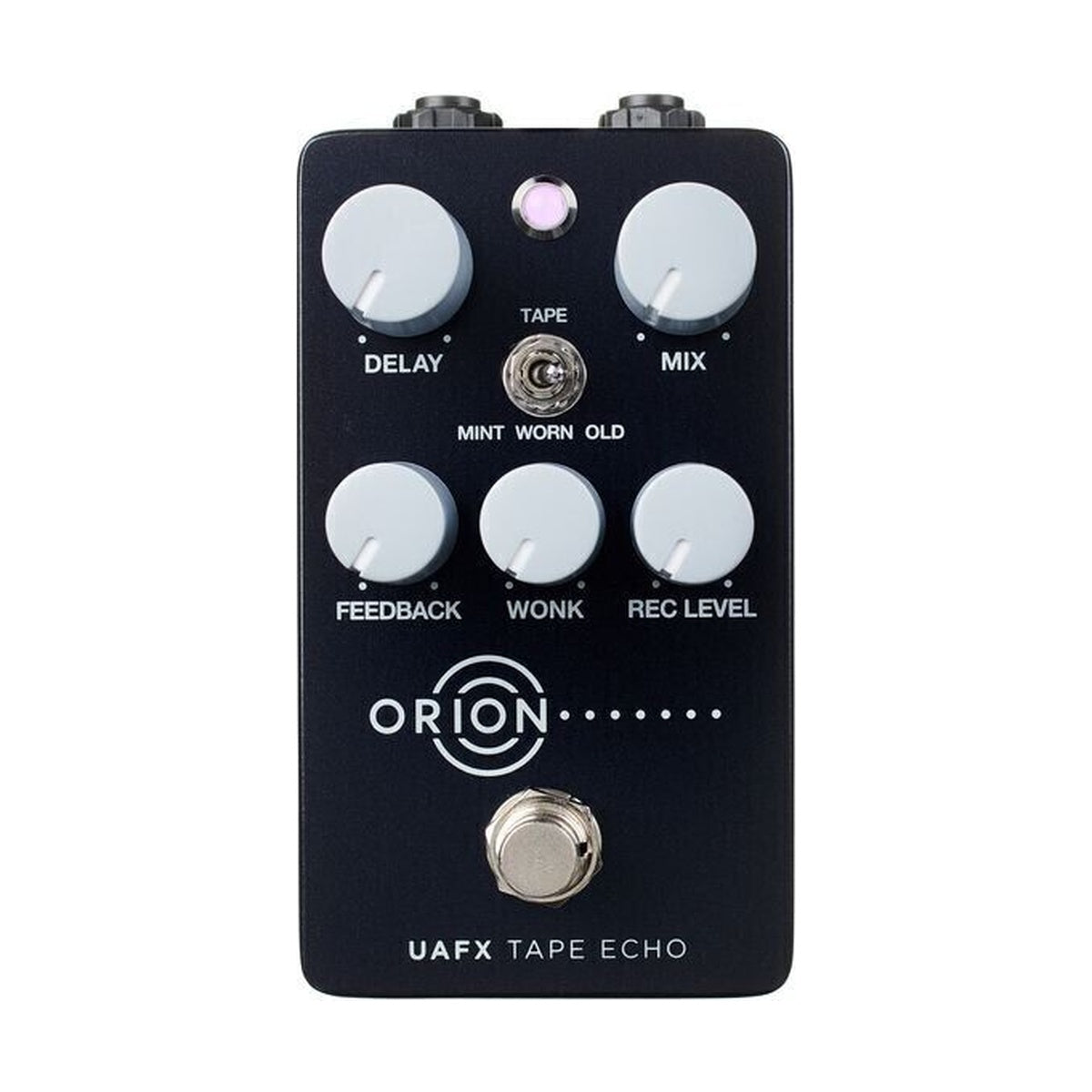

Universal Audio UAFX Orion Tape Echo

Universal Audio UAFX Orion Tape Echo – compact pedal emulating vintage Maestro Echoplex EP-III tape echo from the 70s, with analog preamp for warmth and saturation. Offers rich, three-dimensional delays with wow/flutter, ideal for guitarists and producers. Aluminum enclosure (114 x 114 x 51 mm, 0.5 kg) with knobs for Time, Repeats, Mix, Record Level, Wonk.

Orion features 3 tape types (Mint, Worn, Old) for color, preamp on/off, true/trails bypass. UAFX Engine with 121 dB dynamic range. MIDI In/Out/Thru, Bluetooth for presets (5 onboard, 50+ via app). 9V DC power, 9V battery (4h). Low latency for live.

As tribute to classic, Orion blends vintage tone with precision, ready for recording and performances.

MAIN FEATURES

• EP-III tape echo emulation with preamp
• 3 tape types: Mint, Worn, Old
• Knobs: Time, Repeats, Mix, Record Level, Wonk
• Preamp on/off for saturation
• Stereo I/O, MIDI In/Out/Thru, Bluetooth
• 5 onboard presets, 50+ via app

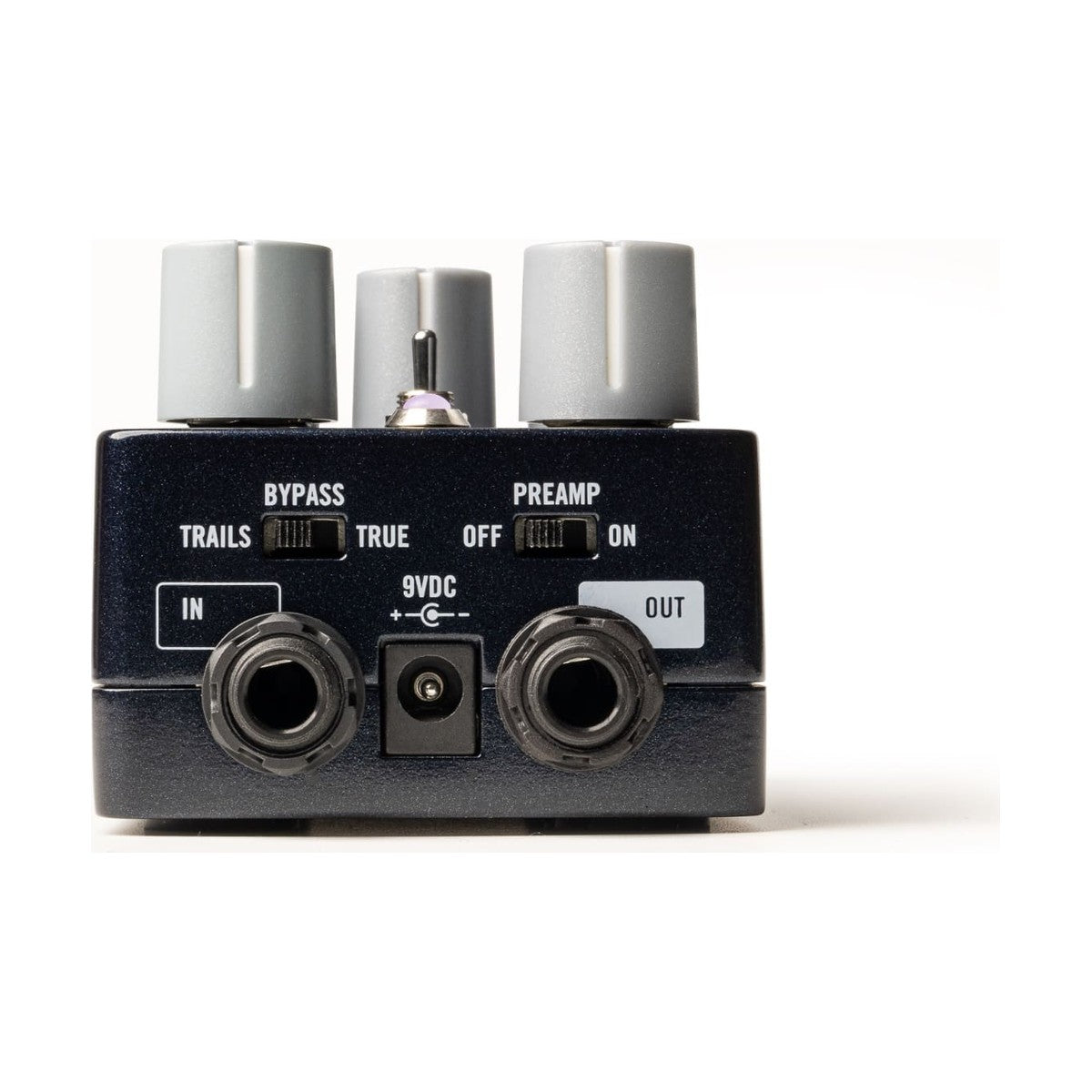

• True/trails bypass, analog dry-through
• Portable: 114 x 114 x 51 mm, 0.5 kg
• 5-year warranty

TECHNICAL SPECIFICATIONS

• Type: Tape echo pedal
• Tape Types: 3 (Mint, Worn, Old)
• Controls: Time, Repeats, Mix, Record Level, Wonk
• I/O: 2x 1/4" mono/stereo in/out, MIDI In/Out/Thru, USB-C, Bluetooth
• DSP: Dual-engine UAFX, 121 dB dynamic range
• Sample Rate: 48 kHz
• Power: 9V DC center negative, 400 mA; 9V battery (4h)
• Dimensions (W × D × H): 114 x 114 x 51 mm
• Weight: 0.5 kg
• Included: Orion, 9V power supply
• Product Code: UAFX-ORION
