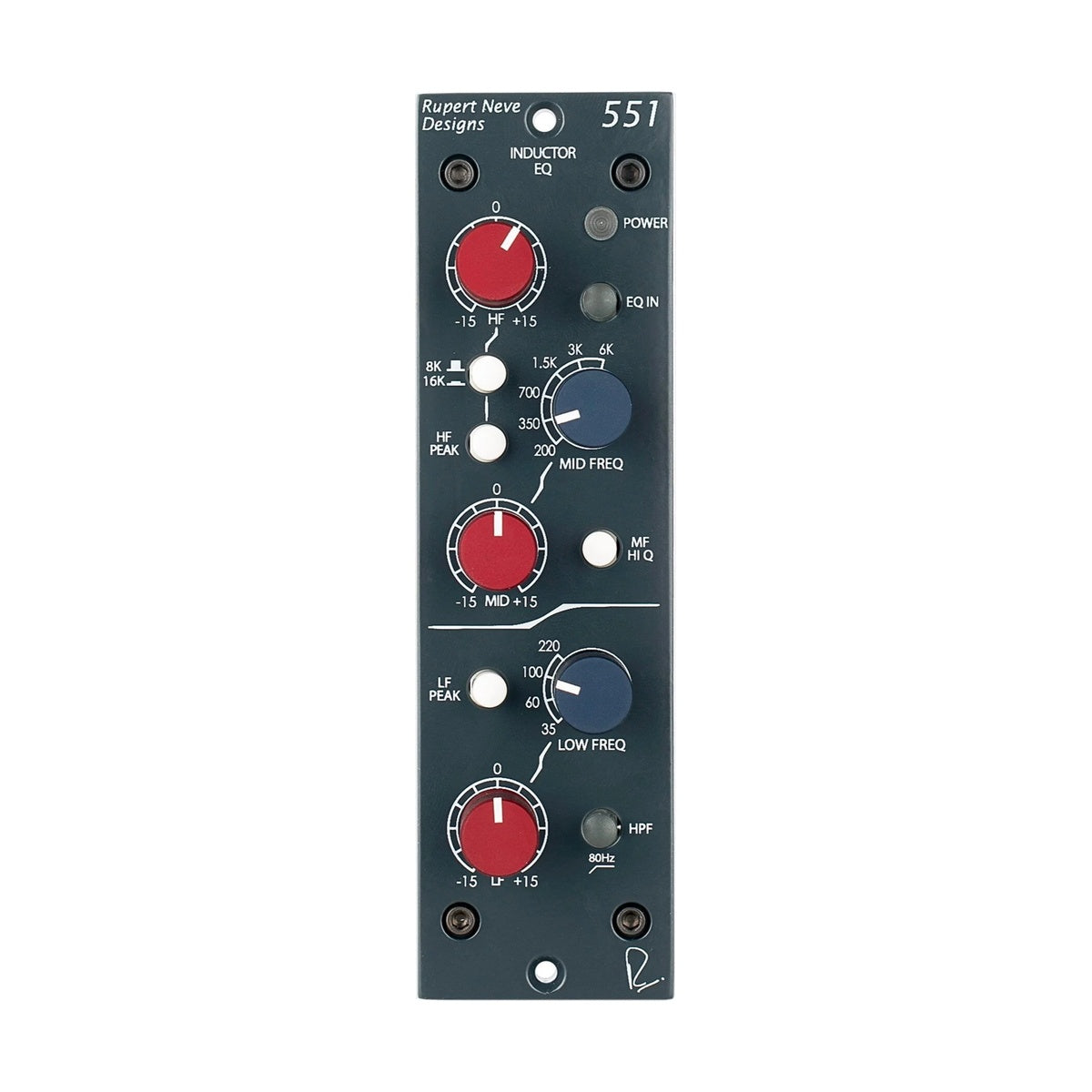

Rupert Neve Designs 551 Inductor EQ
This item is available on a custom order basis only. Please contact us for more details. Contact us
Choose options
This item is available on a custom order basis only. Please contact us for more details. Contact us
This item is available on a custom order basis only. Please contact us for more details. Contact us
Rupert Neve Designs 551 Inductor EQ – 500 Series 3-band inductor EQ designed by Rupert Neve, inspired by vintage modules like 1064 and 1073. Custom-wound inductors and Class-A gain blocks deliver thick lows, sweet highs, and musical harmonics for tracking/mixing.
Low band: Shelf/peak filter (±15dB at 35/60/100/220Hz). Mid band: Proportional Q peaking (±15dB at 200/350/700Hz/1.5/3/6kHz), MID HI Q narrows bandwidth. High band: Shelf/peak (±15dB at 8/16kHz), HI PEAK for bell mode. Fixed 80Hz HPF (12dB/octave). Low-feedback discrete electronics prevent artifacts.
Single-slot module for 500 racks, transformer I/O, bypassed noise <-102dBV.
MAIN FEATURES
- Custom inductors for harmonic saturation
- LF: Shelf/peak, 35-220Hz
- Mid: 6 frequencies, proportional Q, HI Q switch
- HF: Shelf/peak, 8/16kHz, peak switch
- HPF: Fixed 80Hz
- EQ IN button
- Class-A discrete electronics
- Single-slot 500 Series
TECHNICAL SPECIFICATIONS
- EQ Bands: 3-band inductor
- Gain: ±15dB per band
- Frequency Response: ±0.1dB 20Hz-31.5kHz (bypassed)
- THD+N: <0.0025% @1kHz +20dBu (bypassed)
- Noise: <-102dBV bypassed; <-94dBV engaged
- Max Output: +23dBu
- Power: +16VDC 120mA, -16VDC 110mA
- Dimensions: Standard 500 Series module
- Weight: Not specified
- Included: 551 module
- Product Code: 551
