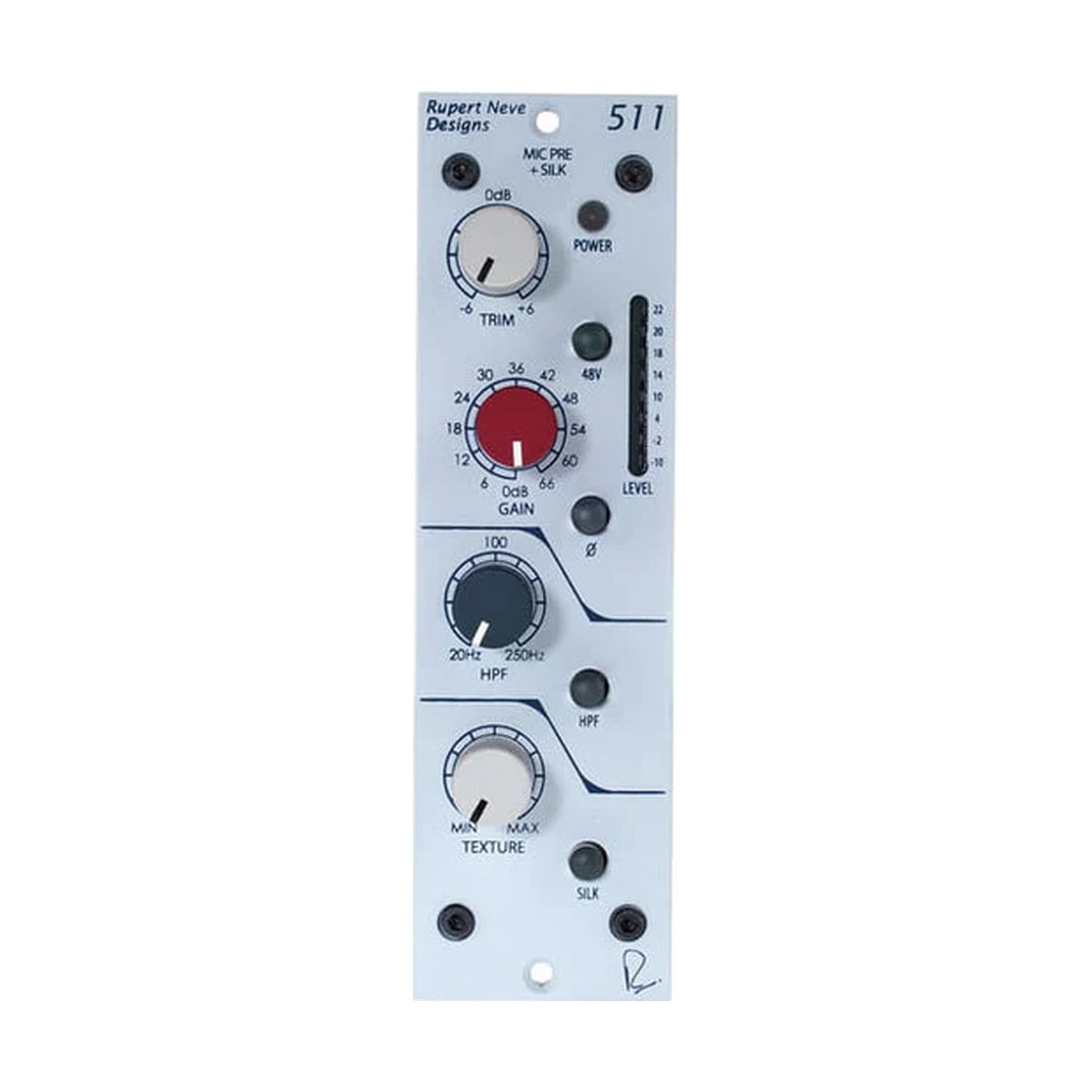

Rupert Neve Designs 511 Mic Preamp – 500 Series module with bold preamp, swept high-pass filter, and variable Silk/Texture for harmonic saturation. Delivers legendary Rupert Neve tone for mics or line sources.
Precision gain control (0-66dB in 6dB steps + ±6dB trim), +48V phantom, polarity switch. HPF (20-250Hz, 12dB/octave). Silk/Texture enhances harmonics (Red mode for highs/mids).
8-segment LED meter (pre-Silk output). Compact single-slot for racks, ideal for studios.
MAIN FEATURES
- Big preamp with 66dB gain + trim
- Silk/Texture for variable harmonics
- Swept HPF 20-250Hz
- +48V phantom, polarity reverse
- 8-segment LED meter
- 500 Series single-slot
TECHNICAL SPECIFICATIONS
- Inputs: Balanced mic/line (XLR via 500 rack)
- Outputs: Main output (+23dBu max)
- Gain: 0-66dB (steps) + ±6dB trim
- Frequency Response: ±0.1dB 10Hz-31.5kHz; -2.6dB @120kHz
- THD + Noise: <0.0025% @1kHz +20dBu (no Silk)
- EIN: -125dB
- Noise: <-103dBV unity; <-60dBV @66dB gain
- HPF: 20-250Hz, 12dB/octave
- Power: ±16VDC, 100mA (from 500 rack)
- Dimensions: Single-slot 500 module
- Weight: Not specified
- Included: 511 module
- Product Code: 511
