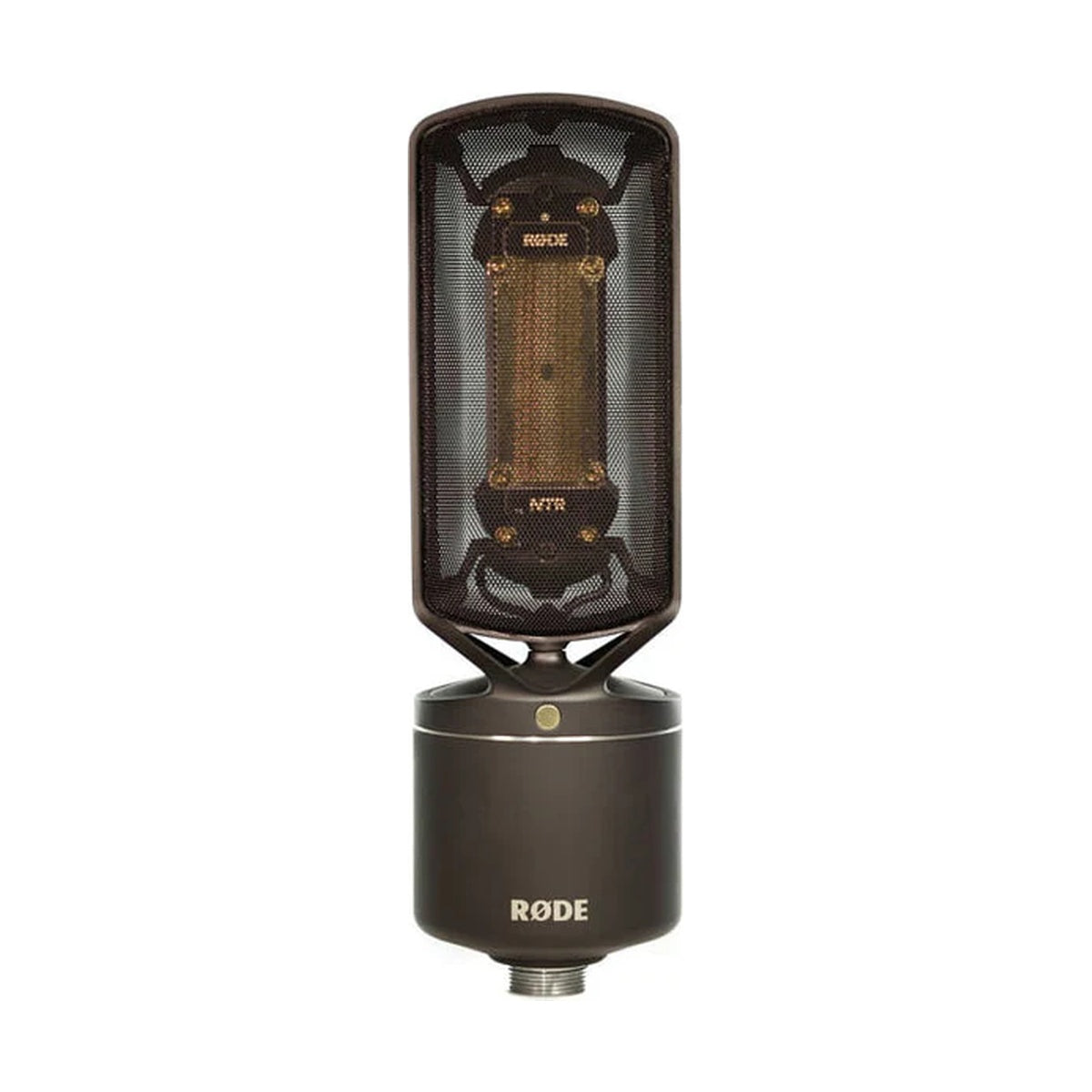

RODE NTR

RODE NTR — a premium active ribbon microphone that redefines the classic ribbon design with modern precision, extremely low noise, and high output. Designed and manufactured in Australia, it delivers the smooth, natural sound of a ribbon with extended frequency response and remarkable detail, making it ideal for vocals, strings, and orchestral instruments.

The NTR features a 1.8-micron aluminum ribbon element, cut precisely by laser to ensure consistency and sensitivity far exceeding traditional ribbon microphones. Its internal active electronics and custom-designed transformer provide a strong, balanced output and compatibility with any standard 48V phantom-powered preamp — no need for special high-gain units.

The microphone’s robust frame is CNC-machined from solid aluminum, with a shock-mounted ribbon suspension system that isolates the delicate element from vibrations and mechanical noise. The open grille design minimizes acoustic coloration, maintaining transparency across the full frequency range. The NTR offers a perfect blend of vintage warmth and modern clarity, setting a new benchmark in ribbon microphone engineering.

KEY FEATURES

• Active ribbon microphone with ultra-low-noise output
• 1.8 μm aluminum ribbon element laser-cut for precision
• Extended frequency response and exceptional detail
• Custom-designed transformer for rich, balanced sound
• Compatible with standard 48V phantom power
• Internal shock mounting for vibration isolation
• Hand-assembled and tested in Australia
• Includes custom-designed shock mount and protective case

TECHNICAL SPECIFICATIONS

• Acoustic principle: Pressure gradient ribbon
• Active electronics: JFET impedance converter with bipolar output buffer
• Polar pattern: Bidirectional (Figure-8)
• Frequency range: 20 Hz – 20 kHz
• Output impedance: 200 Ω
• Maximum SPL: 130 dB SPL
• Sensitivity: -30 dB re 1V/Pa (31.6 mV @ 94 dB SPL)
• Signal-to-noise ratio: 75 dB (A-weighted)
• Equivalent noise level: 15 dBA
• Power requirements: Phantom power 48V ± 4V
• Output connection: XLR 3-pin
• Weight: 1047 g
• Dimensions: 65 mm (W) × 187 mm (H) × 65 mm (D)
