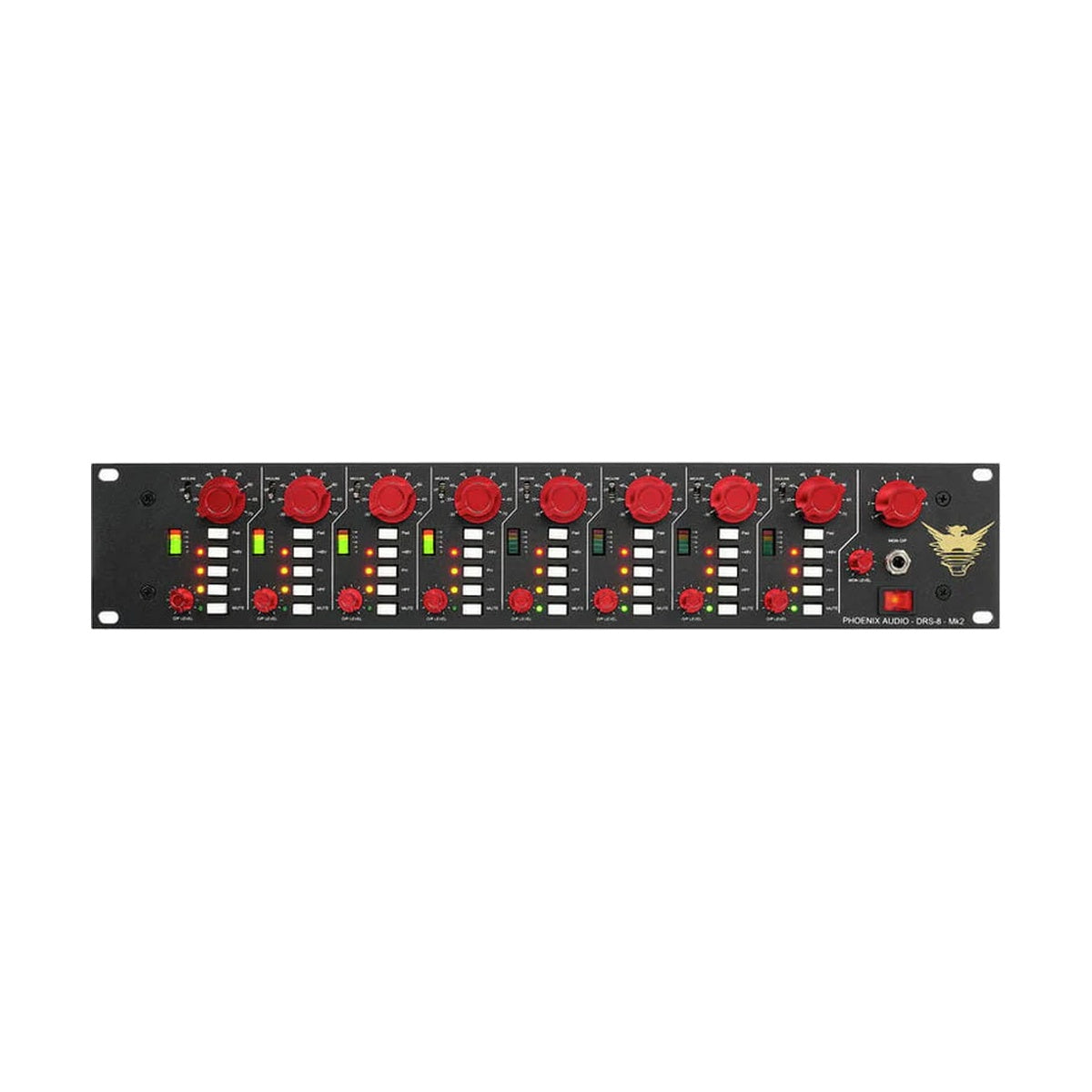

Phoenix Audio DRS-8 MK2 – 8-channel Class-A mic preamp for professional studios, delivering transparent amplification with optional transformer saturation. Features discrete circuitry, variable gain up to 70dB, and balanced outputs for clean, detailed recordings of vocals, instruments, or ensembles.
Eight independent channels with phantom power, phase reverse, and 20dB pad. Optional Lundahl transformers add vintage color. High headroom and low noise ensure versatility in hybrid setups. Compact 2U rackmount design suits mobile or fixed installations.
MAIN FEATURES
- 8 discrete Class-A mic preamps with 70dB gain
- Optional Lundahl transformers for saturation
- +48V phantom power per channel
- Phase reverse and 20dB pad per channel
- Balanced XLR inputs/outputs
- High headroom (+26dBu output)
- Low noise floor (-128dBu EIN)

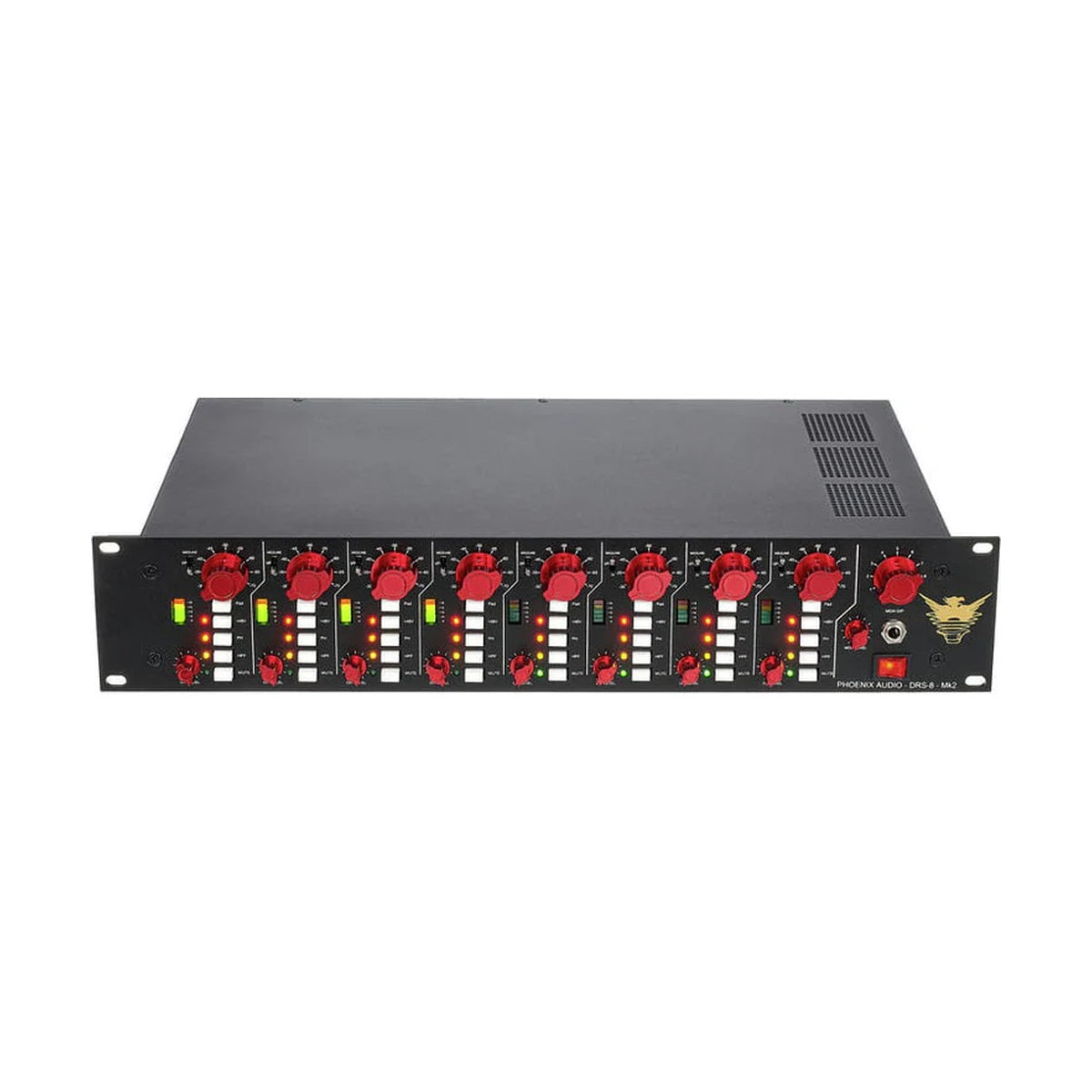

- 2U 19" rackmount chassis
- Handcrafted in UK
TECHNICAL SPECIFICATIONS

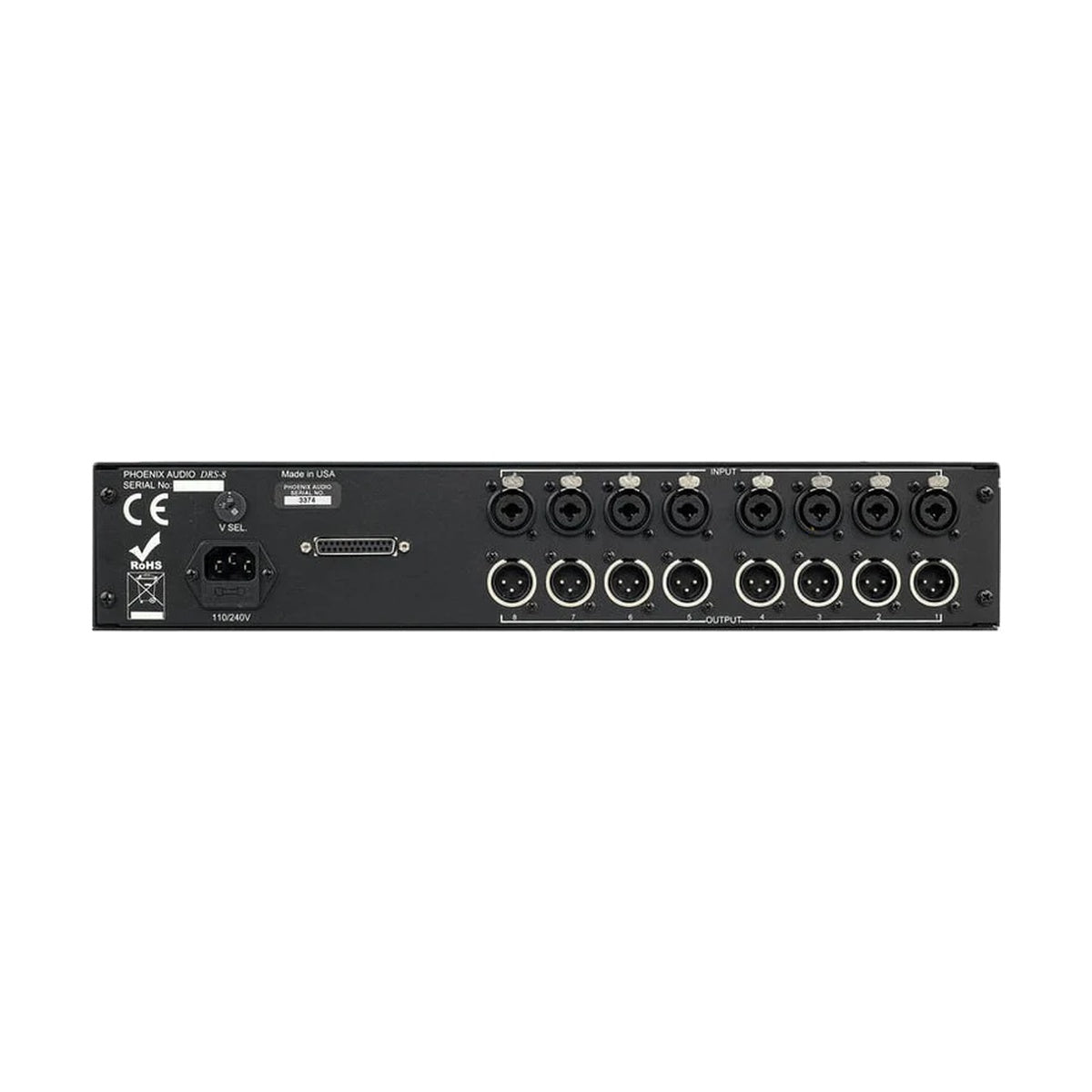

- Inputs: 8 x XLR mic (balanced)
- Outputs: 8 x XLR line (balanced)
- Gain: 10-70 dB
- Frequency Response: 20Hz-100kHz ±0.5dB
- THD + Noise: <0.005% @ 1kHz
- EIN: -128 dBu (150Ω source)
- Max Output: +26 dBu
- Power Supply: External 24V DC
- Dimensions (W x H x D): 19 x 3.5 x 8 in (2U rack)
- Weight: 6 lbs
- Included: DRS-8 MK2, power supply
- Product Code: DRS8MK2
