Heritage Audio RAM 5000

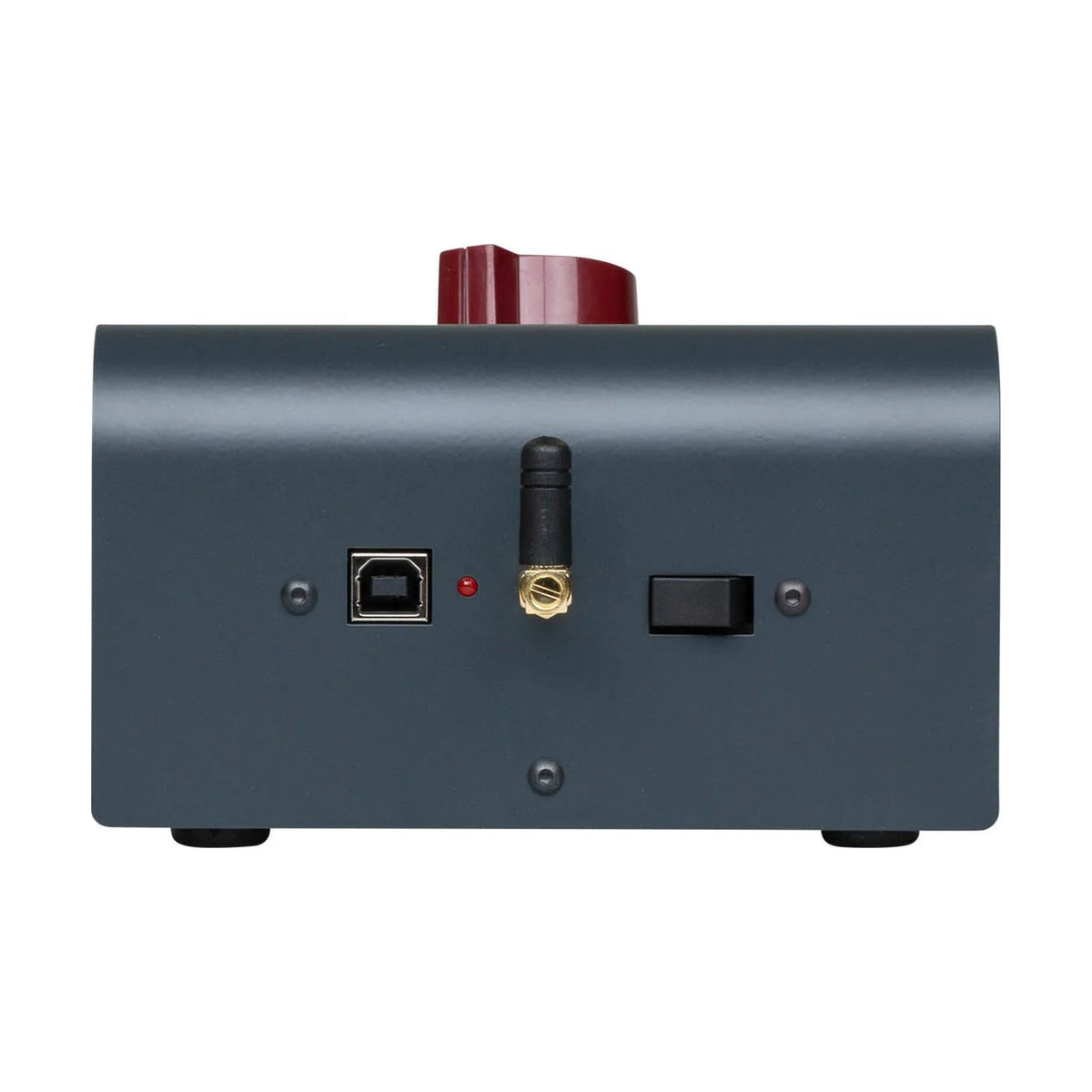

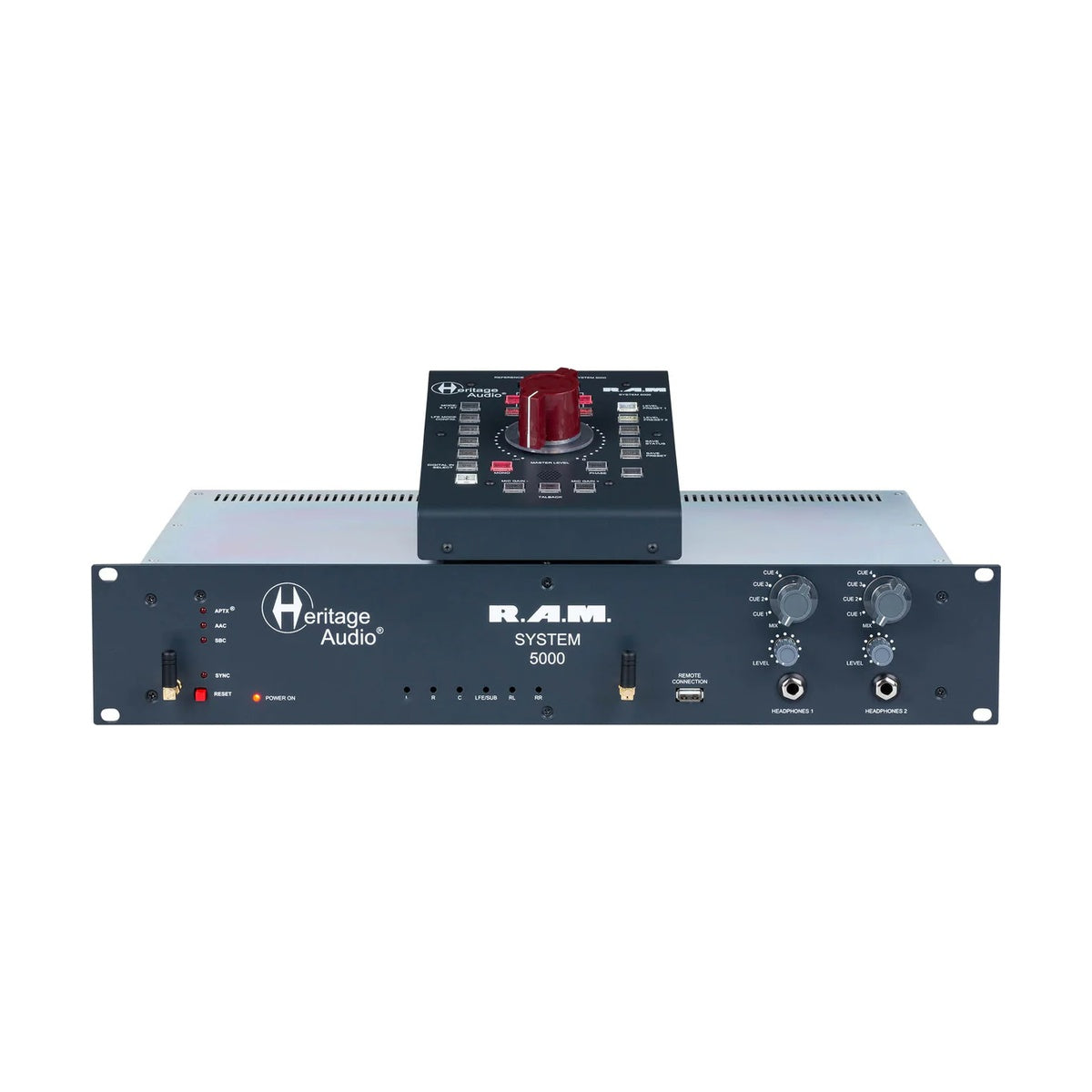

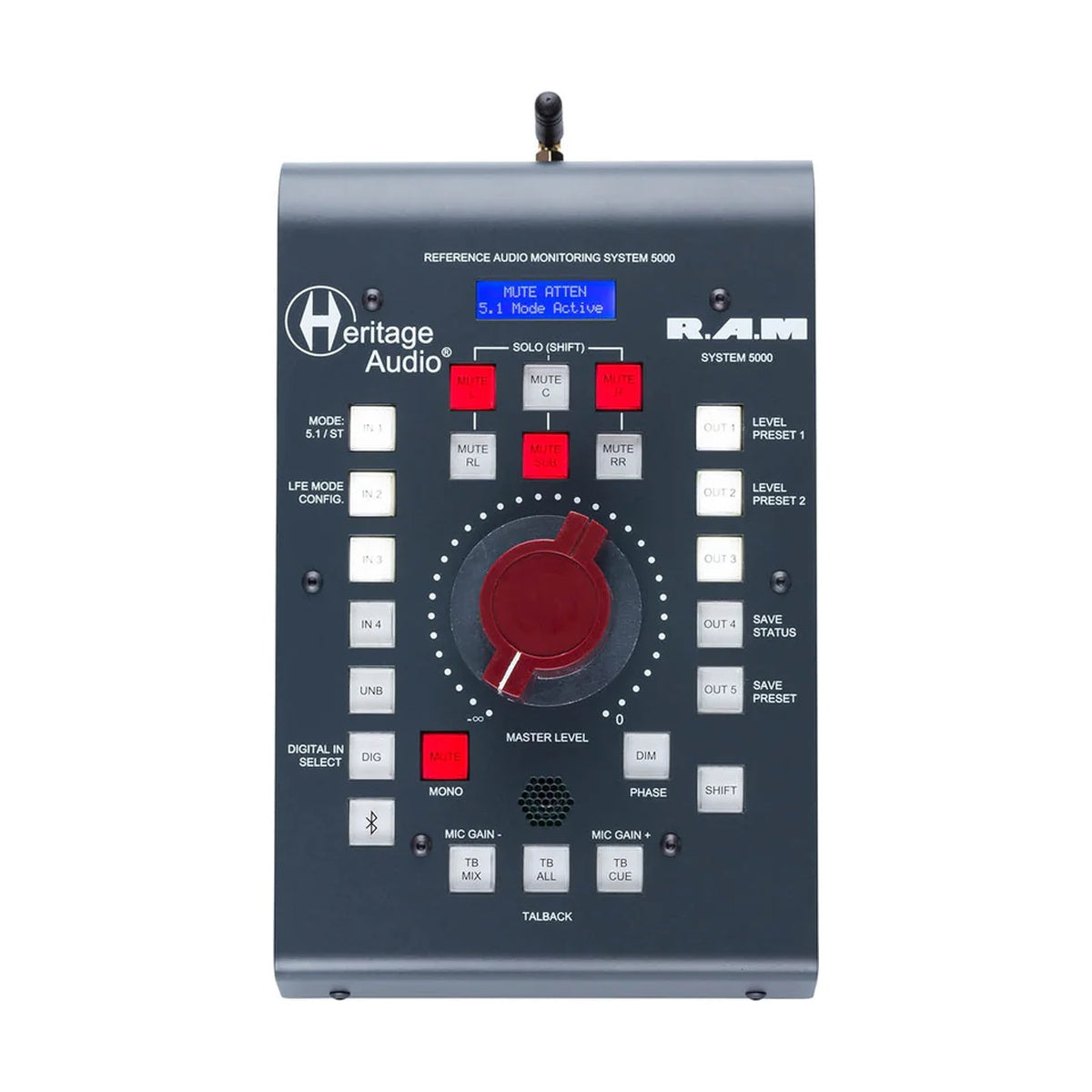

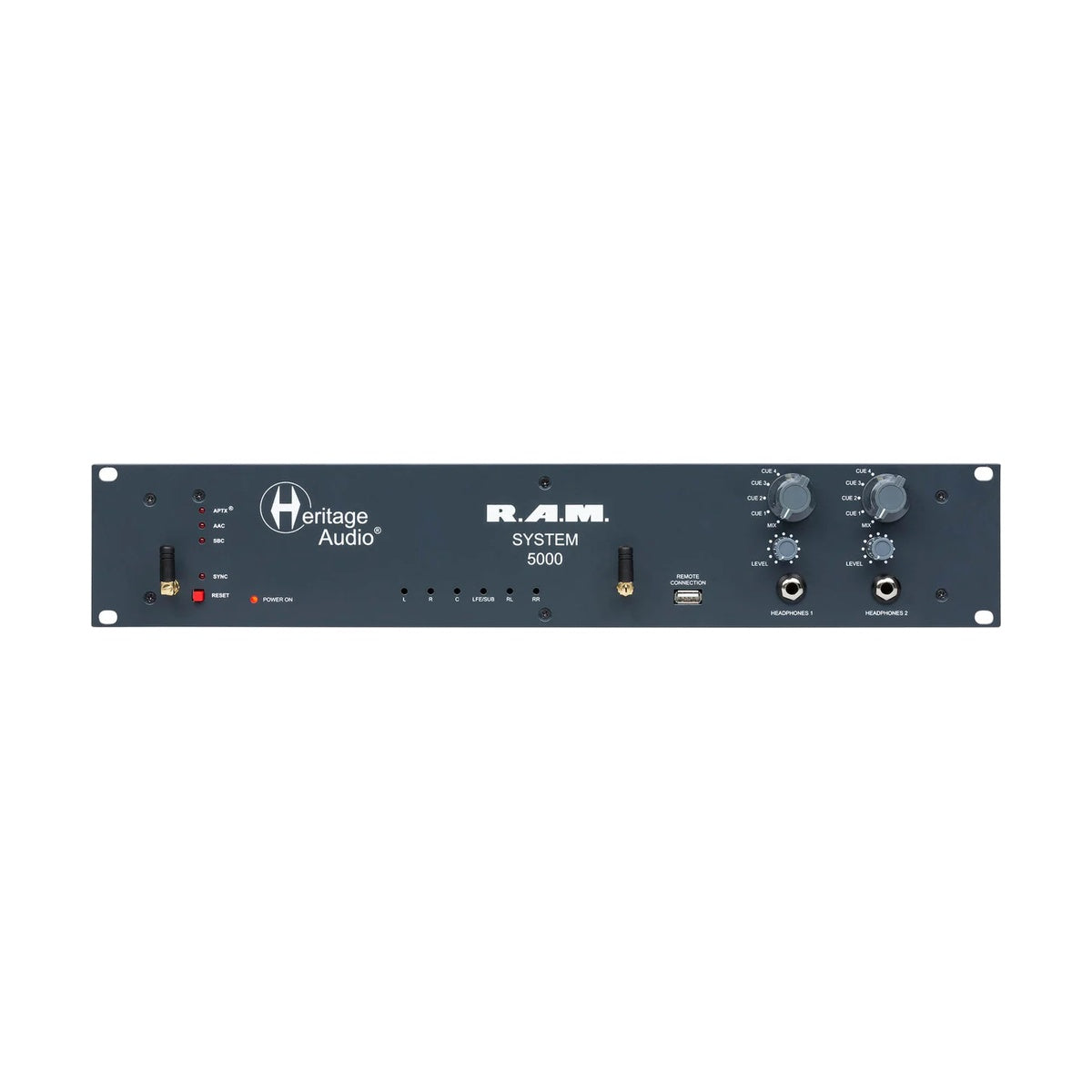

Heritage Audio RAM System 5000 – professional 5.1 monitoring system for hybrid studios, with wireless control and Bluetooth. Delivers transparent sound via 64-step relay attenuator and Wolfson 24-bit/96 kHz DAC. Configurable for 5.1/stereo, with 4 analog inputs, cue mix, talkback, sub management. Ideal for mixing hits or sound for picture. 2U rack enclosure (483 x 88 x 292 mm, 5.4 kg) with desktop controller.

RAM 5000 offers speaker switching, DIM/MUTE/SOLO, 2 headphone amps, independent mix/sub outputs, AES/EBU/SPDIF/Toslink, pro Bluetooth. Gold relays for precision, Burr-Brown buffer for clarity. Wireless remote for preset recall. Redundancy and network monitoring for live.

As flagship system, blends analog quality with flexibility, ready for mastering without compromise.

MAIN FEATURES

• Configurable 5.1/stereo with 4 analog inputs + digital/Bluetooth
• 64-step relay attenuator (1 dB steps)
• Wireless remote for control/presets
• Wolfson DAC 24-bit/96 kHz (AES/EBU/SPDIF/Toslink)
• 2 headphone amps, cue mix, talkback, sub management
• Speaker switching, DIM/MUTE/SOLO, mono/phase
• Burr-Brown buffer for transparency
• 2U rack with desktop controller

TECHNICAL SPECIFICATIONS

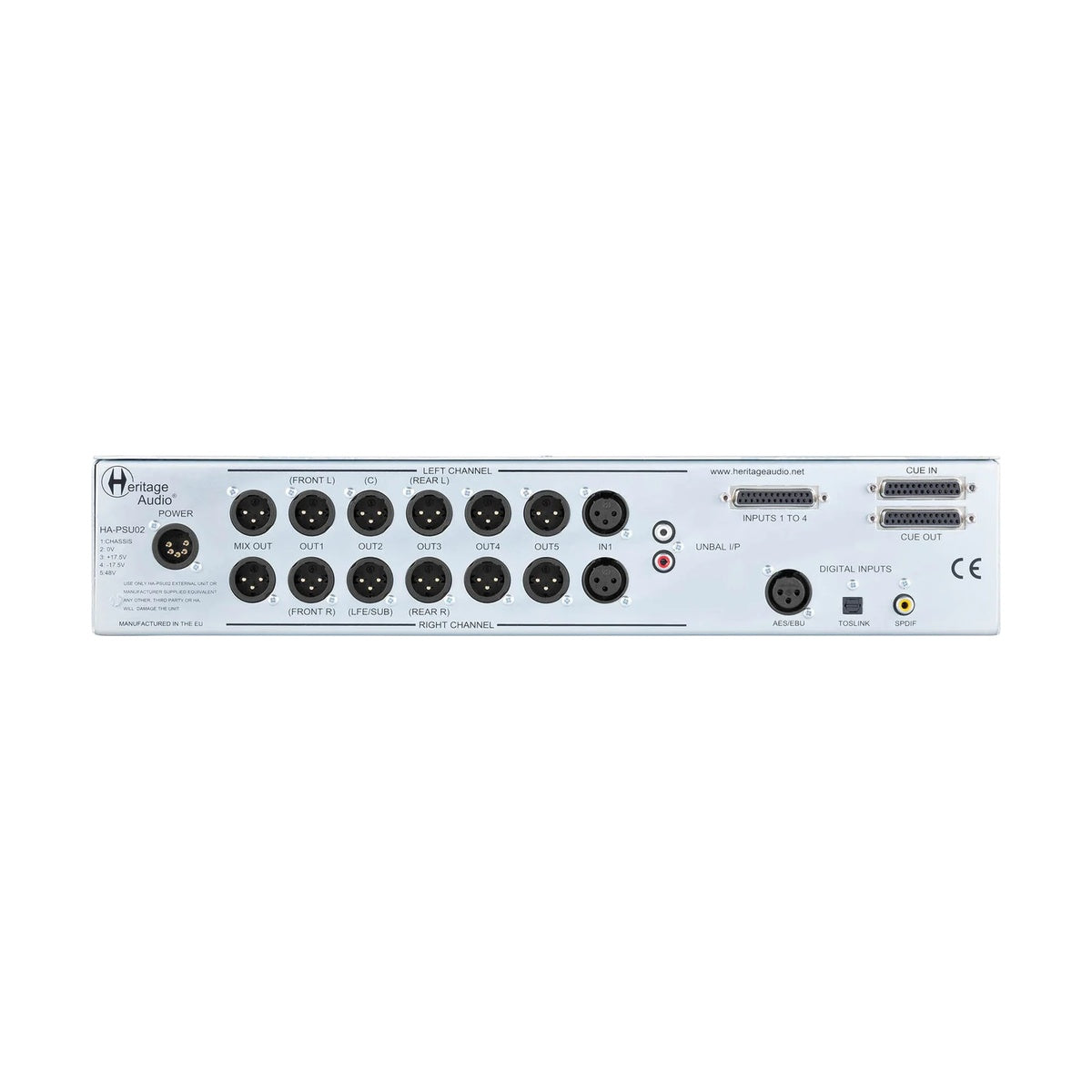

• Inputs: 4x balanced +4 dBu analog (stereo), 1x 5.1 analog, RCA unbalanced, AES/EBU XLR, SPDIF/Toslink, Bluetooth
• Outputs: 5.1/stereo speaker out, subwoofer, 2x headphone (1/4"), cue mix DSUB
• DAC: Wolfson WM8741 24-bit/96 kHz
• Attenuator: 64-step relay, 1 dB resolution
• Frequency Response: 20 Hz–20 kHz (±0.5 dB)
• THD + N: < 0.001% @ 1 kHz
• Noise: < -100 dBu
• Power Supply: 100-240 V AC
• Rack Dimensions (H × W × D): 88 x 483 x 292 mm (2U)
• Weight: 5.4 kg
• Included: RAM 5000 rack, desktop controller, wireless remote, cables
• Product Code: HER-RAM5000
