UDO Audio ONM-1 Synth Control - Expander Module for DMNO ON
This item is available on a custom order basis only
Please contact us for more details.
Contacta con nosotrosElegir opciones
This item is available on a custom order basis only
Please contact us for more details.
Contacta con nosotrosThis item is available on a custom order basis only
Please contact us for more details.

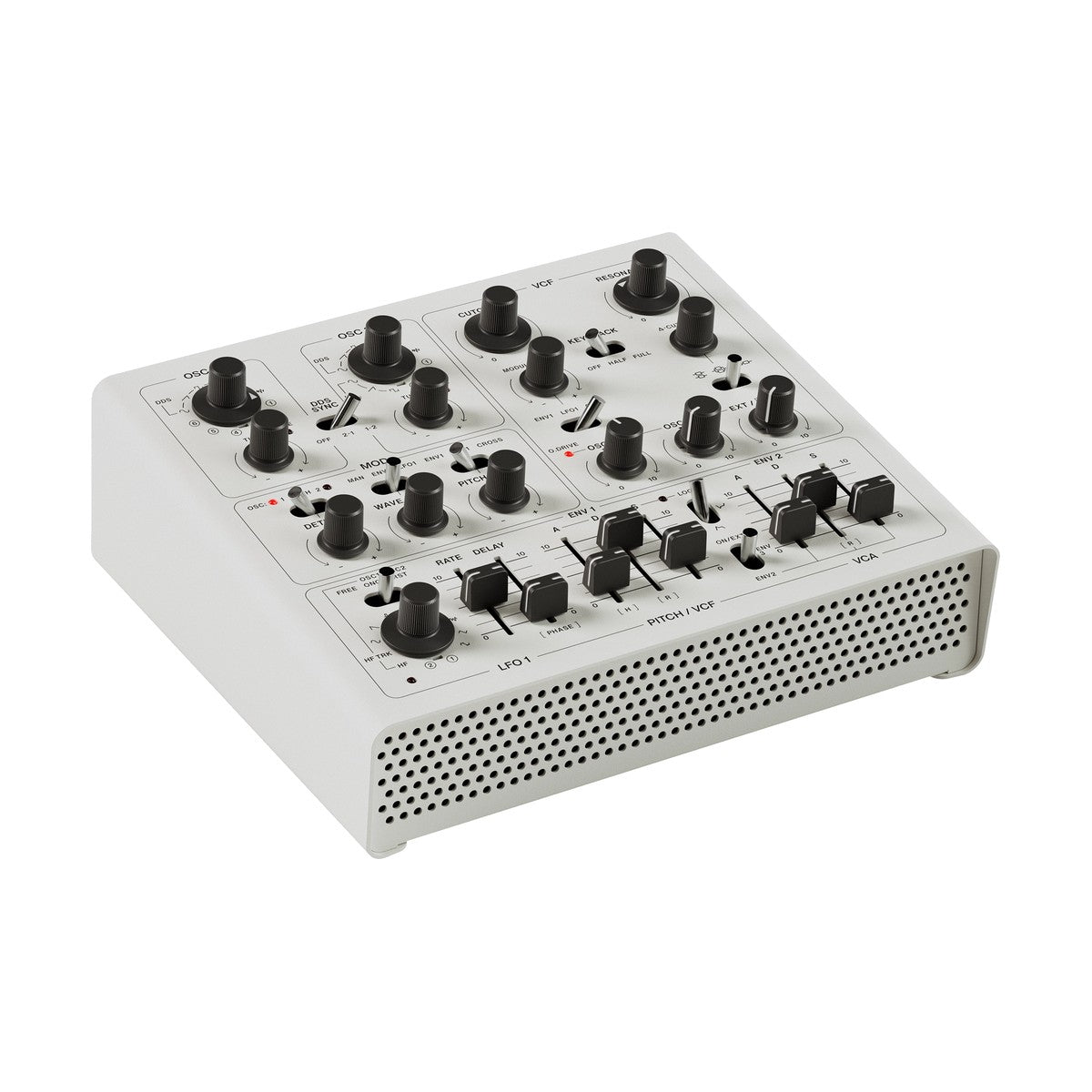

Contacta con nosotrosUDO Audio ONM-1 Synth Control is an optional expander module for the DMNO ON desktop synthesizer. It adds a second set of synth controls, so you handle both DMNO timbres at once, just like the dual-panel layout of the keyboard DMNO. ONM-1 is not a standalone instrument and needs a DMNO ON base unit.
Two timbres, two hands instead of menus
The DMNO ON base unit has one streamlined set of controls, while the full engine of two independent synthesizers stays intact. ONM-1 adds a second set, so each timbre has its own panel within reach and you do not switch views while playing. One panel shapes the first sound, the other the second, and your hands stay on the instrument.
Plug in and play

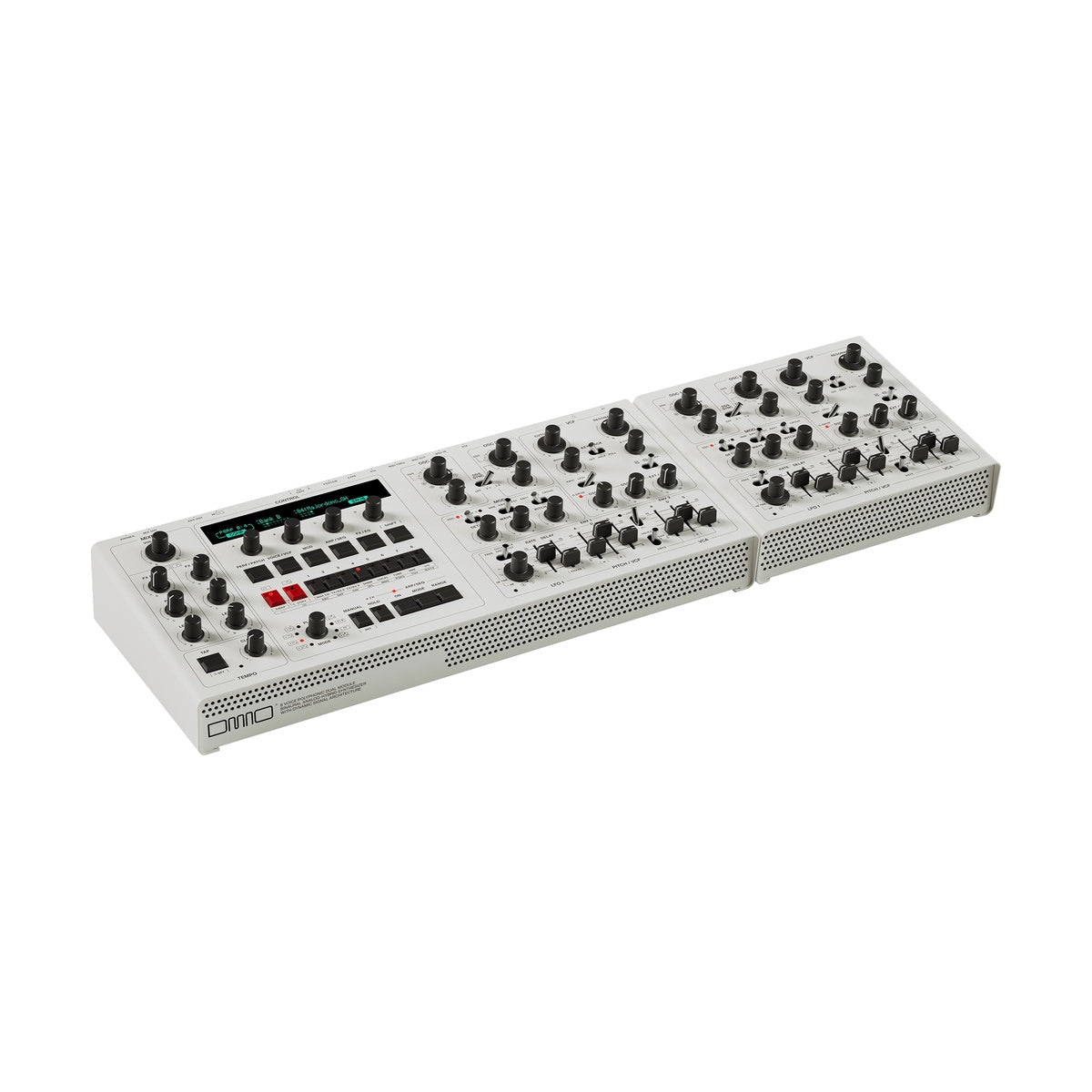

The module connects to DMNO ON with a robust screw-locking D-Sub cable and needs no power supply of its own. You set both units side by side on the desk. In the ON system the ONM-2 FX Control module is planned next to ONM-1, with more modules to follow over time.
KEY FEATURES
- Second set of synth controls for DMNO ON
- Simultaneous control of both DMNO timbres
- Screw-locking D-Sub connection, no separate power supply
- Expands the ON system and can be combined with the ONM-2 FX Control
- Requires a DMNO ON base unit (sold separately)
TECHNICAL SPECIFICATIONS
- Type: Synth Control expander module for DMNO ON
- Connection: screw-locking D-Sub cable, powered by the base unit
- Dimensions: 236 x 220 x 107 mm (132 mm with rear feet extended)
- Weight: 3 kg
- Packaged: 345 x 315 x 215 mm, 3.3 kg
