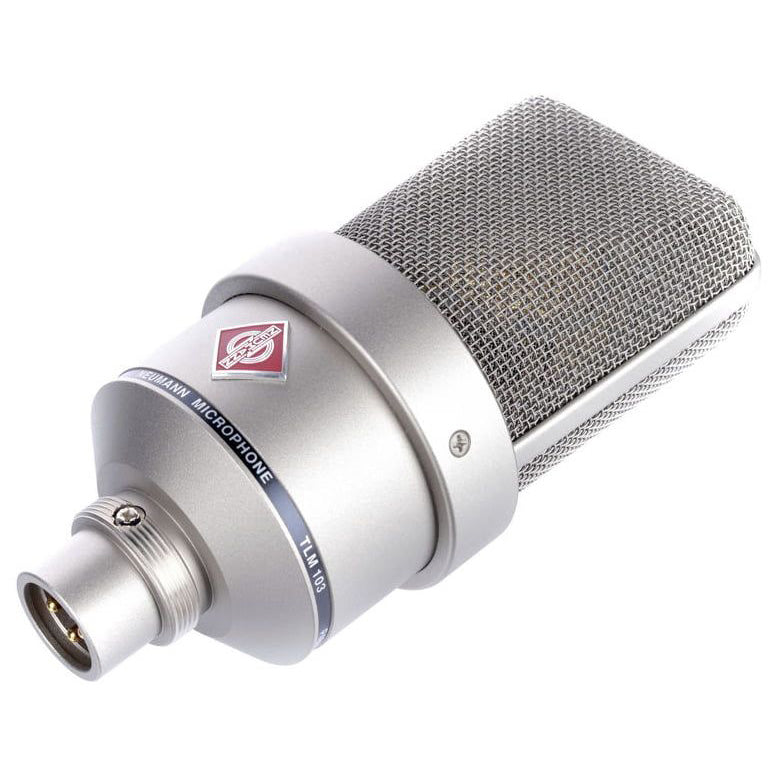

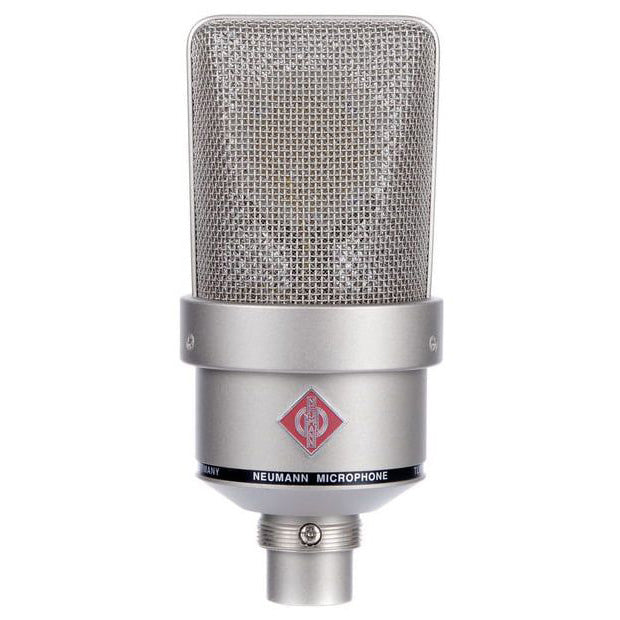

Neumann TLM 103 studio set

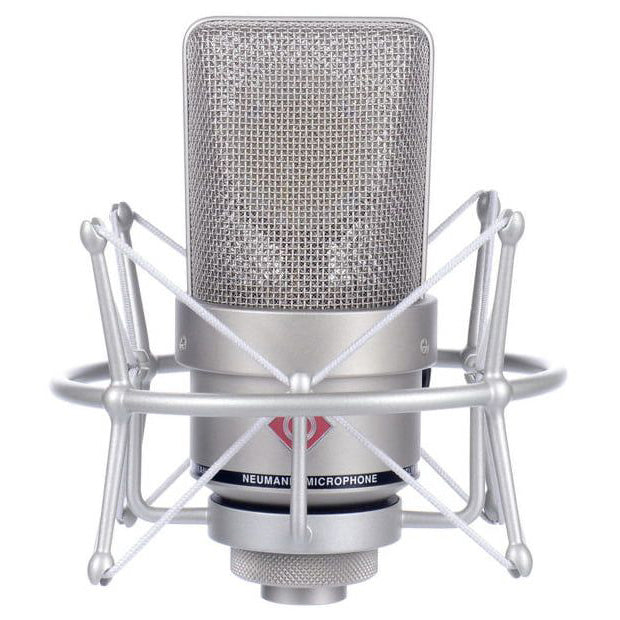

Neumann TLM 103 studio set is a large-diaphragm cardioid condenser with extremely low self-noise of 7 dB-A, derived from the U 87 capsule and built for vocals, voice-over and acoustic instruments. The studio set includes the microphone and the EA 1 elastic suspension.

Quiet sources, no hiss

Voice-over, soft vocals and quiet acoustic instruments expose every bit of microphone noise. At 7 dB-A the TLM 103 is among the quietest studio microphones, so you can record at a distance and raise the gain without adding hiss.

Presence that cuts through

The capsule is linear up to about 5 kHz with a wide presence rise above, giving vocals clarity in a dense mix, while 138 dB maximum SPL leaves room for loud singers and guitar cabinets.

KEY FEATURES

• Large-diaphragm cardioid capsule based on the U 87
• Very low self-noise: 7 dB-A
• Max SPL 138 dB
• Transformerless circuit, 131 dB dynamic range

TECHNICAL SPECIFICATIONS

• Polar pattern: cardioid
• Frequency range: 20 Hz to 20 kHz
• Sensitivity: 23 mV/Pa
• Equivalent noise level: 7 dB-A
• Max SPL: 138 dB (0.5% THD)
• Dynamic range: 131 dB
• Powering: 48 V phantom, 3 mA
• Dimensions: 60 mm x 132 mm
• Weight: approx. 450 g
