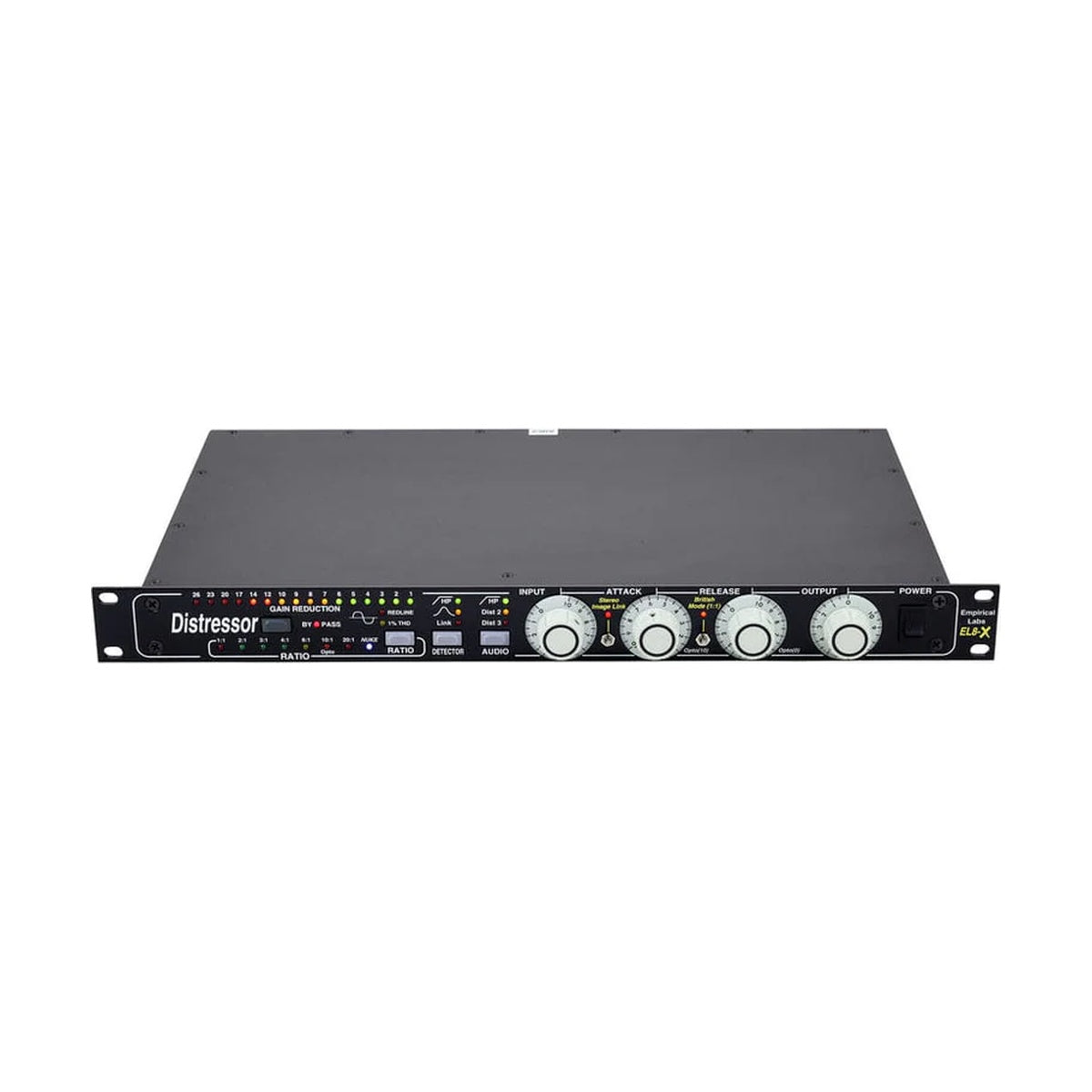

Empirical Labs EL8X Distressor

Empirical Labs EL8X Distressor – legendary digitally controlled analog knee compressor, inspired by 1176/LA-2A. Offers 8 curves, opto simulation, distortion (2nd/3rd order) for tape/tube warmth. Ideal for vocals, drums, mixes. Enclosure (483 x 44 x 216 mm, 3.6 kg) with XLR I/O.

EL8X provides attack 50 μs-30 ms, release 50 ms-3 s, ratio 1:1-∞:1, threshold -45 to +25 dBu. Switches: British Mode, Sidechain HPF, Listen, Opto. Low latency, VU metering. Hand-soldered in USA.

As versatile classic, adds "mojo" without compromise.

MAIN FEATURES

• 8 compression curves, opto simulation
• Distortion 2/3 order for warmth
• British Mode (1176-style)
• Sidechain HPF (off/6/9 kHz)
• Balanced XLR I/O
• Listen Mode, Opto switch
• Portable: 483 x 44 x 216 mm, 3.6 kg

TECHNICAL SPECIFICATIONS

• Attack: 50 μs-30 ms
• Release: 50 ms-3 s
• Ratio: 1:1-∞:1
• Threshold: -45 to +25 dBu
• Frequency Response: 1 Hz–140 kHz (-3 dB)
• Dynamic Range: >110 dB
• THD + N: < 0.005% @ 1 kHz
• Connectors: Balanced XLR
• Power Supply: 100-240 V AC
• Dimensions (W × H × D): 483 x 44 x 216 mm (1U)
• Weight: 3.6 kg
• Included: EL8X, manual
• Product Code: EMP-EL8X
