Elektron Analog Heat +FX – dynamic sound processor with 8 stereo analog distortion circuits, multiple digital effects, and modulation. Delivers warm, organic tones with effect reordering and 512 preset slots. Ideal for processing vocals, synths, and mixes in studios or live. Compact steel enclosure (215 x 184 x 63 mm, 1.5 kg) with OLED screen and Overbridge for DAW integration.
Analog Heat +FX features 8 distortion circuits, multi-mode filter (7 types), 2-band EQ, noise gate, and effects: reverb, delay, chorus, warble, bits, compressor, bass focus. Modulation: 3 LFOs and envelope with two destinations each. CV/Expression inputs for hardware control. USB class-compliant audio and MIDI for flexibility. 48 kHz/24-bit conversion with low noise for pro quality.
As versatile tool, blends analog warmth with digital precision, ready for creative processing without compromise.
MAIN FEATURES
- 8 stereo analog distortion circuits
- Multiple digital effects, reorderable
- Modulation: 3 LFOs + envelope generator/follower (2 destinations each)
- Analog multi-mode filter (7 types) and 2-band EQ
- Effects: Noise Gate, Reverb, Delay, Chorus, Warble, Bits, Compressor, Bass Focus
- 512 user preset slots
- Overbridge and USB class-compliant audio
- MIDI In/Out/Thru with DIN Sync
- CV/Expression pedal inputs
- 128x64 pixel OLED screen
TECHNICAL SPECIFICATIONS
- Sound Processing: 8x stereo analog distortion, stereo multi-mode filter (7 types), 2-band stereo EQ
- Digital Effects: Reverb, Delay, Chorus, Warble, Bits, Compressor, Bass Focus, Noise Gate
- Modulation: 1x envelope generator/follower (2 destinations), 3x LFO (2 destinations each)
- Storage: 512 preset slots

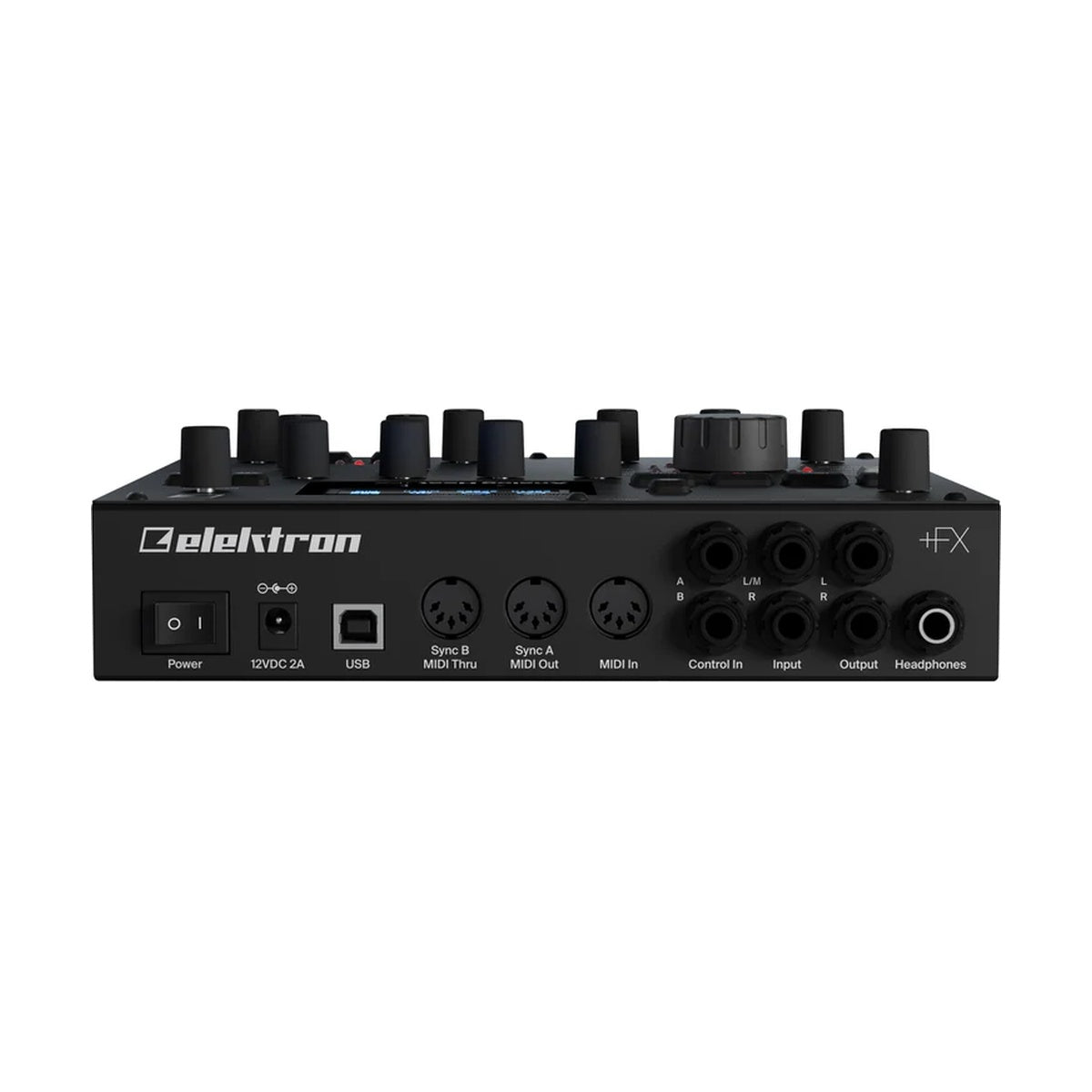

- Hardware: 128x64 OLED screen, MIDI In/Out/Thru (DIN Sync out), 2x ¼″ balanced audio in/out, ¼″ stereo headphones, 2x ¼″ CV/Expression, Hi-Speed USB 2.0
- Audio Outputs: Headphones +19 dBu peak (36 Ω), main +19 dBu peak (440 Ω unbalanced)
- Audio Inputs: Balanced +19 dBu peak (39 kΩ)
- Control Inputs: -5 V – +5 V (CV, expression, footswitch)
- Conversion: 48 kHz, 24-bit D/A and A/D
- Power: PSU-3c (included)
- Dimensions (W × D × H): 215 x 184 x 63 mm
- Weight: 1.5 kg
- Included: Analog Heat +FX, PSU-3c, USB cable
- Product Code: ELE-ANALOG-HEAT-FX
