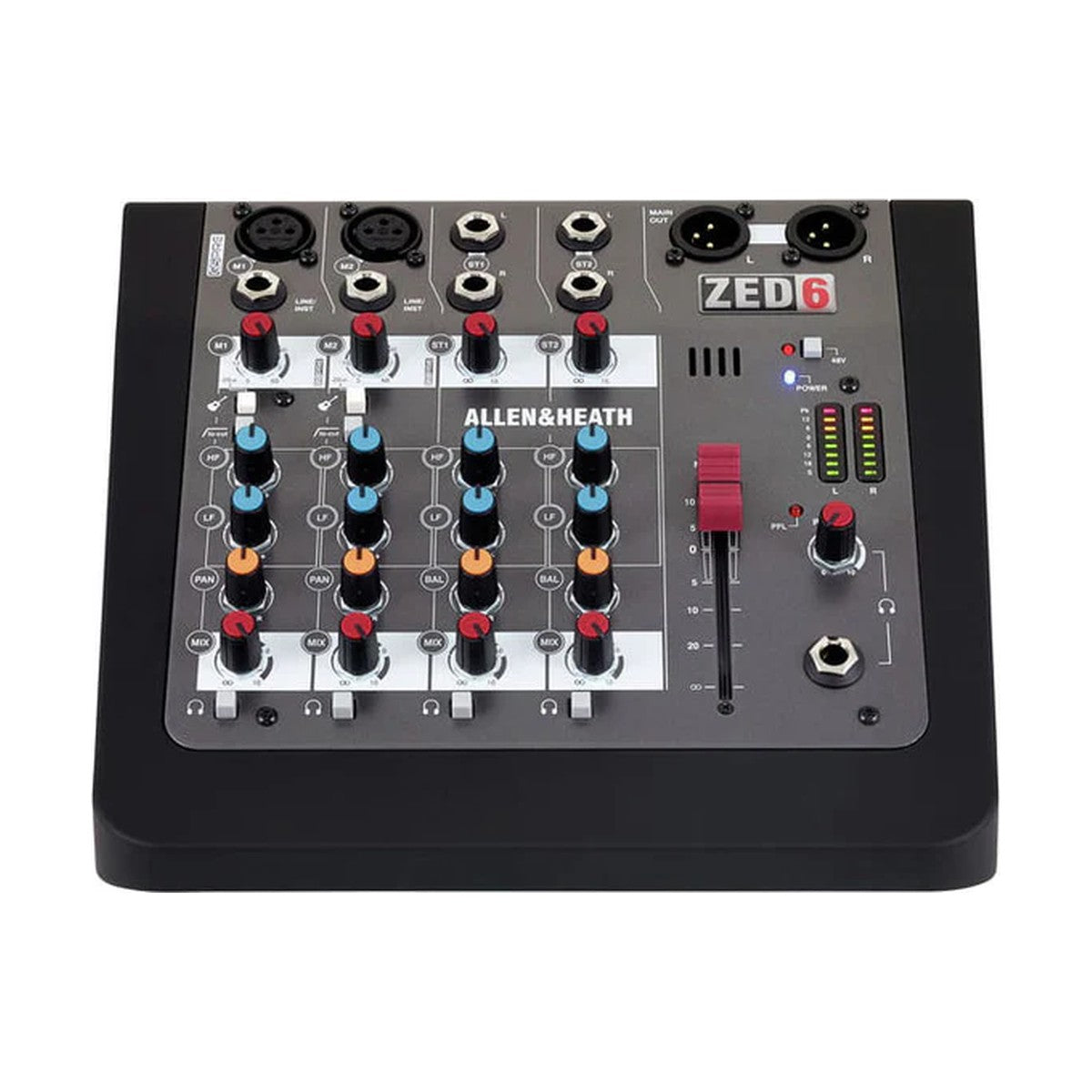

Allen & Heath ZED-6

Allen & Heath ZED-6 – compact 6-channel analogue mixer designed for musicians, singer-songwriters, podcasters, and small venues. Offering Allen & Heath's renowned build quality and audio performance in a portable format, it features 2 mic/line inputs with phantom power, 2 high-impedance instrument inputs, and a stereo channel for line sources. Ideal for live performances, rehearsals, and home recording with USB interface for multitrack capture.

The ZED-6 includes the acclaimed MusiQ EQ section with sweepable mid-band for precise tonal shaping, and a built-in 2-band channel EQ on all channels. Its 3-band EQ on mic channels provides HF shelving, MF peaking, and LF shelving for versatile sound control. The mixer delivers clean, professional audio with low-noise preamps and balanced outputs, suitable for stage or studio use. Compact and rugged, it's perfect for mobile setups.

With a simple layout, illuminated fader caps, and dedicated headphone monitoring, the ZED-6 ensures easy operation. USB connectivity allows direct recording to DAW software, supporting 2x2 audio interface functionality at 24-bit/48kHz. No effects in standard model, focusing on pure analogue mixing excellence.

MAIN FEATURES

• 2 XLR mic/line inputs with individual phantom power (+48V)
• 2 high-impedance (1MΩ) DI inputs for guitars and basses
• 1 stereo input channel for line sources (e.g., keyboards, media players)
• MusiQ EQ: 3-band on mic channels (HF 12kHz shelving, MF 270Hz-22kHz peaking, LF 80Hz shelving), 2-band on stereo (HF/LF shelving)
• Low-noise mic preamps with up to 60dB gain
• USB 2x2 audio interface for multitrack recording (24-bit/48kHz)
• Balanced main outputs (XLR or 1/4" TRS), monitor output, and headphone out
• Illuminated fader caps for low-light operation
• Rugged metal chassis for portability and durability
• Compatible with ZEDi-10 for expanded I/O if needed

TECHNICAL SPECIFICATIONS

• Inputs: 2 x XLR mic/line (balanced), 2 x 1/4" TRS instrument (high-Z), 2 x 1/4" TRS stereo line
• Outputs: 2 x 1/4" TRS main L/R (balanced), 1 x 1/4" TRS monitor, 1 x 1/4" TRS headphone
• EQ: 3-band MusiQ on mic (gain ±15dB), 2-band on stereo
• USB: Class-compliant 2-in/2-out, 24-bit/48kHz, powered by mixer
• Frequency Response: Mic to main: 20Hz-20kHz ±0.5dB
• THD + Noise: Mic preamp: <-100dB @ 1kHz
• Phantom Power: +48V switchable per channel
• Power Supply: External 100-240V AC, 9V DC output, center negative
• Dimensions (H x W x D): 100 x 235 x 225 mm (3.9" x 9.3" x 8.9")
• Weight: 1.85 kg (4.1 lbs)
• Included: ZED-6 mixer, power supply, quick start guide
• Product Code: ZED6
