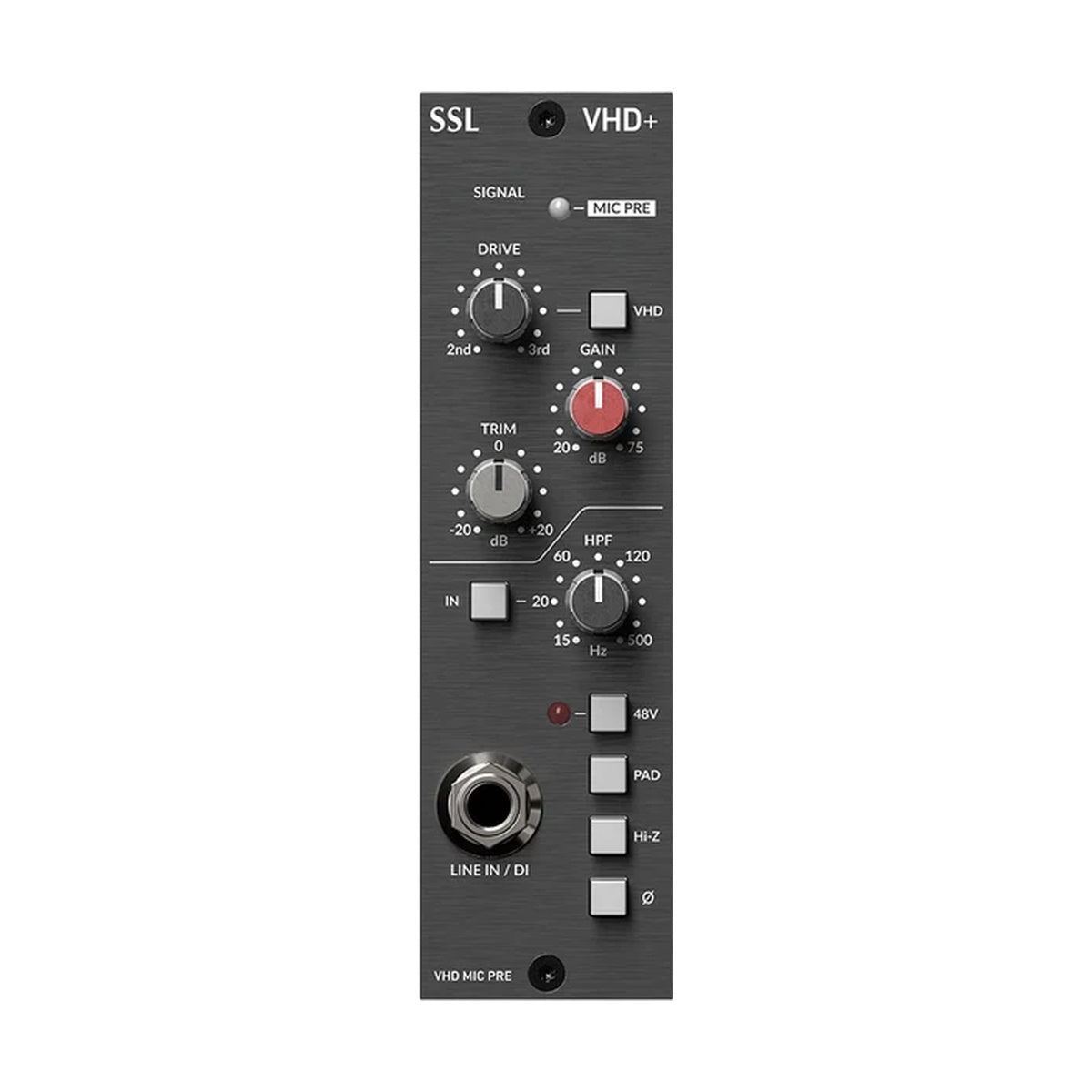

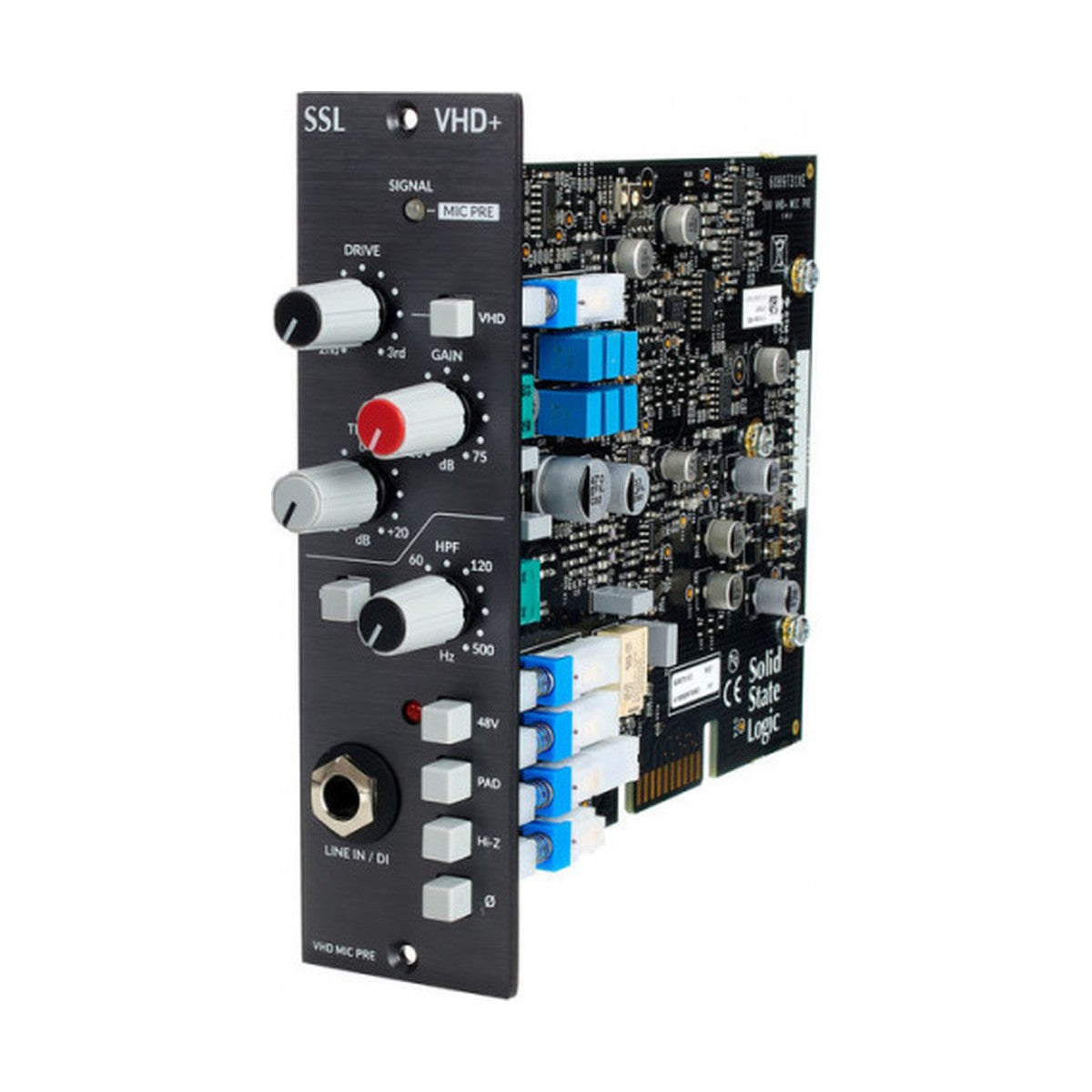

SSL VHD+ 500 Series Preamp Module – versatile 500 Series mic preamp delivering ultra-clean SuperAnalogue sound or rich harmonic distortion via patented VHD technology.
100% analog signal path for 2nd/3rd order harmonics. Gain +20/+75dB, Drive/Trim controls, switchable VHD mode, HPF (15-500Hz), Hi-Z, 48V phantom, pad, phase invert.
Single-slot module for modular racks, ideal for clean to distorted recordings.
MAIN FEATURES
- SuperAnalogue preamp with VHD distortion
- Drive control for harmonic mix
- Trim ±20dB output
- HPF 15-500Hz
- Hi-Z switch
- 48V phantom, pad, phase invert
- LED signal presence
- Single 500 Series slot
TECHNICAL SPECIFICATIONS
- Gain: +20/+75dB
- Inputs: XLR mic/line
- Outputs: 500 Series
- HPF: 15Hz-500Hz
- Phantom: +48V
- Power: 500 Series slot
- Dimensions: Single-slot module
- Weight: Not specified
- Included: VHD+ module
- Product Code: VHD+ Pre
