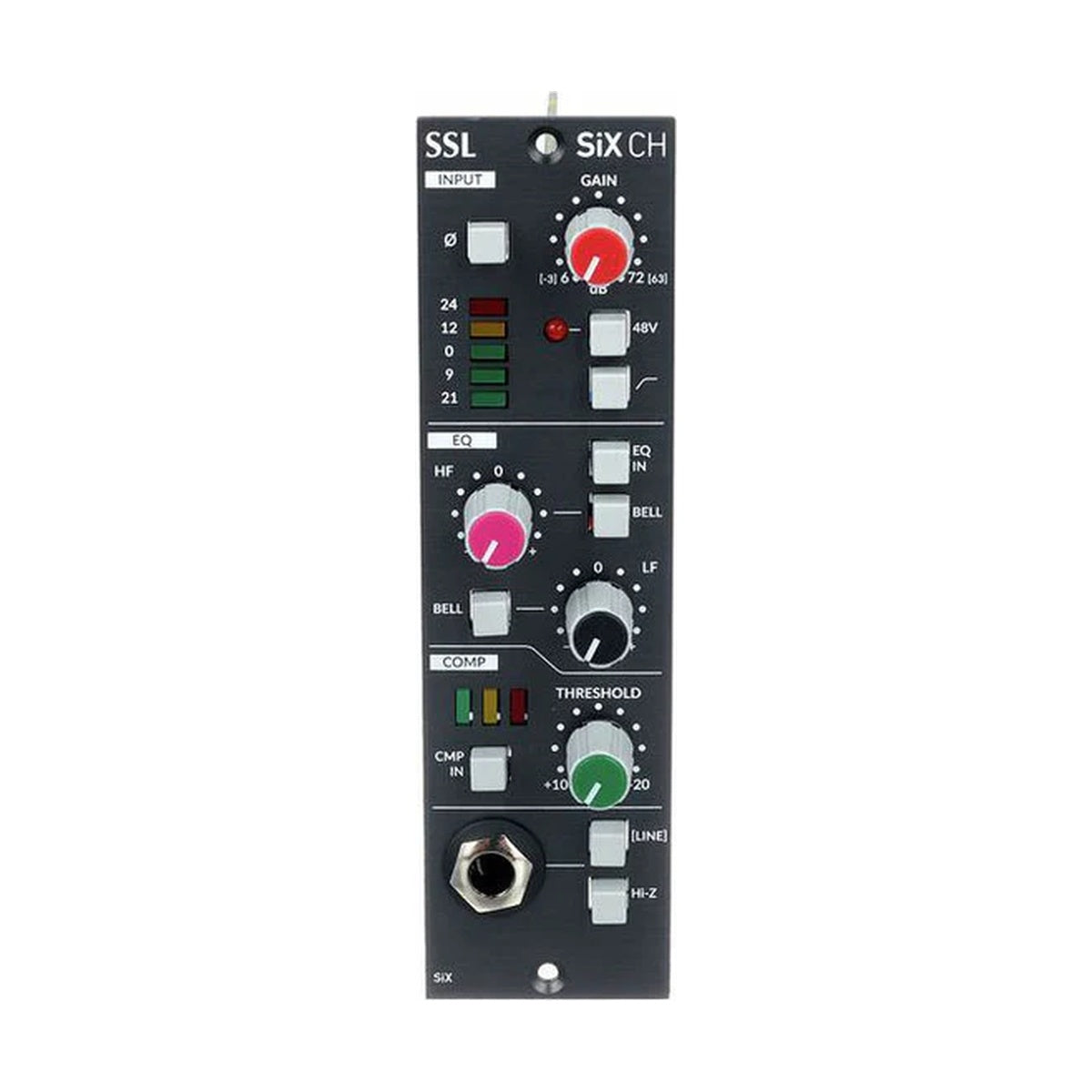

SSL SiX CH Module – single-width 500 Series channel strip with SuperAnalogue mic pre, 2-band EQ, single-knob compressor from SiX console. Mic/line/instrument inputs, up to +72 dB gain, ultra-low noise.
Front TRS line/Hi-Z input (1 MΩ), rear XLR mic/line, 48V phantom, polarity switch, 75 Hz HPF. EQ: 60 Hz LF/3.5 kHz HF shelving (±15 dB), switchable bell modes. Compressor: feed-forward, program-dependent attack, auto makeup gain. 5-segment LED output meter, 3-LED GR indicator.
Compact for lunchboxes, modular mixing.
MAIN FEATURES
- SuperAnalogue mic pre (+72 dB gain)
- Mic/line/instrument inputs, Hi-Z switch
- 48V phantom, polarity, HPF
- 2-band EQ: shelving/bell (±15 dB)
- Single-knob compressor with GR meter
- LED output meter (5-segment)
- 500 Series single-slot
TECHNICAL SPECIFICATIONS
- Inputs: Rear XLR mic/line, front TRS Hi-Z/line
- Outputs: 500 Series
- Gain: Up to +72 dB
- EQ: LF 60 Hz shelving/bell, HF 3.5 kHz shelving/bell
- Compressor: Feed-forward, auto makeup
- HPF: 75 Hz fixed
- Phantom: +48 V
- Power: 500 Series slot
- Dimensions: Single-slot module
- Weight: 183 g
- Included: SiX CH module
- Product Code: SiX CH
