Radial ProD2

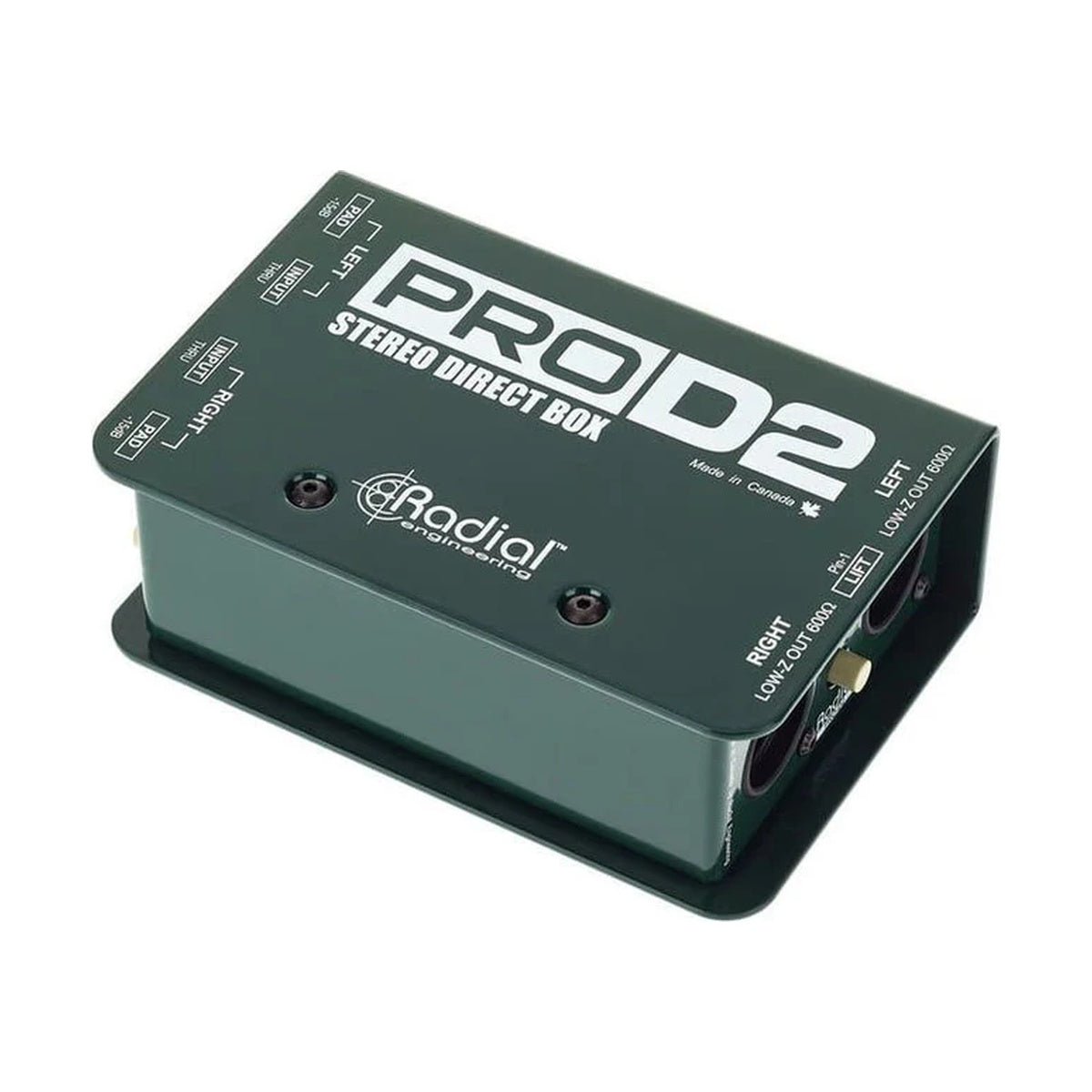

Radial Engineering ProD2 – two-channel passive direct box for connecting stereo keyboards or high-output instruments to PA or recording setup without noise or distortion. Features two Eclipse ET-DB2 transformers for excellent audio performance, handles large transients without distortion. Ideal for digital pianos, samplers, drum machines, other instruments. Can act as splitter for mono outputs. Rugged 14-gauge steel enclosure (127 x 114 x 64 mm, 0.9 kg) with book-end design.

ProD2 eliminates hum and buzz from ground loops, with merge function to sum stereo to mono. 20 Hz–20 kHz bandwidth, linear response. Hand-soldered for durability.

As versatile tool, blends simplicity with precision, ready for live/recordings without compromise.

MAIN FEATURES

• Two-channel passive DI for keyboards/instruments
• Smooth, warm sound rounding digital edge
• Handles huge transients without distortion
• Merge function for stereo-to-mono
• Eliminates hum/buzz from ground loops
• Book-end design with 14-gauge steel
• Can serve as mono splitter
• Portable: 127 x 114 x 64 mm, 0.9 kg

TECHNICAL SPECIFICATIONS

• Type: Passive DI, 2-channel
• Transformers: 2x Eclipse ET-DB2
• Frequency Response: 20 Hz–20 kHz, <1.5 dB deviation above 18 kHz
• Inputs: 2x 1/4" TS unbalanced
• Outputs: 2x XLR balanced, 1x 1/4" THRU
• Input Impedance: 1.4 MOhm
• Output Impedance: 150 Ohms
• THD + N: 0.05% @ 1 kHz
• Noise: -99 dBu (22 Hz–22 kHz)
• Dynamic Range: 109 dB
• Power: Passive, no power required
• Dimensions (W × H × D): 127 x 114 x 64 mm
• Weight: 0.9 kg
• Included: ProD2, manual
• Product Code: RAD-PROD2
