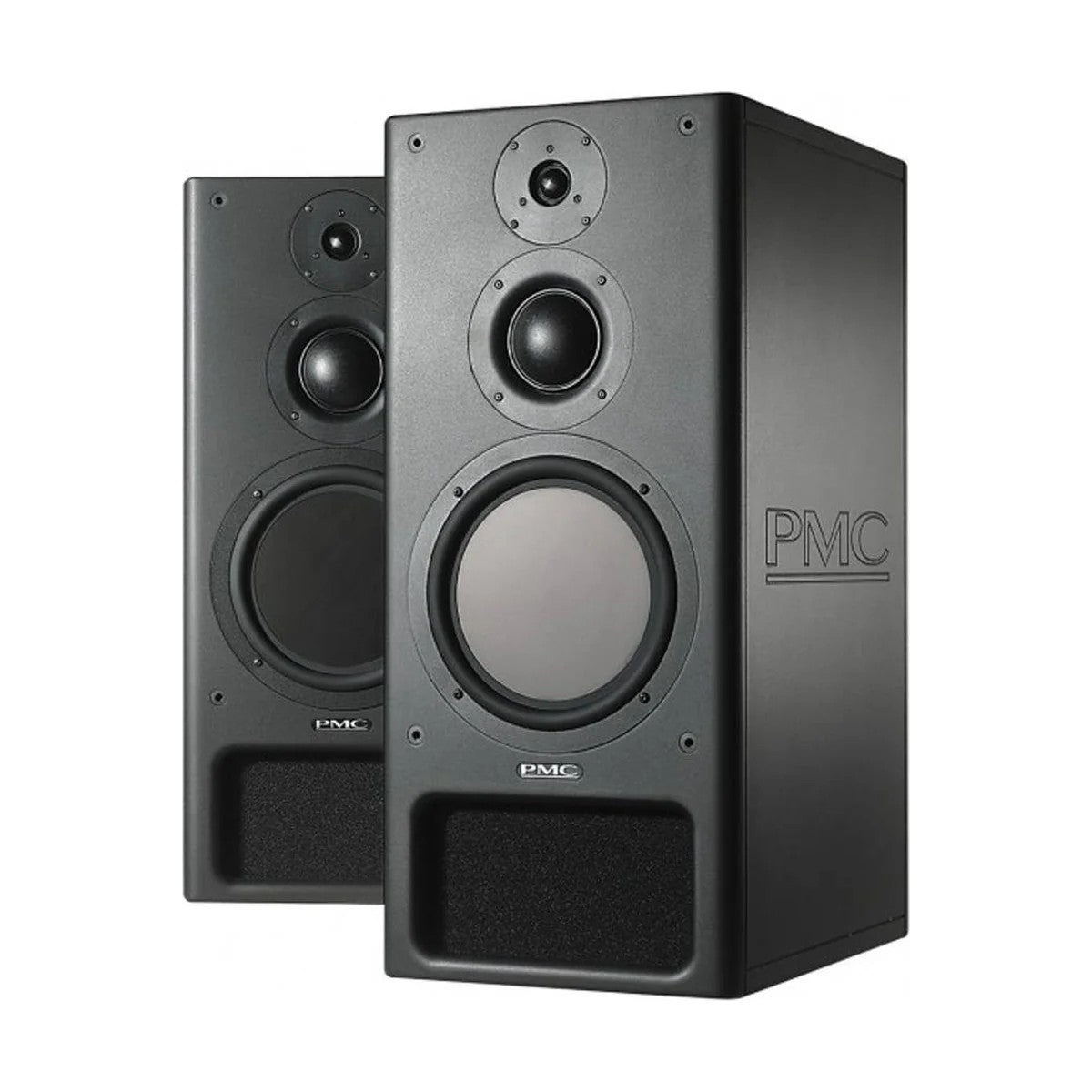

PMC IB2S – 3-way passive studio monitor with a 10-inch polypropylene woofer, 3-inch soft dome midrange, 27 mm soft dome tweeter and PMC’s proprietary Advanced Transmission Line technology.
Designed for high-end reference monitoring, the PMC IB2S delivers unparalleled detail, precision and linearity in a compact form factor. Building on the success of the IB1S, this model integrates the larger PMC 75 midrange dome to provide superior image clarity without increasing enclosure size. The ATL (Advanced Transmission Line) design ensures accurate, resonant-free low end, while the cabinet’s MDF construction offers excellent stiffness and damping. The IB2S is a trusted choice for critical stereo and immersive audio applications in professional studios worldwide.
KEY FEATURES
- 27 mm soft dome tweeter with ferromagnetic shielding
- 3-inch fabric dome midrange driver for improved image clarity
- 10-inch polypropylene woofer with piston-like precision
- Advanced Transmission Line (ATL) bass-loading technology
- Balanced linear response and wide dispersion pattern
- MDF cabinet with optimized damping and rigidity
- Compact dimensions with premium acoustic performance
- Ideal for critical stereo and immersive monitoring
TECHNICAL SPECIFICATIONS
- Configuration: 3-way passive studio monitor
- Drivers: 1 x 27 mm tweeter, 1 x 3" midrange, 1 x 10" woofer
- Crossover Frequencies: 380 Hz / 3.8 kHz
- Frequency Response: 25 Hz – 25 kHz
- Sensitivity: 89 dB SPL (1W/1m)
- Nominal Impedance: 4 Ohm
- Recommended Amplifier Power: 120 – 500 W
- Cabinet Construction: High-density MDF with ATL™ design
- Dimensions (H x W x D): 740 x 330 x 465 mm
- Weight: 41 kg per speaker
